What is FPV and How Does It Work?
Table of Contents
First Person View (FPV) technology is revolutionizing the way we experience drone flying. By providing a real-time, first-person perspective, FPV drones offer an immersive experience that simulates the sensation of flying.
This technology has gained popularity among enthusiasts and professionals alike, thanks to its applications in various fields, including aerial photography and recreational flying. With FPV drones, users can enjoy a thrilling experience while navigating through challenging terrains or capturing stunning aerial footage.
Key Takeaways
- FPV technology provides a real-time, first-person perspective while flying.
- It offers an immersive experience, simulating the sensation of flying.
- FPV drones have various applications, including aerial photography.
- The technology is popular among both enthusiasts and professionals.
- FPV drones enable users to navigate challenging terrains and capture stunning footage.
Understanding FPV Technology
The advent of FPV technology has opened up new avenues for drone enthusiasts and professionals alike. To grasp the significance of FPV, it’s essential to understand its definition and evolution.
Defining First Person View (FPV)
First Person View, or FPV, refers to the ability to see from the drone’s perspective in real-time, using a camera mounted on the drone that transmits video to a display device such as goggles or a monitor. This technology allows pilots to have an immersive experience, as if they were inside the drone. FPV technology has made drone flying more engaging and has enabled pilots to navigate through complex environments with ease.
The key components that make FPV possible include a camera, a video transmitter, and a receiver connected to a display device. The camera captures the video, which is then transmitted to the receiver, and finally displayed on the goggles or monitor.
The Evolution of FPV Systems
FPV systems have evolved significantly over the years, from simple analog systems to sophisticated digital systems. Initially, FPV systems were plagued by issues such as latency and poor video quality. However, advancements in technology have led to the development of high-definition FPV systems that offer high-quality video with minimal latency.
| Evolution Stage | Key Features | Impact |
|---|---|---|
| Early Analog Systems | Basic transmission, low resolution | Limited by poor video quality and interference |
| Modern Analog Systems | Improved transmission, higher resolution | Better video quality, but still susceptible to interference |
| Digital FPV Systems | High-definition video, low latency | Enhanced pilot experience, more reliable |
The Core Components of FPV Drones
FPV drones rely on several key components to deliver an immersive flying experience. These components work together to provide a seamless and enjoyable flight.
Camera Systems
The camera is a crucial element of any FPV drone, as it captures the video feed that pilots rely on to navigate. Camera quality significantly impacts the overall FPV experience.
Camera Types and Specifications
FPV cameras come in various types, including CMOS and CCD, each with its own set of specifications such as resolution, frame rate, and latency. “The right camera can make all the difference in the quality of your FPV experience,” as noted by FPV enthusiasts.
Mounting and Positioning
Proper mounting and positioning of the camera are vital to ensure a stable and clear video feed. This involves using a suitable mount and adjusting the camera’s position to minimize vibrations and optimize the field of view.
Video Transmitters and Receivers
Video transmitters and receivers are essential for transmitting the video signal from the drone to the pilot’s goggles or monitor. The quality of these components can significantly affect the video feed’s clarity and range.
When selecting a video transmitter, factors such as power output and frequency need to be considered to ensure compatibility with the receiver and compliance with local regulations.
Display Options: Goggles vs. Monitors
Pilots have two primary options for viewing their FPV feed: goggles and monitors. FPV goggles provide an immersive experience, while monitors offer a more traditional viewing experience.
Each has its pros and cons. Goggles can be more engaging, but monitors are often more comfortable for longer flights. As one FPV pilot noted, “Goggles give you a more immersive experience, but monitors are easier on the eyes during long sessions.”
How FPV Systems Transmit Video
Understanding how FPV systems transmit video is essential for drone pilots to ensure a smooth and enjoyable experience. The transmission of video signals from the drone to the pilot is a critical component of FPV systems.
Analog vs. Digital FPV Systems
FPV systems can be categorized into two main types: analog and digital. Analog FPV systems are widely used due to their simplicity and low latency. They transmit video signals in an analog format, which can be susceptible to interference and degradation.
Digital FPV systems, on the other hand, offer superior video quality and resistance to interference. They use a digital signal processor to encode the video signal, resulting in a more stable and higher-quality transmission.
Frequency Bands and Channels
FPV systems operate on specific frequency bands, with 2.4GHz and 5.8GHz being the most common. The choice of frequency band affects the transmission quality and range.
2.4GHz vs. 5.8GHz
The 2.4GHz frequency band is more prone to interference due to its widespread use in other devices. In contrast, the 5.8GHz band offers a cleaner signal and is preferred for FPV applications.
Avoiding Interference
To minimize interference, pilots can use techniques such as frequency hopping and channel switching. It’s also essential to monitor the frequency spectrum to identify potential sources of interference.
A comparison of the two frequency bands is shown in the table below:
| Frequency Band | Interference | Range |
|---|---|---|
| 2.4GHz | High | Medium |
| 5.8GHz | Low | Long |
Types of FPV Drones for Different Uses
From racing to cinematic applications, FPV drones cater to different needs and preferences. The diverse range of FPV drones available in the market can be broadly categorized into several types based on their specific uses.
FPV drones have become increasingly popular due to their versatility and the unique experiences they offer. Whether you’re a thrill-seeker, a creative professional, or an enthusiast, there’s an FPV drone designed for you.
Racing Drones
Racing drones are designed for speed and agility, making them ideal for drone racing competitions. These drones are typically built with high-performance components, such as powerful motors and high-speed electronic speed controllers (ESCs).
They are usually equipped with FPV camera systems that provide a first-person view, allowing pilots to navigate through challenging courses at high speeds.
Freestyle Drones
Freestyle drones are designed for performing aerobatic stunts and tricks. These drones are built with a focus on maneuverability and are often used in freestyle drone competitions.
They are equipped with components that enable them to perform complex flips and rolls, making them a favorite among drone enthusiasts who enjoy performing tricks.
Cinematic FPV Drones
Cinematic FPV drones are designed for capturing high-quality video footage. These drones are equipped with high-resolution cameras and stabilization systems to ensure smooth and stable footage.
They are used for various applications, including filmmaking, videography, and photography, offering a unique perspective and immersive experience.
Getting Started with FPV Flying
For those new to the world of FPV, getting started can seem daunting, but with the right guidance, it’s a thrilling experience. FPV drone flying offers a unique perspective and an exhilarating experience, but beginners need to start with the basics.
Essential Equipment for Beginners
To begin FPV drone flying, beginners need some essential equipment. This includes a beginner-friendly FPV drone, a good quality headset or monitor, and a controller that fits your needs. It’s crucial to choose equipment that is compatible and suitable for your skill level.
When selecting a drone, consider factors like durability, ease of use, and the type of flying you want to do (e.g., racing, freestyle, or cinematic). Some popular beginner drones are designed with features like beginner modes that limit the drone’s speed and make it easier to control.
Simulator Training
Simulator training is a critical step for beginners. It allows you to practice flying in a safe and controlled environment, helping you develop the skills needed for real-life flights. Simulators can mimic various conditions and scenarios, preparing you for different situations you might encounter.
Using a simulator can also help you get accustomed to the feel of flying an FPV drone, which is quite different from flying a regular drone or other remote-controlled devices. Many simulators are available for both PC and mobile devices, offering a range of scenarios and difficulty levels.
First Flight Tips
When you’re ready for your first flight, start in an open area free from obstacles. Begin with short flights and gradually increase the duration as you become more comfortable. It’s also a good idea to start in a “beginner mode” if your drone or simulator offers it, as this can help prevent crashes.
Some key first flight tips include keeping the drone in line of sight until you’re more experienced, being aware of the weather conditions, and always checking your equipment before flying. With practice and patience, you’ll become more confident and skilled in FPV drone flying.
Building Your Own FPV Drone
The thrill of flying an FPV drone you’ve built yourself is unmatched, offering a level of customization and performance that’s hard to find in pre-built models. Building your own FPV drone allows you to choose exactly what you want, from the camera quality to the flight controller, tailoring your drone to your specific needs and preferences.
Selecting Components
Selecting the right components is crucial for a successful FPV drone build. This includes choosing a suitable frame, motors, Electronic Speed Controllers (ESCs), a flight controller, a camera, and a video transmitter. Each component must be compatible with the others to ensure smooth operation.
For beginners, it’s advisable to choose components that are known to work well together, such as those found in popular FPV drone kits. Consider factors like the drone’s intended use (racing, freestyle, or cinematic flying), your skill level, and the drone’s weight and size.

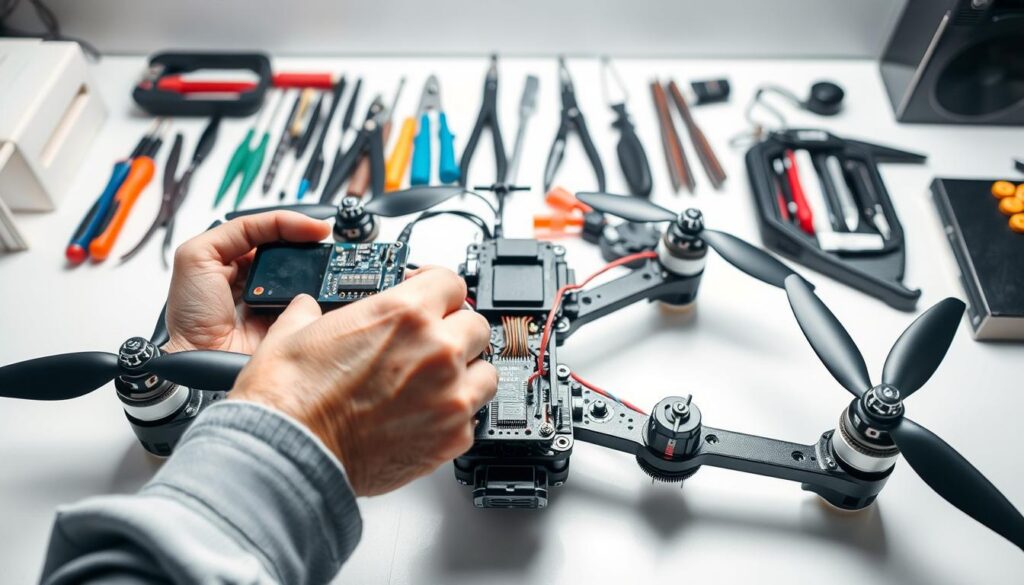

Assembly Process
The assembly process involves mounting the motors, ESCs, and camera, as well as installing the flight controller and video transmitter. It’s essential to follow a logical and methodical approach to ensure that all components are securely attached and connected correctly.
Configuration and Tuning
Once the drone is assembled, it needs to be configured and tuned for optimal performance. This involves setting up the flight controller using software like Betaflight.
Betaflight Setup
Betaflight is a popular open-source flight controller software that offers a high degree of configurability. Setting up Betaflight involves configuring the drone’s ports, setting the correct PID values, and adjusting the receiver settings. A proper Betaflight setup is crucial for stable and responsive flight.
PID Tuning Basics
PID (Proportional, Integral, Derivative) tuning is a critical aspect of configuring your FPV drone’s flight characteristics. It involves adjusting the PID values to achieve the desired flight behavior, such as responsiveness and stability. Proper PID tuning can significantly enhance the drone’s performance and flying experience.
| Component | Function | Considerations |
|---|---|---|
| Flight Controller | Controls the drone’s flight | Compatibility with other components, features like GPS and altitude hold |
| Motors and ESCs | Provide thrust and control | Motor size, KV rating, ESC compatibility and quality |
| Camera and Video Transmitter | Capture and transmit video | Camera resolution, video transmitter power and frequency |
Troubleshooting Common FPV Drone Issues
Understanding how to troubleshoot common issues is crucial for a seamless FPV drone experience. Whether you’re a beginner or an experienced pilot, being able to identify and resolve problems quickly can save time and enhance your overall flying experience.
Video Signal Problems
Video signal issues can manifest as static, loss of signal, or poor video quality. To address these problems, first, ensure that your video transmitter and receiver are properly configured and that you’re operating on a clear frequency. Interference from other devices or nearby FPV systems can also cause issues. Consider using a diversity receiver to improve signal reliability.
Flight Performance Issues
Flight performance issues, such as unstable flight or vibrations, can often be traced back to the drone’s configuration or physical condition. Check that your drone’s props are balanced and that the motors are clean and functioning correctly. Also, review your drone’s PID settings to ensure they’re properly tuned for stable flight.
Battery and Power Concerns
Battery and power issues can lead to reduced flight times or unexpected power-offs. To mitigate these concerns, always use a compatible charger and monitor your battery’s health. Be mindful of your flying style, as aggressive maneuvers can drain batteries faster. Consider having spare batteries to ensure continuous flying.
By addressing these common issues, FPV drone pilots can enjoy a more reliable and enjoyable flying experience. Regular maintenance and staying informed about best practices can also help minimize troubleshooting needs.
Legal and Safety Considerations for FPV Drones
To ensure a safe and enjoyable FPV drone flying experience, pilots must be knowledgeable about current regulations and best practices. FPV drone flying is not just about the thrill of the experience; it’s also about doing so responsibly and within the bounds of the law.
FAA Regulations in the United States
The Federal Aviation Administration (FAA) has established specific regulations for drone operations in the United States. For FPV drone pilots, understanding these regulations is crucial. Key points include:
- Registering drones weighing more than 0.55 pounds with the FAA.
- Operating drones below 400 feet above ground level.
- Avoiding flying near airports or other restricted areas.
FAA regulations are in place to ensure safety in the national airspace. FPV pilots must comply with these rules to avoid penalties.
Best Practices for Safe Flying
Beyond legal compliance, safe flying practices are essential for minimizing risks to people and property. Some best practices include:
| Practice | Description | Benefit |
|---|---|---|
| Pre-flight checks | Inspecting the drone before flying. | Reduces risk of mechanical failure. |
| Awareness of surroundings | Being mindful of obstacles and other air traffic. | Prevents accidents and collisions. |
| Maintaining line of sight | Keeping the drone in visual range. | Enhances control and situational awareness. |
By following these safe flying practices, FPV drone pilots can enjoy their hobby while minimizing risks.
Conclusion: The Future of FPV Technology
The future of FPV technology is exciting and rapidly evolving. As FPV technology advancements continue, we can expect to see significant improvements in drone performance, video quality, and overall user experience.
One of the most anticipated developments in the future of FPV is the increased adoption of digital FPV systems, offering higher video quality and reduced latency. This shift is expected to enhance the overall FPV experience, making it more immersive and engaging for pilots.
Furthermore, advancements in areas such as AI, battery technology, and drone design will likely play a crucial role in shaping the future of FPV. As these technologies continue to mature, we can expect to see new and innovative applications of FPV technology across various industries.
With the continued growth and innovation in FPV technology, the possibilities for FPV enthusiasts and professionals alike are vast and promising. As the technology continues to evolve, it will be exciting to see the new heights that FPV will reach.
