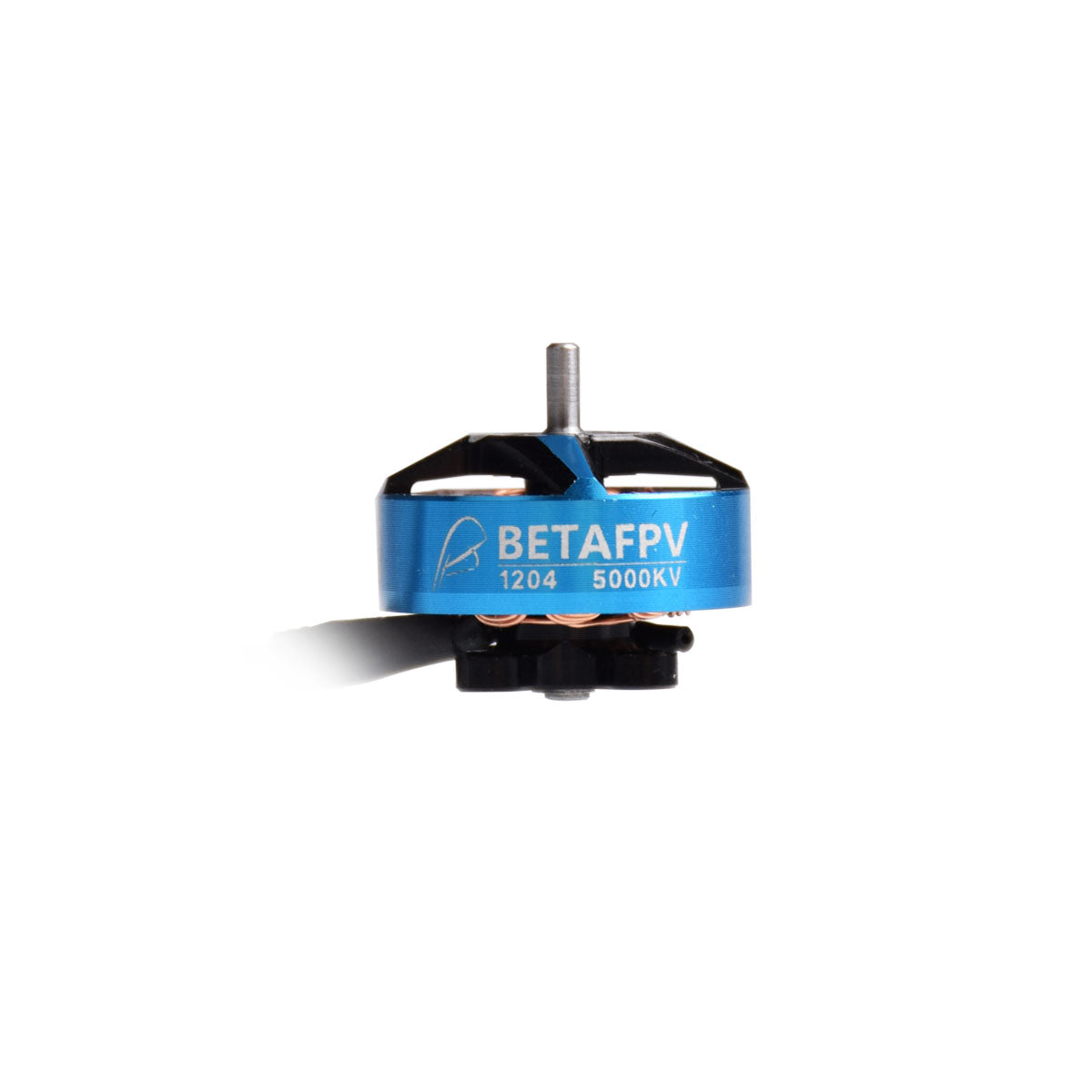

1204 5000KV Brushless Motors

1204 5000KV motor is one of the best motors for 2-3inch FPV Racing Drone, which has increased power efficiency, adopting multi-heat dissipation hole design helps to pull heat away continuously in flight. Super durable and ultra-light unibody bell shape with only 5.9g. The sturdy structure and high-quality materials make it performs like a beast, you”ll have your mind blown!

BULLET POINTS

• Power efficiency becomes higher, experience more flight time
• The first betafpv motor to adopt all-new unibody bell shape design and brand blue color, enjoy this fantastic motor
• Standard mounting pattern at the bottom, adapt to all frames on the market

• Adopt a curved magnet structure to achieve more smooth and silent

• Compatible with 3-4S lipo battery

RECOMMENDED PARTS

• Battery: 450mAh 4S 75C Lipo Battery

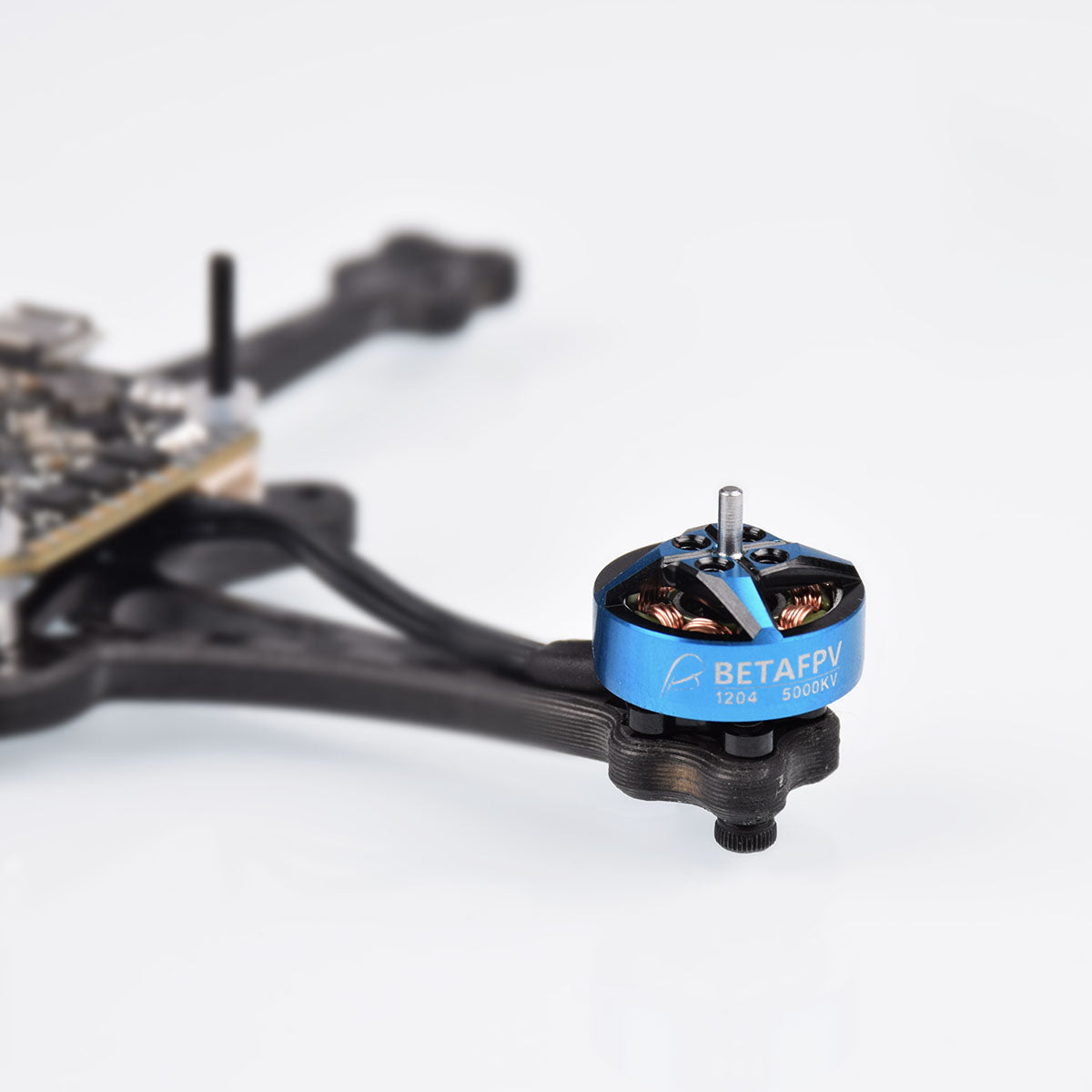

• Frame: Beta85X frame, HX115 Frame
• Propellers: EMAX 2″ props, 3020 Props, 3030 Props, 65mm 2-Blade Props
• Flight Controller: Toothpick F4 12A AIO FC, Toothpick F4 20A AIO FC
• Motor: 1204 5000KV Motors / 1404 3800KV Motors / 1505 3600KV Motors

SPECIFICATION

• Height: 15.4mm

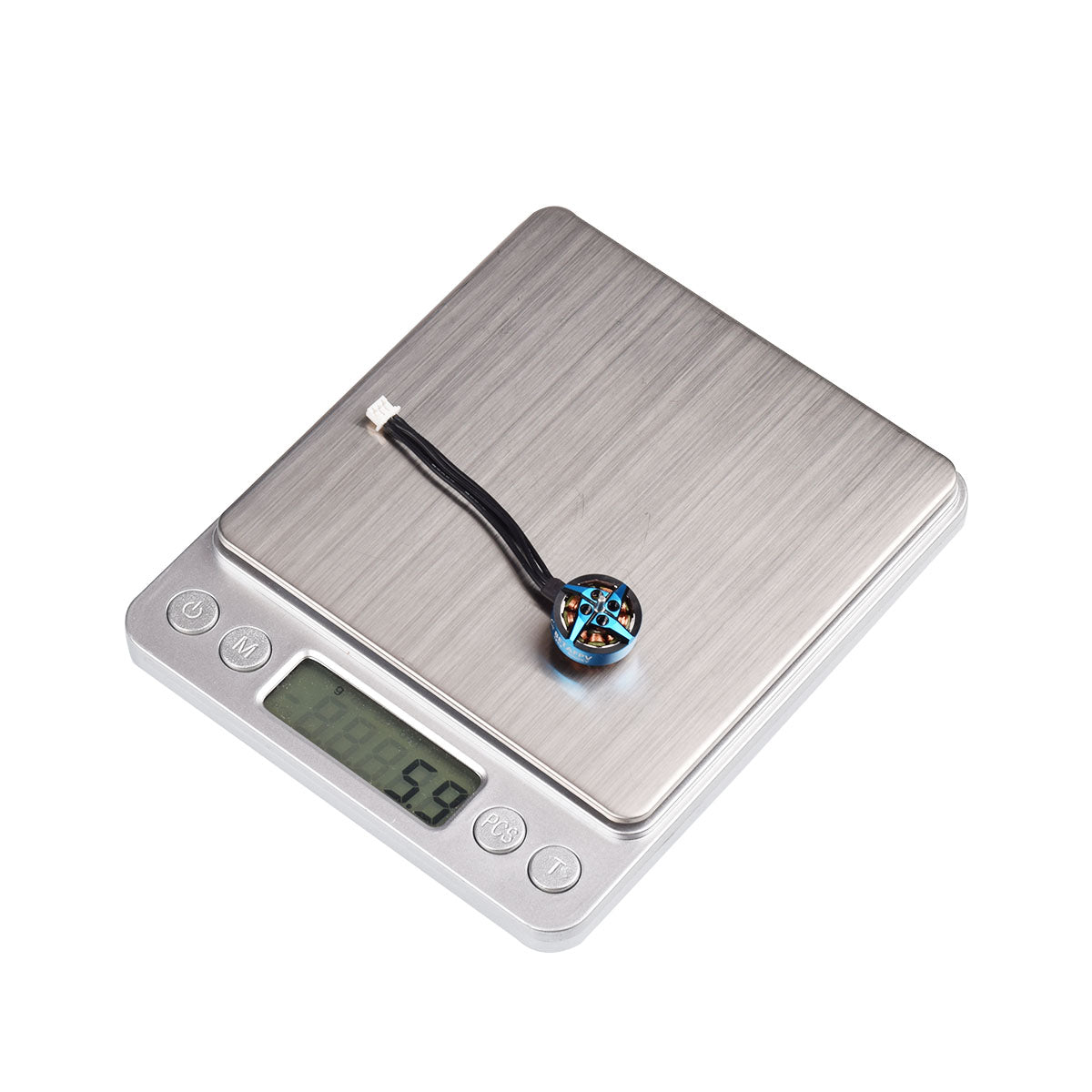

• Weight: 5.9g (1 pcs)
• Shaft: φ1.5mm
• Motor Mount Holes: M2EQS on Dia 5.0mm
• KV (rpm/V): 5000
• Input Voltage: 3-4S LIPO
• Plug and cables: Micro JST-1.25 3-pin connector with 28AWG cables (5000KV)

PACKAGE

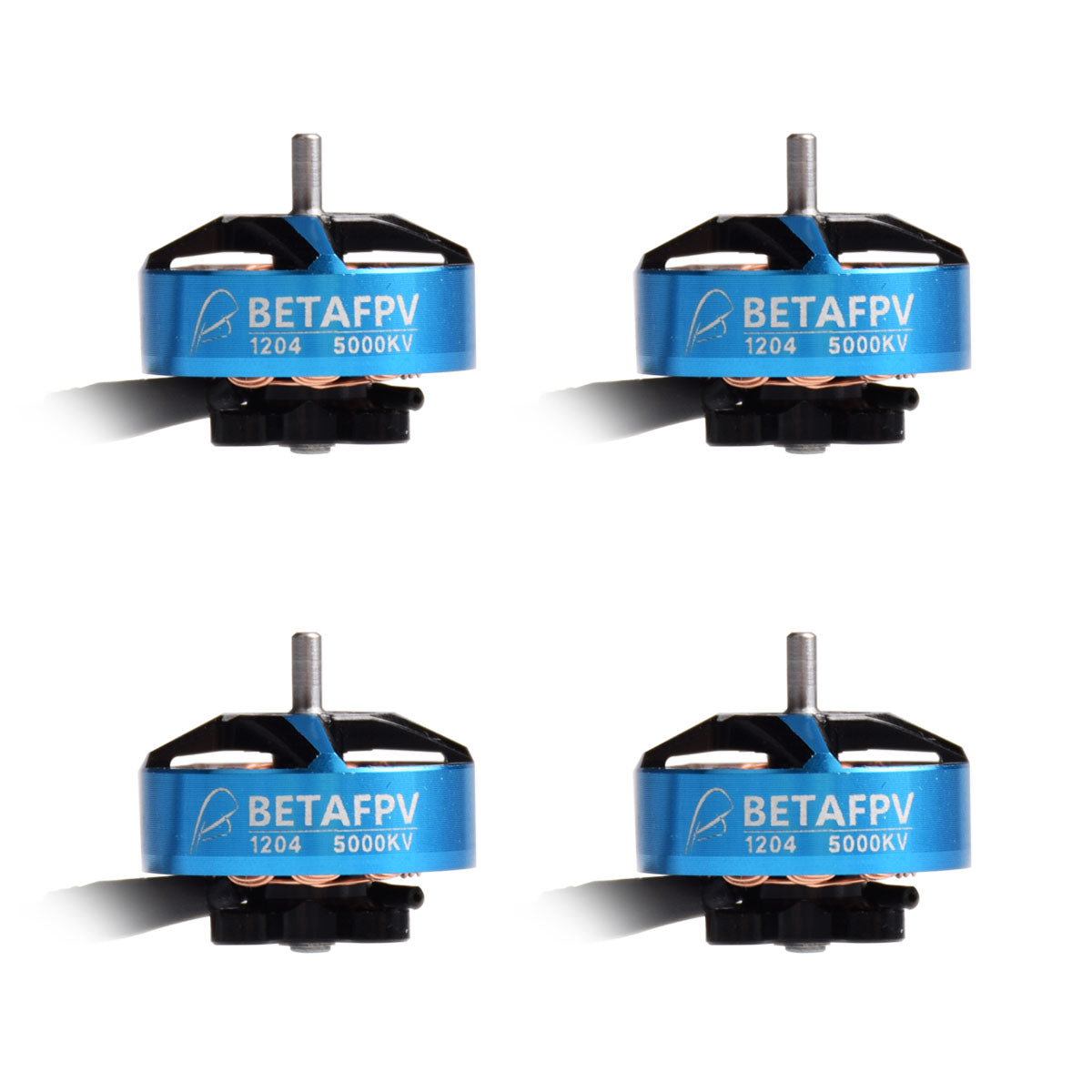

• 1* BETAFPV 1204 5000KV Brushless Motors
• or
• 4* BETAFPV 1204 5000KV Brushless Motors
