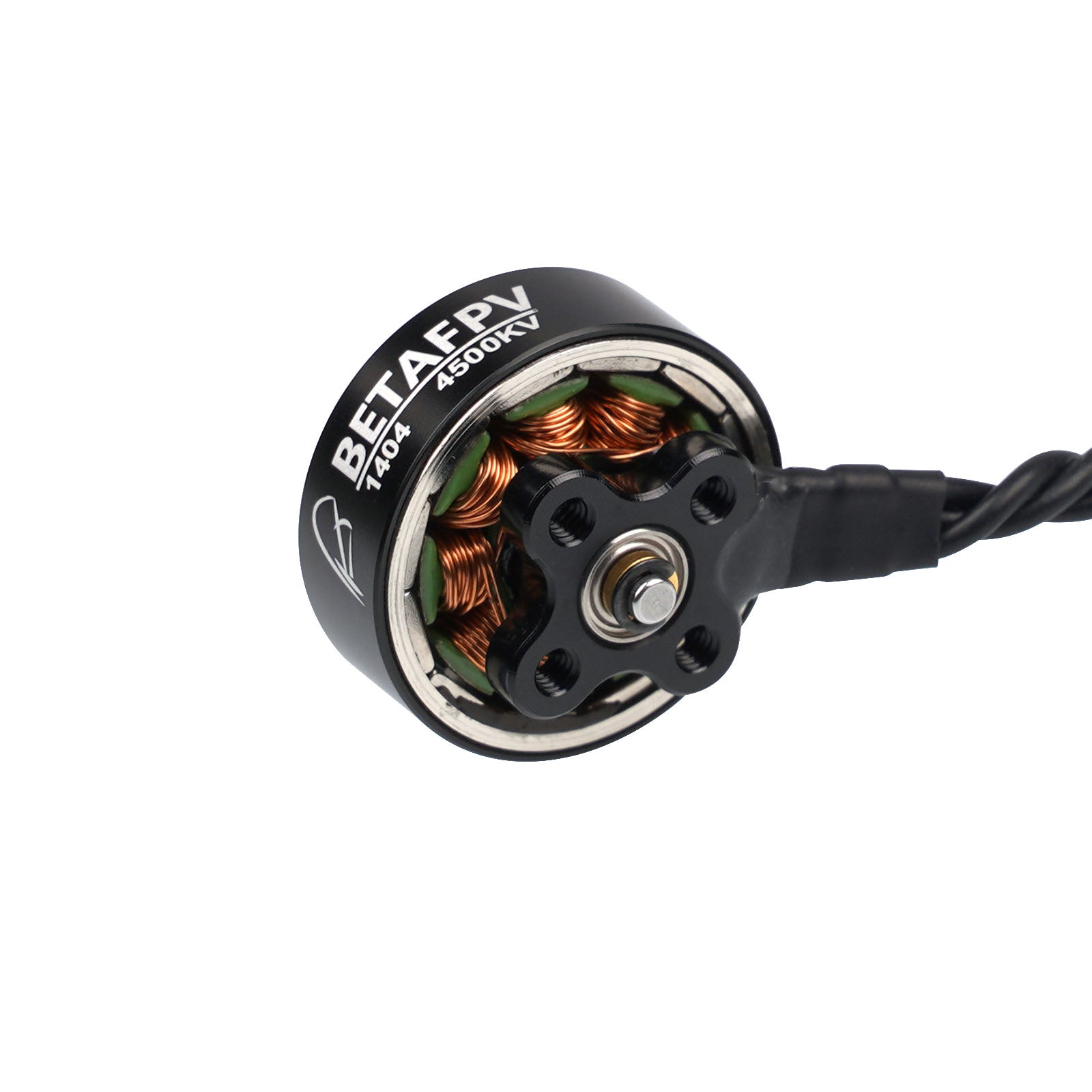

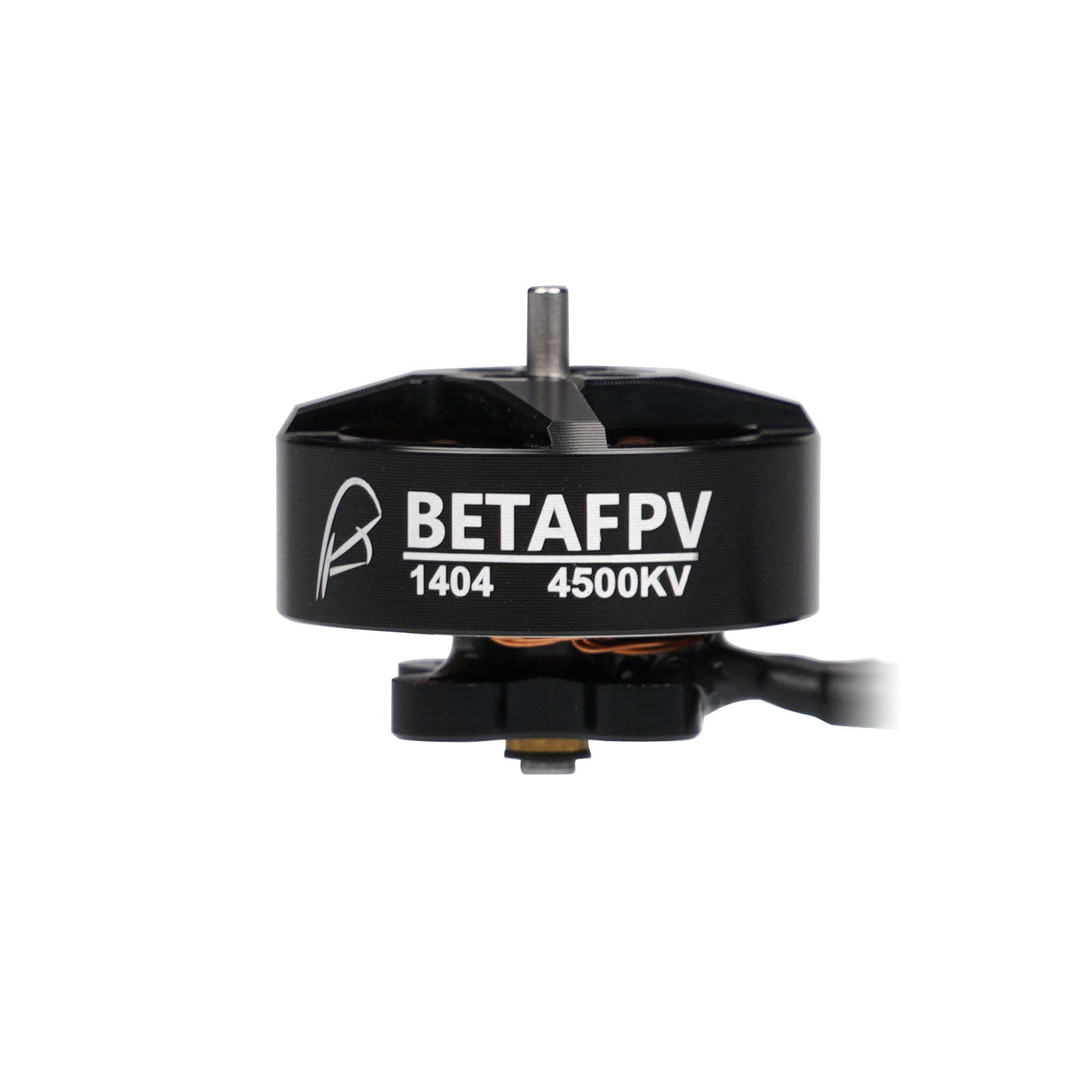

1404 4500KV Brushless Motors

We are excited to introduce the 1404 4500KV brushless motor! It is designed for the Beta95X V3 Whoop Quadcopter and Beta95X V3 HD Digital VTX, which could offer pilots a more smooth and more powerful flight, and lead the Beta95X V3 series drones to the next level. In the meantime, this motor is also a great choice if you’re building 2.5-4” ultralight micro drones with Toothpick F405 AIO 20A FC V4.

Bullet Points

• 1404 4500KV brushless motor is designed for the Beta95X V3 Whoop Quadcopter and Beta95X V3 HD Digital VTX, which could offer pilots a more smooth and more powerful flight and lead the Beta95X V3 series drones to the next level.
• Come with 4 specially designed motor clips in the package, pilots can use the clip to increase the height of the props, which could effectively reduce the shaking of drones.
• Perfectly match with Toothpick F405 AIO 20A FC V4, this motor will bring pilots a powerful flight experience.
• It is lightweight, durable and plenty of power! Combing with the perfect match of D63 3-blades props, pilots could get an amazing flight experience!
• The plug of the BETAFPV 1404 4500KV motor is a micro JST-1.25 3-pin connector, with 28AWG cables. Just plug and play, no soldering required.

Recommended Parts

• Flight Controller: Toothpick F405 AIO 20A FC V4
• Compatible Propellers: Gemfan D63 3-Blades Props
• Battery: 450mAh 4S 75C Lipo Battery
• Frame: Beta95X V3 Frame Kit

Specification

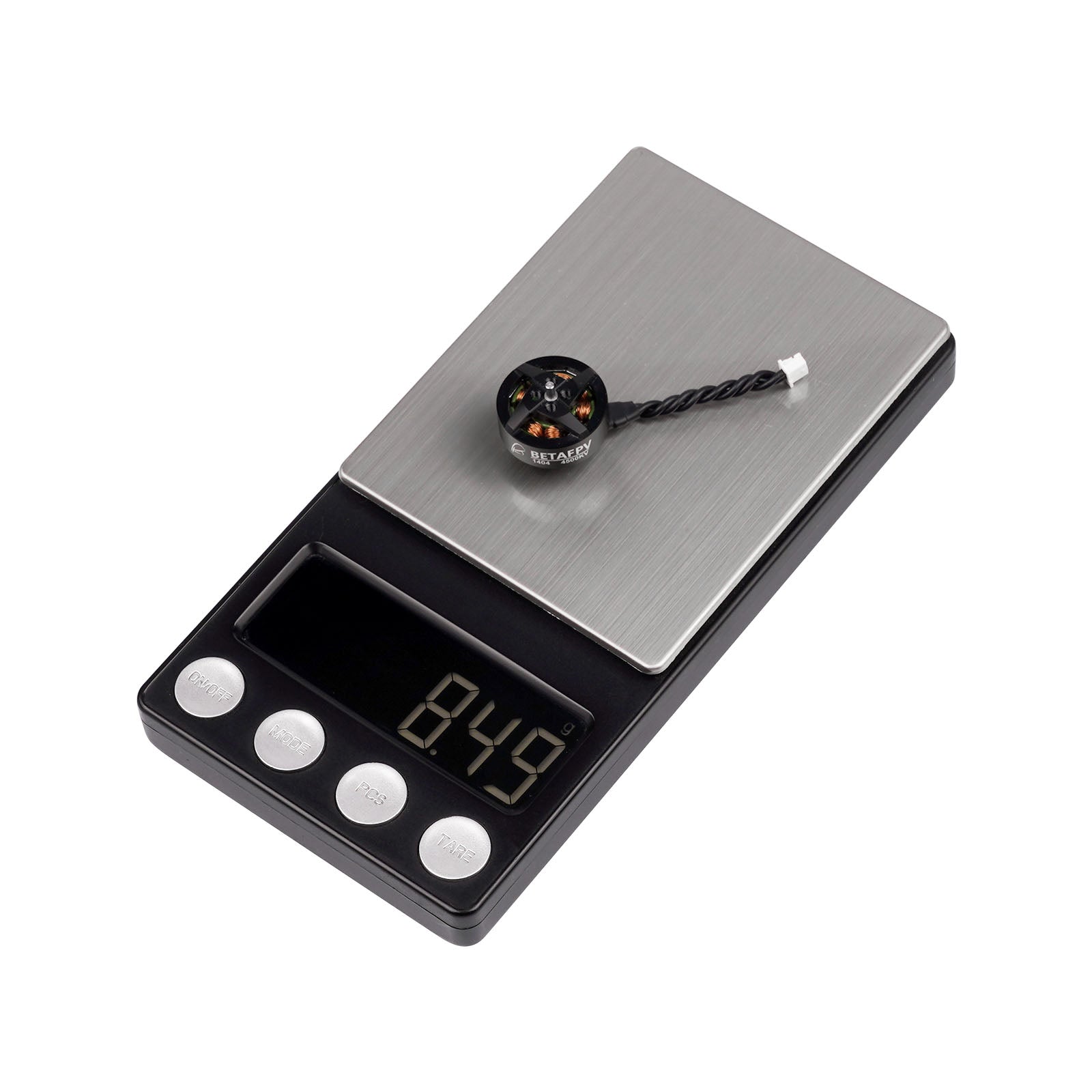

• Weight: 8.49g  (1 pcs)
• Shaft length: 3mm
• Shaft diameter: 2mm
• Motor Mount Holes: 4-M2EQS-φ9
• KV (rpm/V): 4500KV
• Input Voltage: 3-4S LIPO
• Cables: 40mm long, 28AWG cables

Package

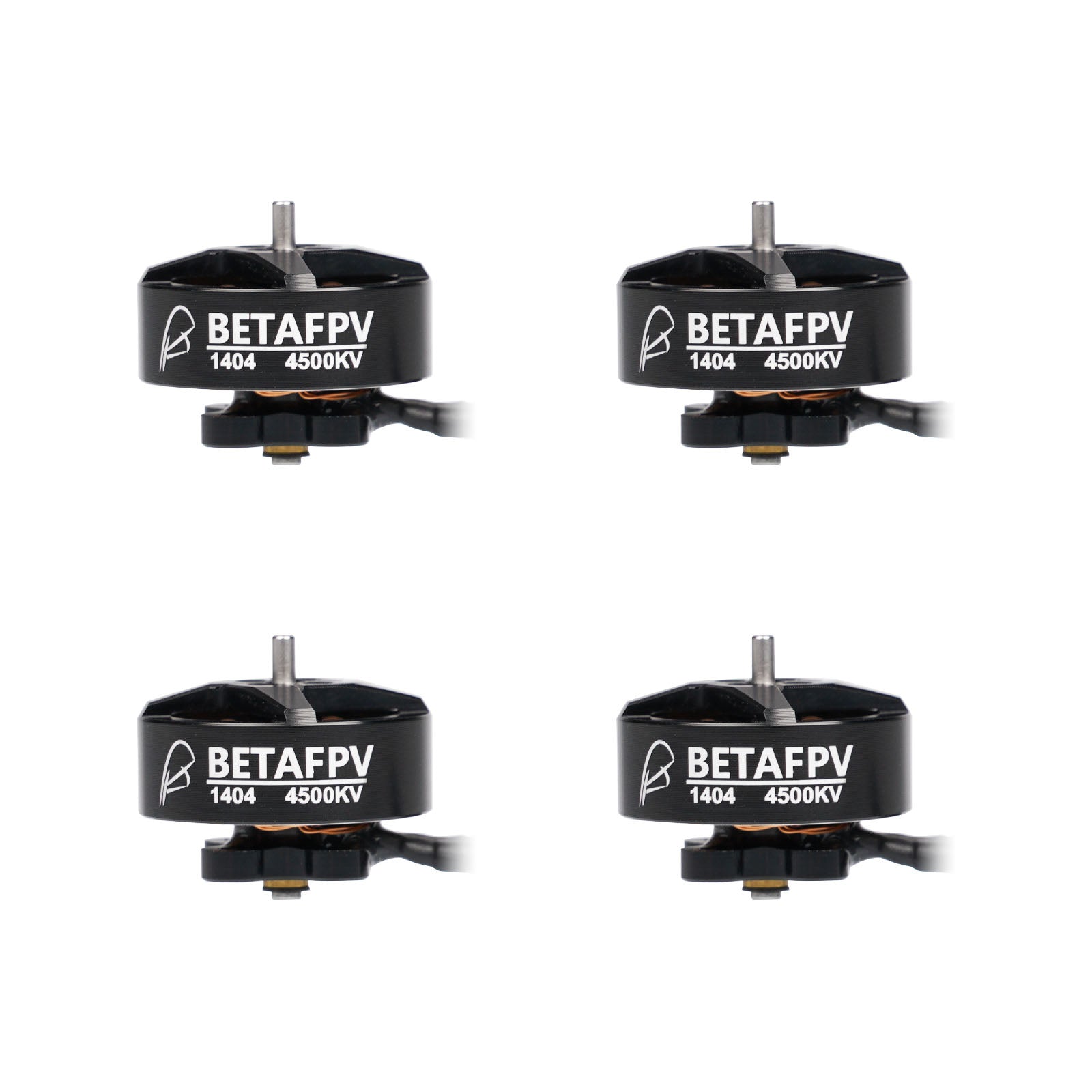

• 1 or 4 * 1405 4500KV Brushless Motors
• 4 * Motor Clip
• 16 * M2 Screws
