Bandit 915/868MHz Moxon Antenna

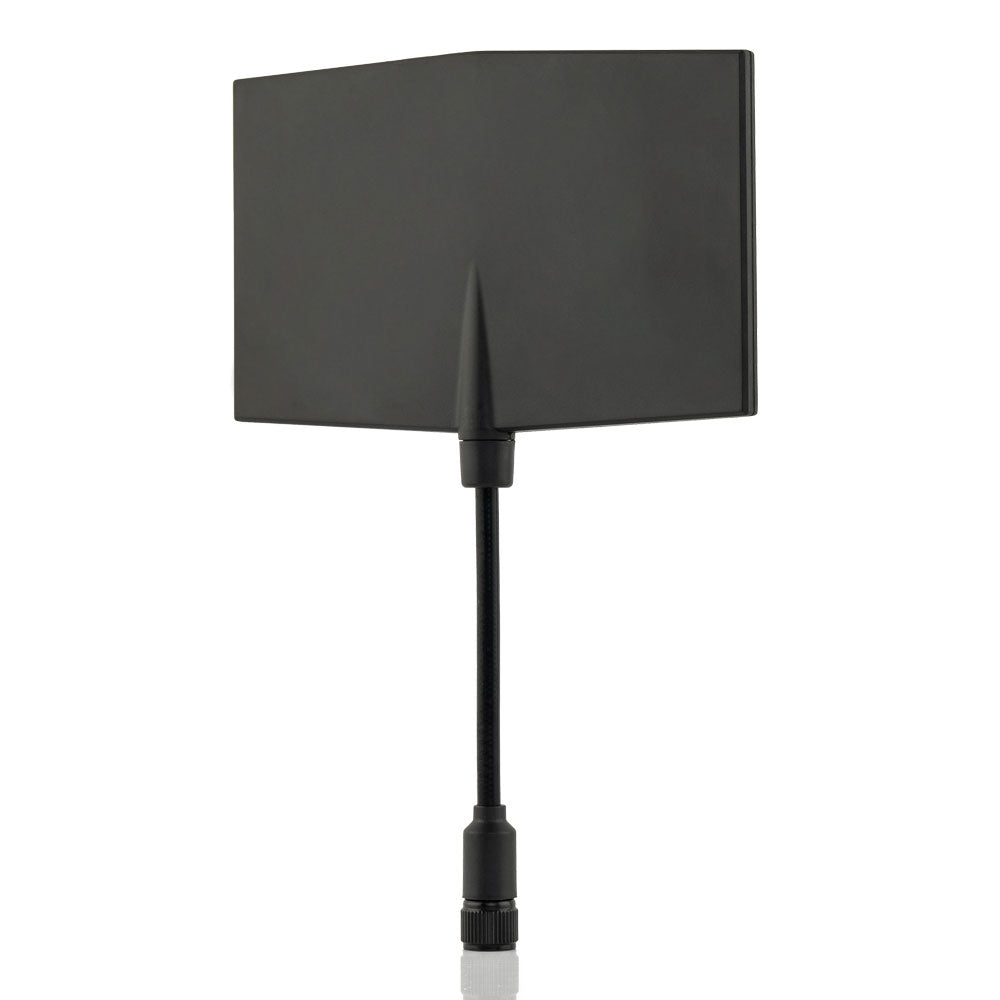

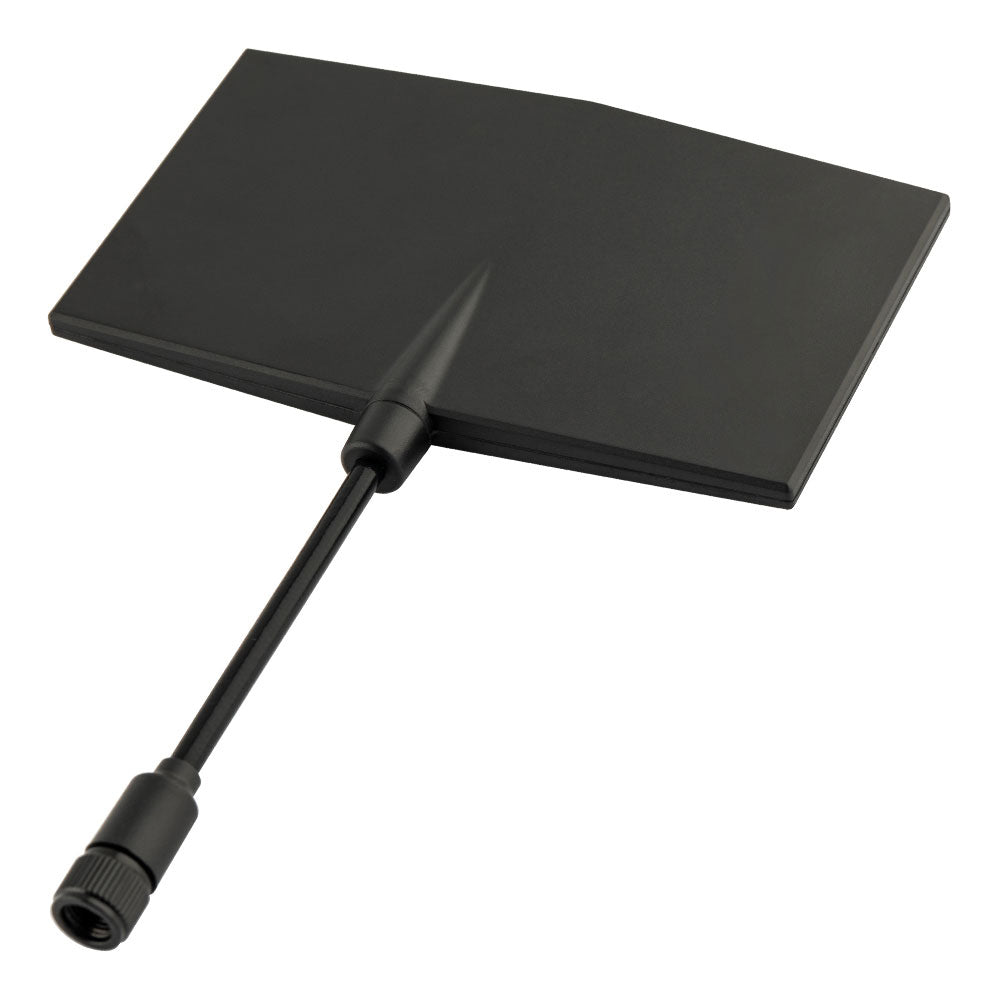

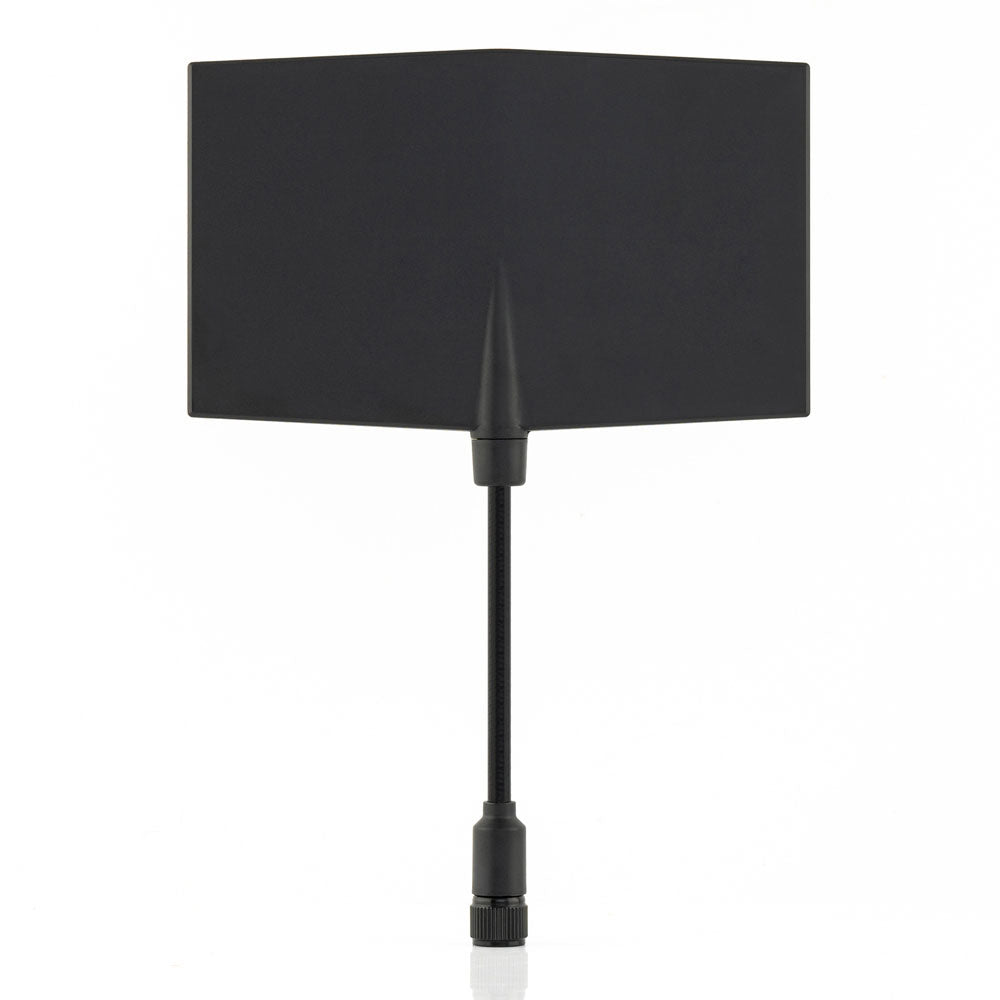

RadioMaster Bandit Moxon Antenna is a high gain, high efficiency directional transmitter antenna with a compact design and rugged housing to protect the internal components.

The Bandit Moxon Antenna, with its 80mm length, provides superior interference separation. Utilizing a professionally designed RF PCB substrate and optimized the bandit series the Bandit Moxon antenna is ideal for long range applications. The Bandit Moxon features a heavy-duty RG402 coax to optimize signal transmission and reduce external interference. The antenna also features a customized 360° swivel RP-SMA socket to allow for position adjustment.

Note: A Moxon antenna is intended for long range and has a more narrow field of operation. It is important to keep the Moxon antenna pointed in the general direction of your aircraft.

Features

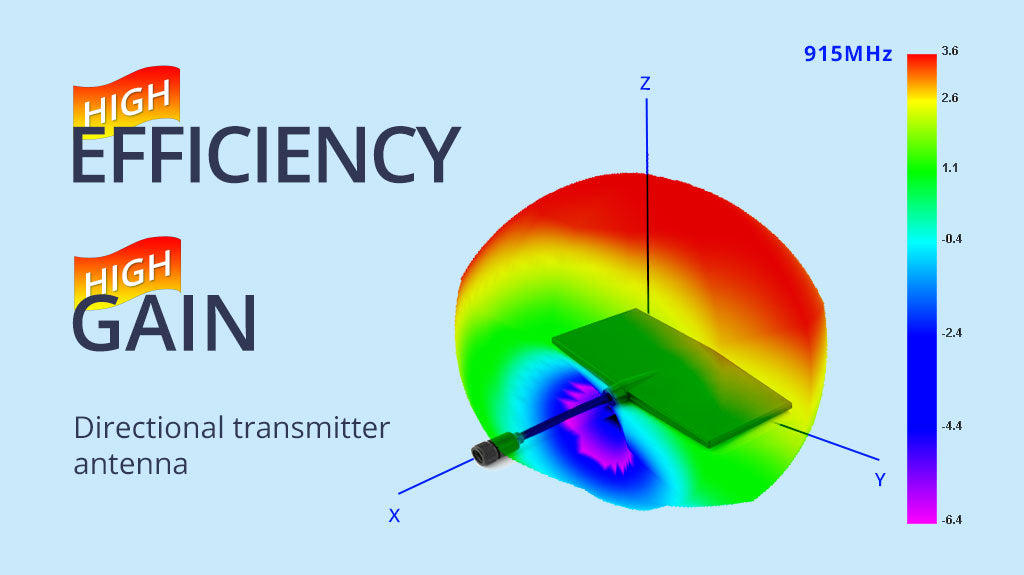

• High gain, high efficiency directional transmitter antenna

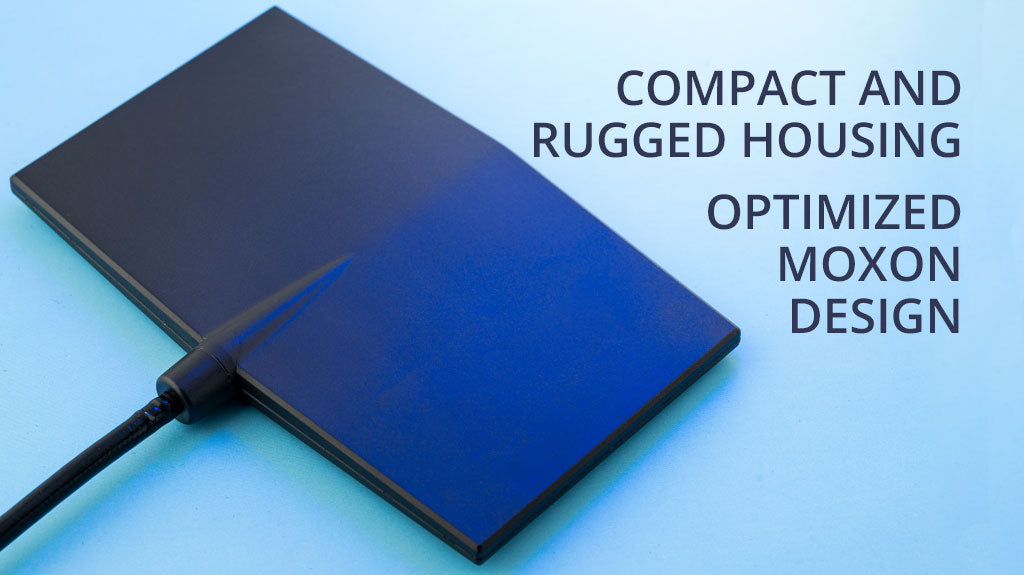

• Compact and rugged housing
• Using professional RF PCB substrate, optimised for traditional MOXON design

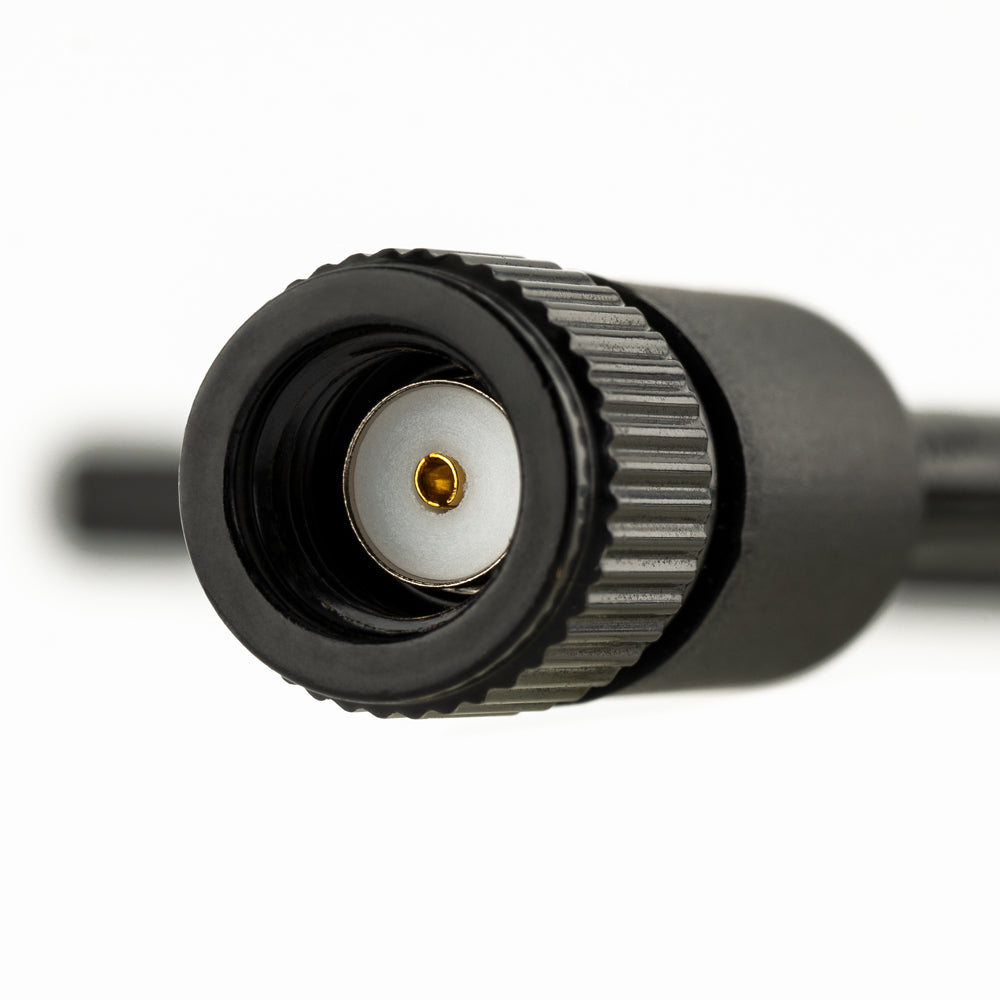

• Uses heavy-duty RG402 coax cable and customised 360° swivel RP-SMA socket

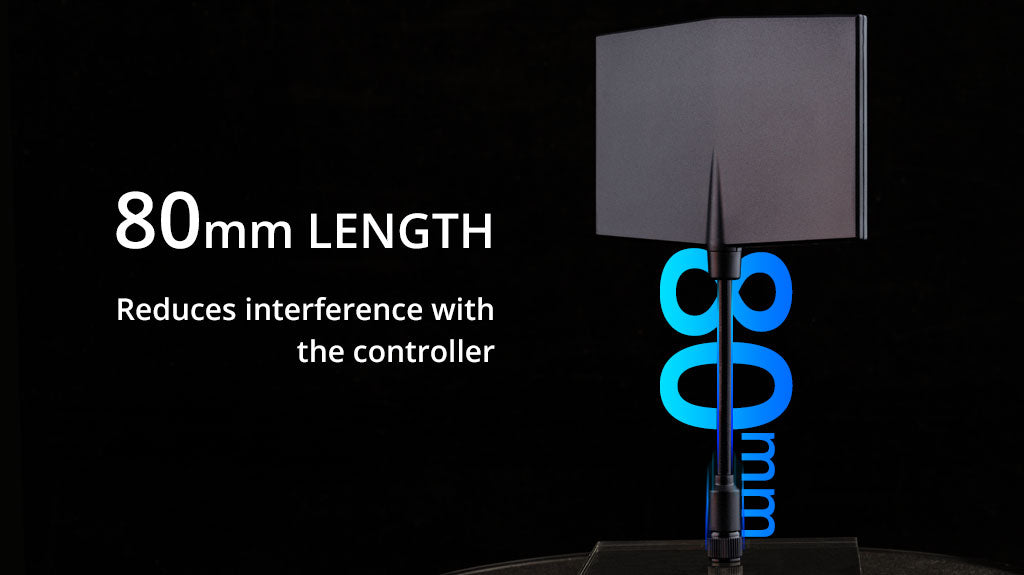

• Featuring an 80mm coax cable, reduces interference to the transmitter

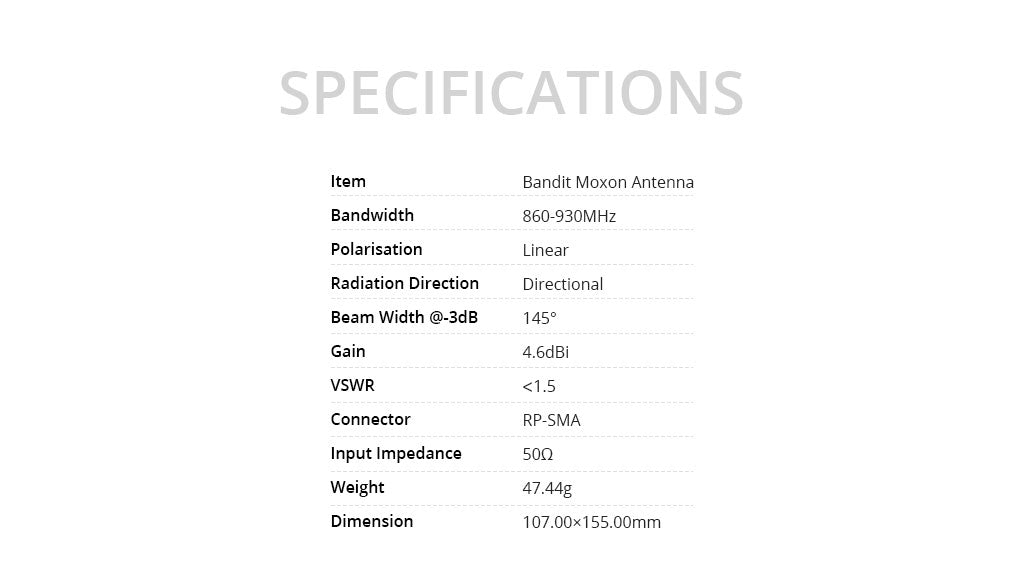

Specifications

• Item: Bandit 915/868MHz Moxon Antenna
• Bandwidth: 860-930MHz
• Polarisation: Linear
• Radiation Direction: Directional
• Beam Width @-3dB: 145°
• Gain: 4.6dBi
• VSWR: >1.5
• Connector: RP-SMA
• Input Impedance: 50Ω

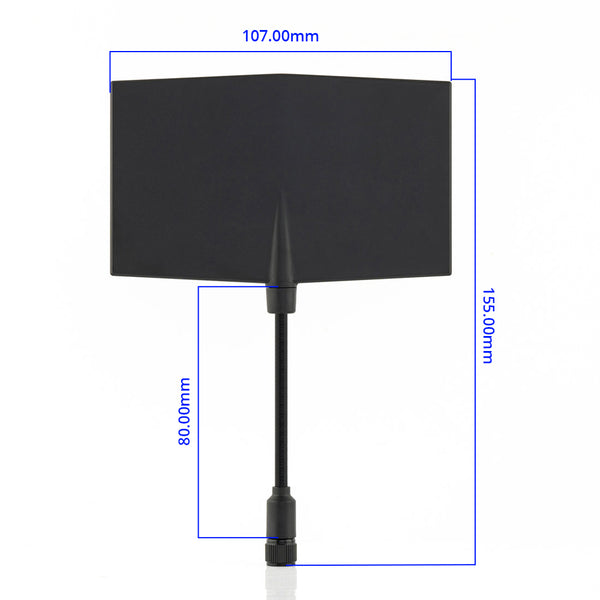

• Dimension: 107*155mm

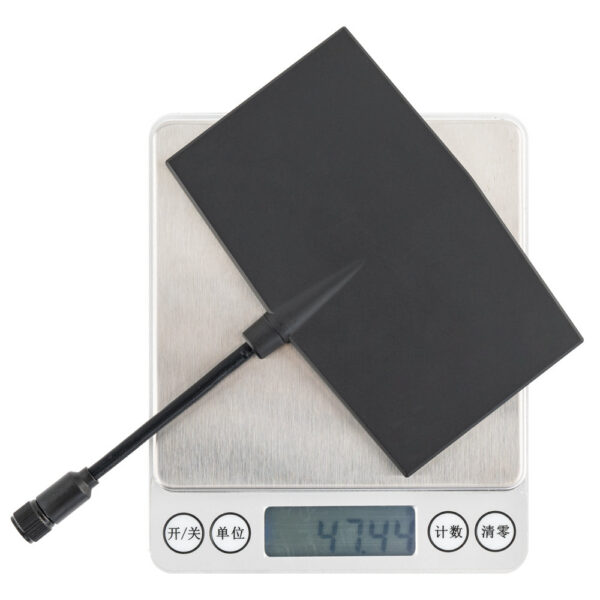

• Weight: 47.44g

Dimensions

Bandit Series

• Bandit ExpressLRS RF Module
• Bandit Micro ExpressLRS RF Module
• Bandit Nano ExpressLRS RF Module
• Bandit BR1 Receiver
• Bandit BR3 Receiver
• Bandit MOXON Antenna

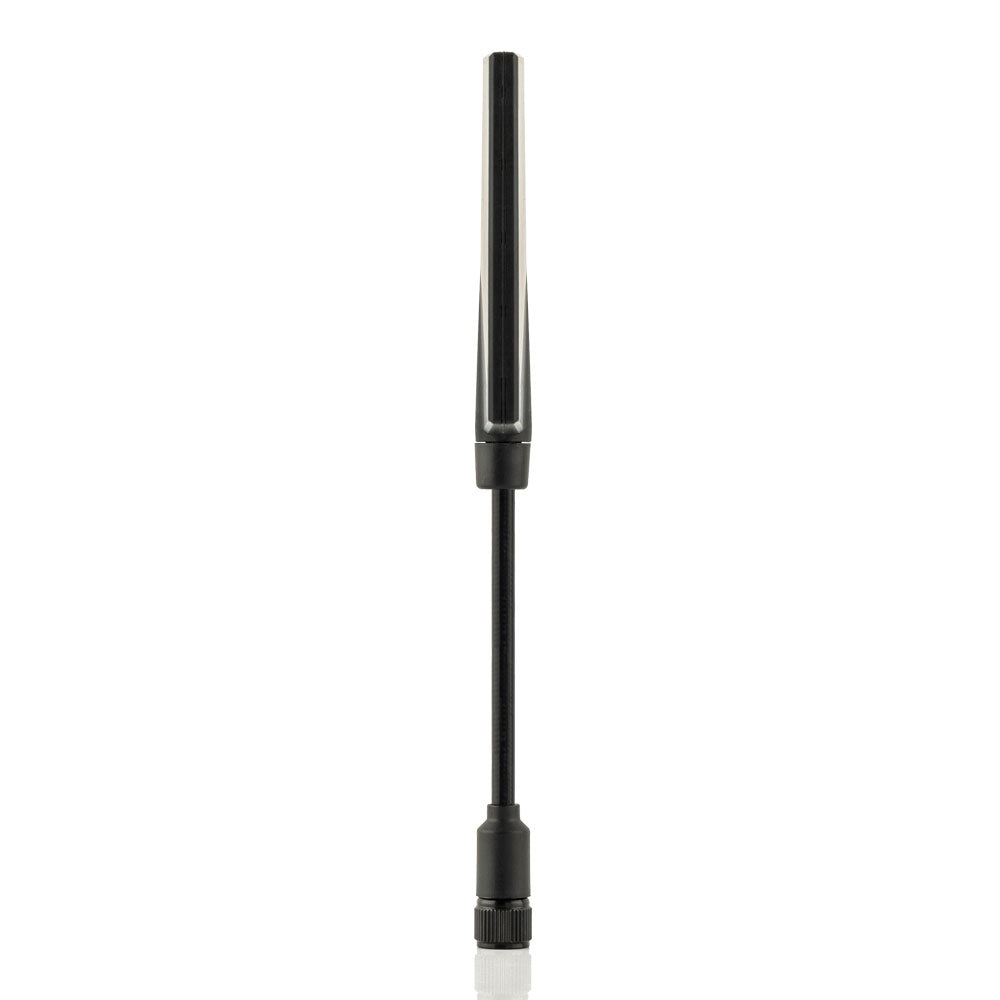

• Bandit T Antenna
• UFL 915Mhz T & Y Antenna for BR Series Receivers

Package Includes

• 1 * Bandit Moxon Antenna
