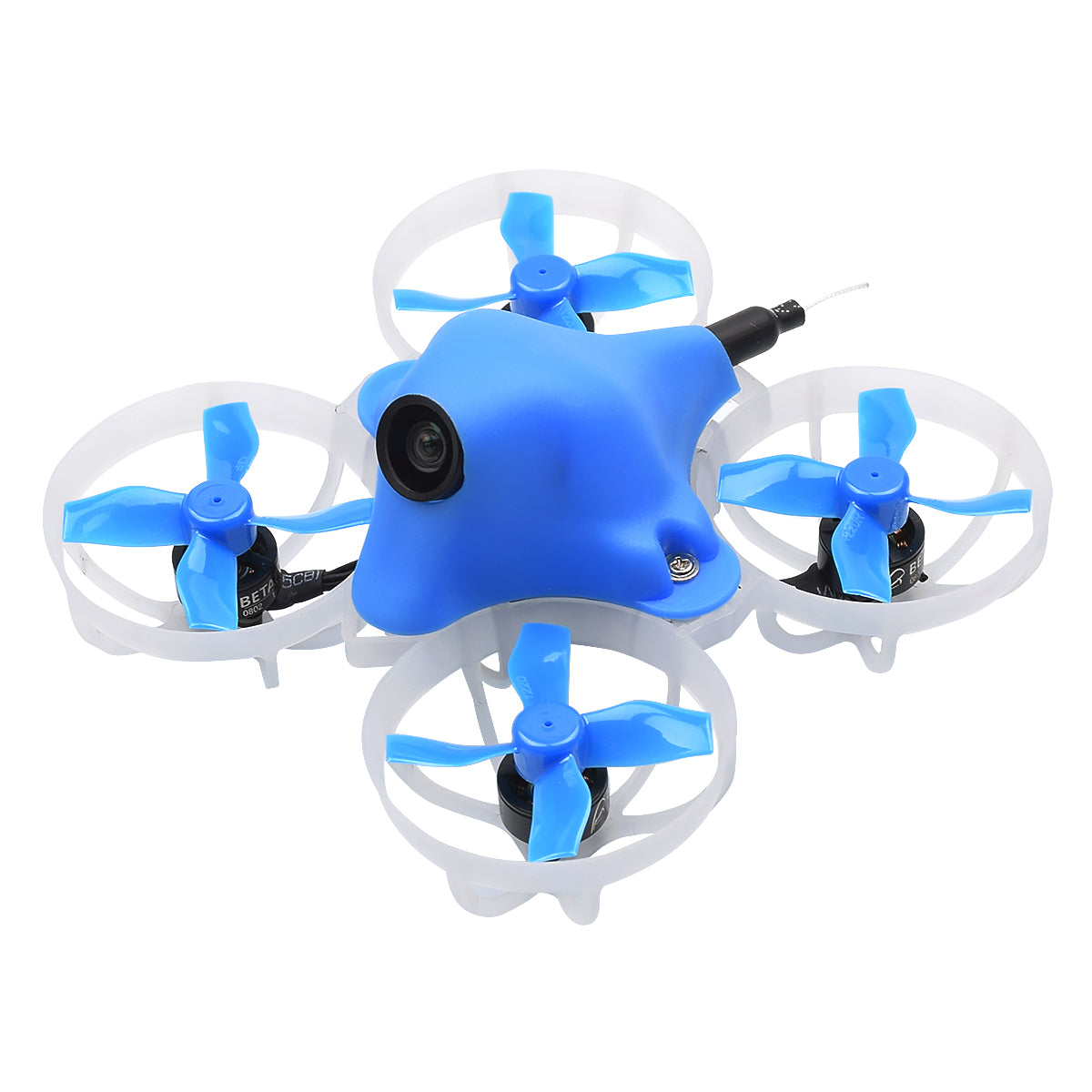

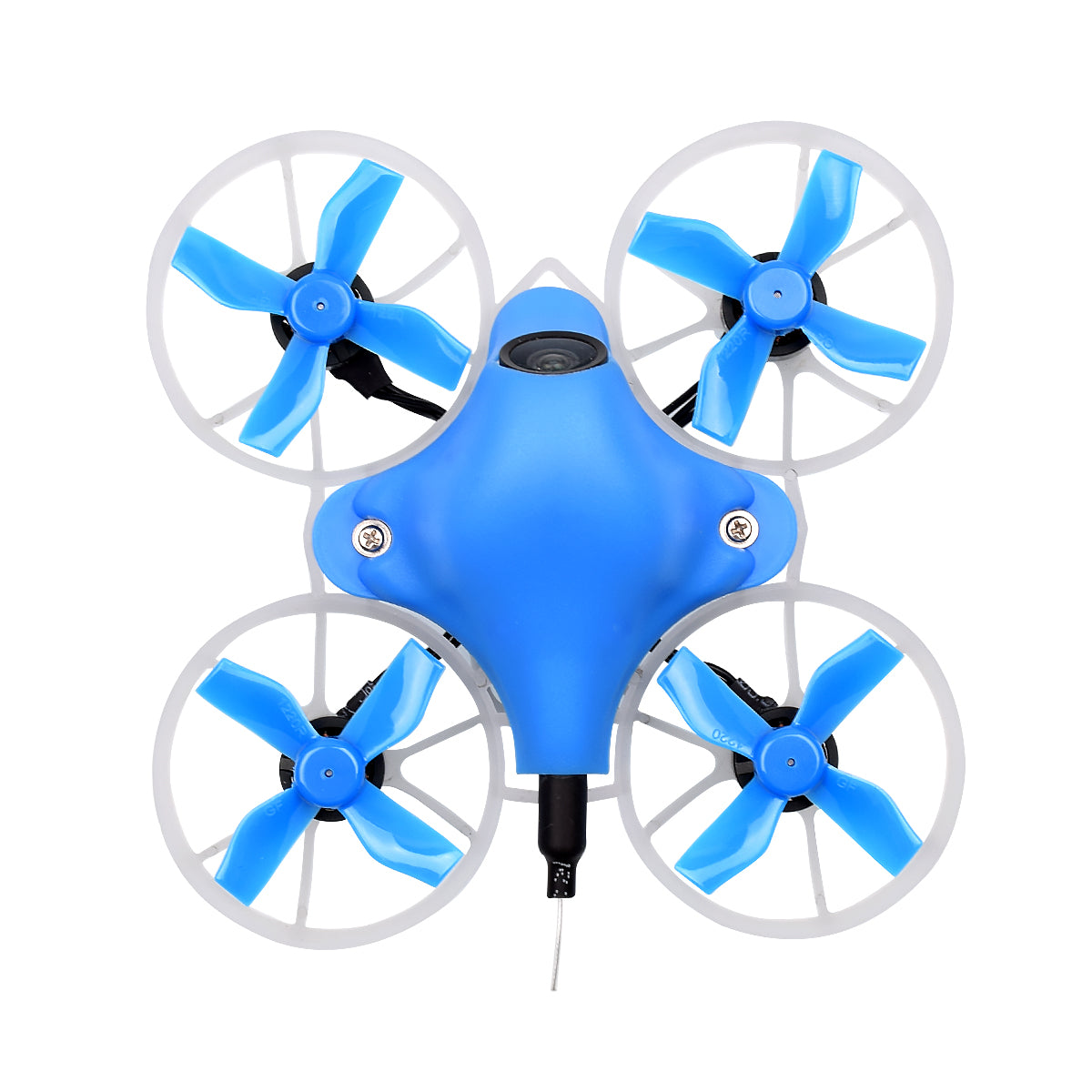

Beta65X Whoop Quadcopter (2S)

Beta65X Whoop Quadcopter is discontinued now, but you can try the new pusher style X-series drone – Beta85X V2.

BACK TO THE CLASSIC, BACK TO BETA65X!

Do you still remember your first classical brushless whoop-Beta65X? What happened to it later on? The new generation of Beta65X 2S whoop drone is ready with 0802 14000KV motors and 2pcs BT2.0 300mah Batteries, providing you an insane flying experience. Use the Meteor65 frame and the stackable battery slot to cut down on the wind resistance, extending your flight time to 3:00-4:00 mins. Moreover, we provide the Beta65X HD version, so you can stay home, recording an HD video indoor.

Bullet Point

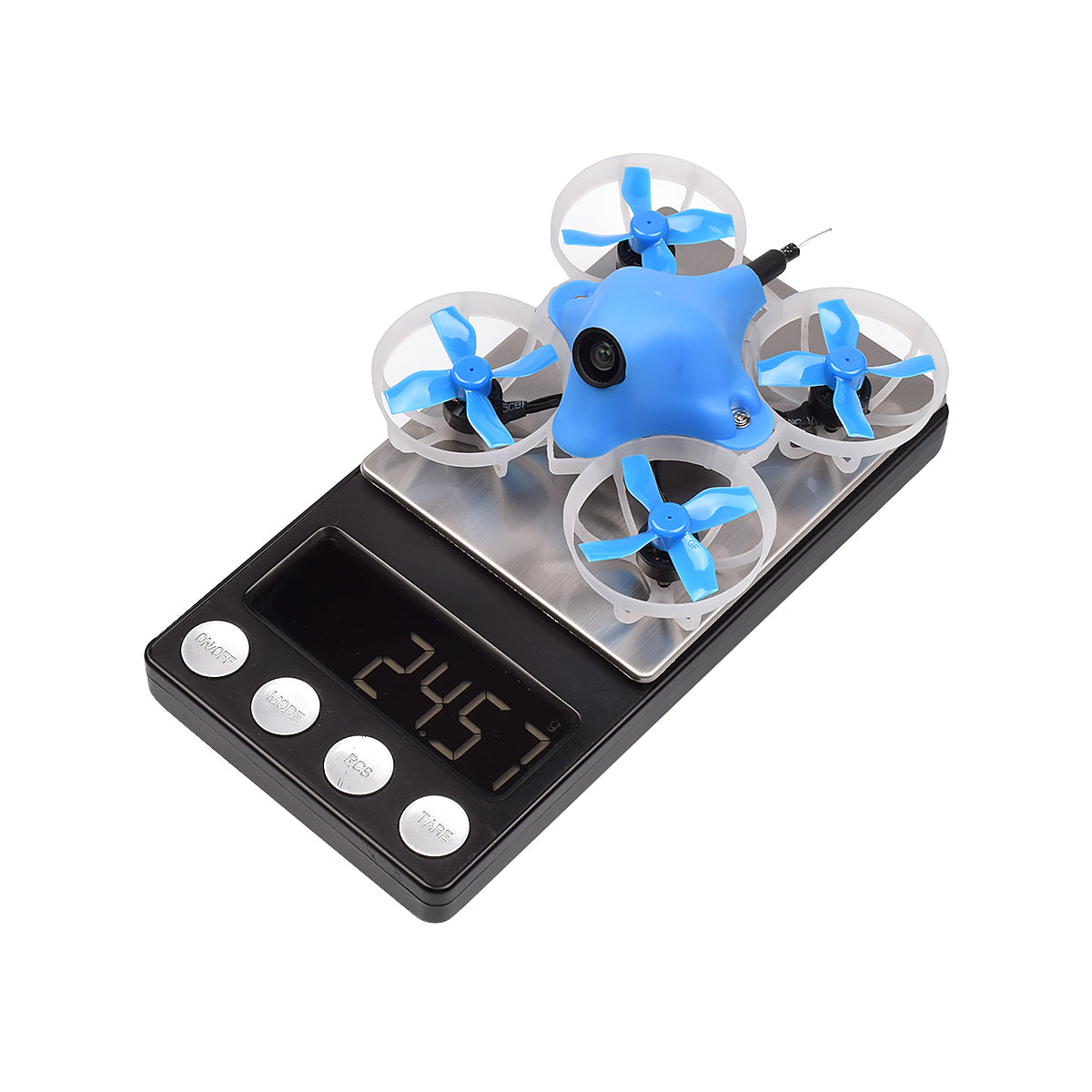

• Small size and big power. This is what the Beta65X is! The total weight of 26g gives pilots a good balance of weight and nice punch on 2S battery.
• Customized with the lightest 0802 14000KV motors, give you extreme power no matter you fly indoor or outdoor.
• Soldered with the BT2.0 connector, which can provide a stable and powerful continuous current so that you can extend the flight time to 3:00-4:00mins compared to the Beta65 Pro 2.

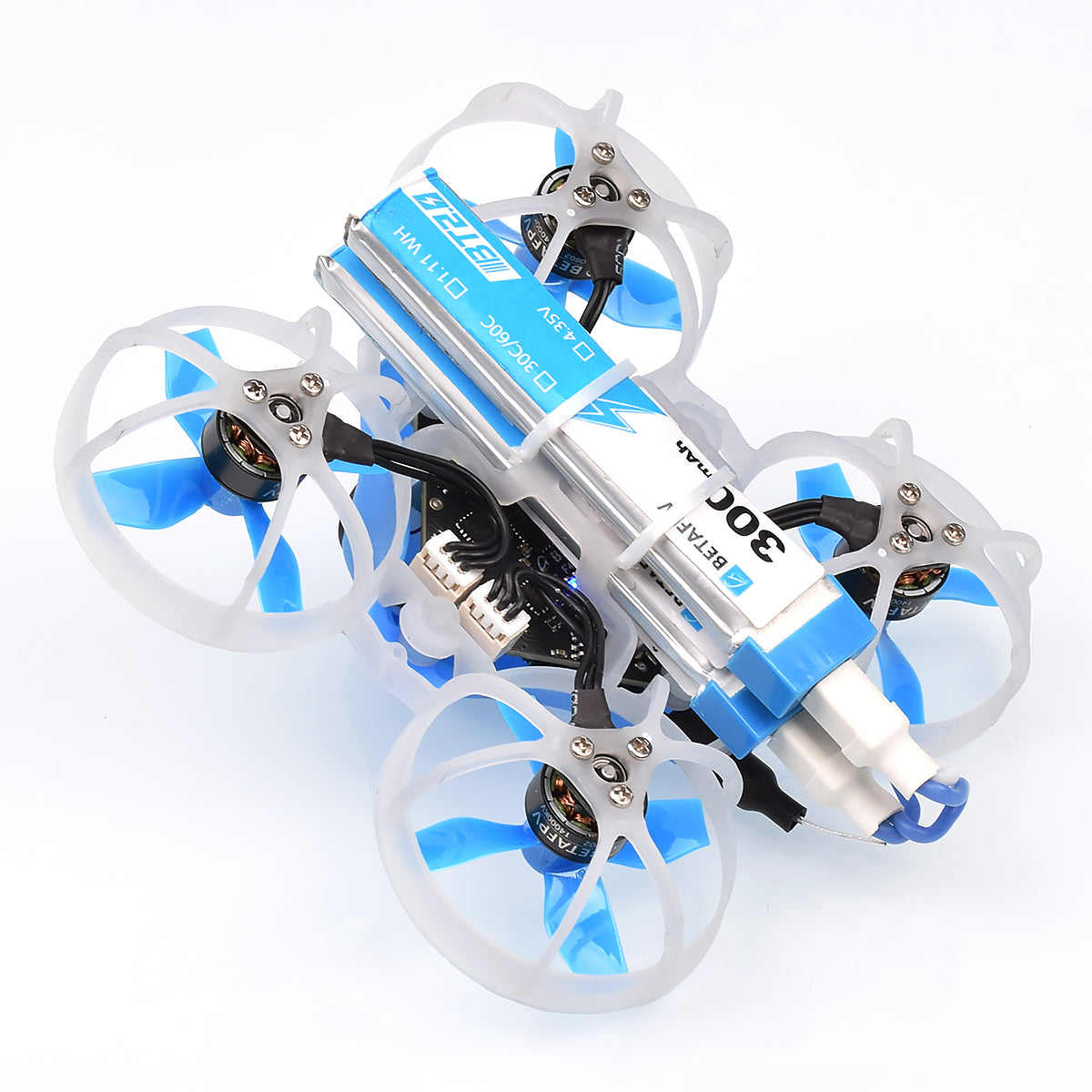

• Used Meteor65 frame and adopted the stackable battery slot to cut down on the wind resistance.
• With the high performance STM32F411 processor FC boards and betaflight_matekf411rx_4.0.0 (Development Version).

Specification

• ItemL Beta65X
• Weight: 26g (without battery)
• FC: F4 AIO 2S FC
• Frame: Meteor65 Frame
• Motors: 0802 14000KV Motor
• Props: Gemfan 31mm 4-blades props 1.0mm shaft hole
• Camera: C01 Pro Micro Camera
• VTX: 25mW VTX
• Canopy: Canopy for Micro Camera
• Receiver Option(Internal): Frsky FCC/ Frsky LBT/ Futaba/ PNP
• Receiver Option(External): DSMX/ Flysky/ TBS Crossfire
• Batteries: 2pcs BT2.0 300mah Batteries

BT2.0 Connector

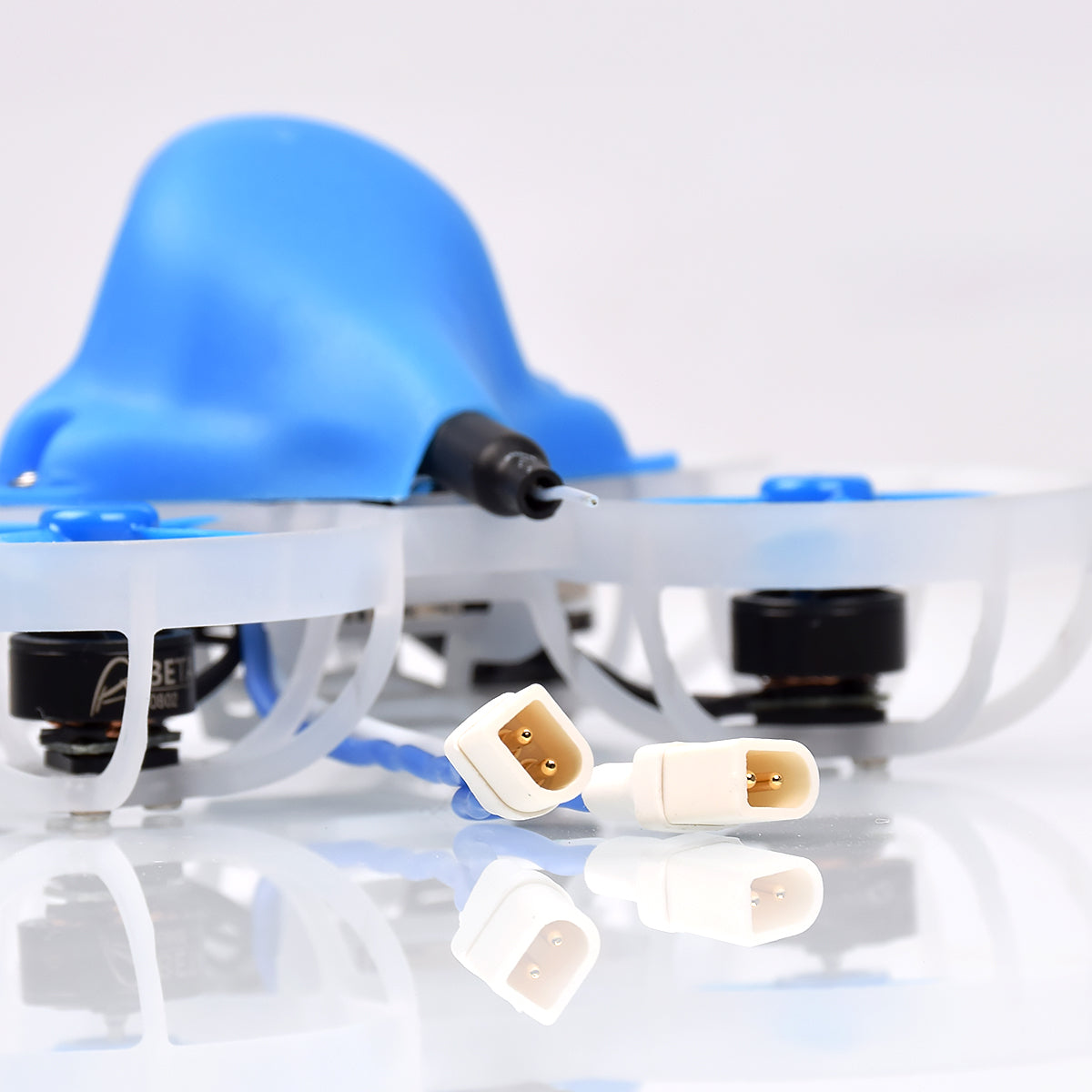

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector has decreased internal resistance of connector effectively allowing more current to be transferred, which means it supports 9A continuous current (15A burst). This means stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A. You can enjoy more flight time without disturb of low voltage warning due to reducing voltage sag. For more instruction, click here.

We know some of pilots might have a question about how to deal with the old PH2.0 1S battery. So we provide some accessories like BT2.0 connectors for those people who want to convert the PH2.0 connector to BT2.0 connector.

• BT2.0 Connectors (10pcs)
• 2S Whoop Cable Pigtail (BT 2.0)
• BT2.0 1S Whoop Cable Pigtail
• BT2.0-PH2.0 Adapter Cable
• BT2.0 Battery Charger and Voltage Tester
• BT2.0 Connector 1S Lipo Charger Board
• BT2.0 450mAh 1S Battery
• BT2.0 300mAh 1S Battery
• BT2.0 260mAh 1S Battery

Flight Controller

This F4 AIO 2S FC is suitable for a lighter 1-2S whoop drone perfectly, like Beta65X，Beta65 Pro 2 or Beta75 Pro 2 etc. It integrated with a Betaflight F411 processor FC, Betaflight OSD, SPI Frsky receiver and 1-2S 5A ESC. So the 1-2S drone could save much weight for a faster fly experience.

Camera & VTX

The C01 Pro Micro Camera is a rare FPV camera currently on the market, which adapted a 1/3” CMOS sensor and a 2.1mm lens for 1200TVL resolution and excellent latency while minimizing the weight to 1.96g. Designed specifically for those weight-sensitive drones, such as Brushed & Brushless Whoop Quad.

The stock VTX on the 65X 2S drone is the M series 25mW VTX.

Note: the 25mW VTX is marked as M02 on the first batch. It will be changed to M01 V2 since the second batch). Compared with the original M01 VTX, the 5V pad change its position.

Motors

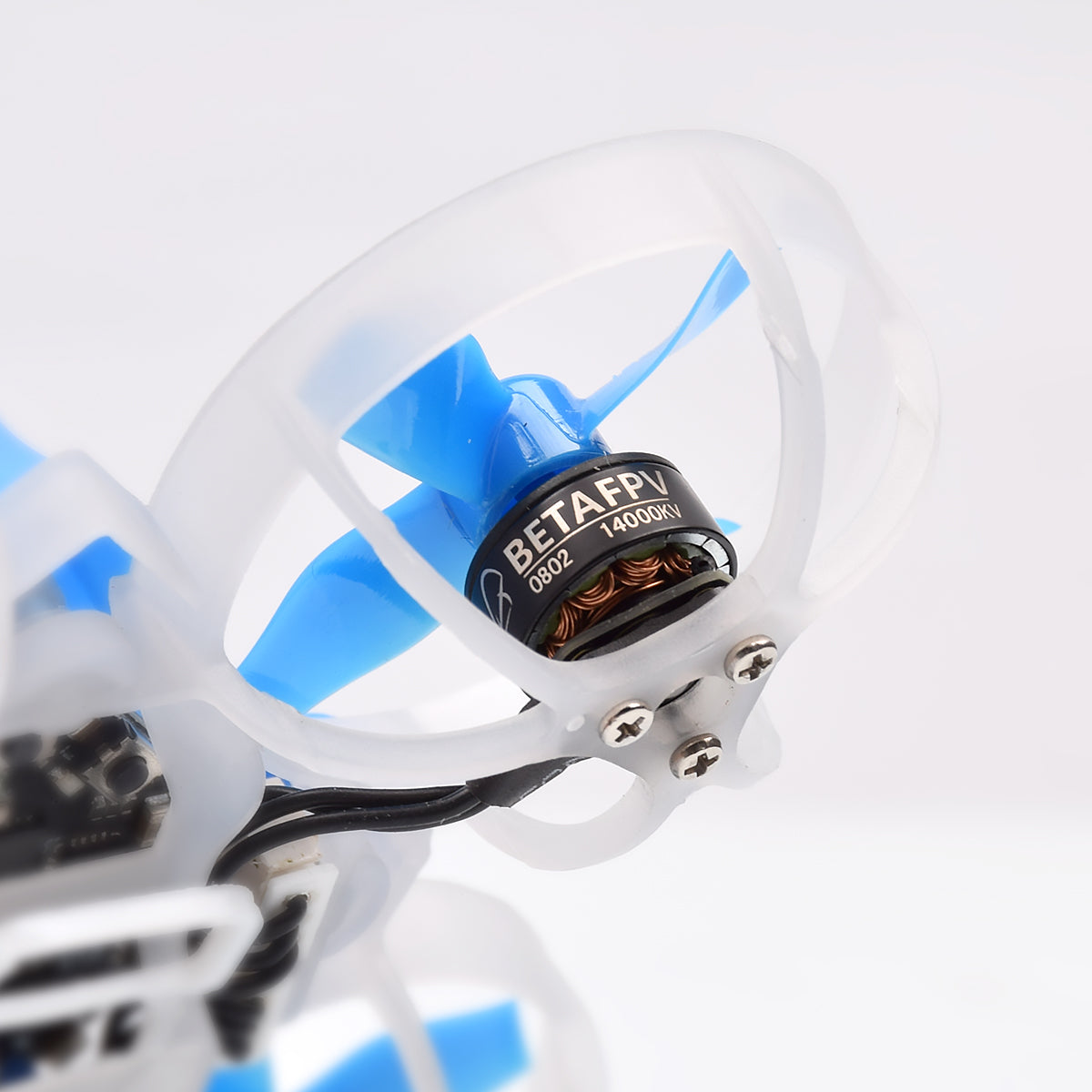

0802 14000KV motors using ball bearing instead of brass bushings, and PCB connector. More durable and easier to repair once disconnection.

Meteor65 Frame

Meteor65 frame is the most popular and colorful 65mm frame in this winter.

We only need to add 0.3g 3D printed adapter and change it to a 2S 65mm frame. Still light enough and you could experience the aggressive power of 2S now.

Note: The STL file for this 2S battery adapter is public and you could print it by yourself.

Package

• 1 * Beta65X Whoop Quadcopter (2S)
• 1 * Spare 31mm 4-blades props (2CW+2CCW)
• 2 * BT2.0 300mAh 1S Lipo batteries
• 1 * BT2.0-PH2.0 Adapter Cable
• 1 * Spare Canopy
• 1 * Screwdriver

Click and check our first version of Beta65X.
