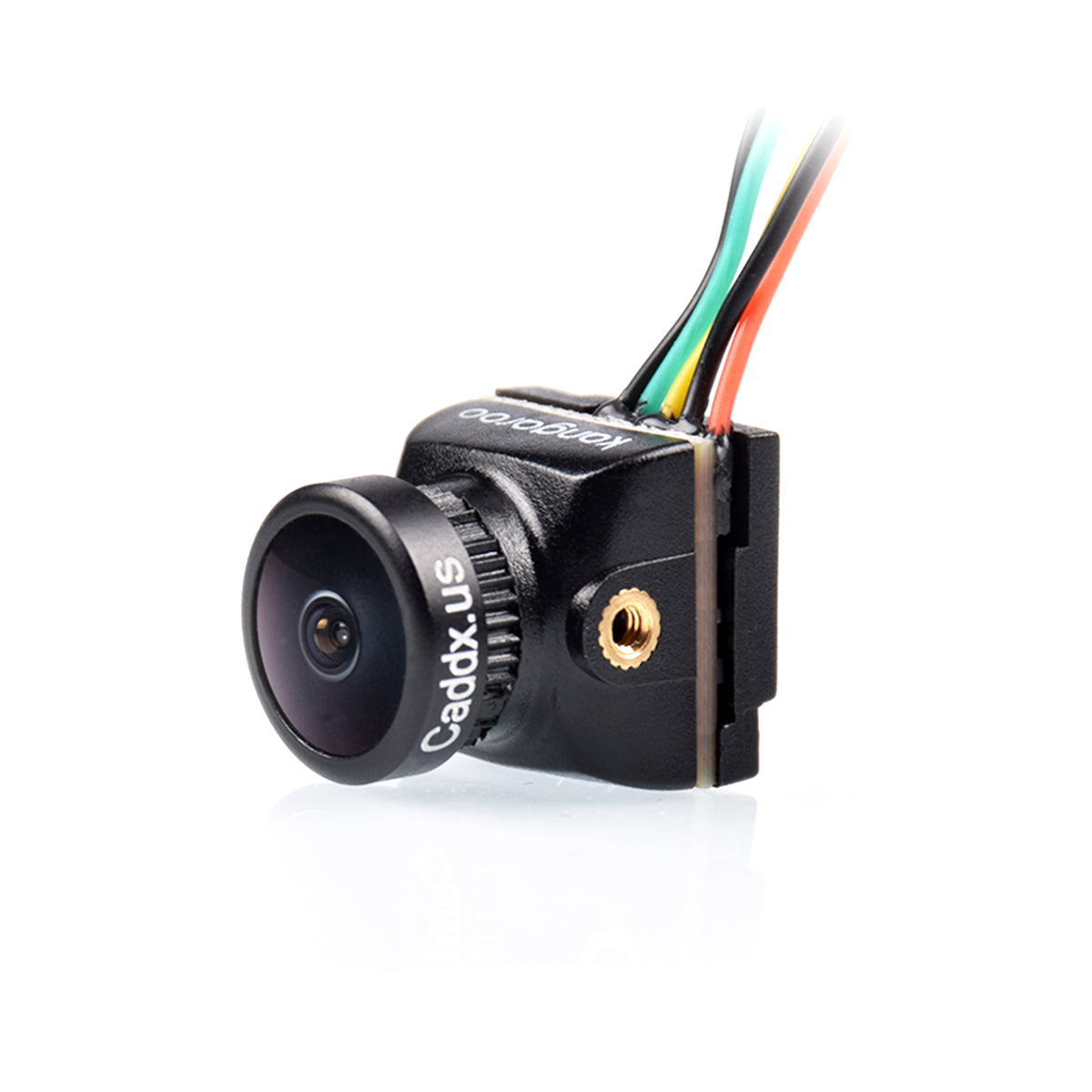

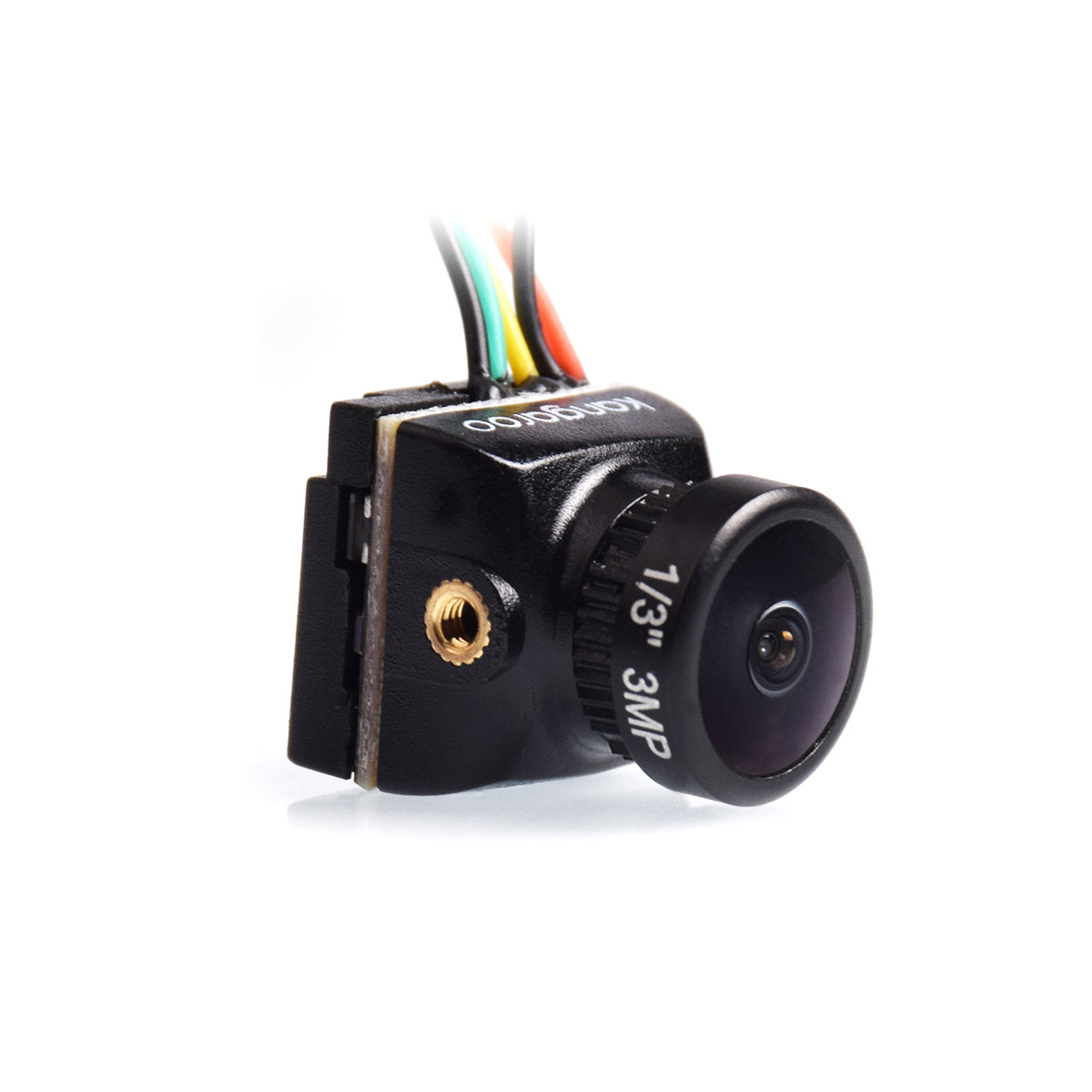

Customized Caddx Kangaroo Camera

We customized 165° FOV and ultra-low latency(4ms) Betafpv version for pilots’ better visual experience compared with Caddx official FOV160° version. It comes with super WDR Sony Starvis CMOS sensor, effectively resolute the reflection from strong light source.

The Caddx Kangaroo Camera is used on HX115 FPV Toothpick Drone.

Specification

• Image sensor: SONY STARVIS sensor
• Horizontal: 1000TVL
• TV system: NTSC & PAL changeable
• WDR: Super WDR
• Lens: 2.1mm lens
• Mini Illumination: 0.001lux@F1.8
• Synchronize: Internal
• Electronic shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• Signal to noise ratio: >60dB (AGC OFF)
• Video output: CVBS
• Camera OSD: Progress menu
• Fly OSD: Support
• DNR: 3-DNR
• Language: ENG/ France/ RUS/ SPA/ PU/ Korea/ CHN/ JAPAN
• Morning and evening: Auto/ Color/ Black & White/ EXT
• Dimension: 14*14mm
• Wide power input: DC 3.3-5.5V
• Operating temperature: -20℃~+60℃
• Working humidity: 20%~80%
• Color: Black
• Aspect Ratio: 16:9 & 4:3 changeable
• Built-in OSD
• Weight: 3.5g
• Ultra-low latency: 4ms

Package

• 1 * Customized Caddx Kangaroo FPV Camera
