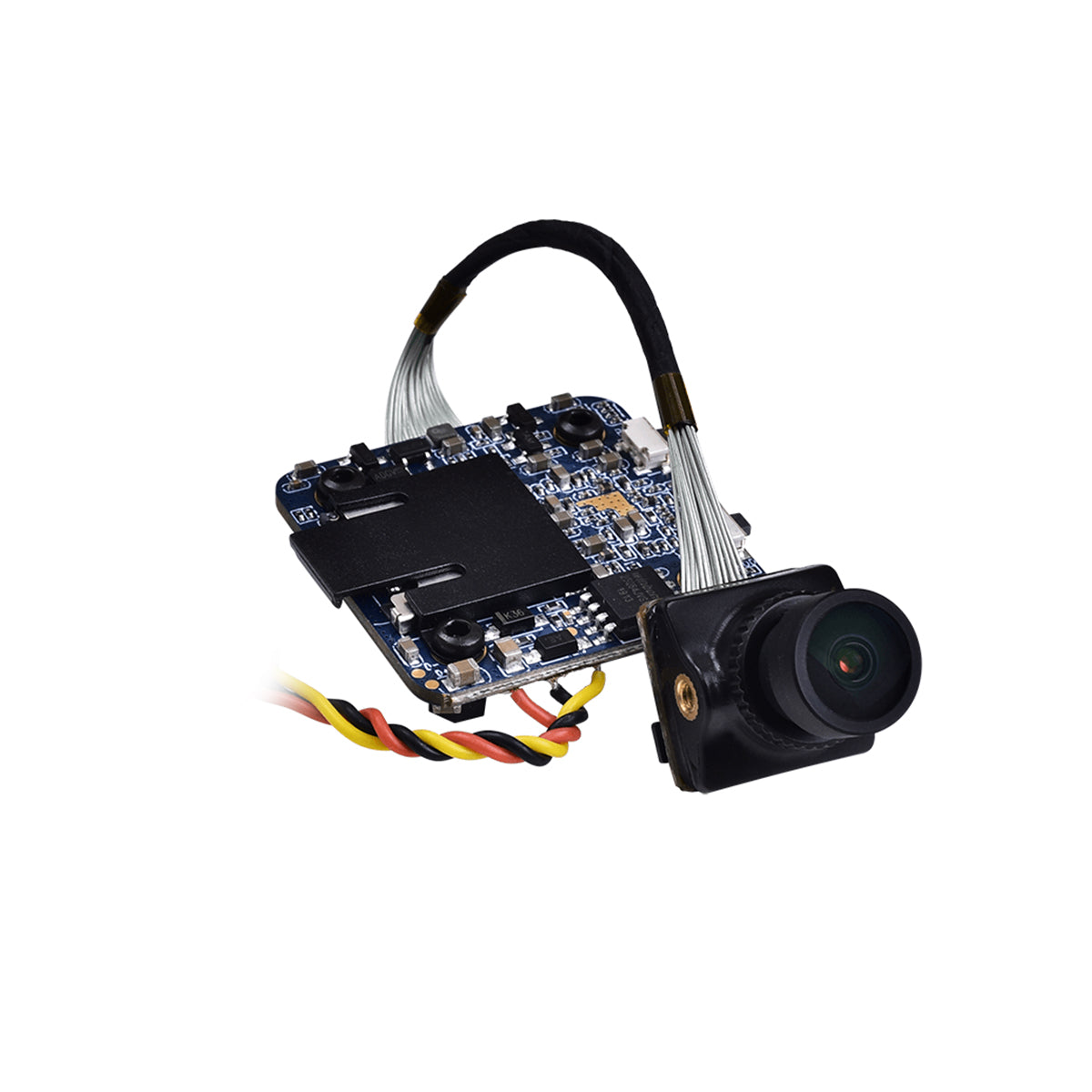

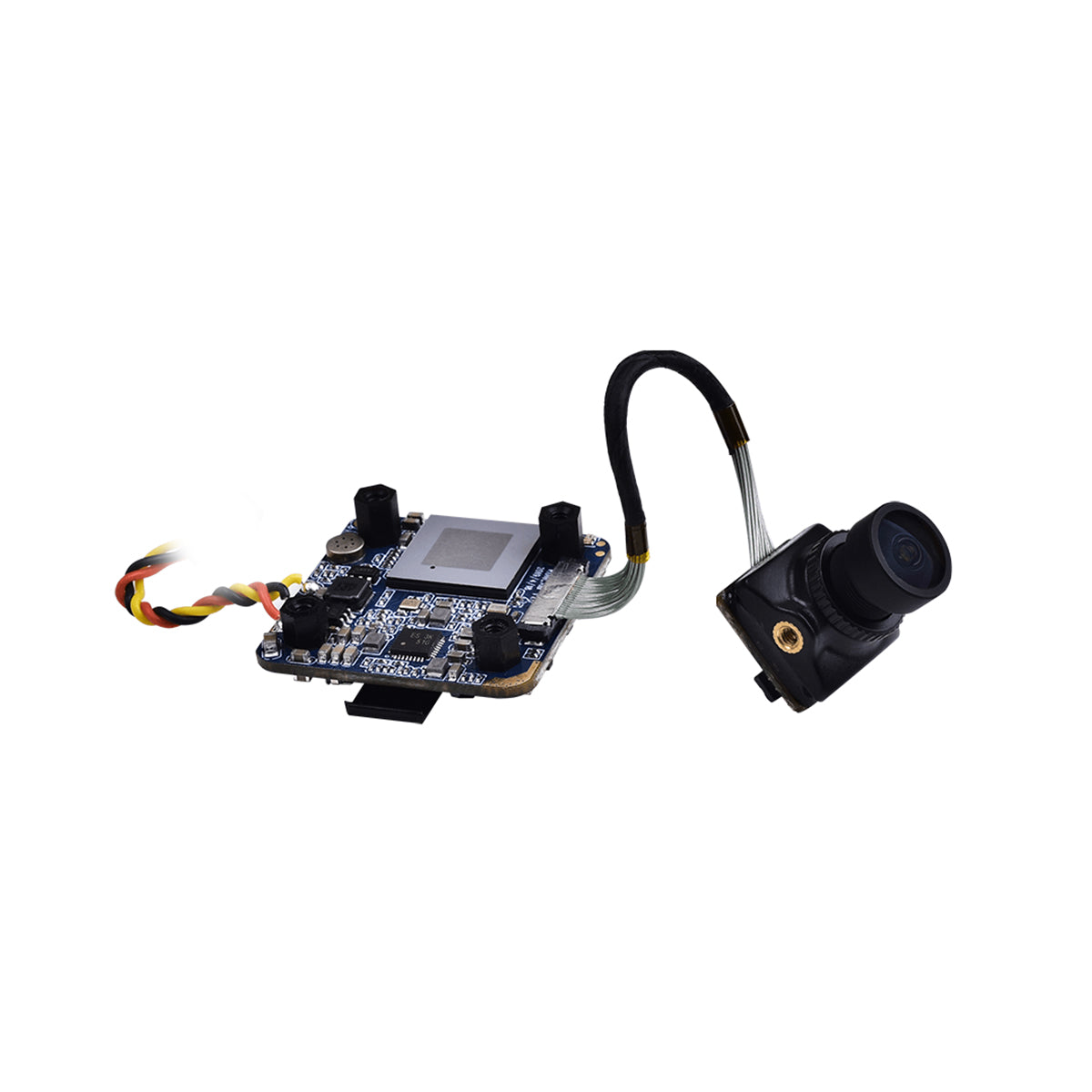

Customized Runcam Split 3 Nano Camera
Out of stock
Top Rated in the EU
Fast & Secure Shipping – Tracking Provided
Warranty included
The RunCam Split 3 Nano, Ultra-low weight 10g, gives you 1080p/60fps HD recording while also utilizing a sharp WDR FPV camera. Betafpv customized shorter RunCam lens length for Canopy, which can prevent lens damage during flight.
The Runcam Split 3 Nano Camera is used on HX115 HD Toothpick Drone.
Features
- 1080P/60fps HD recording & WDR FPV camera
- Low latency TV-OUT (40MS)
- Power-off protection for video files
- Wide voltage (5-20V)
- FPV aspect ratio 16:9/4:3 switchable
- Stronger flexible ribbon cable
- Optimize TV-OUT interference to reduce ripple
Specifications of Camera
- Field of View(FOV): Recording FOV: 165°; FPV FOV: 165°@16:9, 130°@4:3
- Video Resolution: 1080@60fps / 1080@50fps / 1080@30fps / 720@60fps
- Video File Format: MOV
- Image Resolution: 2 MP
- TV Mode: NTSC (720*480) / PAL (720*576) Switchable
- Interface: JST 1.25mm / UART
- Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10 / UHS-I / UHS-II / UHS-III)
- Hole Distance of Installation: 25*25mm
- Dimensions: PCB 29*29mm / Lens Module 14*14mm
- Power Input: DC 5-20V(Non-direct power supply from battery. Powered direcly with battery will generate surges and burn the camera.)
- Working Current: 650mA @5V / 270mA @12V
- Weight: 10g
Package
- 1 * Customized Runcam Split 3 Nano Camera
- 1 * Runcam OSD board and cable
- 1 * Set of M2 screws
