GemFan D90S 3-Blade Propellers (1.5mm Shaft)

For those seeking unparalleled thrust during cinematic FPV maneuvers, the GemFan D90S 3-Blade Propellers provide an exceptional solution. With a 3-blade design, these propellers enhance airborne grip and maximize surface area, resulting in heightened thrust efficiency.  Weighing a mere 2.6g, these lightweight propellers possess a minimal moment of inertia, facilitating rapid RPM adjustments and elevating drone responsiveness. When combined with the LAVA Series 2006 Brushless Motors, these propellers exhibit exceptional response speed, empowering pilots to capture breathtaking footage seamlessly.

Specification

• Item: GemFan D90S 3-Blade Propellers(1.5mm Shaft)
• Materials: PC
• Colors: Transparent Grey

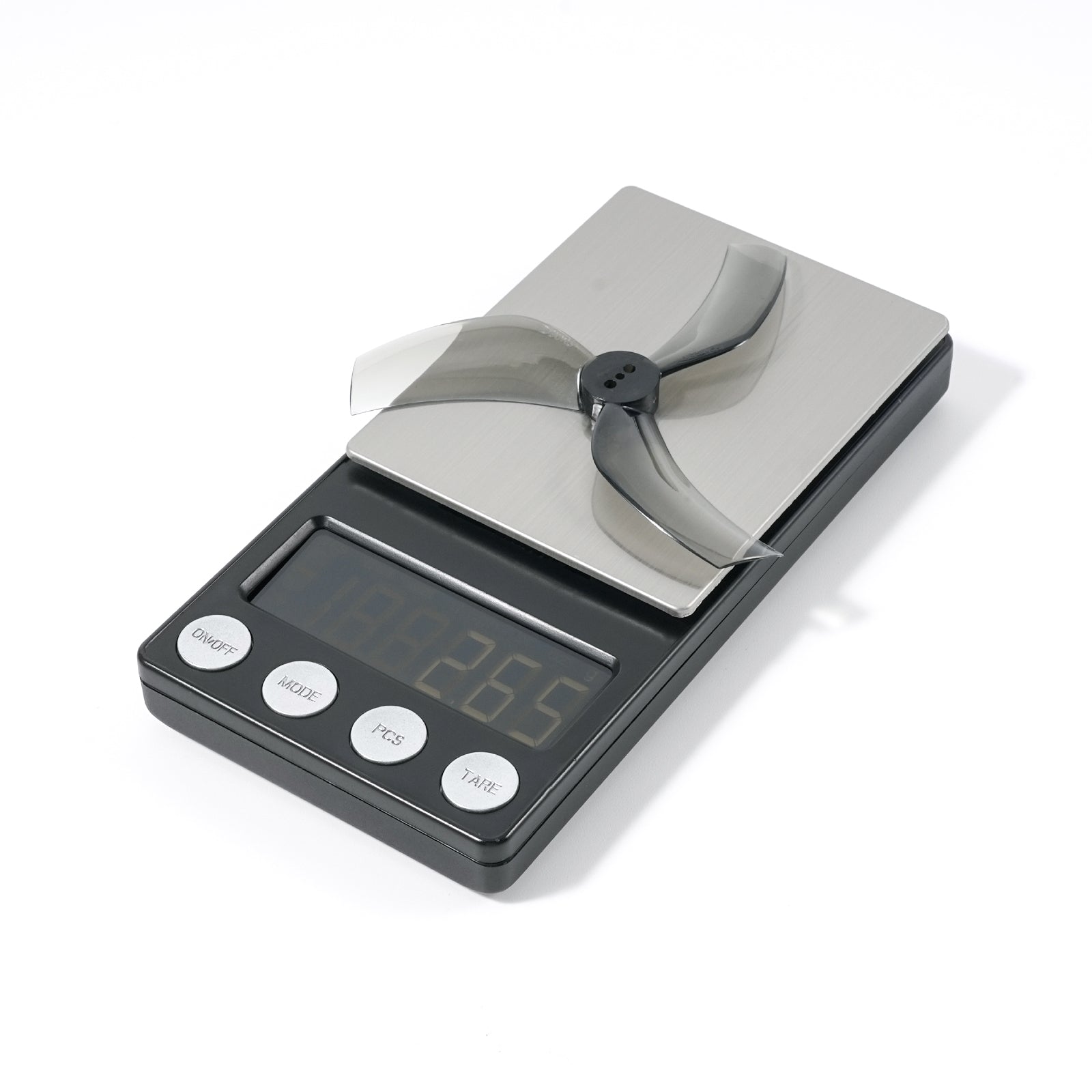

• Weight: 2.6g/set
• Pitch: 3 inch
• Propeller Diameter: 90mm/3.5 inch
• Propeller Hub Thickness: 5.5mm
• Mount: T Mount 1.5mm/2mm

Diagram

The below picture is the diagram for GemFan D90S 3-Blade Propellers(1.5mm Shaft)

Recommended Parts

• Motor: LAVA 2006
• Frame: Pavo35 frame
• Quadcopter: Pavo35

Package

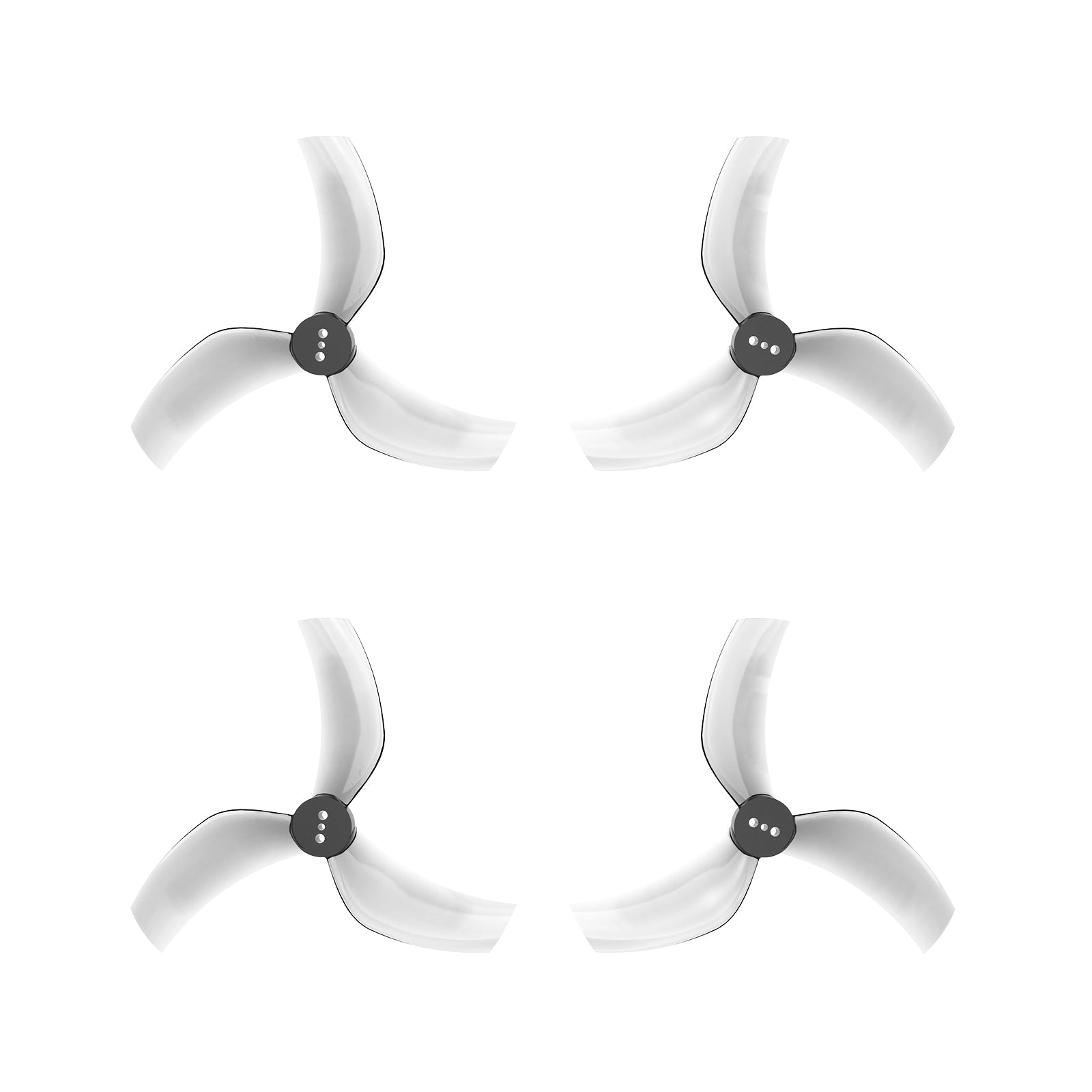

• 2 * GF D90S-3 CW
• 2 * GF D90S-3 CCW
• 8 * Hex Button Head Screw M2 * 8
