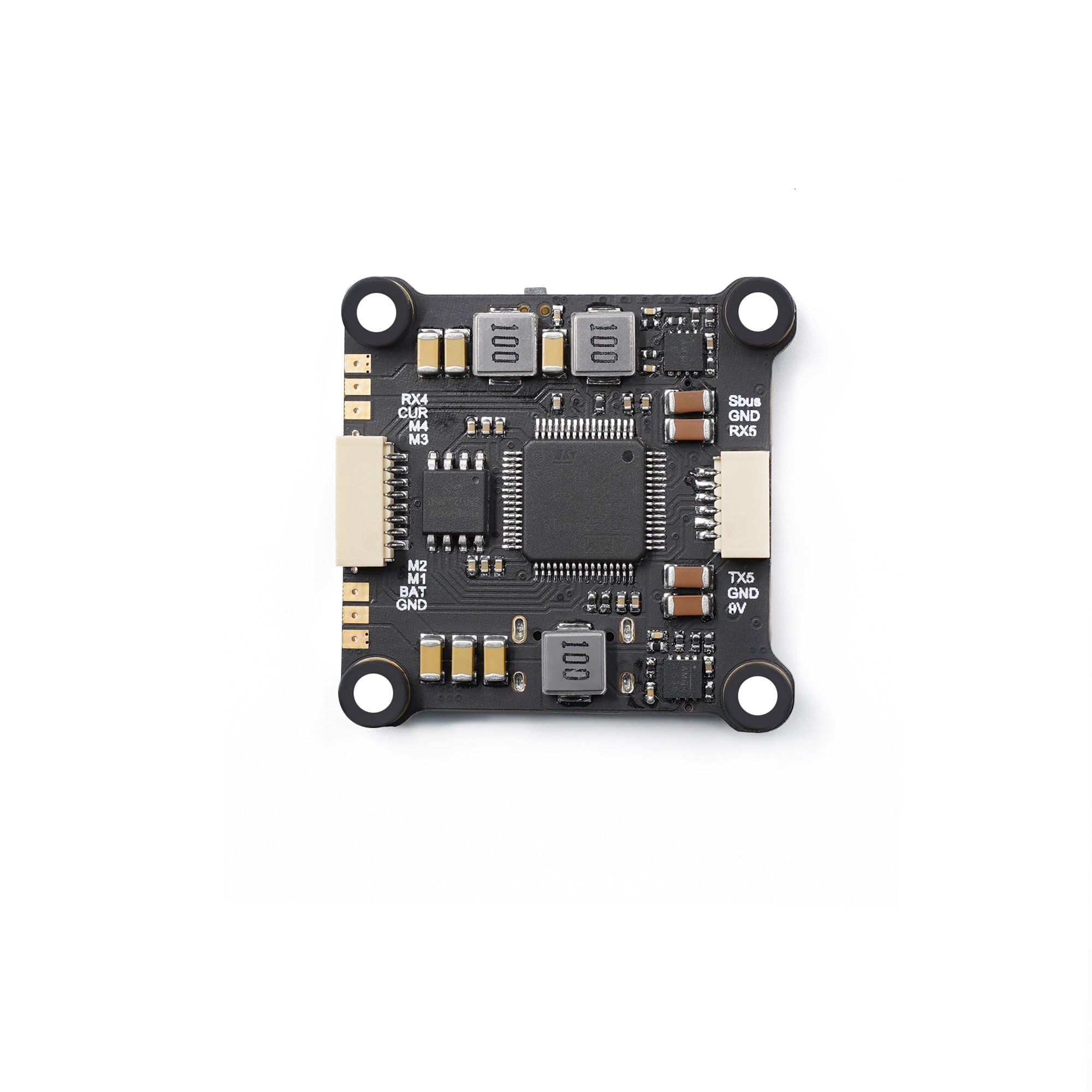

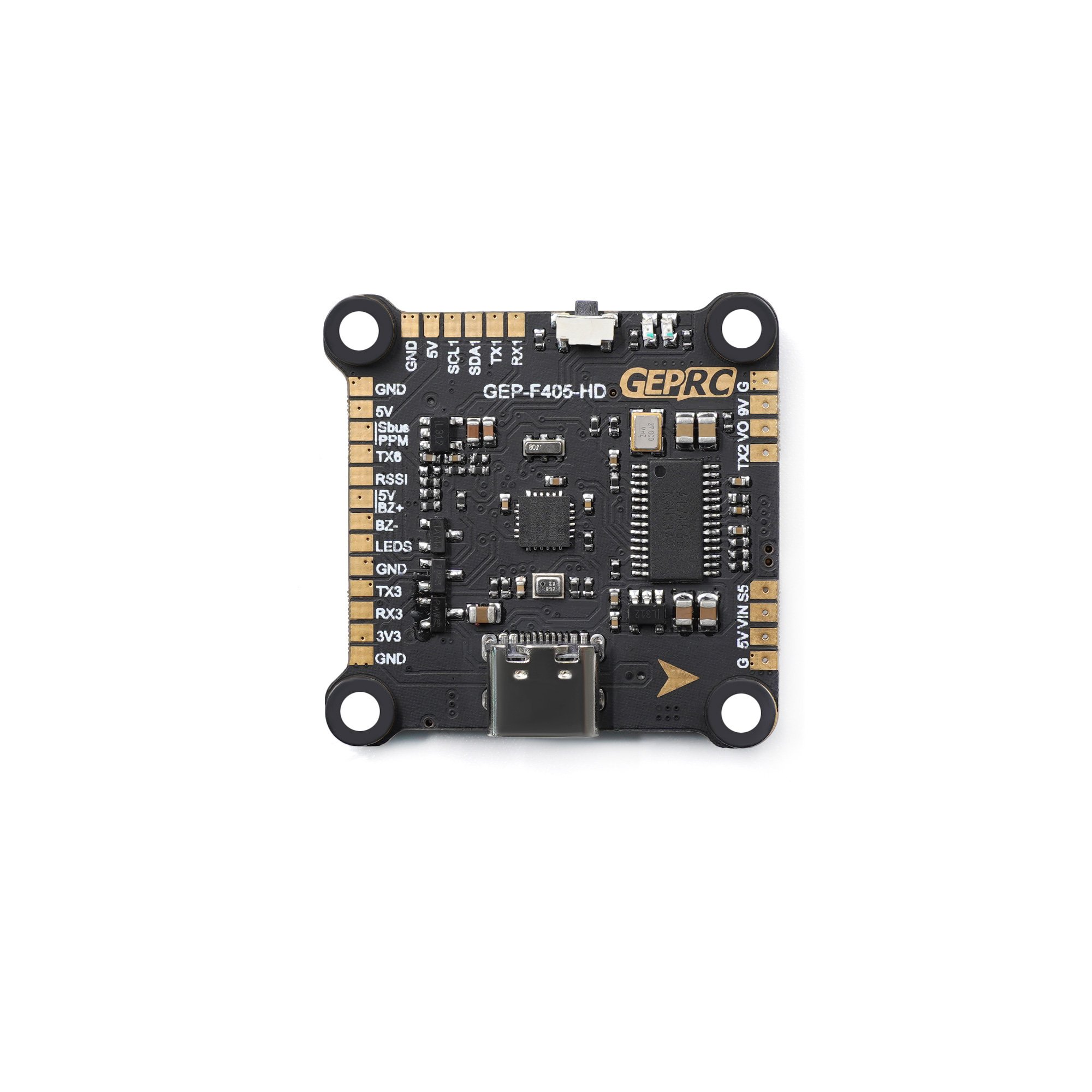

GEP-F405 HD Flight Controller

• MCU: STM32F405
• IMU: MPU6000(SPI)
• BlackBox: 16Mb onboard Flash
• Integrated LC Filter
• Type-C USB interface
• The directly connected DJI Digital FPV System
• Simple installation method, compact space
• Support:Sbus,PPM,CRSF,DSMX,iBus

Specifications:

• MCU: STM32F405
• IMU: MPU6000(SPI)
• DJI FPV Air Unit Supported.
• BlackBox: 16Mb onboard Flash
• Type-C USB interface
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro：BMP280
• BEC Output: 5V,9V BEC
• Integrated LC Filter
• Firmware target:GEPRCF405
• Size: 36x36mm board, φ4mm with Grommets φ3mm
• Power input: 3-6S LiPo
• 6x UART

Receiver Support:

1. Frsky XM/XM+/R-XSR
2. Futaba Receiver
3. DSM/DSMX
4. FlySky Receive
5. TBS Crossfire Receiver
6. AC900
7. Most receivers that support SBUS

Include：

• 1x GEP-F405-HD Flight Controller
• 4x Silicon grommets M4 to M3
• 1x XT60 Power Cable
• 1x ESC Cable
