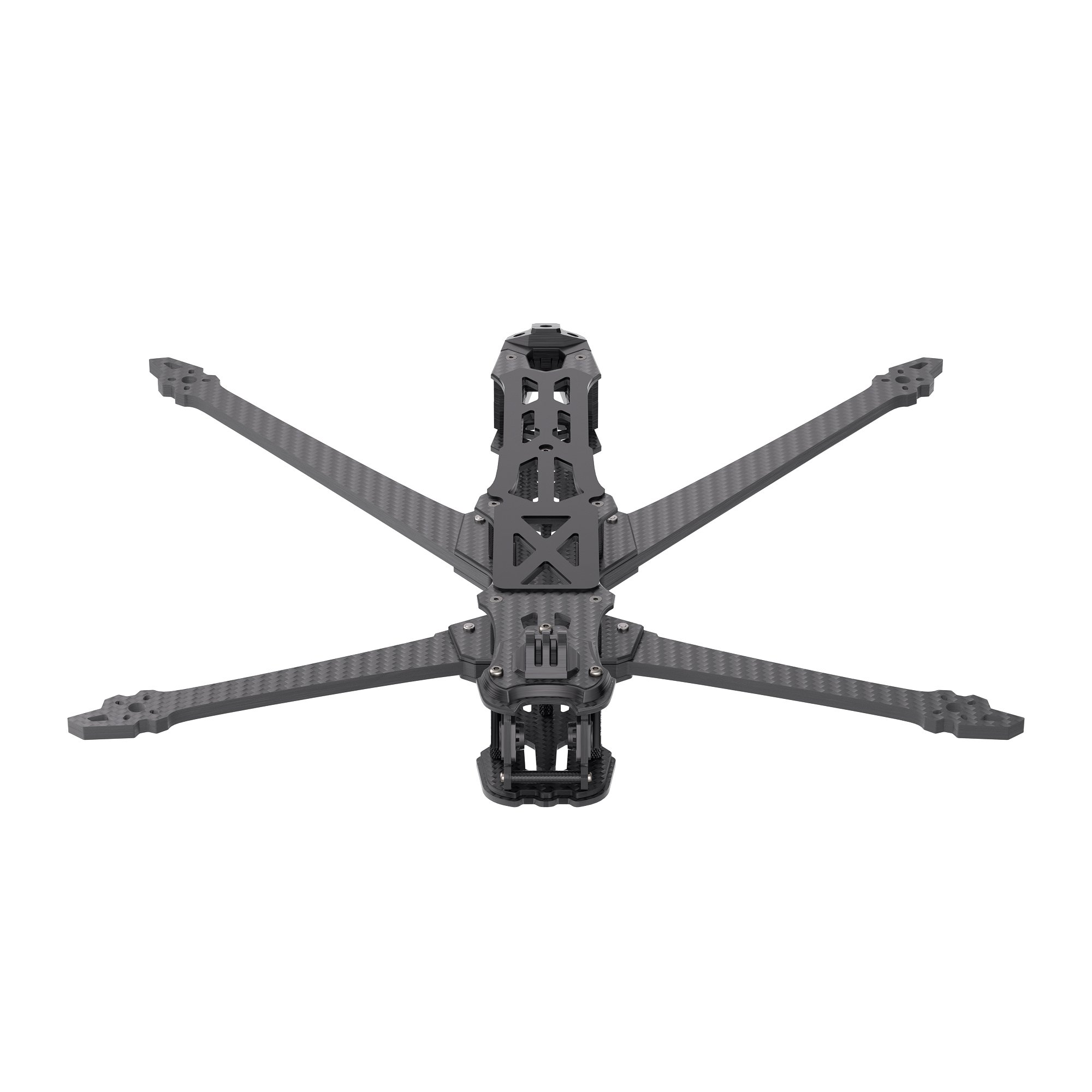

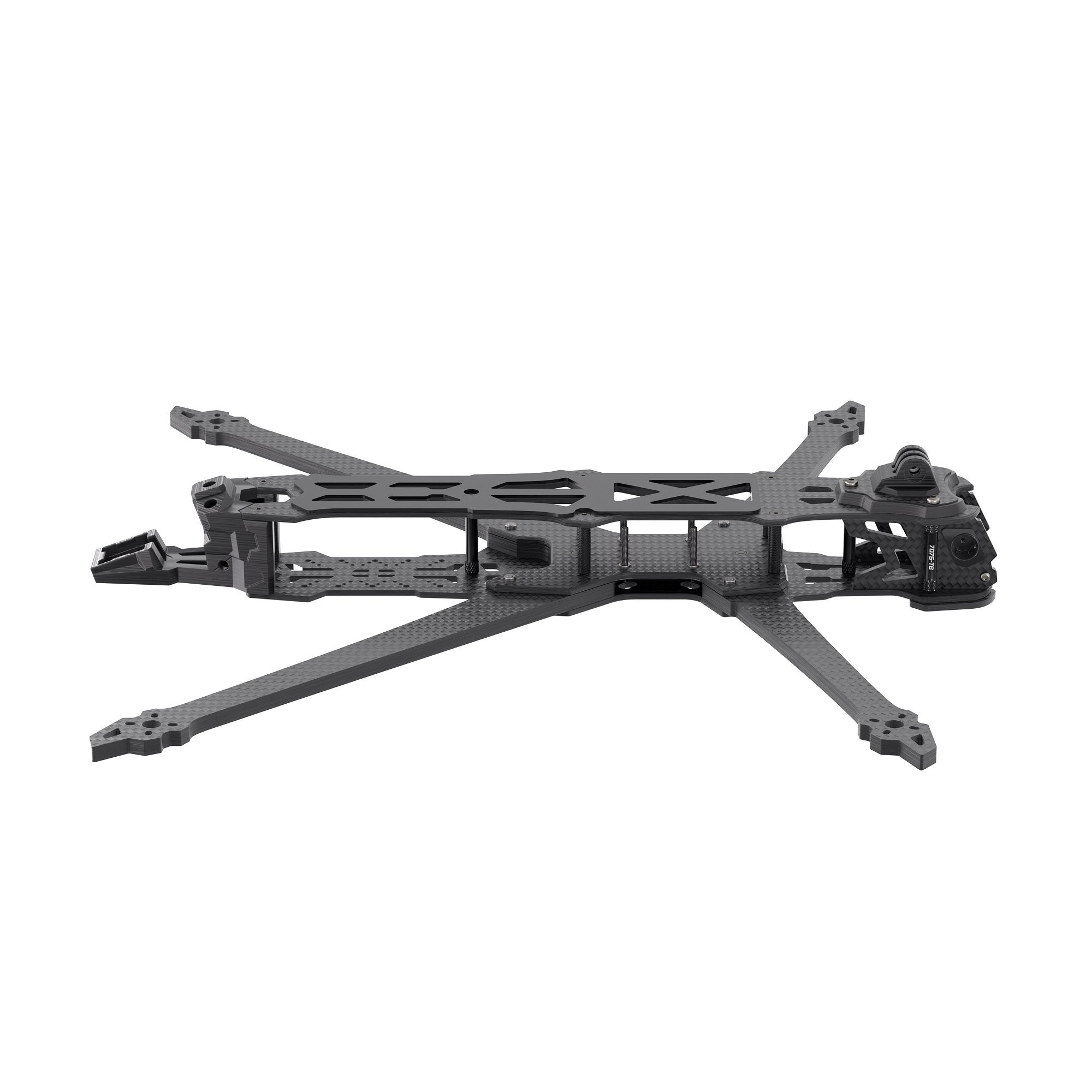

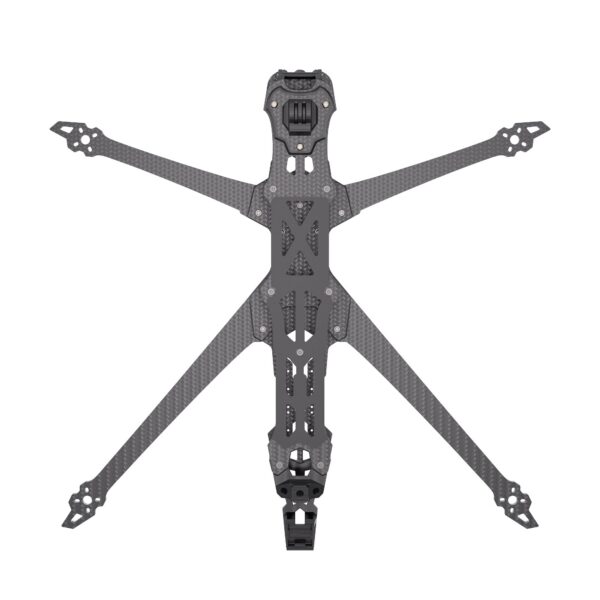

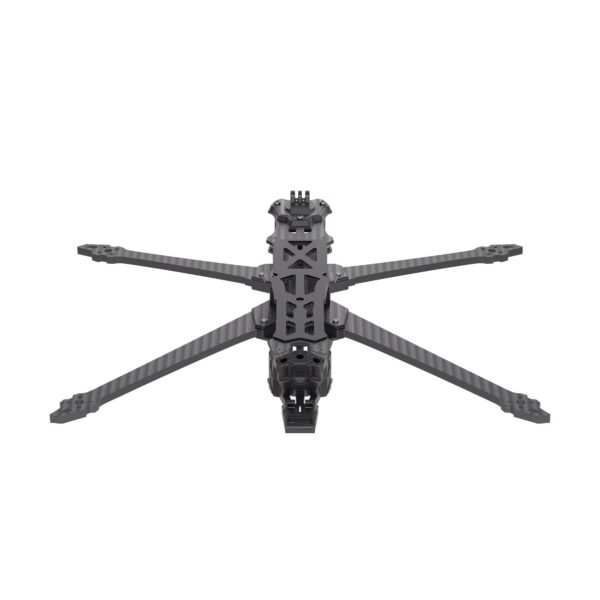

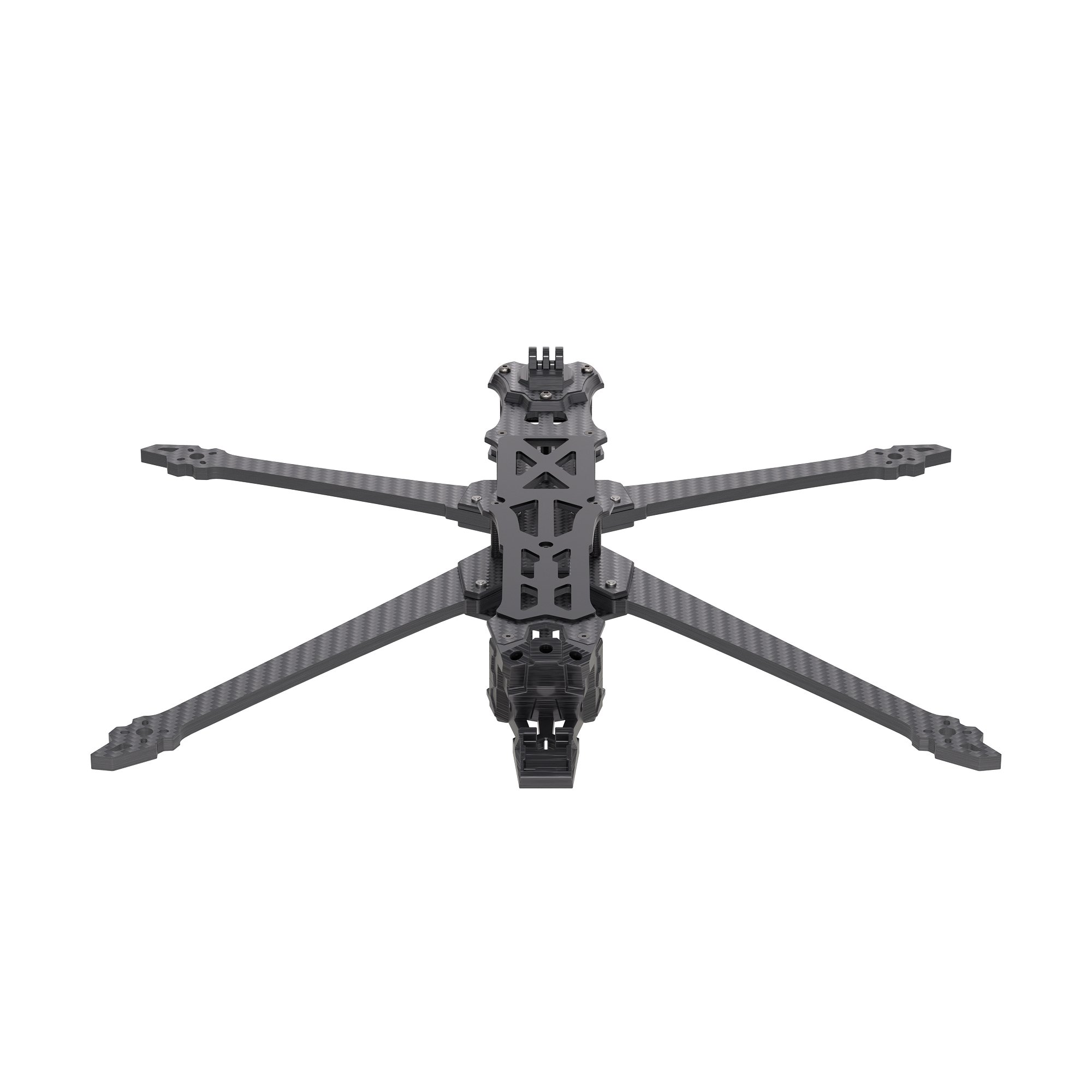

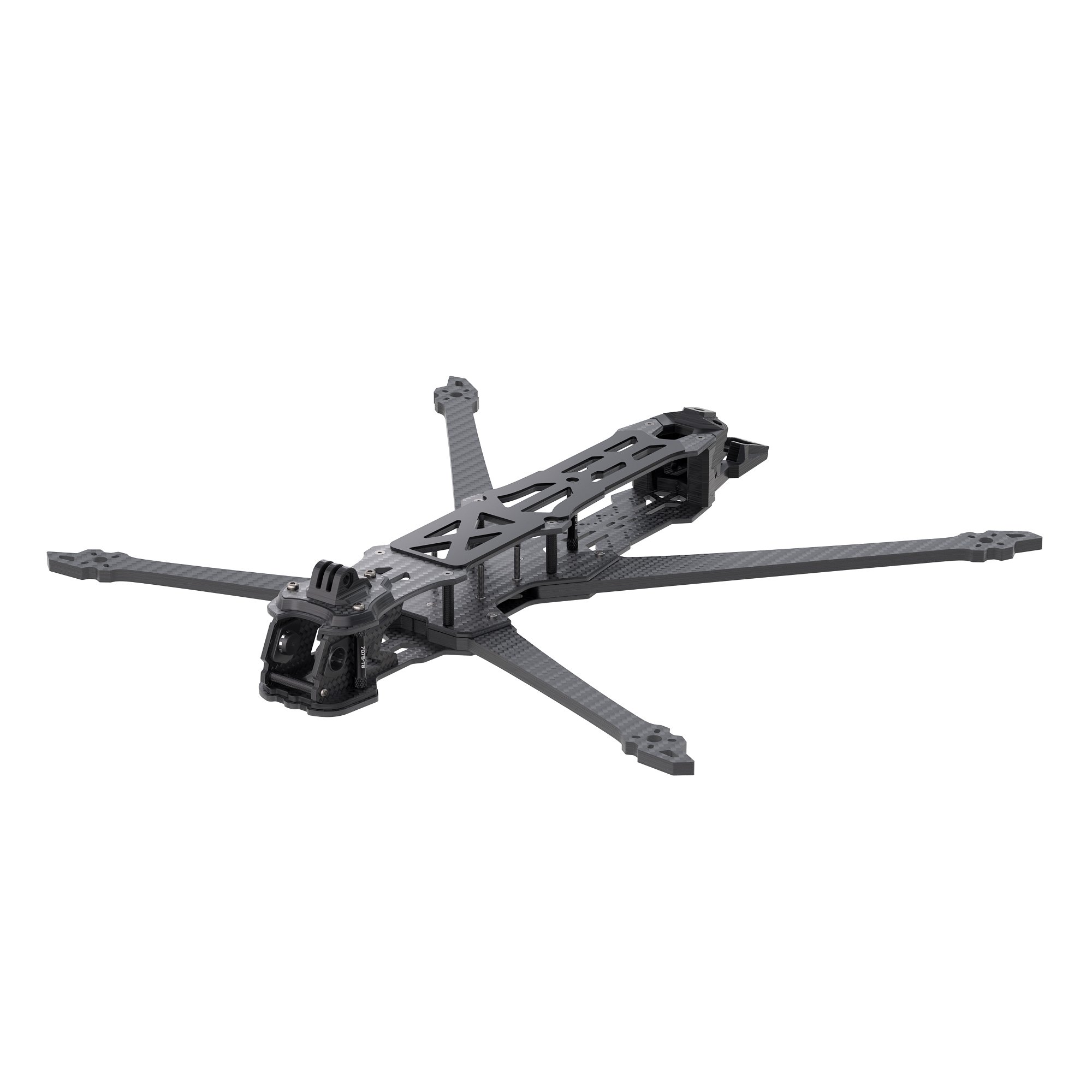

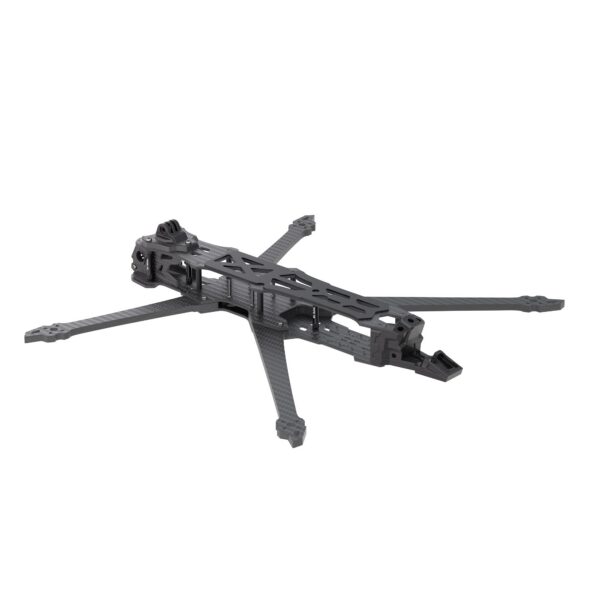

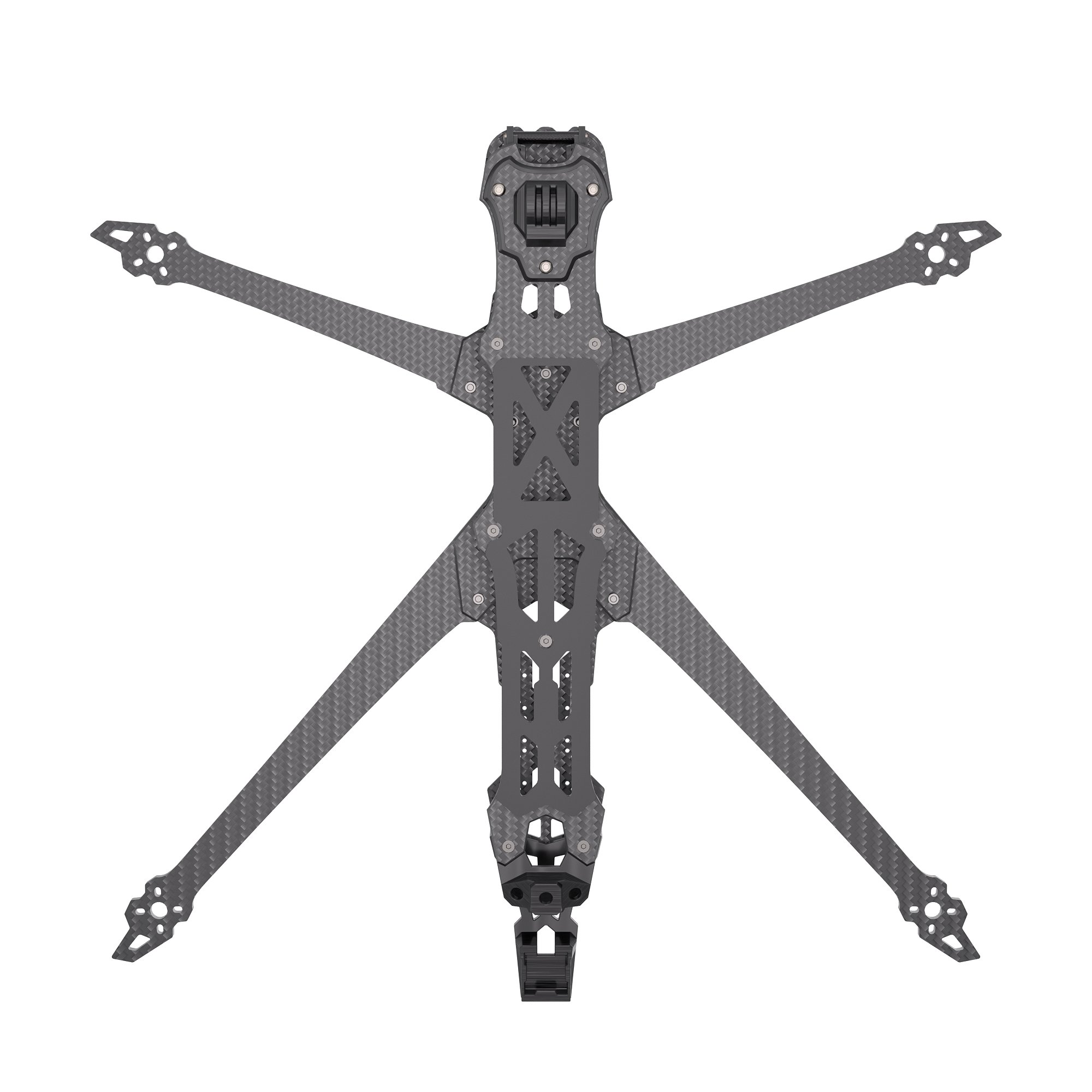

GEP-Pulsar LR11 Frame

Summary

The long-range series has added new members. The Pulsar large wheelbase frame is specially designed for long-range flight.
The strong fuselage hardness brings sufficient wind resistance to the aircraft. Huge fuselage space can install a variety of electronic equipment.

Features

1. The camera is equipped with a special TPU print structure, which can effectively relieve video jello.
2. Sufficient space to install various electronic equipment.
3. The 3.7mm thick arm design makes the aircraft strong and durable.
4. Customized bold aluminum column, using aviation grade 7075-T6 aluminum.

Specifications

• Model: Pulsar LR11
• Frame: GEP-Pulsar LR11 Frame KIT
• Wheelbase: 473mm
• Top plate: 3.0mm
• Bottom plate: 3.0mm
• Arm plate: 7.0mm
• Arm splint: 3mm
• Camera mount splint: 3.0mm
• FC installation position: 30.5*30.5mm
• VTX installation position: 20*20mm / 25.5*25.5mm / 30.5*30.5mm（Maximum support for outer dimensions 30.5*30.5mm)
• Camera installation size: 19mm/20mm
• Weight: 587.2g ± 5g
• Propeller: 11 inch propeller

Includes

1 x GEP-Pulsar frame
2 x M20*250mm battery straps
2 x Battery non-slip pad
1 x Screw pack
1 x 3D printed parts
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
