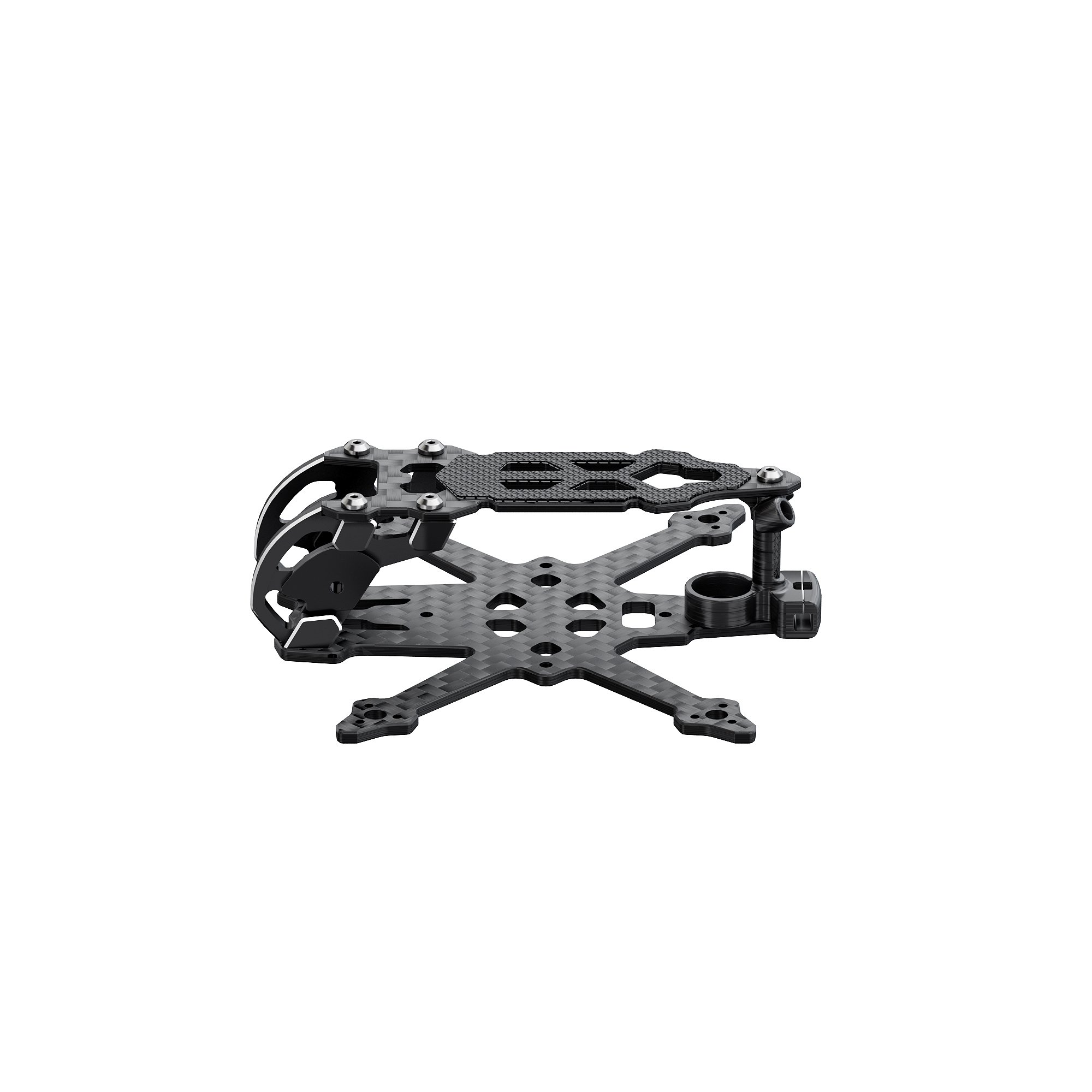

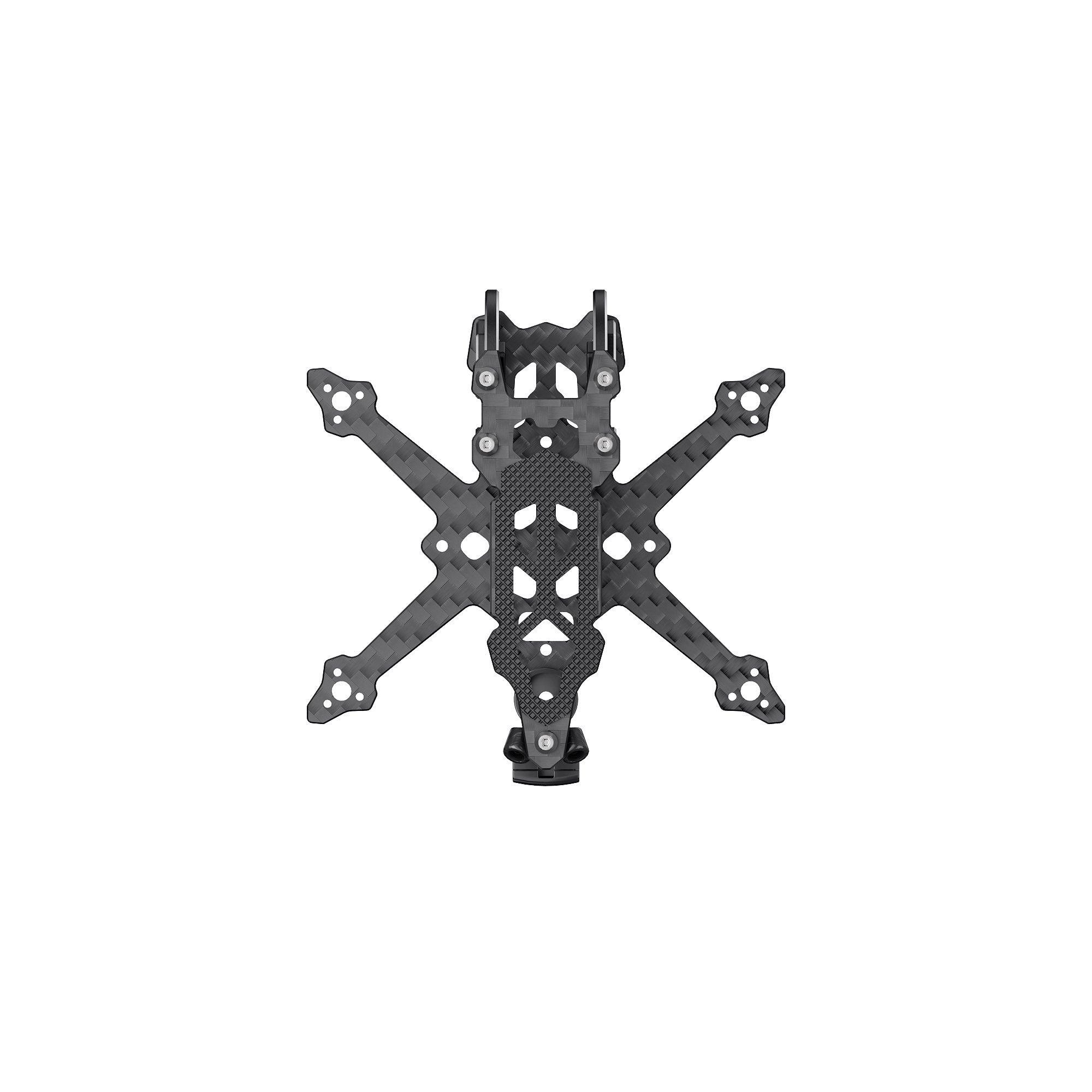

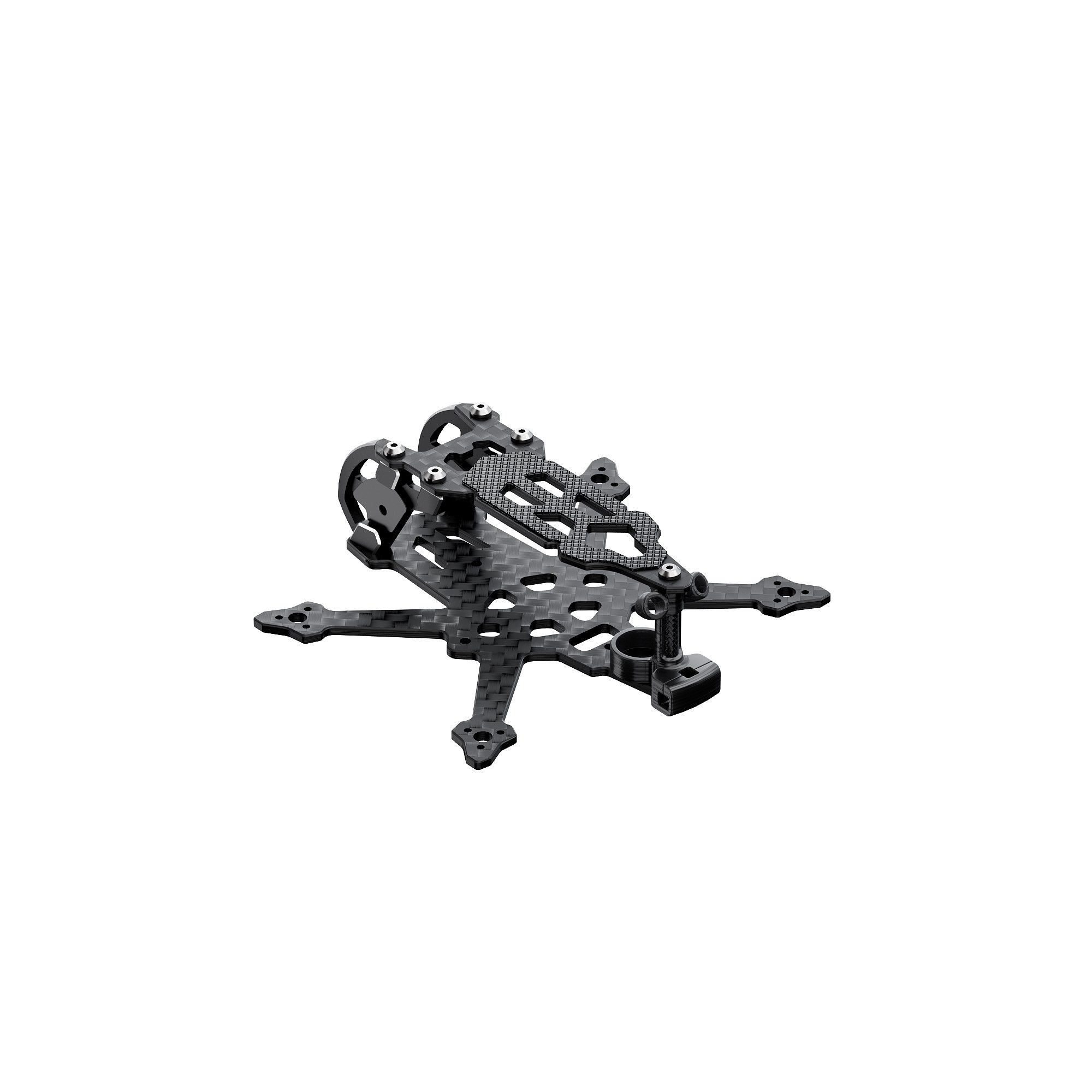

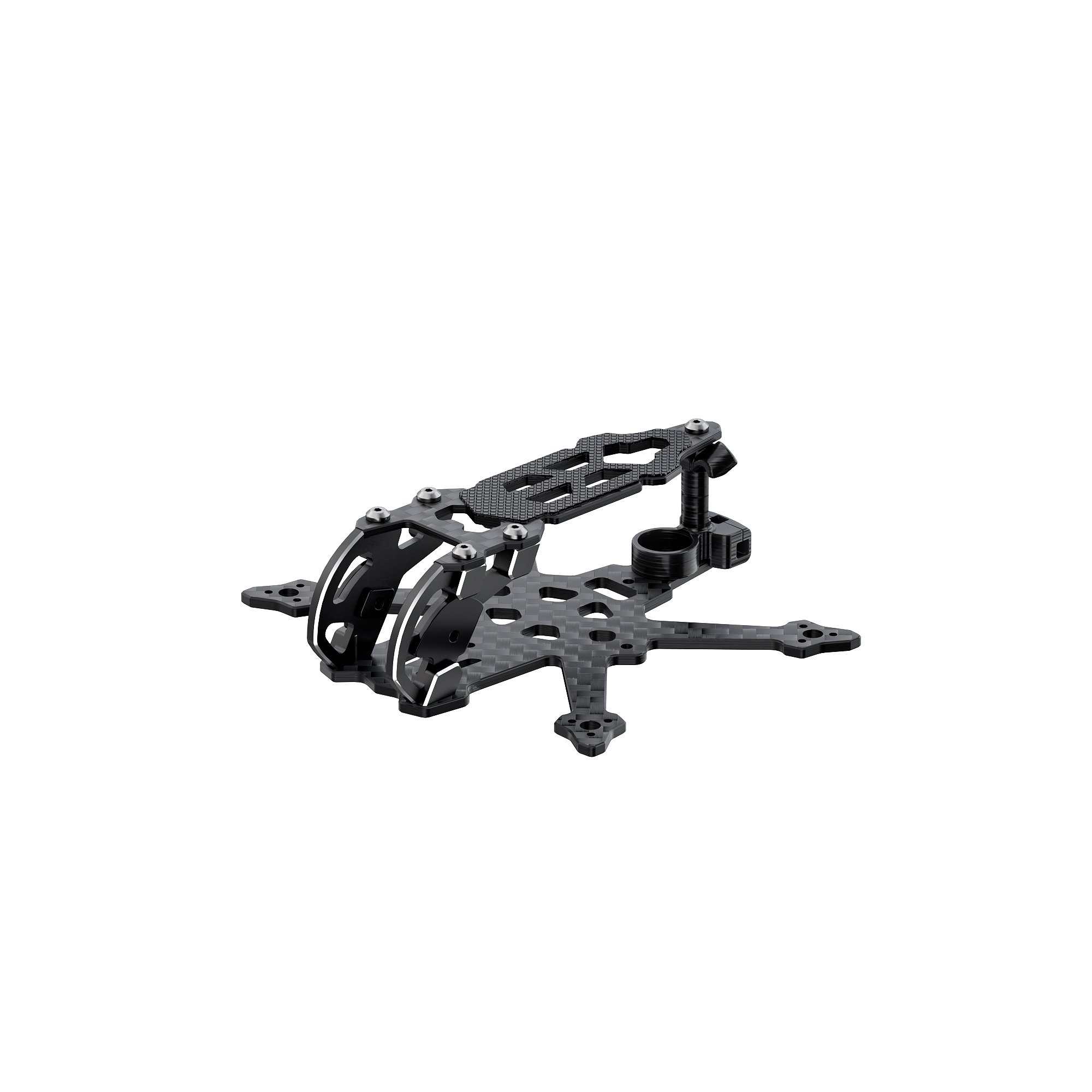

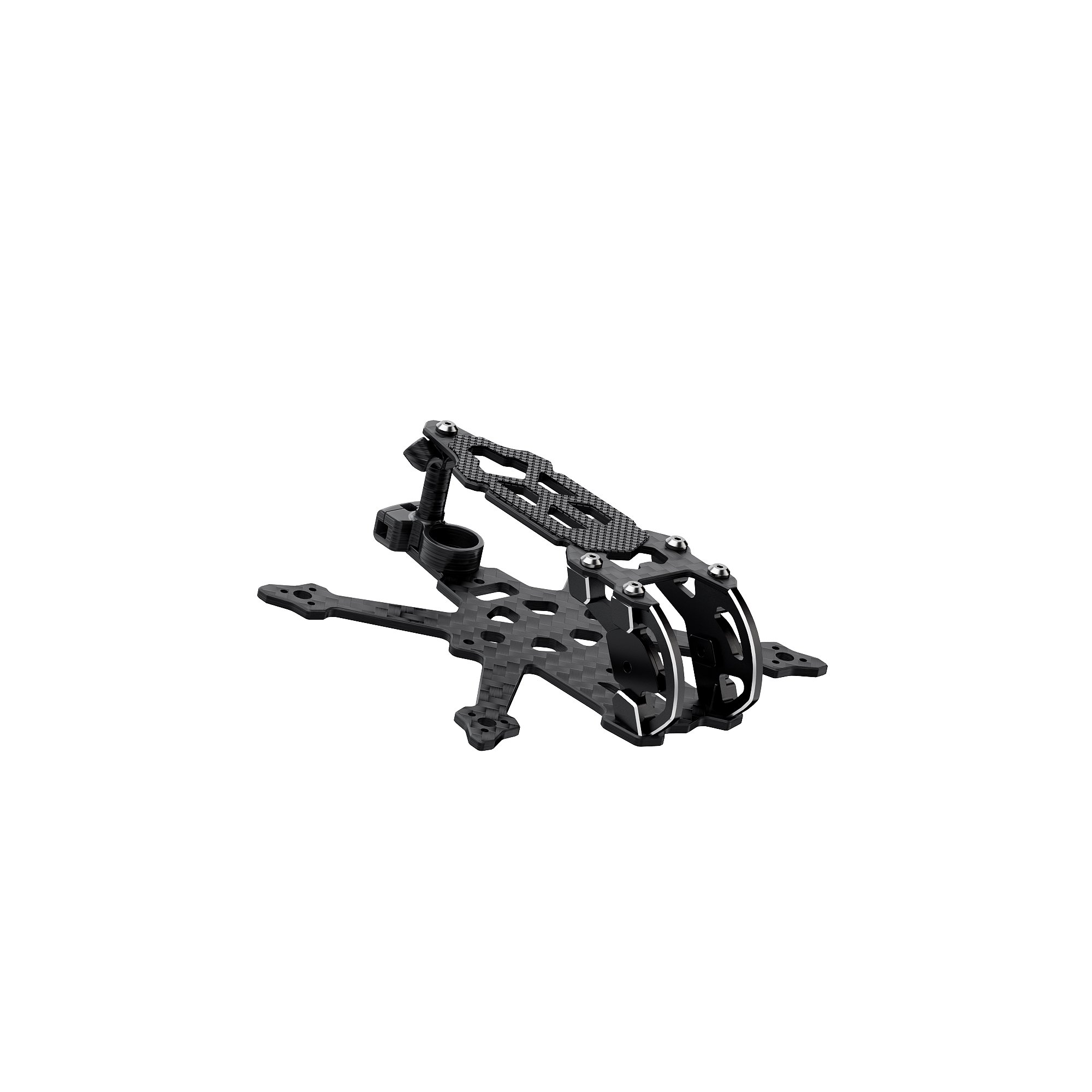

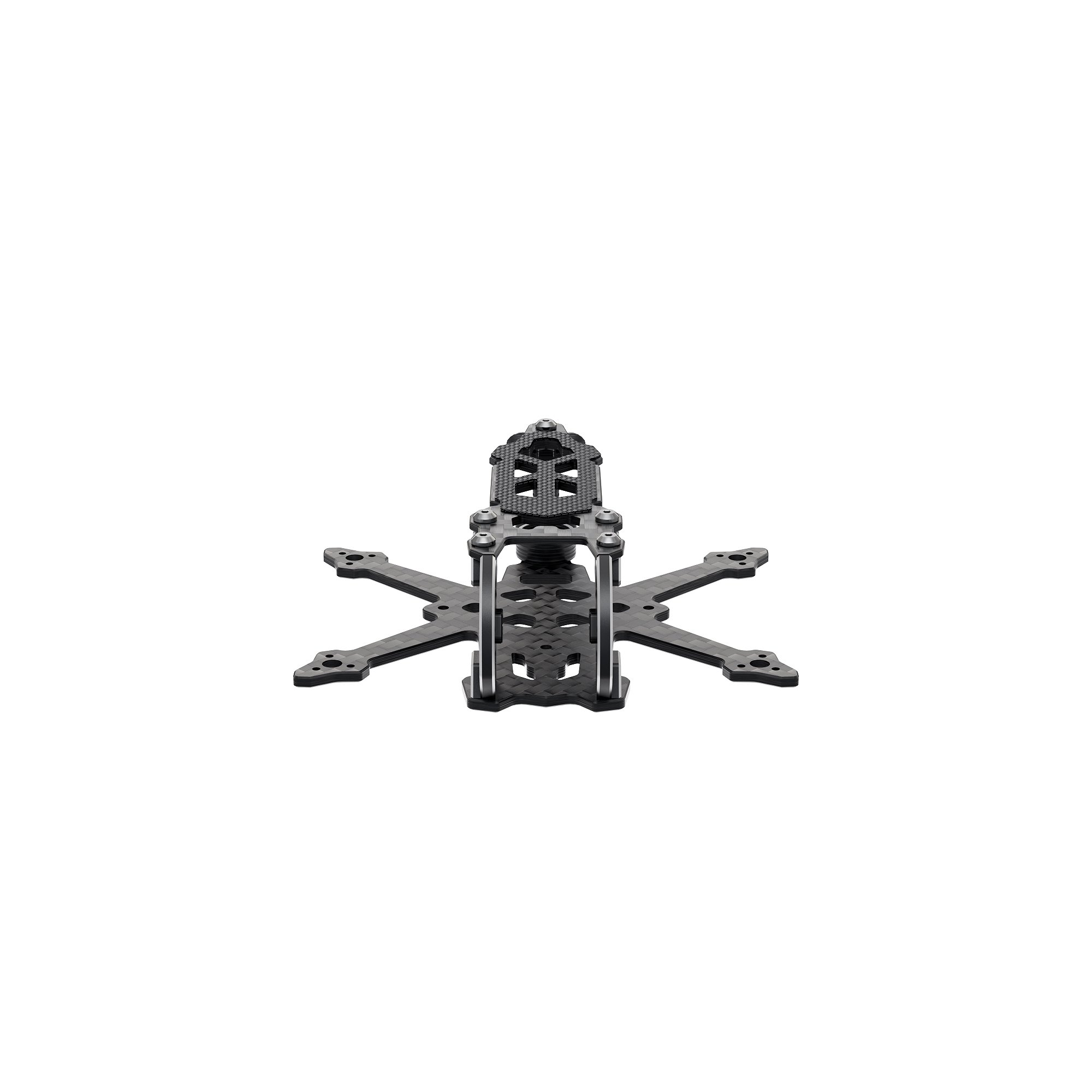

GEP-TC18 O4 HD Frame

Features

1. Dampening Silicone for steady, shake-free footage with O4.

2. 7075 aluminum camera mount for superior durability.

3. Integrated rear design with reserved room for buzzer and dual antennas.

4. 2mm thick arms for durability and sturdiness.

Specifications

• Model: GEP-TC 18 O4 frame
• Wheelbase: 87mm
• Dimension: 100*90mm
• Frame Type: Wide X
• Top Plate: 1.5mm
• Bottom Plate: 2mm
• FC Mounting Hole: 25.5*25.5/M2
• VTX Mounting Hole:  25.5*25.5/M2
• Motor Mounting Hole: 6.6*6.6/M1.4
• Camera Side Plate Gap: 14*14mm
• Stack Mounting Height: 12mm
• Weight: 15g

Recommended Accessories

Motor: 0802-1002

FC:TAKER F411-12A-E 1~2S AIO FC

VTX: DJI O4 Air Unit digital VTX

Propeller: HQprop 45mm
