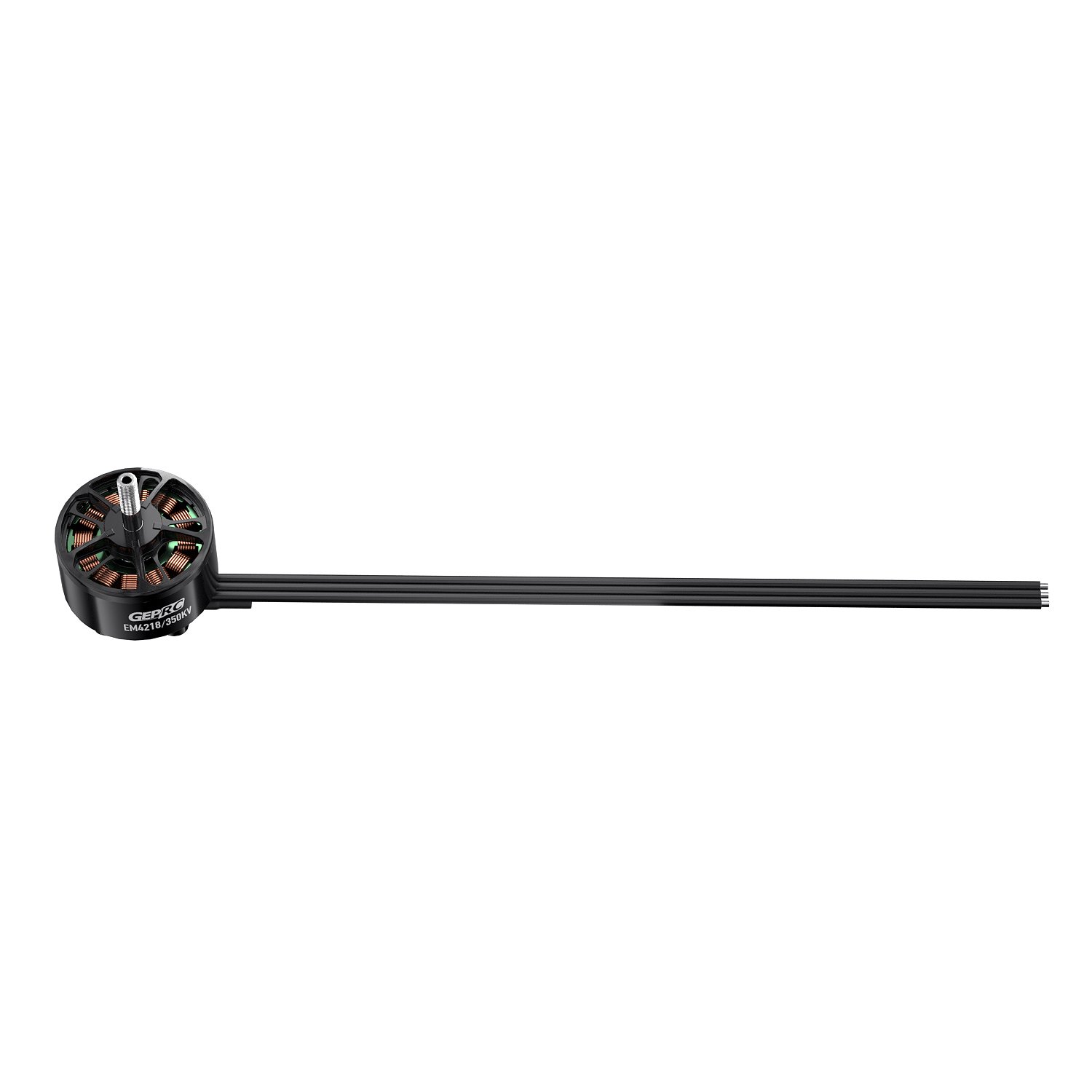

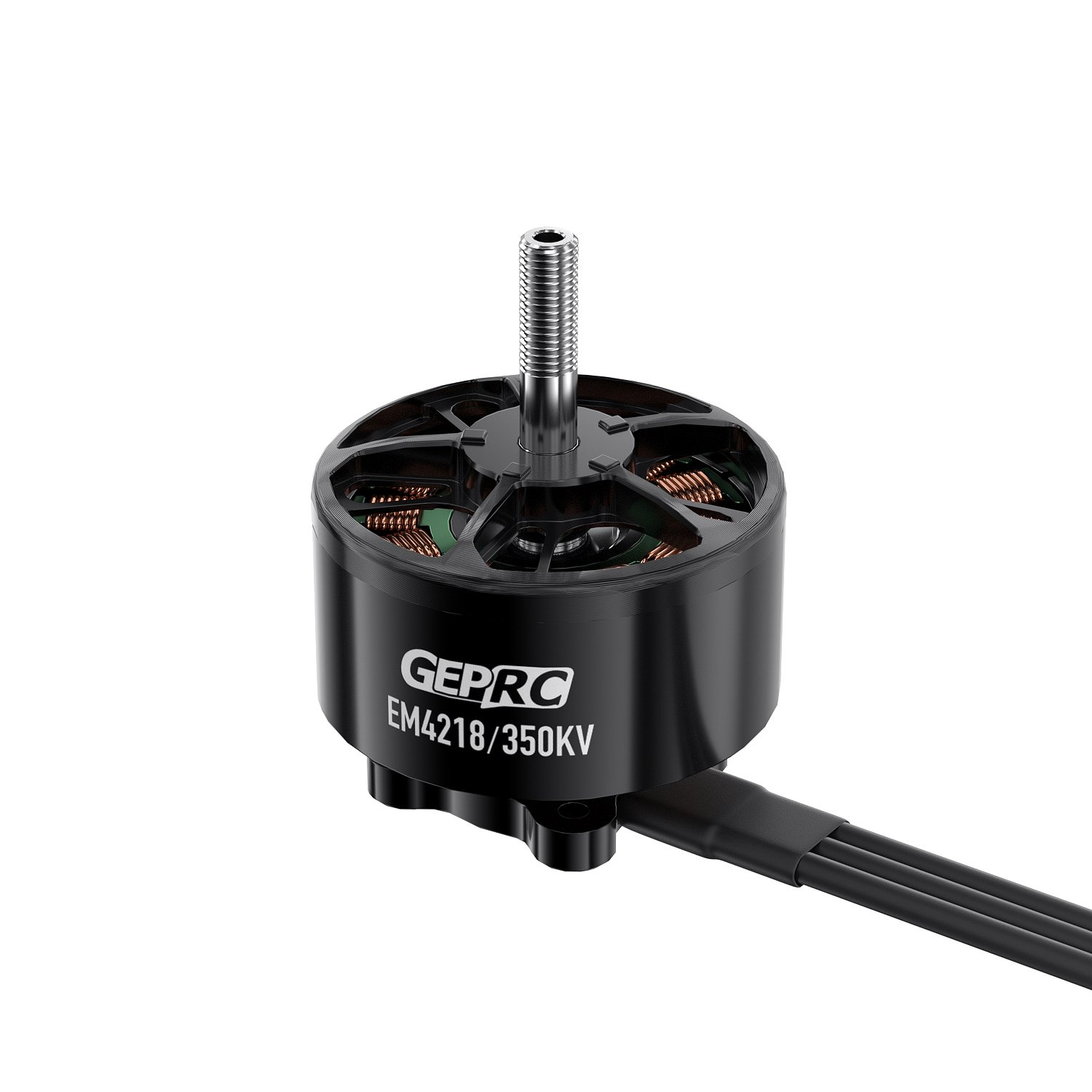

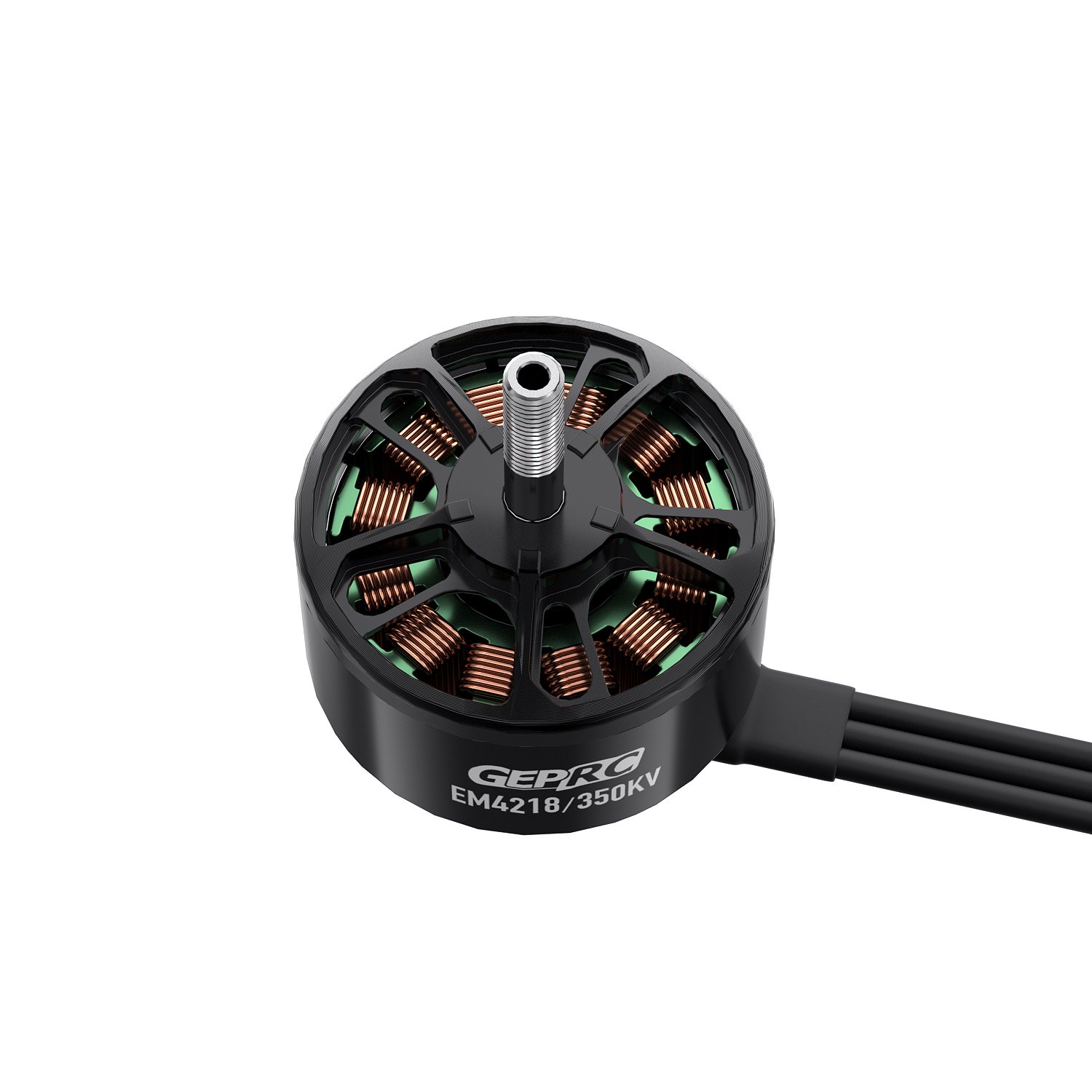

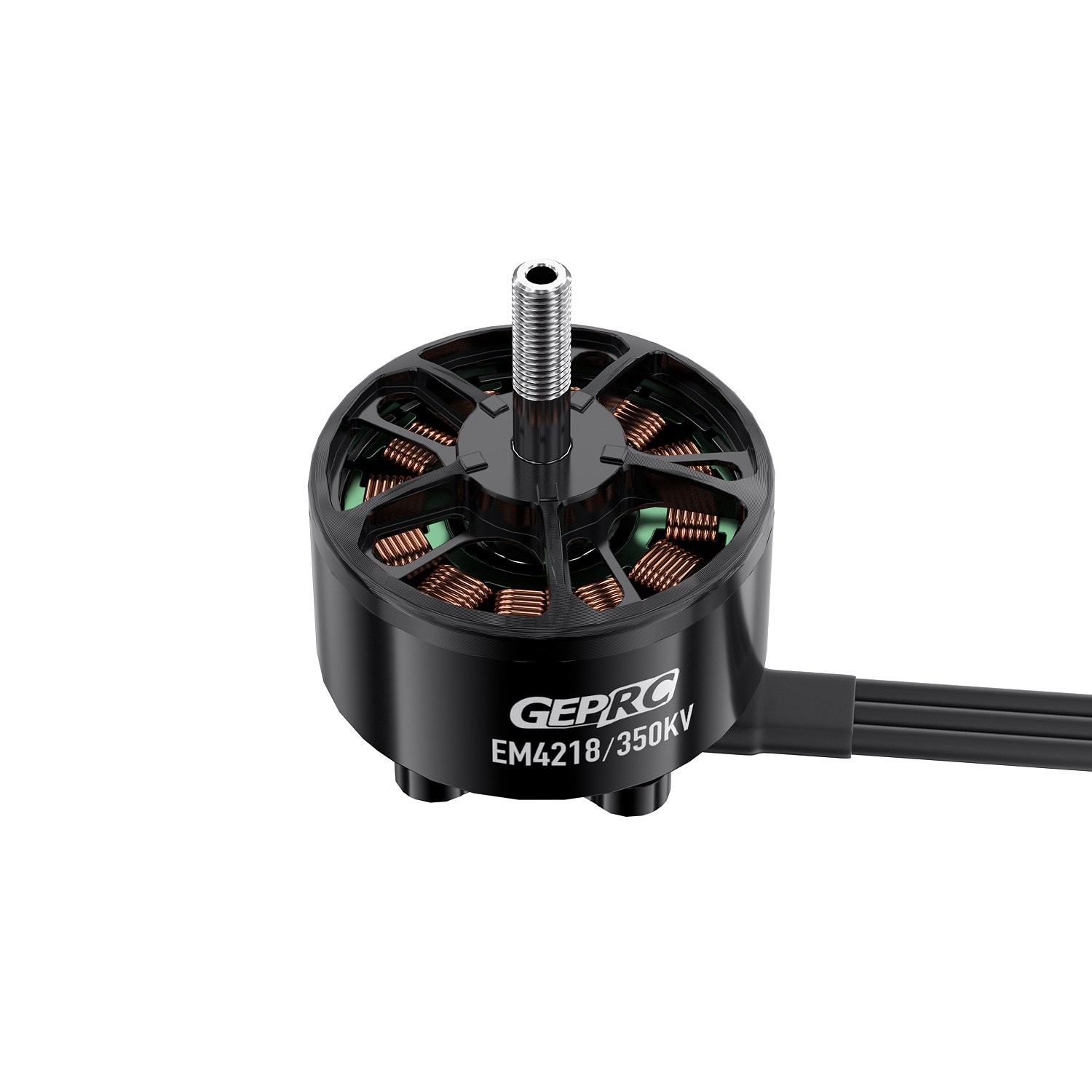

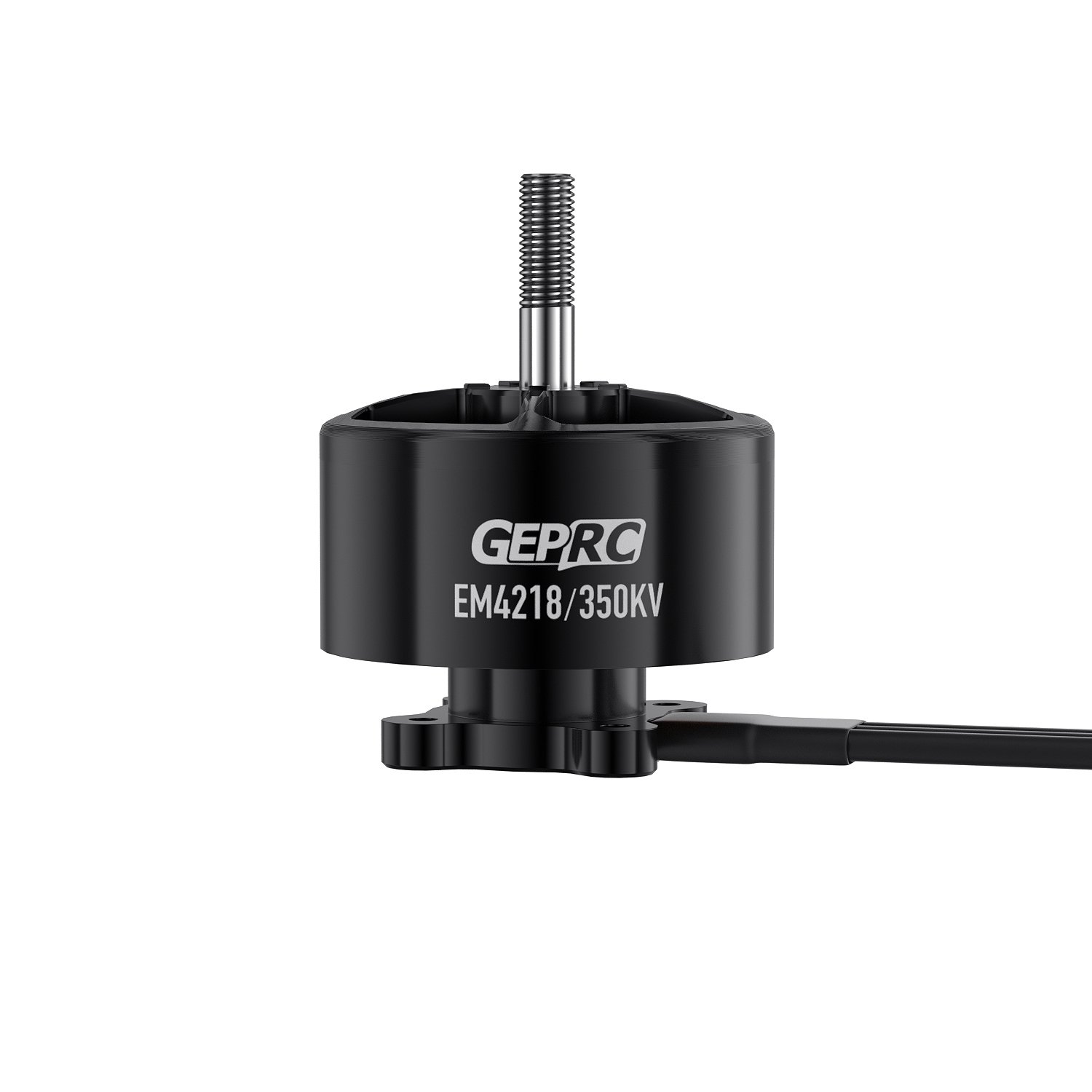

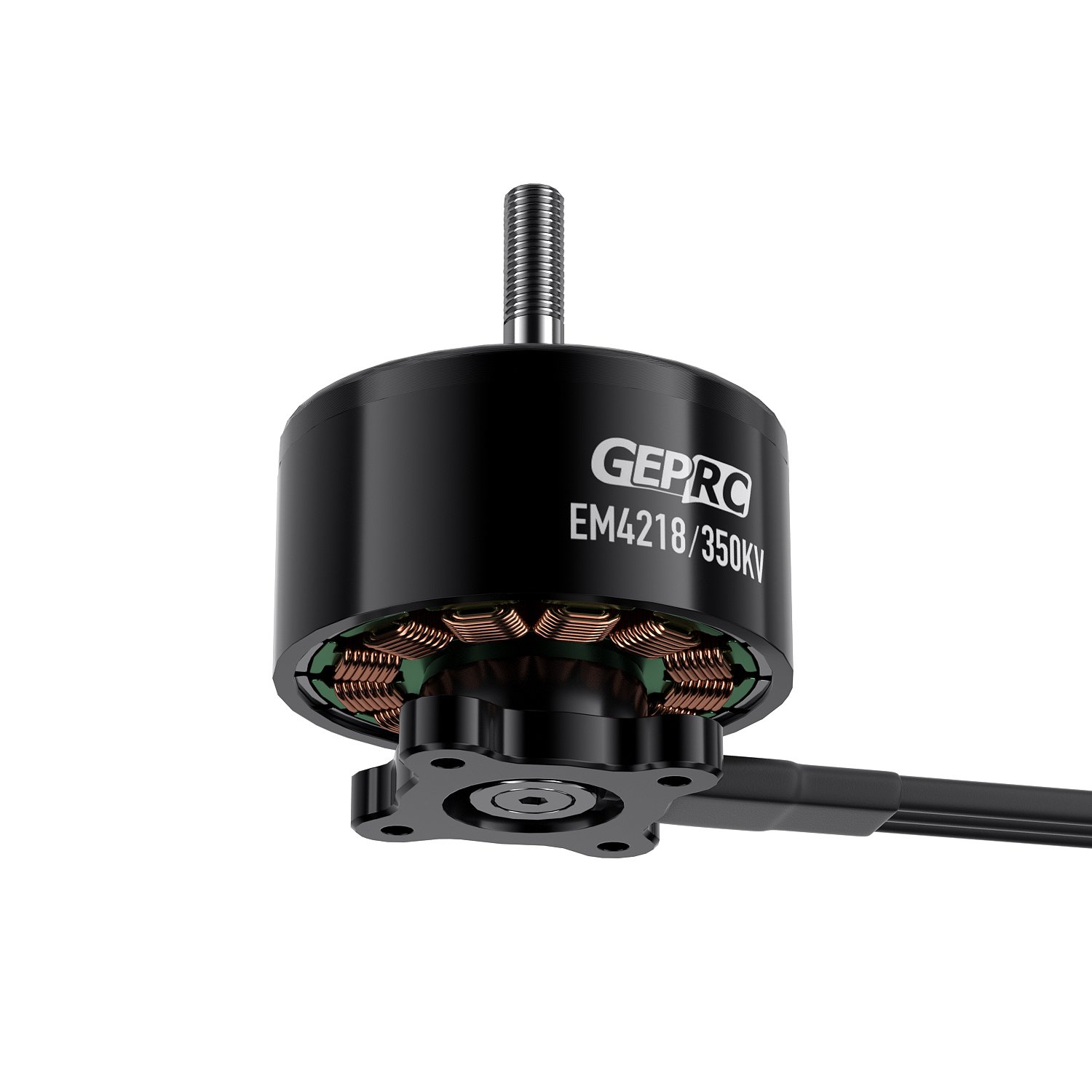

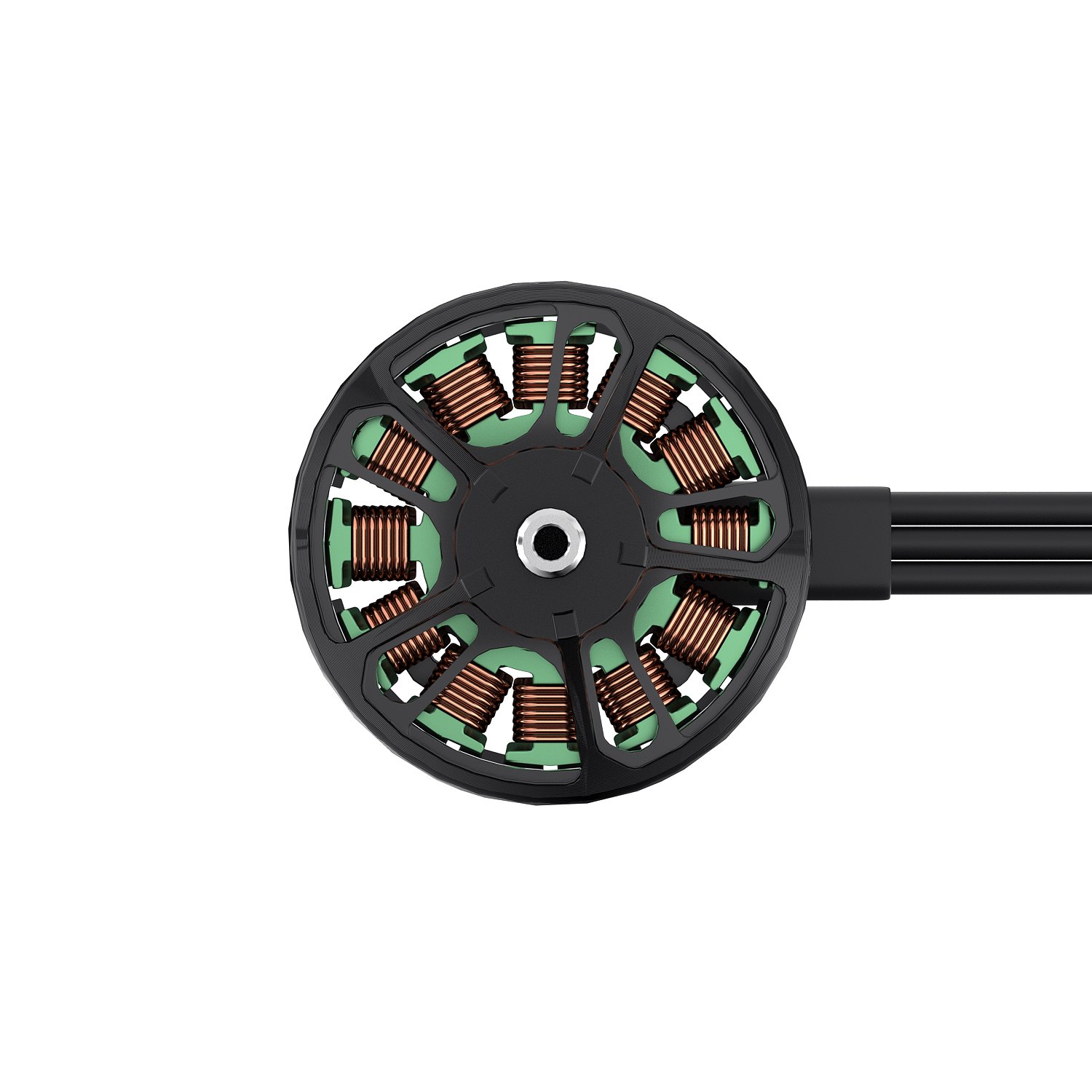

GEPRC EM4218 350KV Motor

Feature

1. New EM series motors designed for long-range FPV
2.  High-strength M6 steel shaft
3. High torque magnetic circuit design

Specifications

• Model: EM4218 350KV Motor
• KV: 350KV
• Max Watt: 1800W
• Peak Current: 60A
• Interphase Resistance: 50mΩ
• Propeller: 13-15inch Propeller
• Magnet: N52H
• Bearing Type: NMB
• Configuration: 12N14P
• Dimension: φ49mmx40.1mm
• Shaft Diameter: φ6mm
• Shaft Protruding Length: 22.9mm
• Mounting Holes: 30mmx30mm
• Lead: 800mm/14AWG
• Compatible ESC: 60A-80A
• Input Volts: 33.6V(8S LiPo)
• Winding: Many-strand copper winding
• Included Screws: Semi-spherical Head M4*10 (4PCS)/M6 Flange Nut (1PCS)
• Weight: 289g(included wire)
• Compatible models: 13-15 inch long-range FPV

Includes

1 x EM4218 motor

4 x M4*10 round head screws

1 x M6 anti-slip nut
