GEPRC GEP-Mark2-5 Frame

Summary:
This is a frame designed for Freestyle, called “Mark2”. After repeated design adjustment and testing, finally finished, let us present to you.

Although Mark2 is a regular rectangular frame, it still wants you to know its design features. A lot of mechanical shapes are added to the design, and the whole is very sexy and science fiction. The four arm and aluminum alloy parts are fixed, easy to replace the new machine arm, and the fixed performance is good. The camera position can be very good to protect the camera from damage

High-precision CNC aluminum alloy fixed parts, 3K full carbon fiber, 12.9 level YFS screw, give Mark2 to maintain strength advantage.

Enjoy Freestyle.

Specifications：
Name：GEP-Mark2-5
Weight：115~119g
Wheelbase：230mm
Props Size: 5inch
Size：215*180mm
Arms board:4mm
Base board:2mm
Bumper board:1.5mm

Recommended：
Flight Controller：Kiss/F4/F3/Naze32/ CC3D
Motors： 2204/2205/2206/2207/2305/2306
ESC：20A-45A
Propeller：5inch
Battery: 3S 1300mAh ~ 4S 1500mAh

Features:
1.Designed for the design of Freestyle, exquisite design
2.The battery is mounted on top, balanced

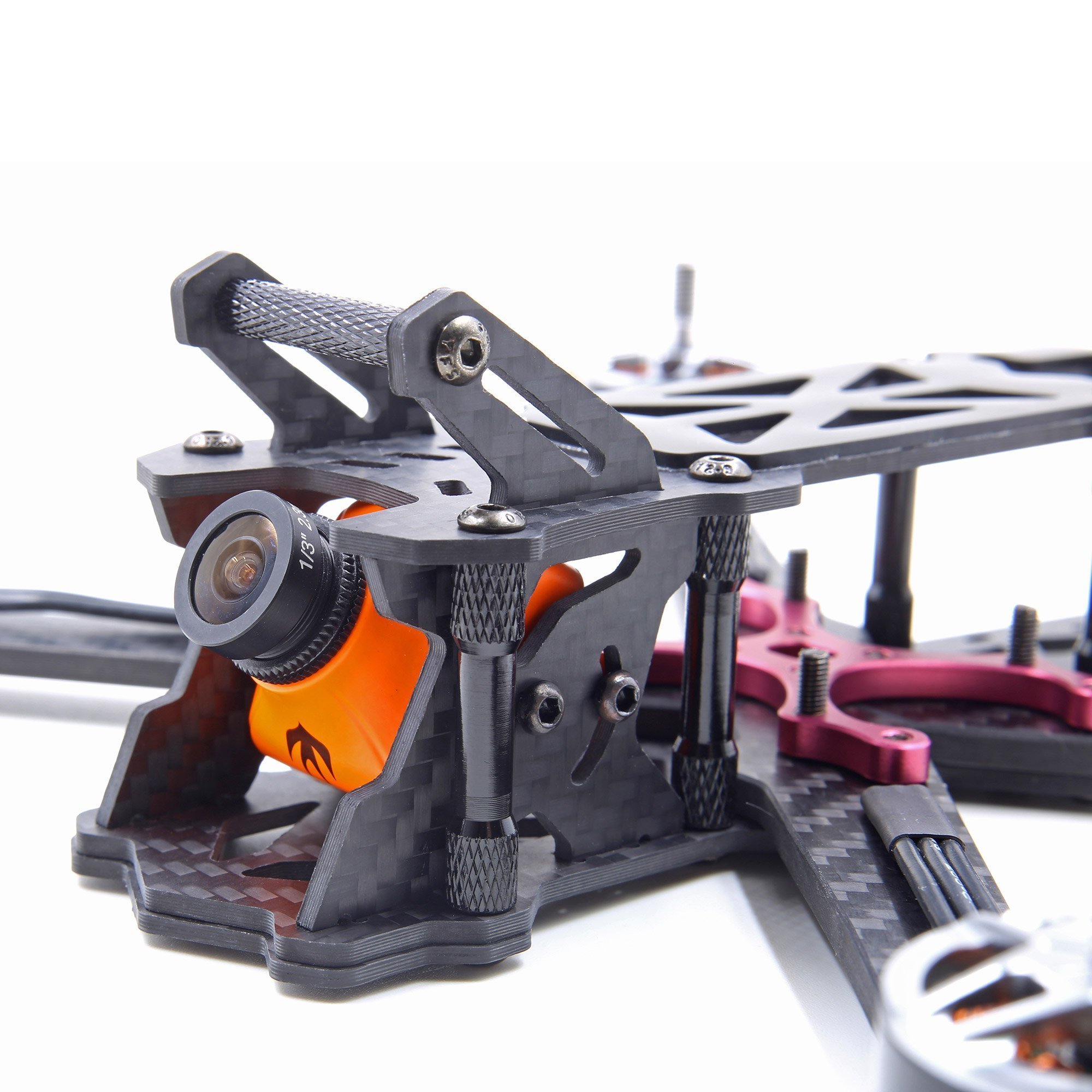

3.Two kinds of video camera fixed mode, easy installation
4.High quality 3K full carbon fiber board, high precision CNC aluminum alloy parts, simple structure and strong
5.30mm height makes the frame more stable
6.The arm is at the narrowest point of 13.5 mm, the wind resistance is smaller, but more commuted arm, easy to maintain
7.1.5mm protection bar, ensure the flight control and other parts of the fuselage are not damaged during collision and landing
8.YFS screw, 12.9 hardness
9.With a PDB board, integrated XT60, with BEC(5/12v output)

Includes:
