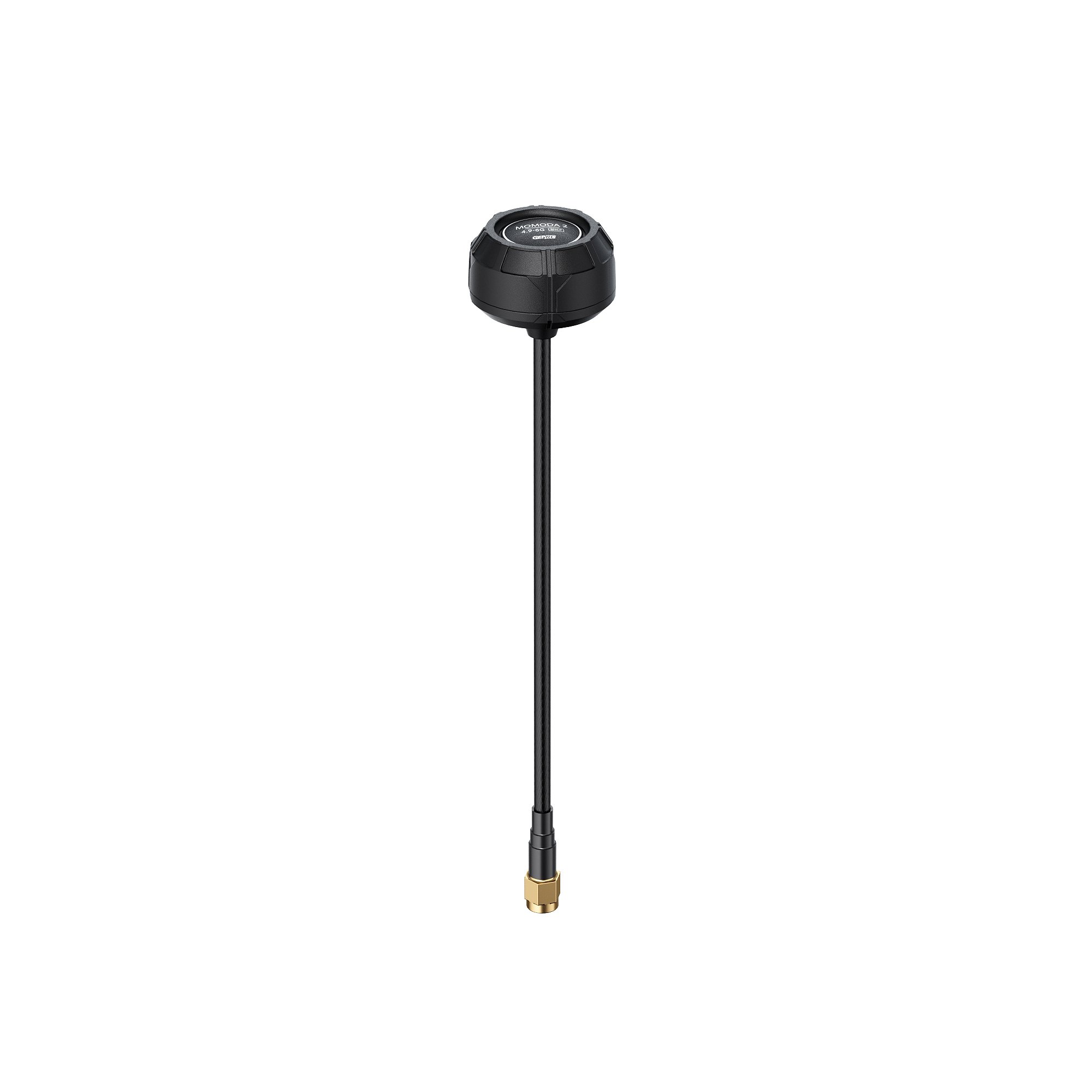

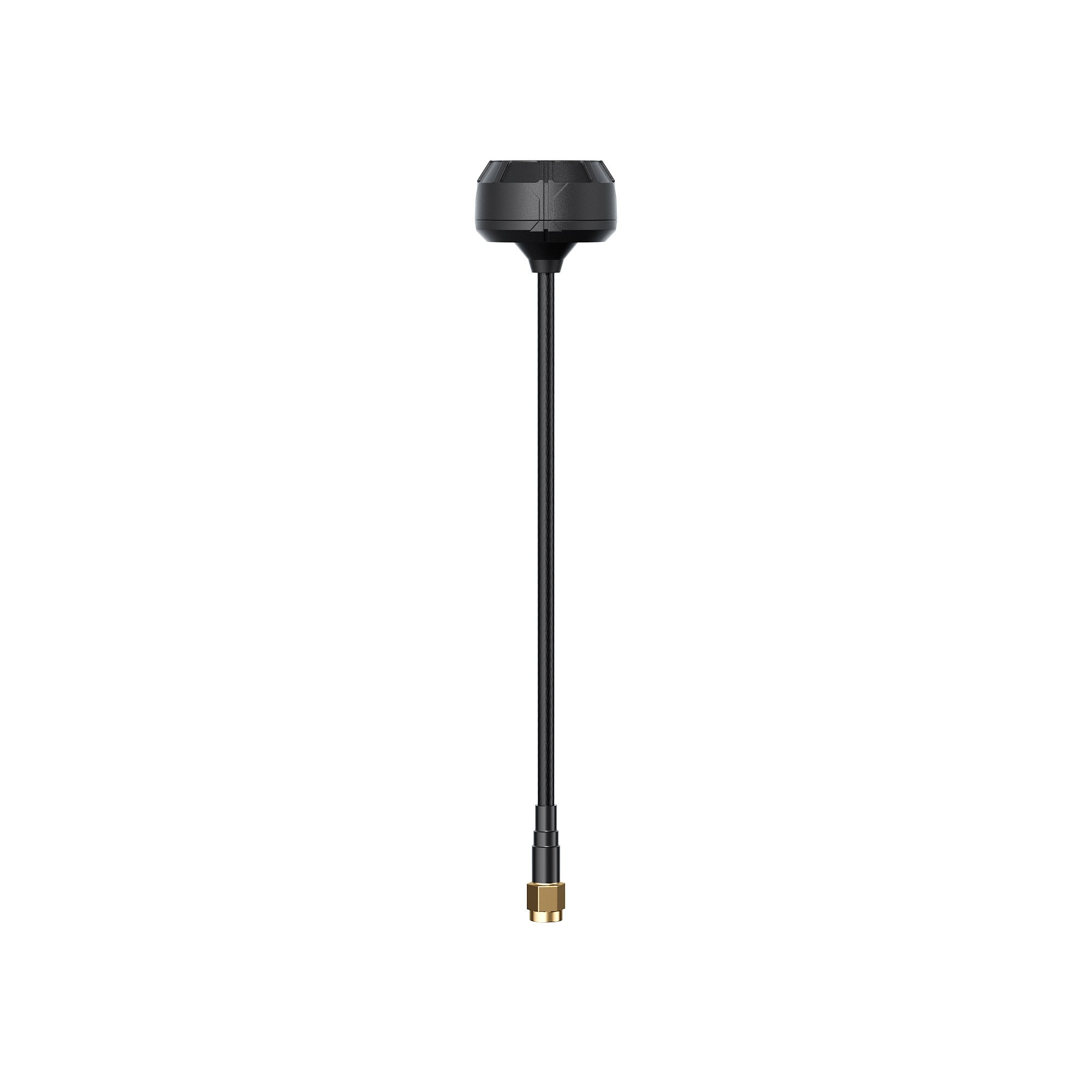

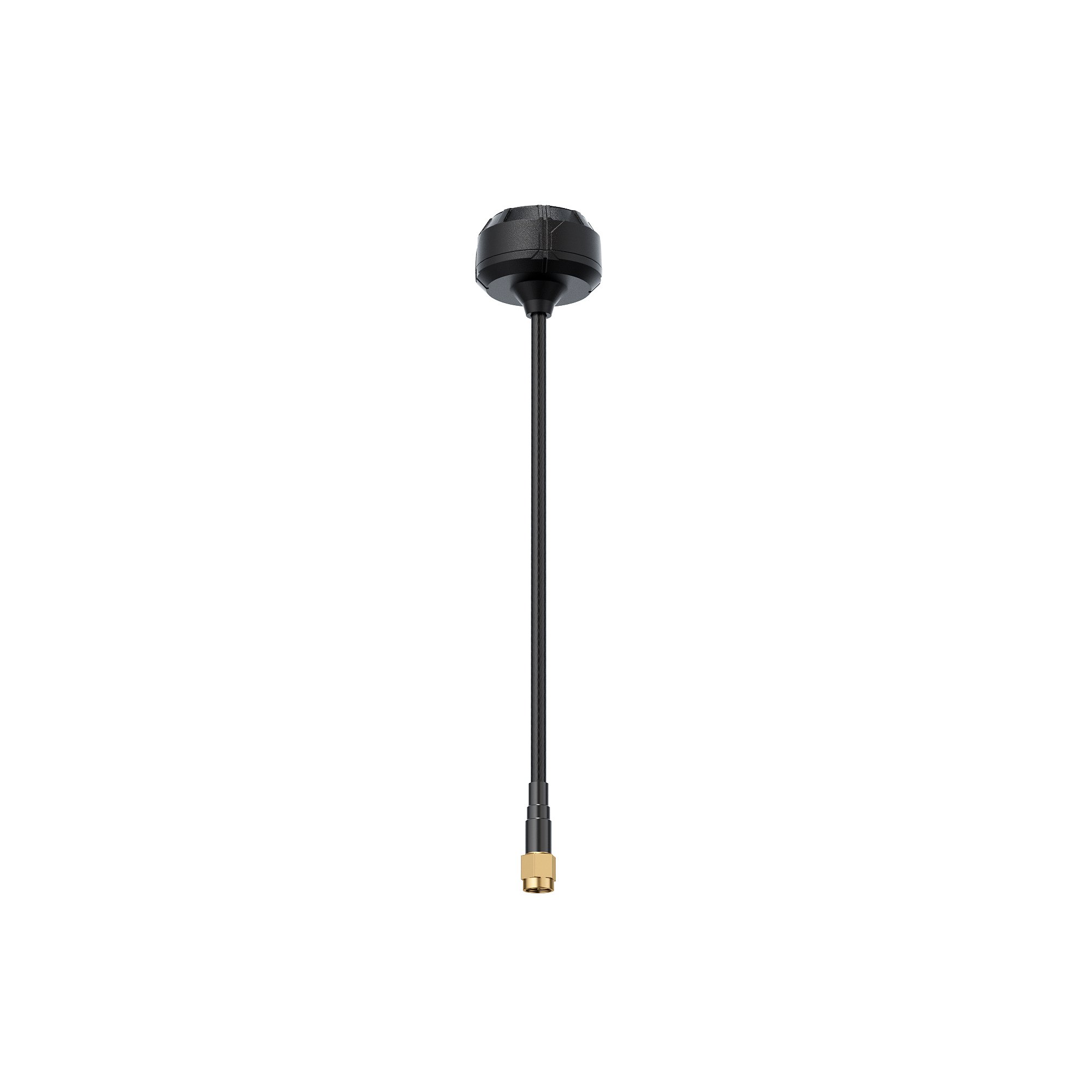

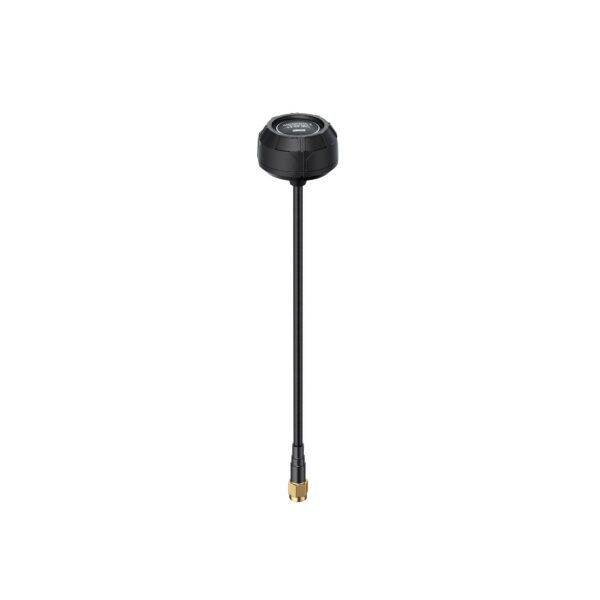

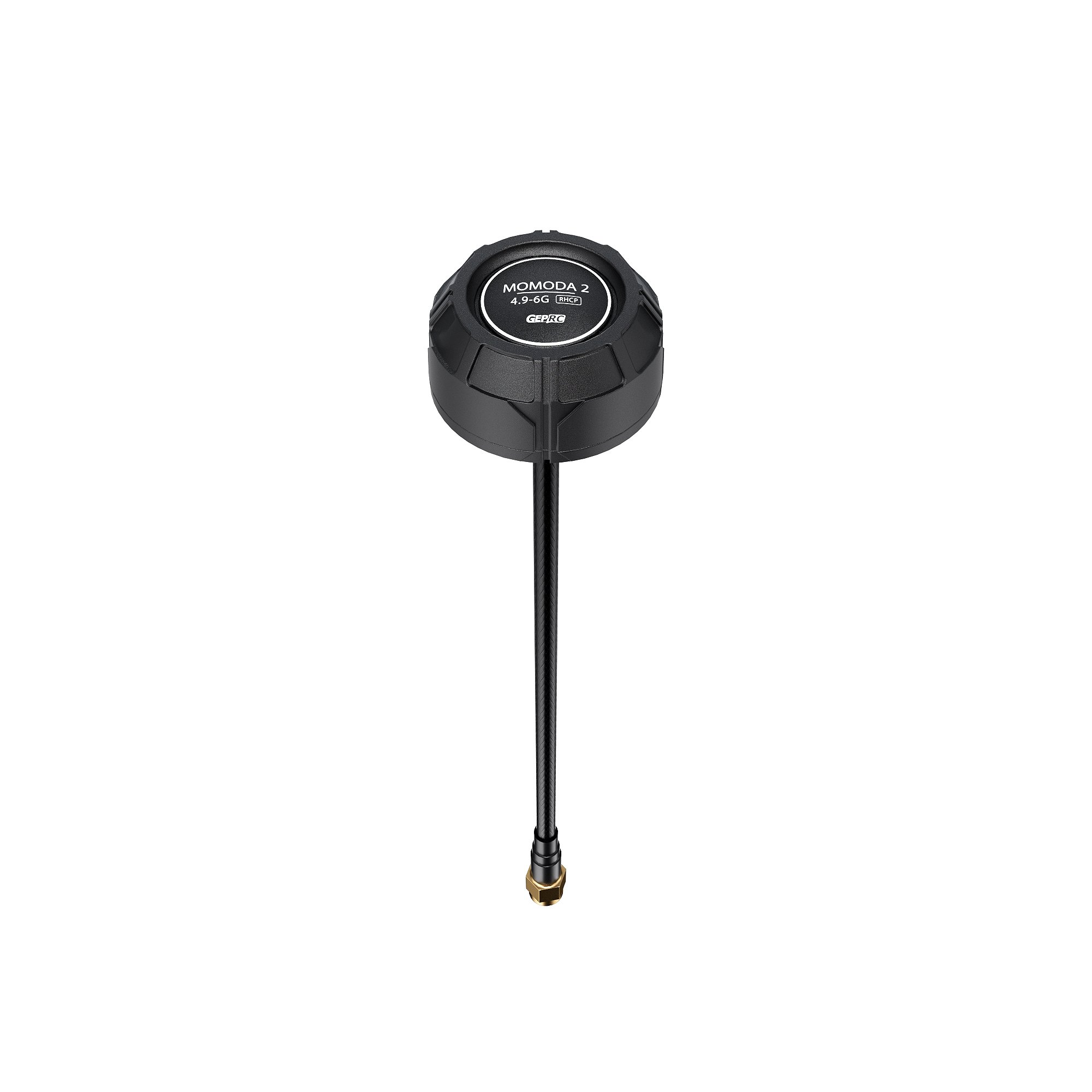

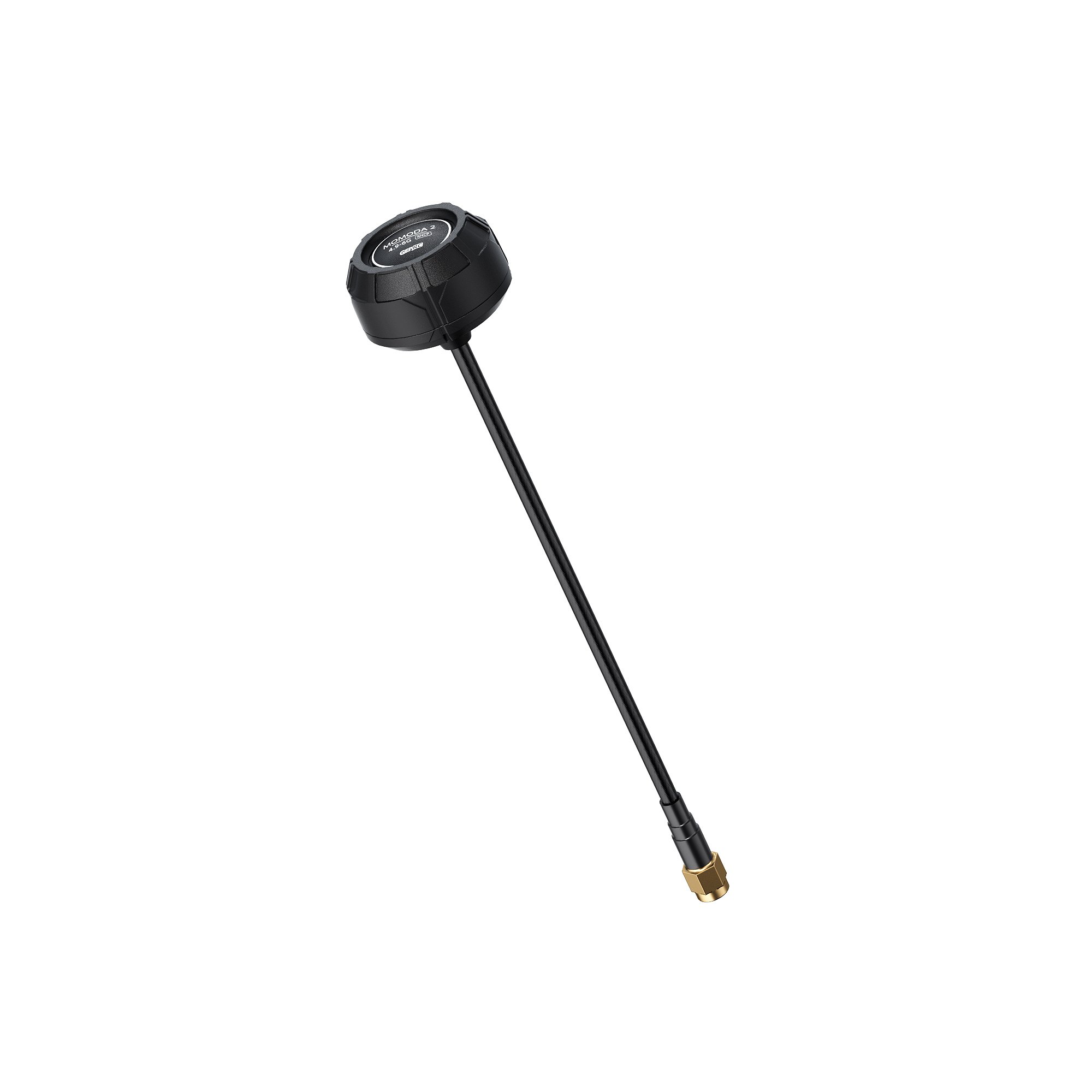

GEPRC Momoda2 4.9G-6G Antenna
7,64 €
High Rated in the EU
Fast & Secure Shipping – Tracking Provided
30-day no delivery refund
15-day no update refund
Warranty included
Order quarantee
Summary
The GEPRC Momoda2 4.9G-6G antenna offers omnidirectional signal coverage. With a high-gain design, it achieves up to 3.55dBi gain at the 5150MHz frequency, enhancing signal reception, transmission range, and stability. The ABS shell provides excellent durability, making it crash-resistant, corrosion-resistant, and highly sealed.
Features
- Wider operating frequency range with high parameter consistency across frequency points, compatible with HD and analog signals.
- Uses thick RG141 cable and an ABS shell for reliability and durability.
- High-quality SMA connector minimizes signal transmission loss.
- Each antenna undergoes strict spectrum analyzer testing before shipping to ensure VSWR stays within standard limits.
Specification
- Model: GEPRC Momoda2 4.9G-6G antenna
- Center Frequency: 5450MHz
- Bandwidth: 4900MHz～6000MHz
- Polarization: RHCP
- Gain: 3.55dbi
- Axial Ratio: ≤3
- VSWR: ≤1.28
- Radiation Efficiency: 88%
- Cross Polarization Suppression: -25dB

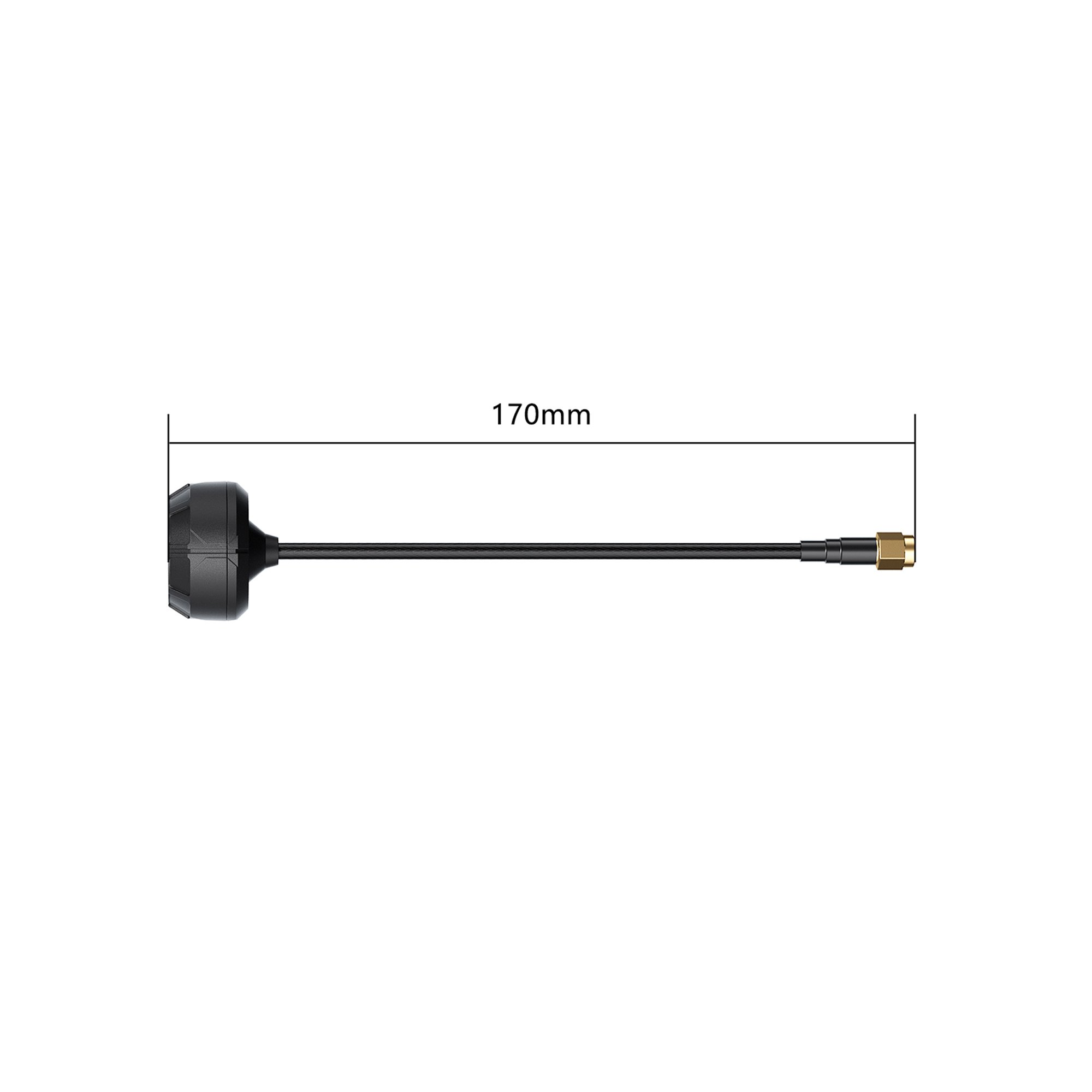

- Length: 170mm
- Cable：RG141 Line
- Antenna Weight: 14.7g （±0.3g）
- Enclosure Material: ABS
- Connector Type: SMA
Includes
1 x GEPRC Momoda2 4.9G-6G antenna
| Polarization | RHCP, LHCP |
|---|---|

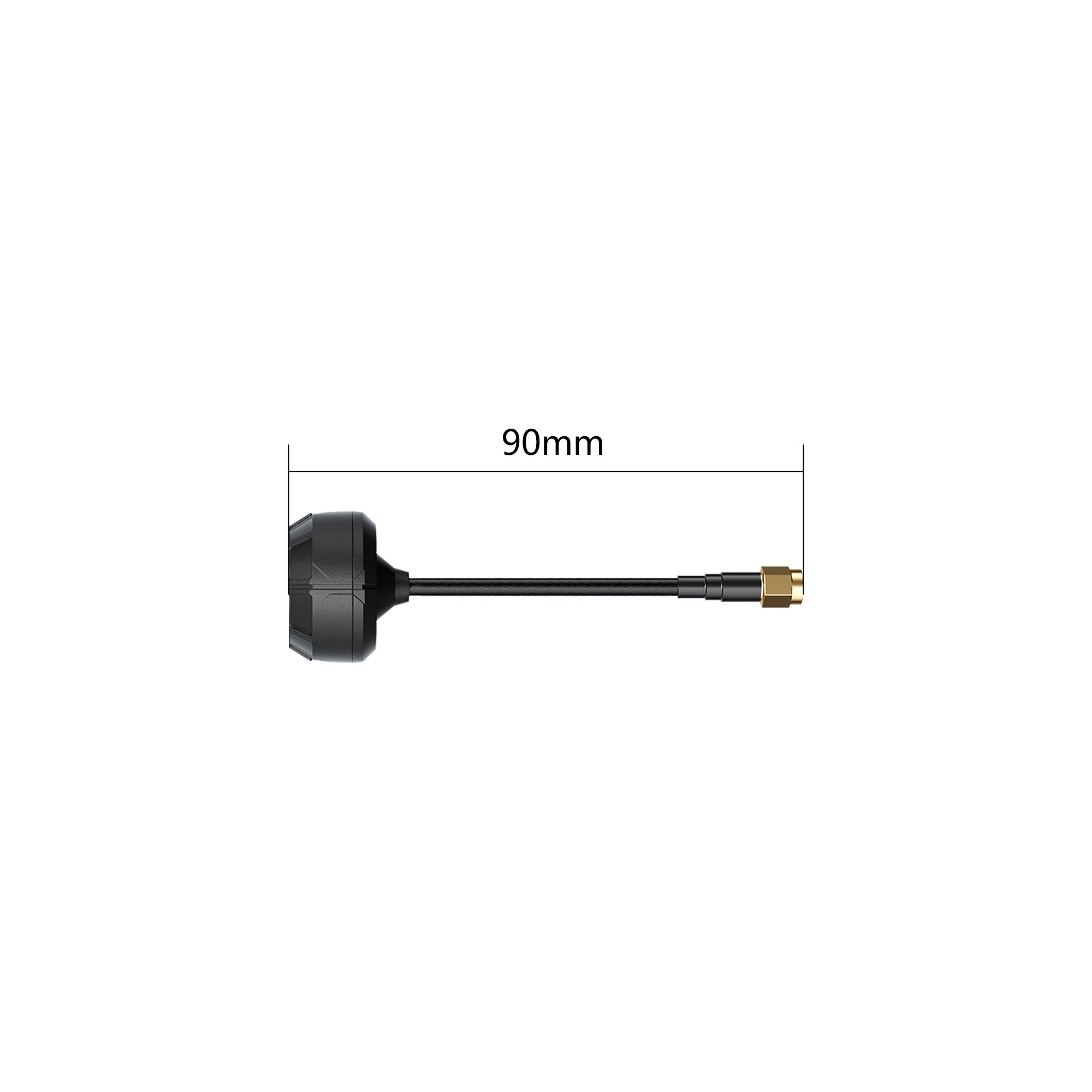

| Interface | SMA 170mm, SMA 90mm |
