GEPRC Naked Camera GP8 Case with BEC Board
45,99 €
Top Rated in the EU
Fast & Secure Shipping – Tracking Provided
Warranty included
Summary:
GEPRC team specially designed a new case, BEC board, ND16 filter and mounting base for Naked Camera GP8.The Canopy was made of ABS material with light weight and high strength features, The surface adopted oil spray technology, Really does feel smooth and delicate.ND16 filter can reduce the light input of camera sensor without changing the image color. BEC supports 2S-6S voltage input and 5V-2A stable output, very easy to install. The installation spacing of the base is 24.5mm, which is suitable for various GEPRC Quadcopters, such as CineLog series, Crocodile baby series, Rocket series and Crown series,etc…
Specifications:
- Model:GEPRC Naked Camera GP8 Case with BEC Board
- Brand name: GEPRC
- Color: Black/Blue
- Input: 2S-6S
- Output: 5V@2A
- BEC Connector: GH1.25-3P connector
- Protection: UV proction lens
- Filter: ND16 filter
- Case material: ABS
- Case technology: Mold injectionSurface spray technologySuerface screen printing process
- Control cable: GH1.25-3P cable
Feature:
- The case made of ABS material with light weight and high strength
- The case is equipped with UV protection to protect camera
- The case has mounting seat, which is convenient to install

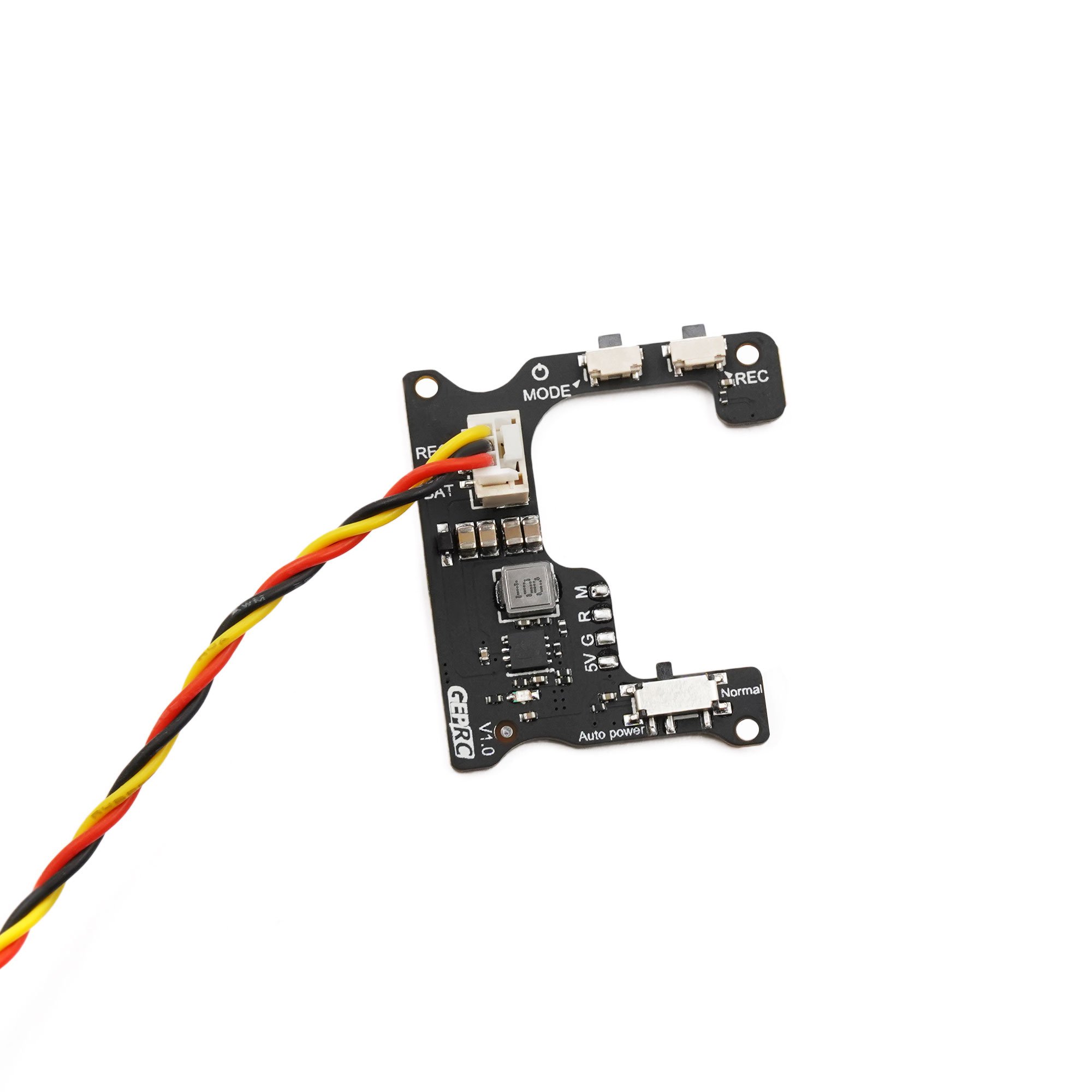

- The BEC board is designed for GP8 motherboard, with 2-6s input and 5V@2A output
- The ND16 filter can reduce the light input of the camera sensor without changing the image color
- Using the control cable to connect with the FC, the camera can be remotely controlle
This case and BEC board fit for GP8.

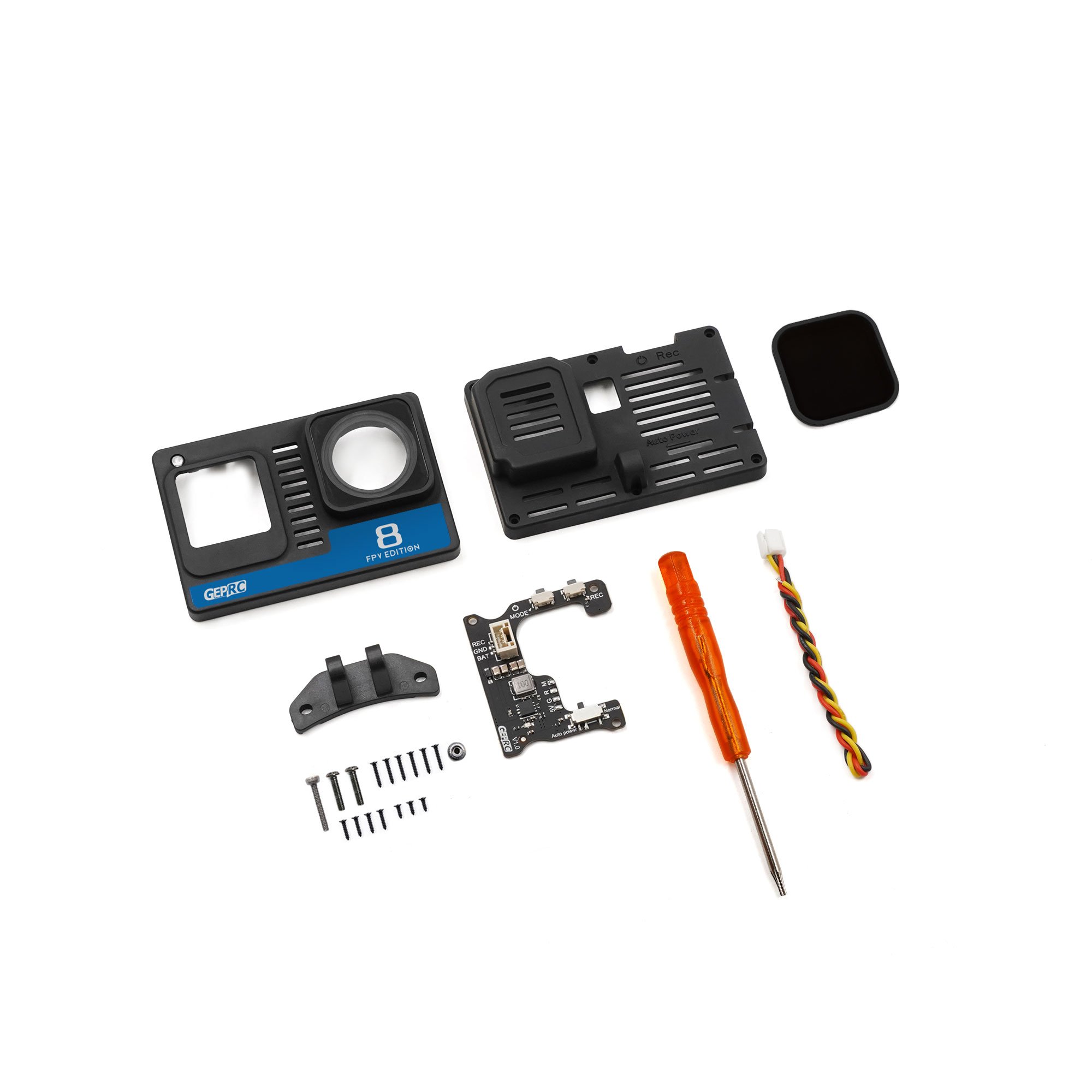

Includes:
- 1 x Naked Camera GP8 case(with UV protective lens)
- 1 x BEC Board
- 1 x ND16 Filter
- 1 x Mounting base
- 1 x Control cable
- 1 x Screwdriver
- 1 x Matching screw package
- 1 x Dustproof cloth
BEC Board Diagram:
EPRC BEC Board connect FC:
How to Assemble：
