GEPRC Naked Camera GP9/GP10/GP11/GP12 Parts

Summary

The GEPRC team specially designed a new case for Naked Camera GP9/10/11/12. The front case is processed by high-precision CNC, and the surface is sandblasted and oxidized. The texture is high-grade and beautiful. Sun grain treatment, comfortable and delicate touch.

The connection between the BEC module and the main board adopts a reliable and stable FPC flexible cable connection to prevent poor contact. The module adds a 3.3V power supply and is assembled with a cooling fan. BEC supports 2S-6S LiPo battery voltage input, which perfectly matches Naked Camera GP9/ 10/11/12 motherboard, easy and fast installation. The installation spacing of the base is 24.5mm, suitable for Cinebot series, CineLog series, Crocodile series, Rocket series, Crown series and other models.

Specifications

• Model: GEPRC Naked Camera GP9/GP10/GP11/GP12 Parts
• Brand: GEPRC
• Color: TitaniumBlack Color
• BEC Input : 2S-6S Lipo battery
• BEC Output: 5V-2.5A@3.3V-500mA
• BEC Connector: SH 1.0 3P connector
• Protective glasses: UV Protective Glasses
• Filter: ND16
• Front Case material : Aluminum #7075-T6 (CNC)
• Rear Case material :#ABS
• Manufacturing Process of Case: High-precision CNC processing, mold injection, surface Texture treatment, comfortable and delicate touch

Features

1. Lightweight Naked camera kit.

2. BEC module design 5V-2.5A@3.3V-500mA output.

3. The front case is machined with aluminum 7075-T6 CNC to dissipate heat for the motherboard CPU.

4. Design micro-fan heating fan.

5. Compatible with GEPRC ND8/ND16/ND32 filters.

6. BEC uses FPC flexible cable to connect with the motherboard to prevent poor contact.

7. Support 2-6S LiPo battery for powering BEC.

8. The Naked Camera kit supports the installation of Naked Camera GP9/10/11/12 cameras.

Includes

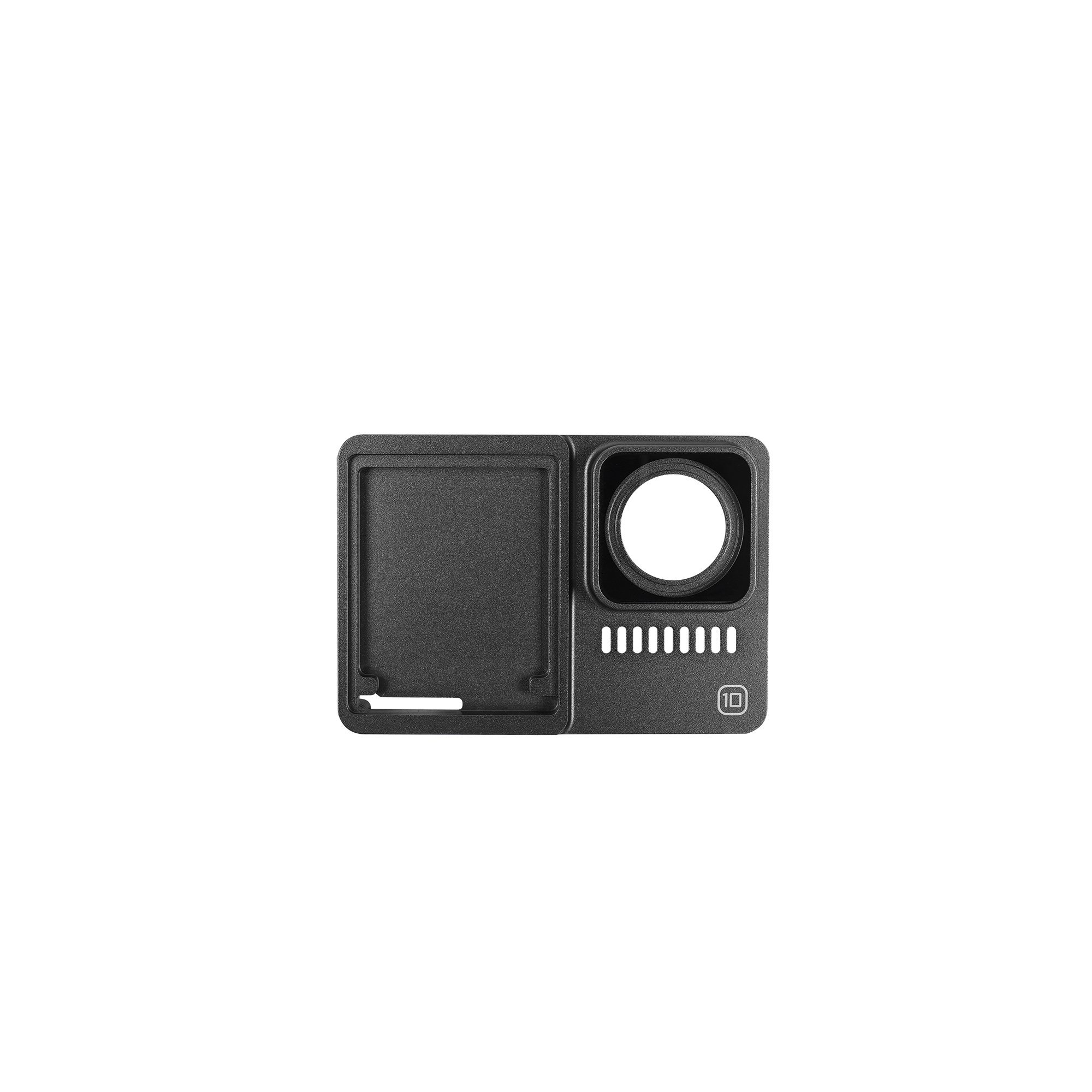

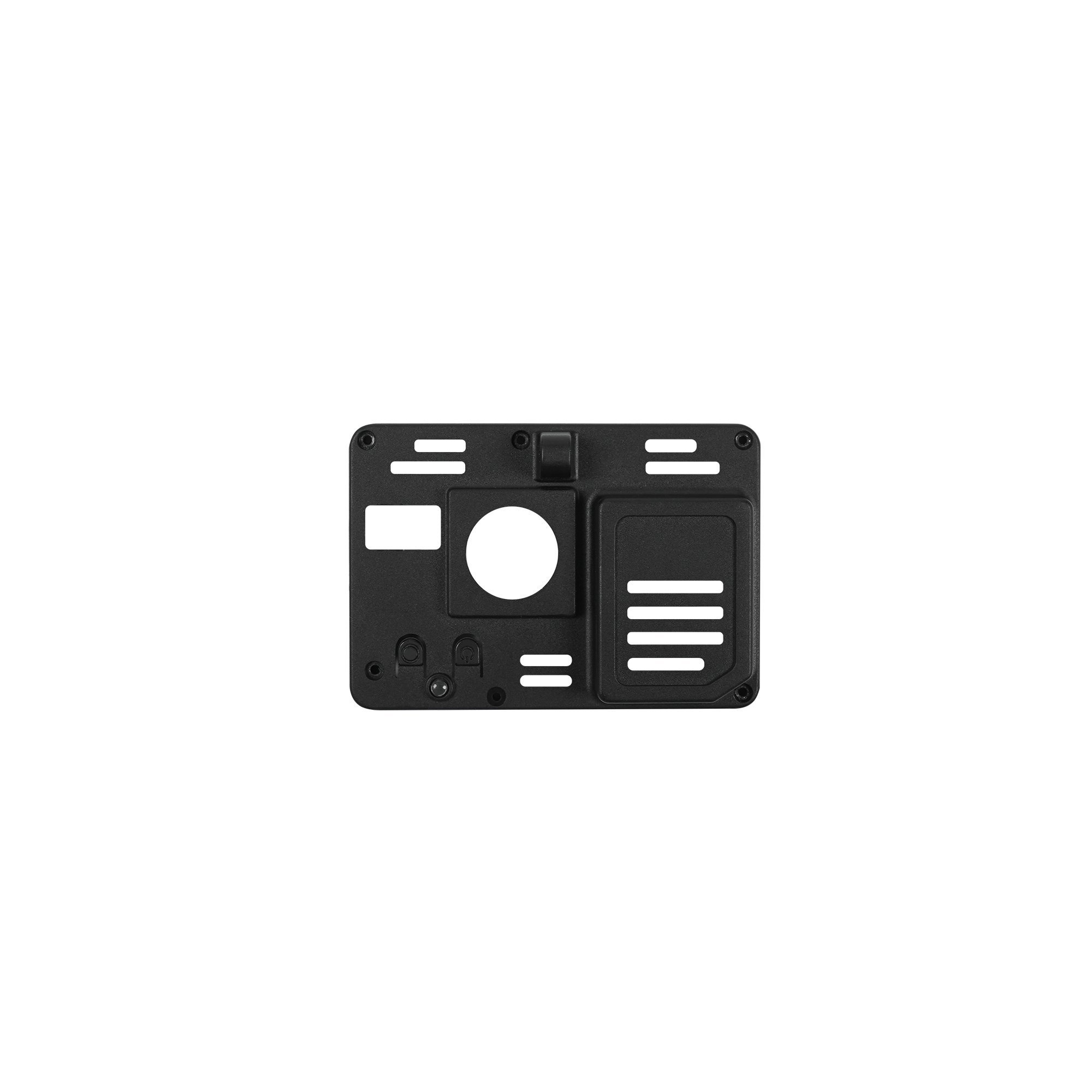

1 x Naked Camera case

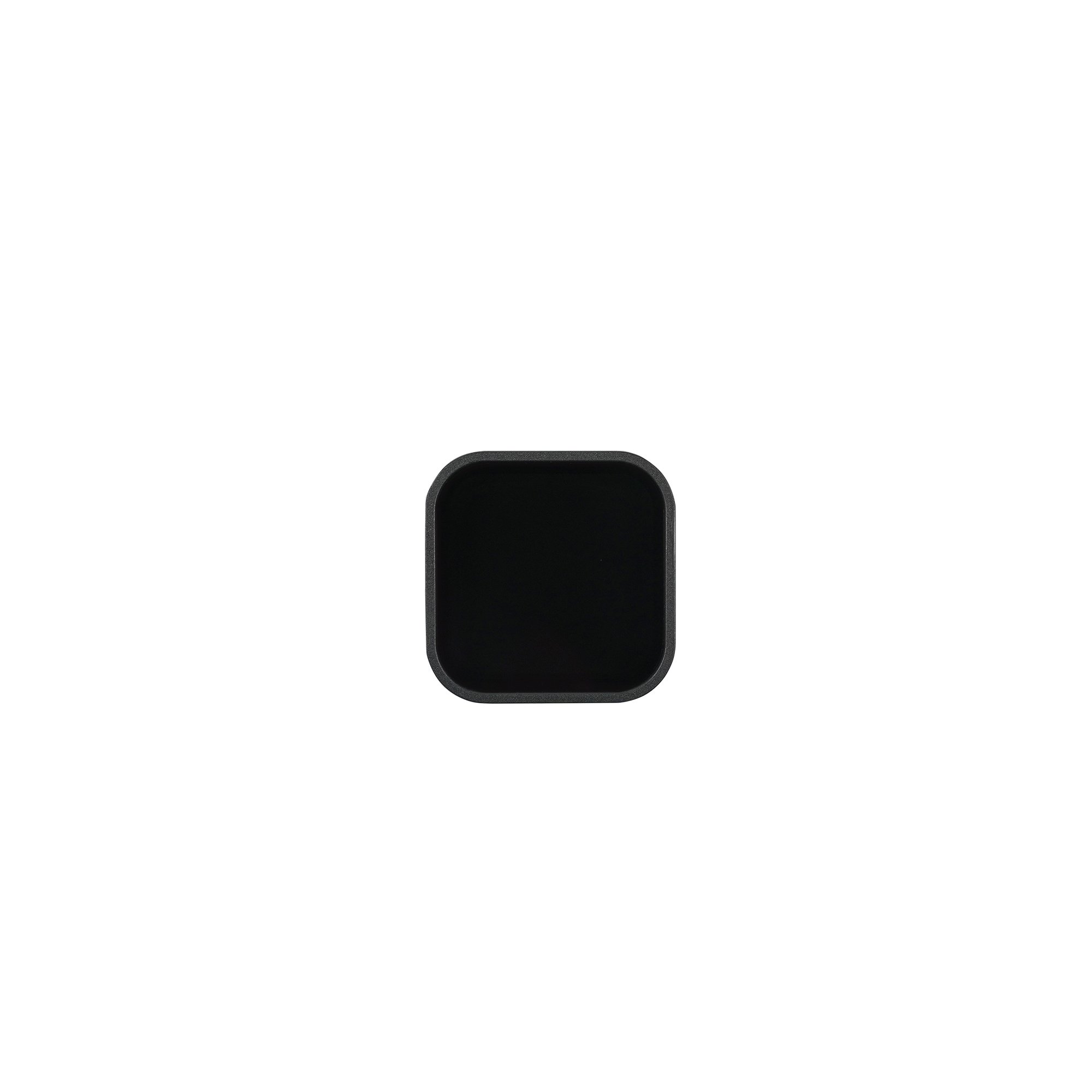

1 x ND16 filter

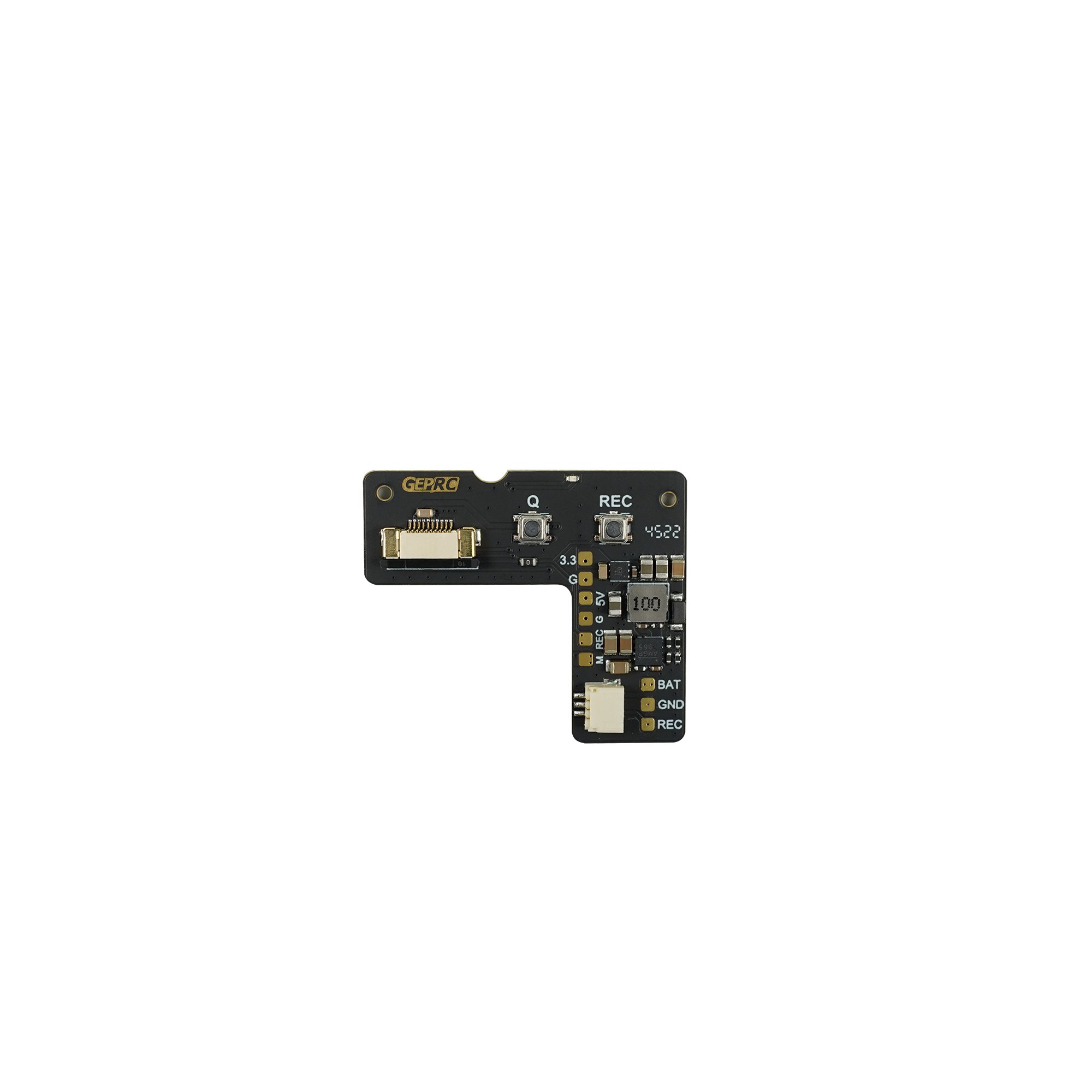

1 x BEC

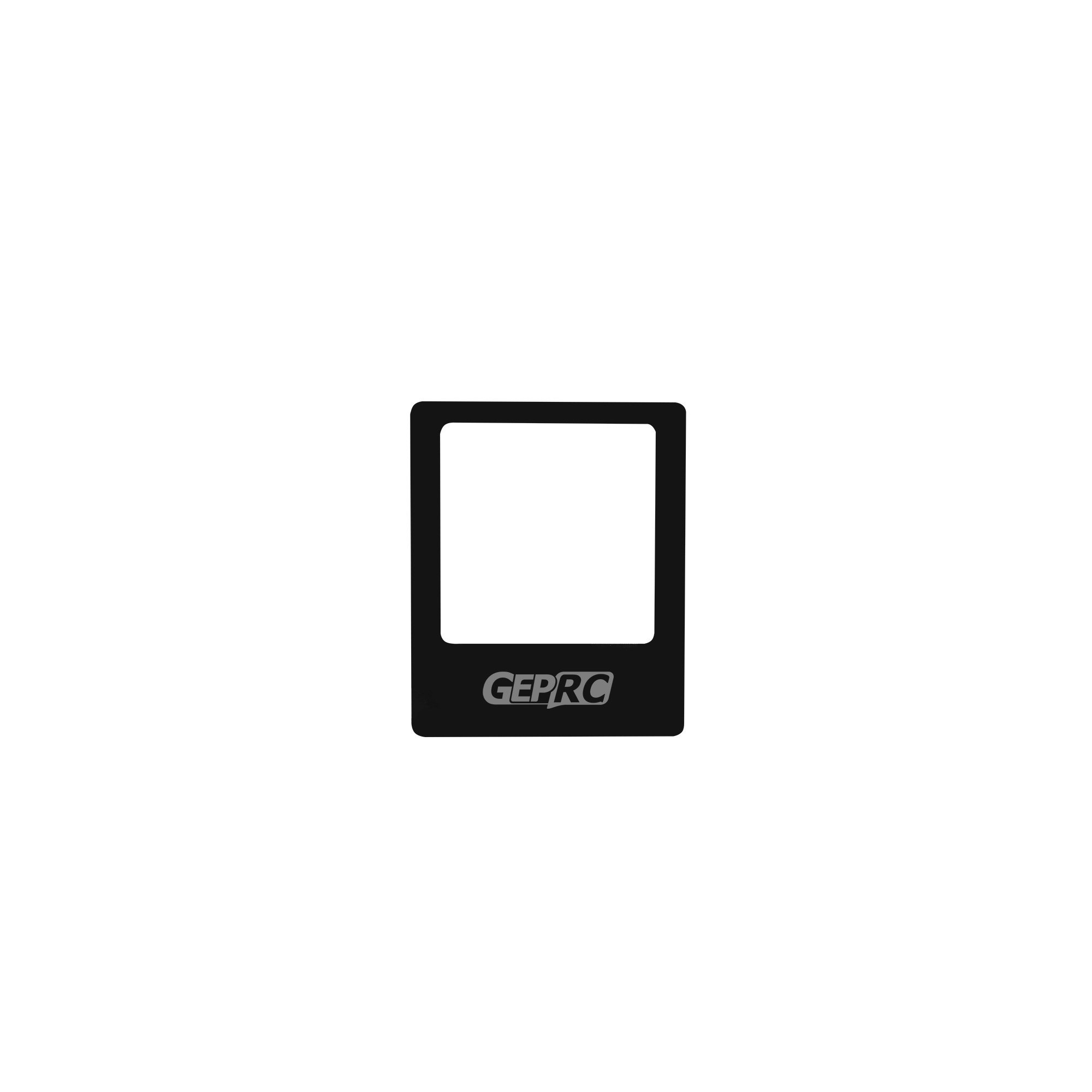

1 x UV Filter

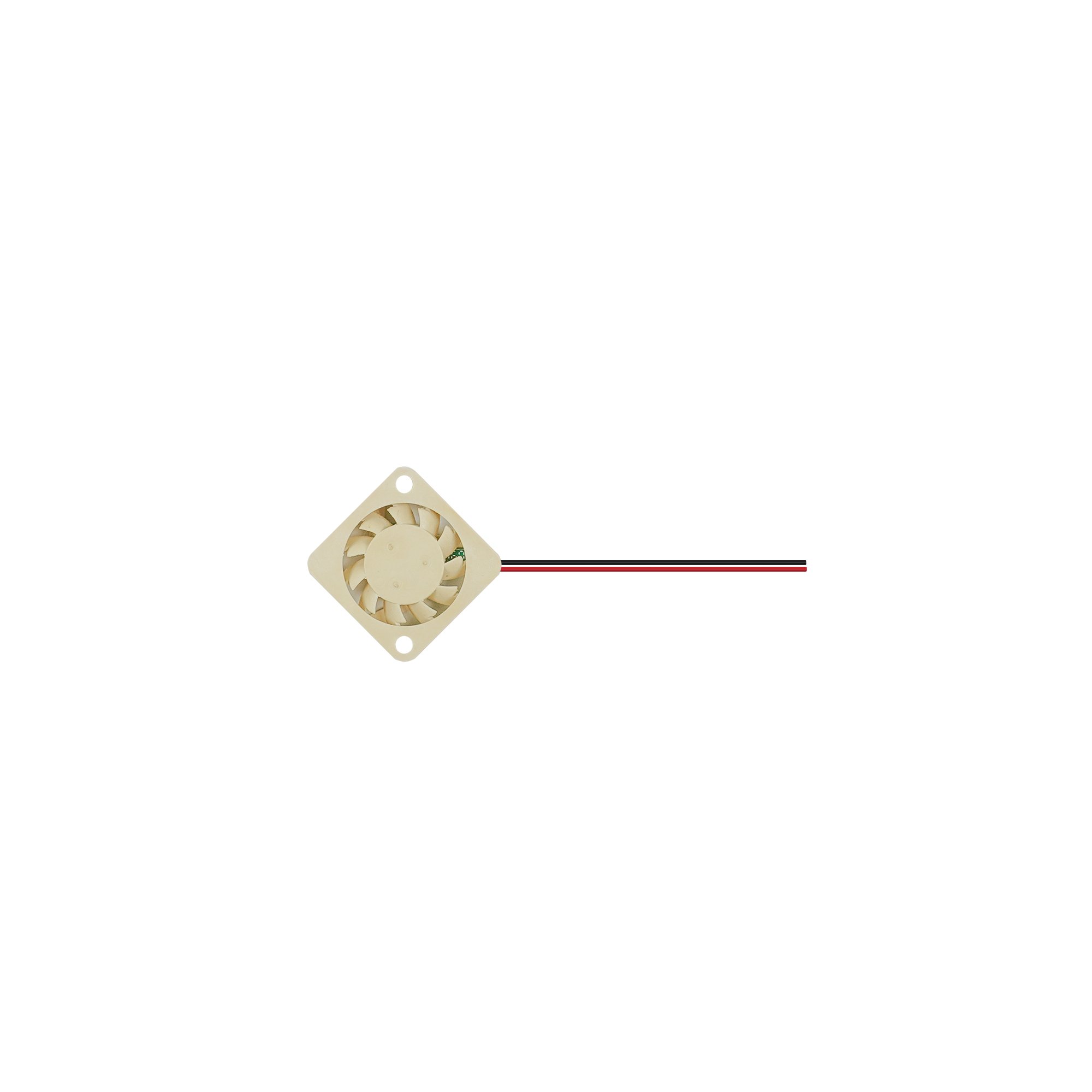

1 x Cooling Fan

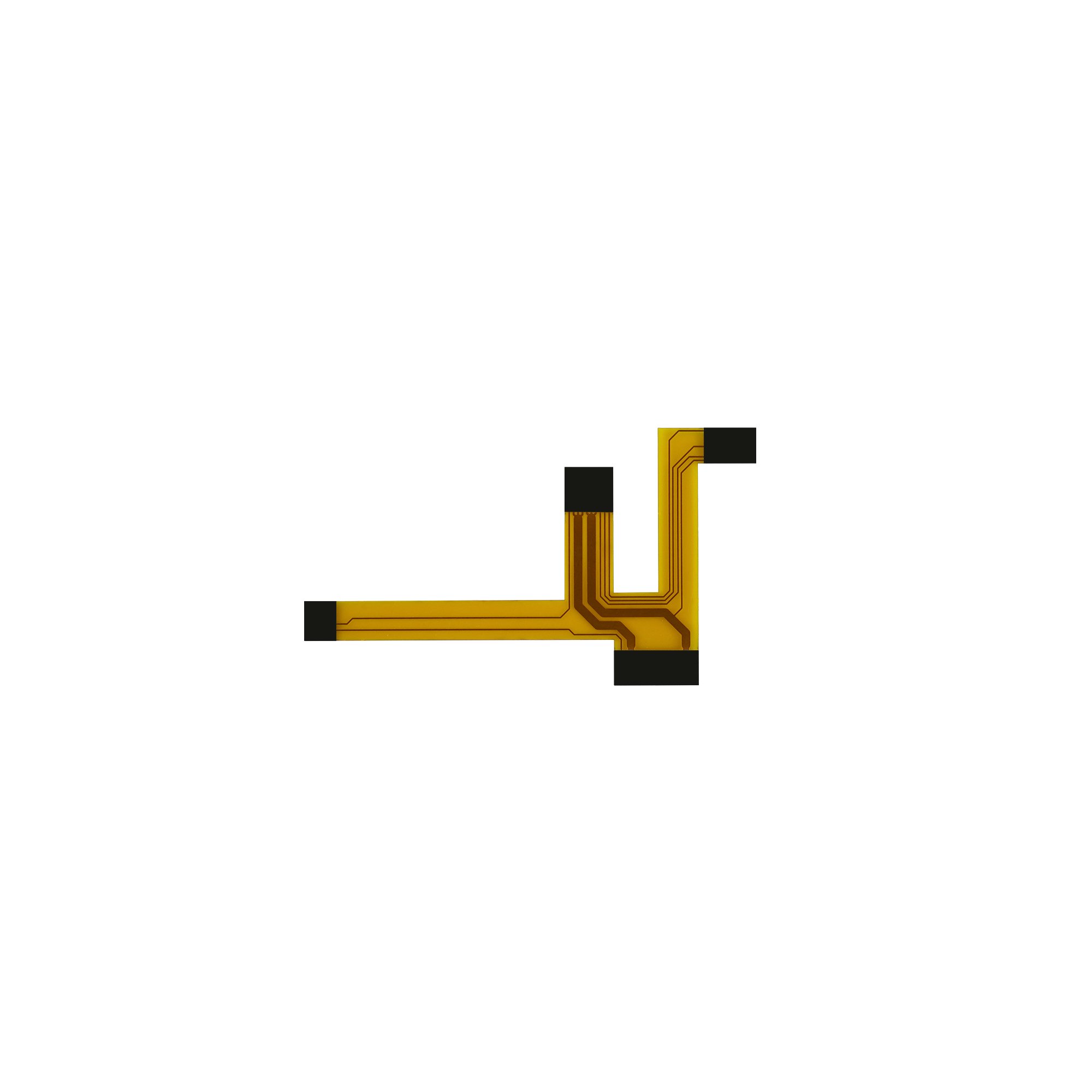

1 x FPC Cable

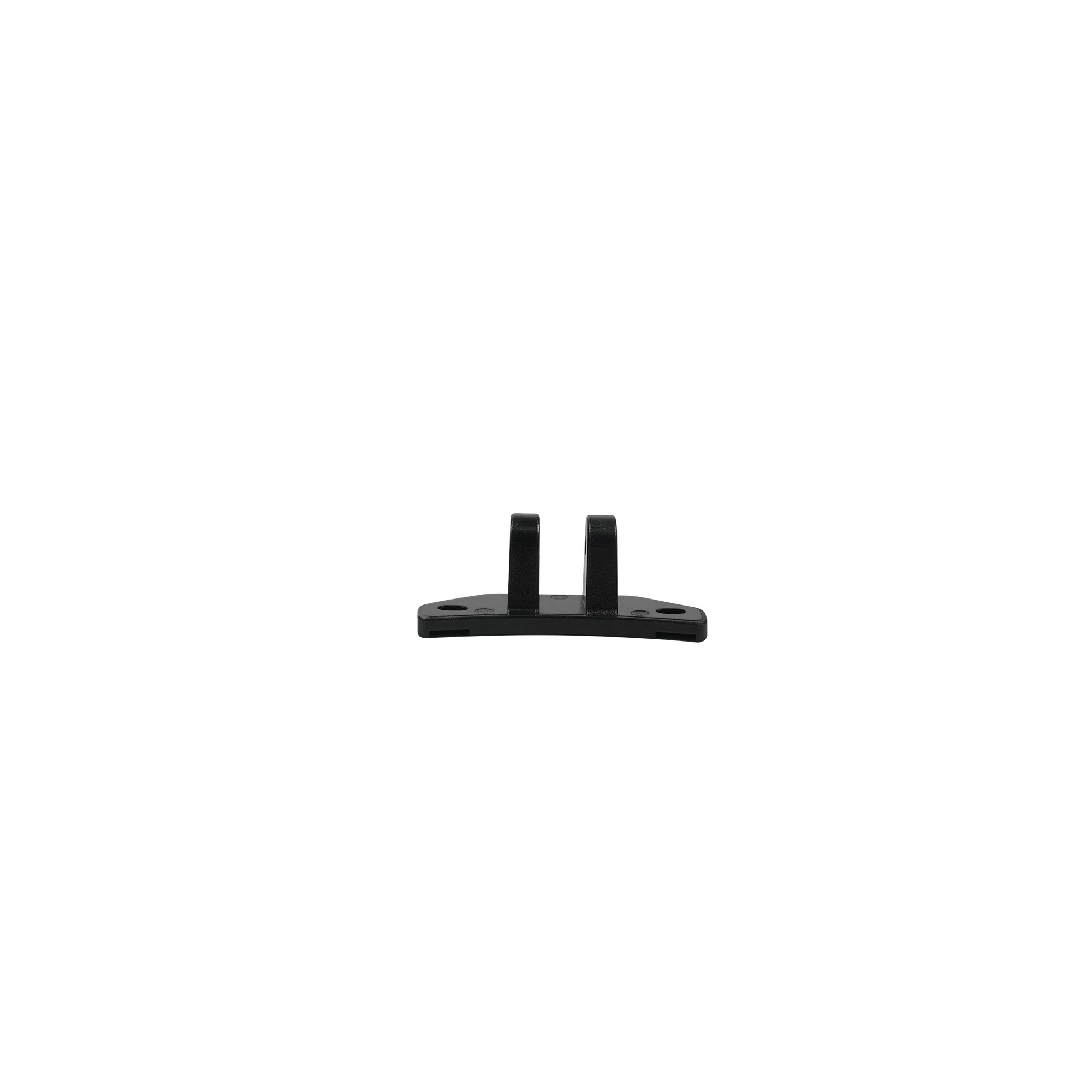

1 x Mounting Base

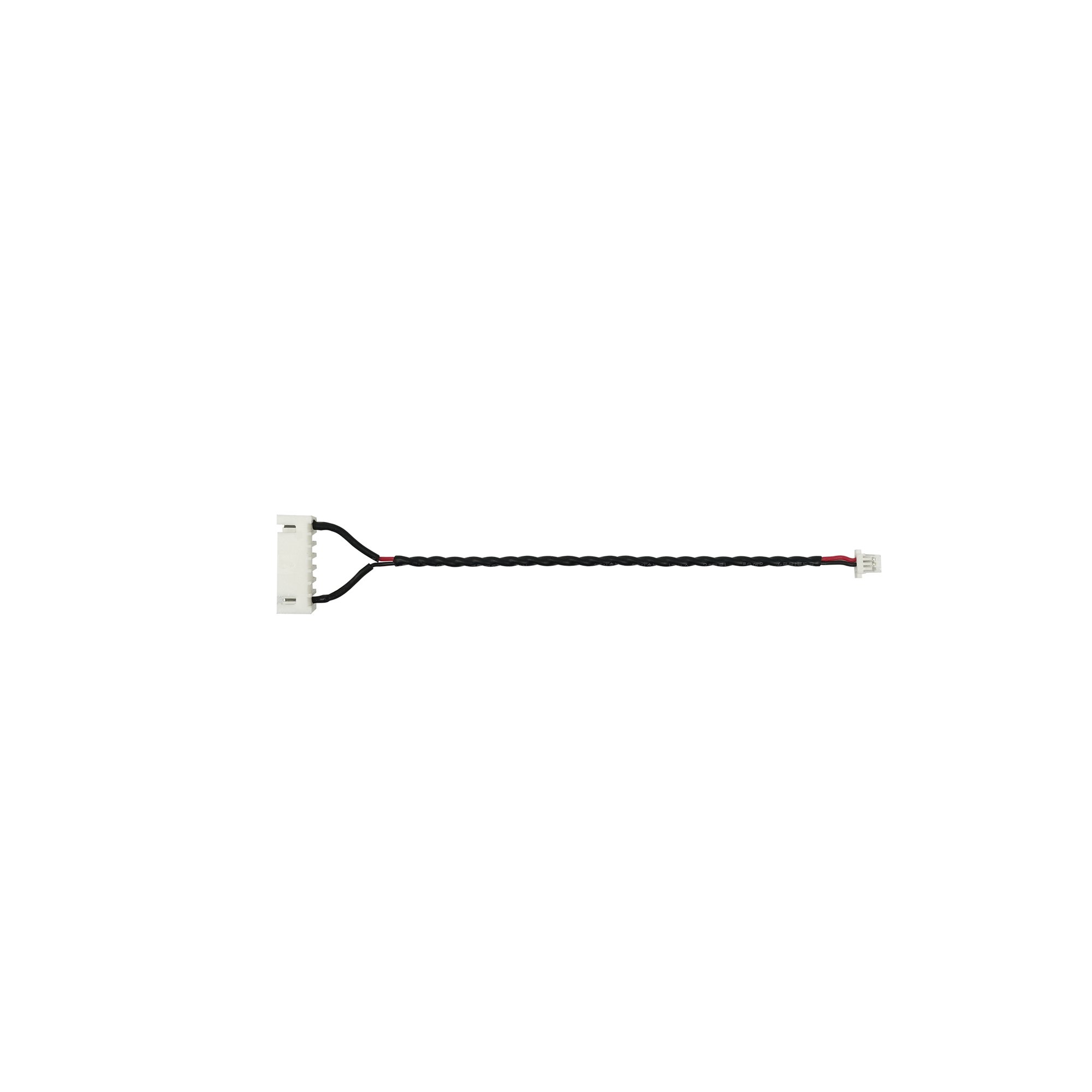

1 x Power Cable
