GEPRC SOMA 1.2G/1.3G DUAL Antenna

Summary

The GEPRC SOMA 1.2G 1.3G DUAL antenna features a dual-core RF solution for enhanced gain and wider coverage. Practical testing shows a significant improvement in directional compatibility. The SOMA 1.2G 1.3G DUAL antenna ensures stable and reliable image transmission during flight, maintaining excellent signal coverage even in high-maneuver situations.

Features

1. Enhanced gain with dual-core RF technology.
2. Ultra-low VSWR for improved transmission efficiency
3. Adopts premium antenna interface
4. Ultrasonic welding for tight and secure assembly
5. Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

Specifications

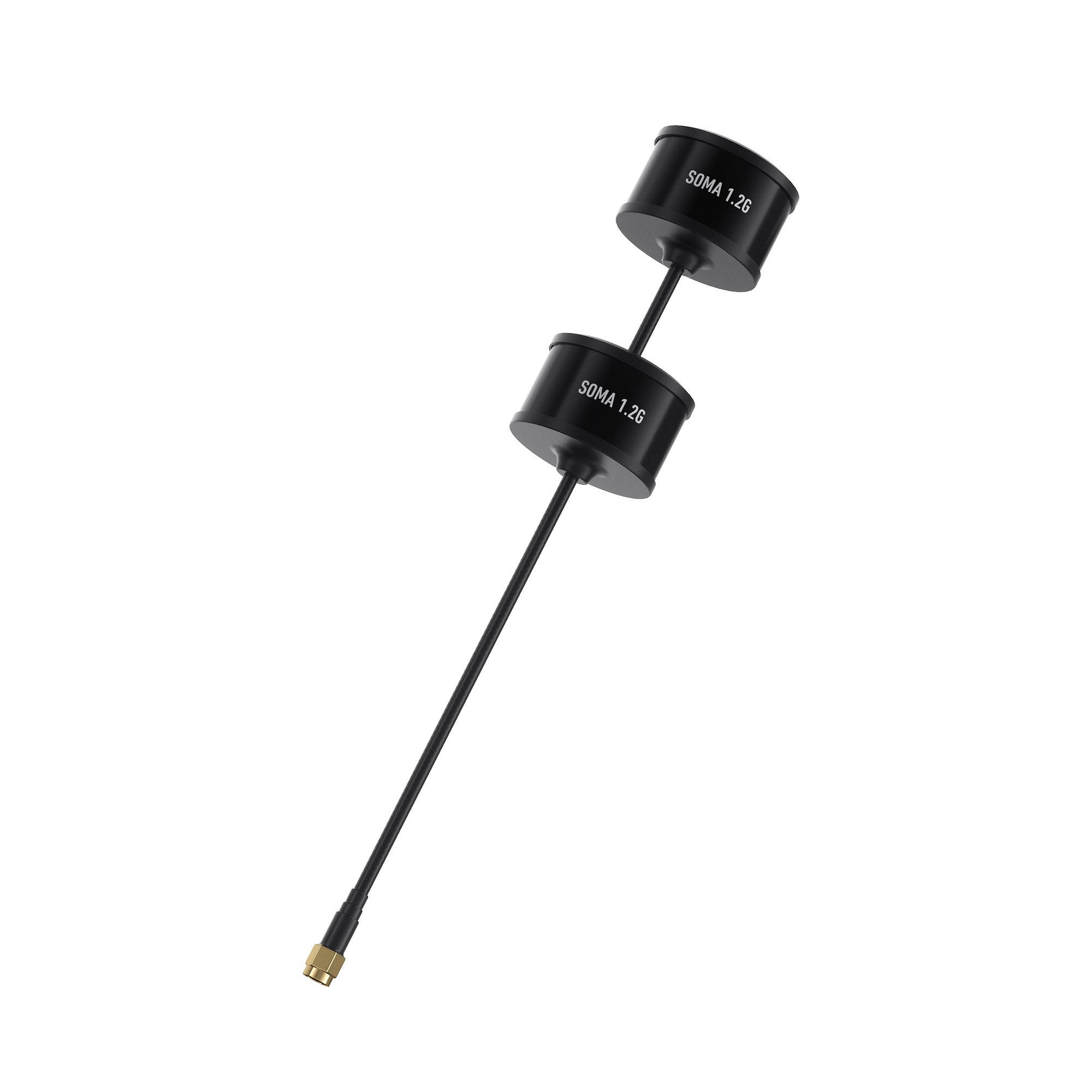

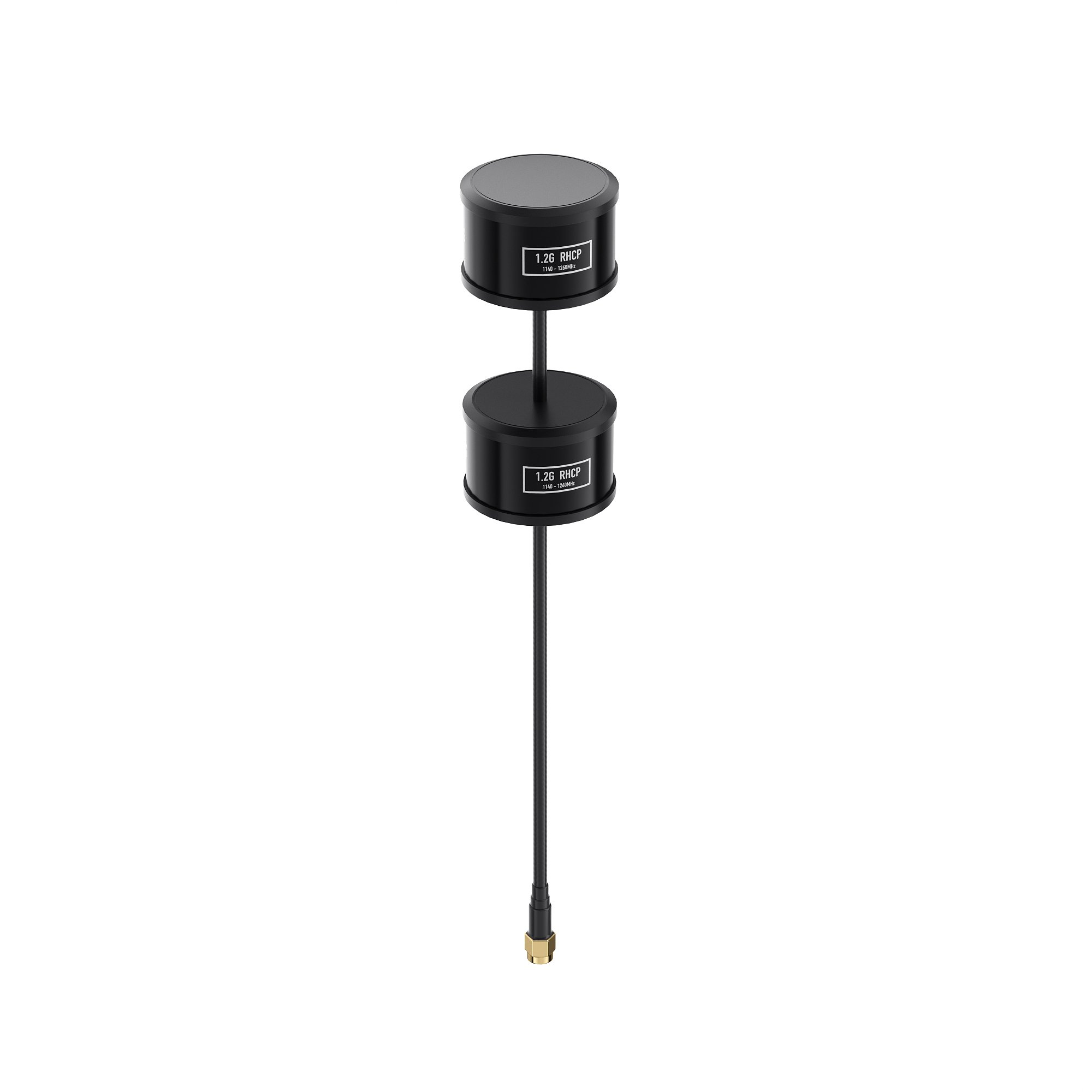

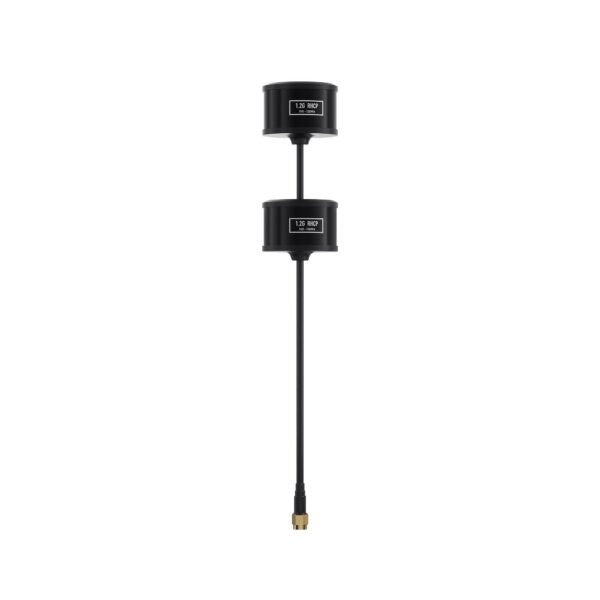

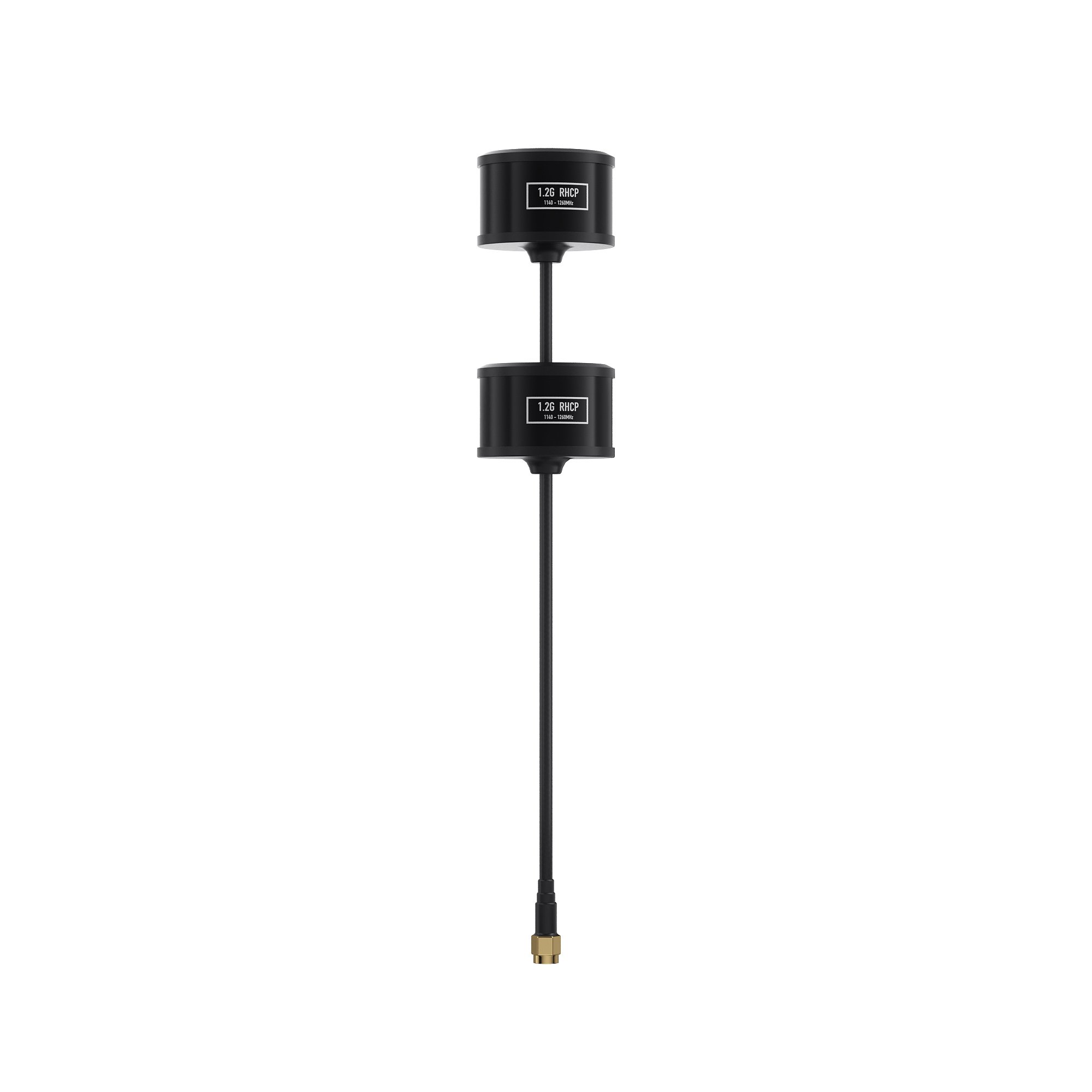

Model: GEPRC SOMA 1.2G DUAL Antenna

• 1.2G Center Frequency: 1200MHZ
• 1.2G Bandwidth: 1140 -1260MHZz
• Polarization: RHCP
• AVG Gain: 3.26dBi
• Axial Ratio: ≤3
• AVG VSWR: ≤1.50
• AVG Radiation Efficiency: 75%
• Cross Polarization Suppression: -25dB
• Length: 170mm+80mm
• Antenna Design: FPC+PCB
• Antenna Weight: 30.6g
• Enclosure Material: ABS
• Connector: SMA

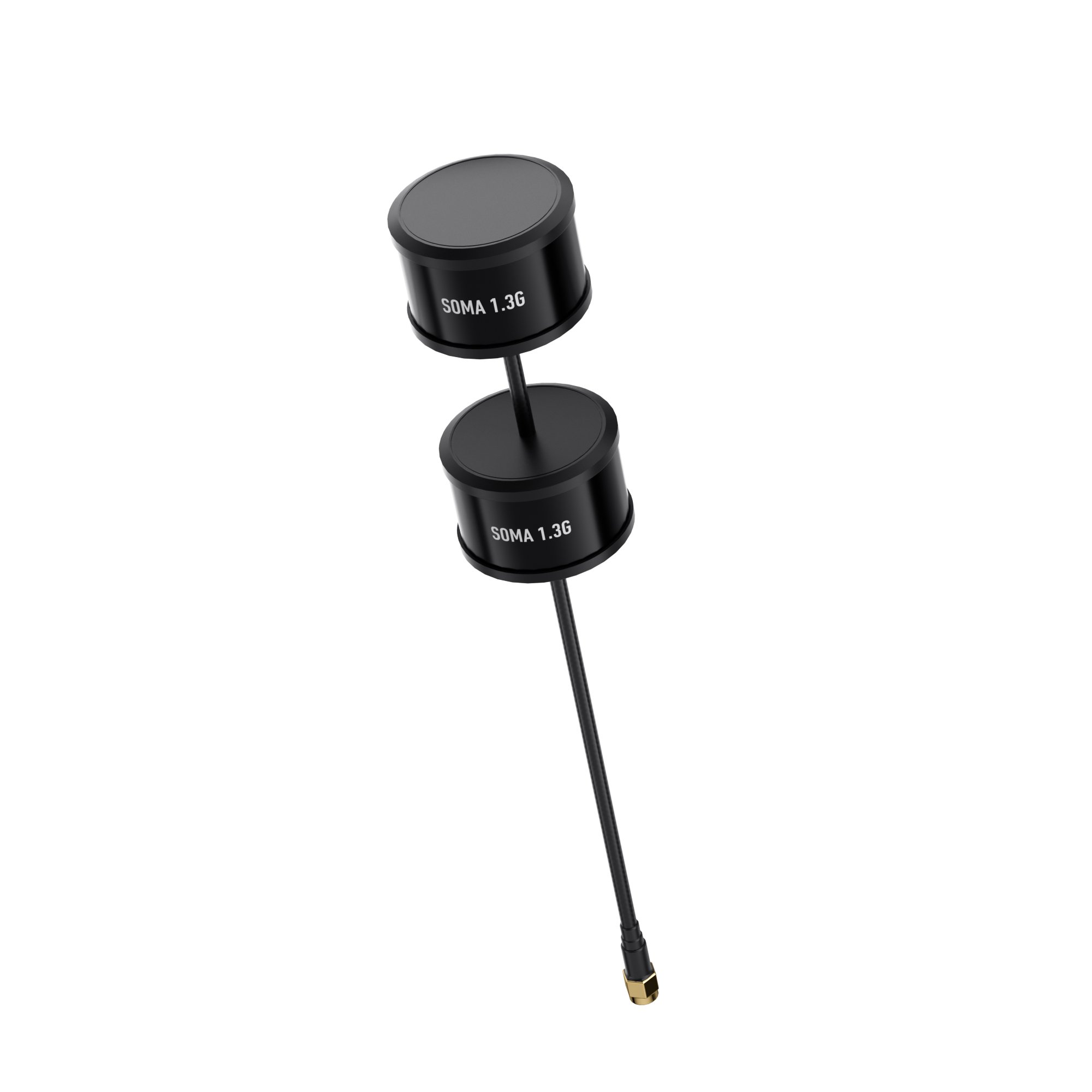

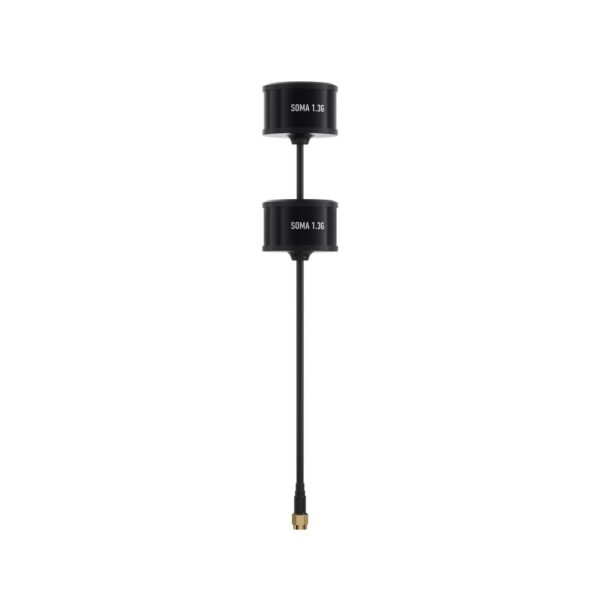

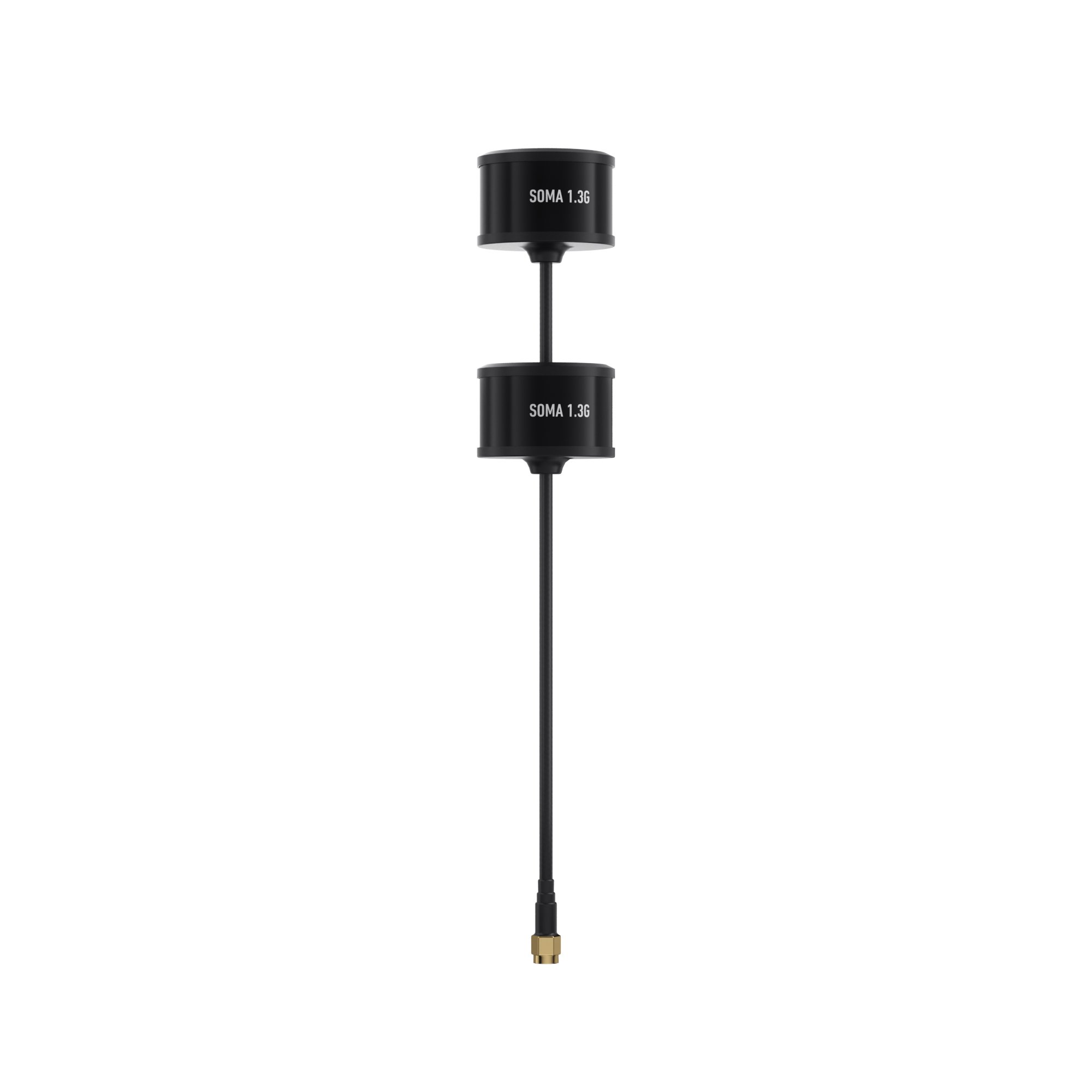

Model: GEPRC SOMA 1.3G DUAL Antenna

• 1.2G Center Frequency: 1300MHZ
• 1.2G Bandwidth: 1260 – 1360MHZ
• Polarization: RHCP
• AVG Gain: 3.26dBi
• Axial Ratio: ≤3
• AVG VSWR: ≤1.46
• AVG Radiation Efficiency: 75%
• Cross Polarization Suppression: -25dB
• Length: 170mm+80mm
• Antenna Design: FPC+PCB
• Antenna Weight: 30.6g
• Enclosure Material: ABS
• Connector: SMA

Includes

1 x Momoda 1.2G/1.3G DUAL Antenna
