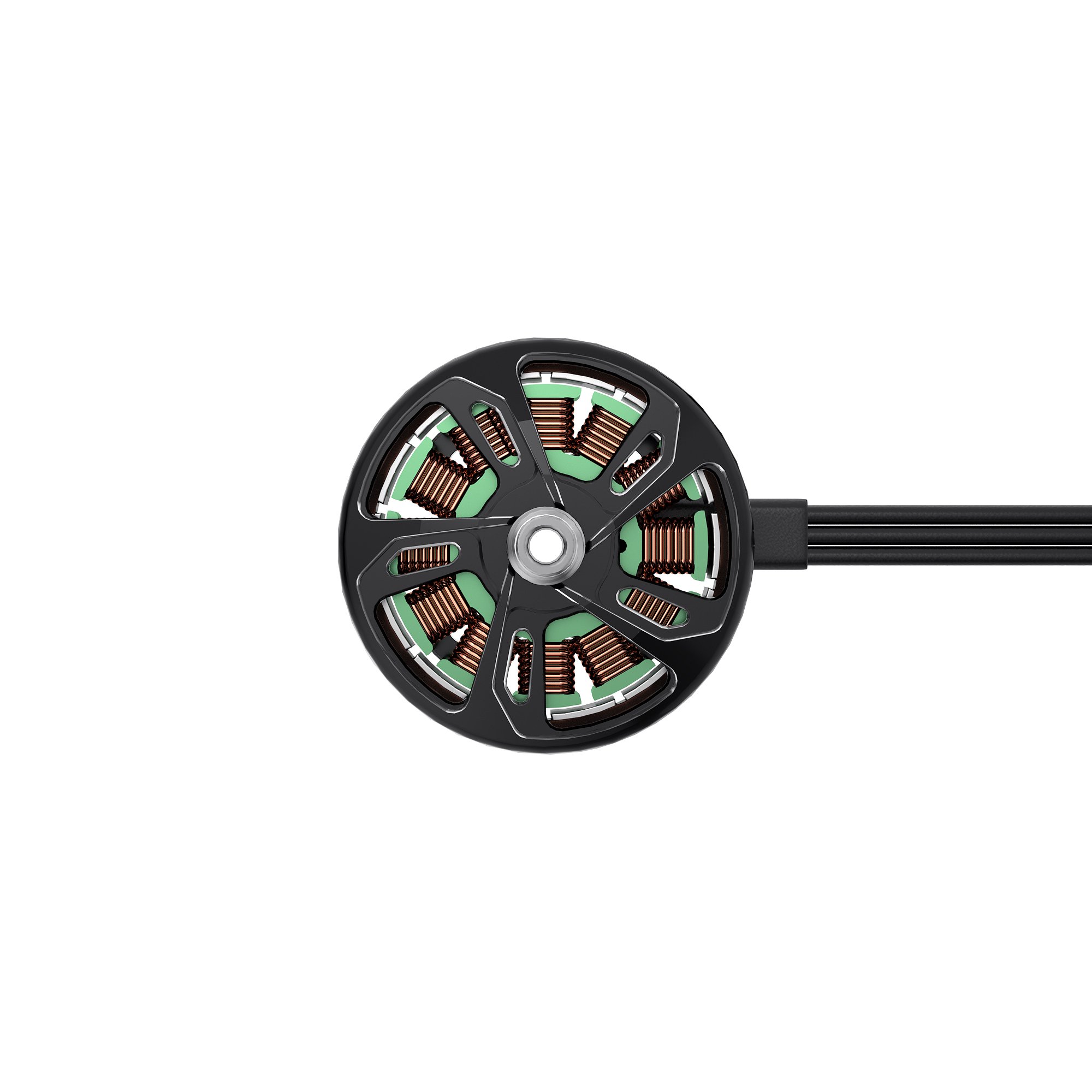

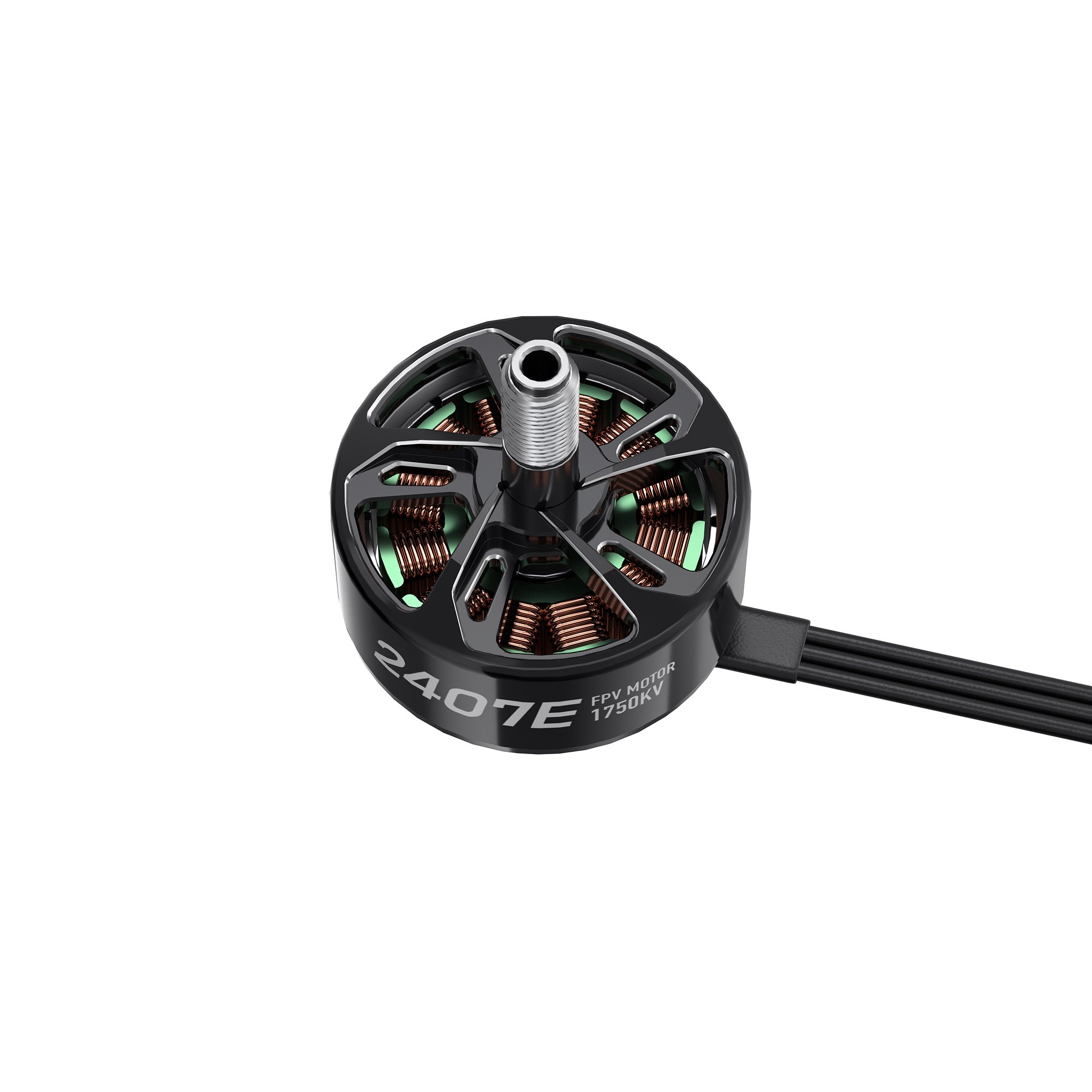

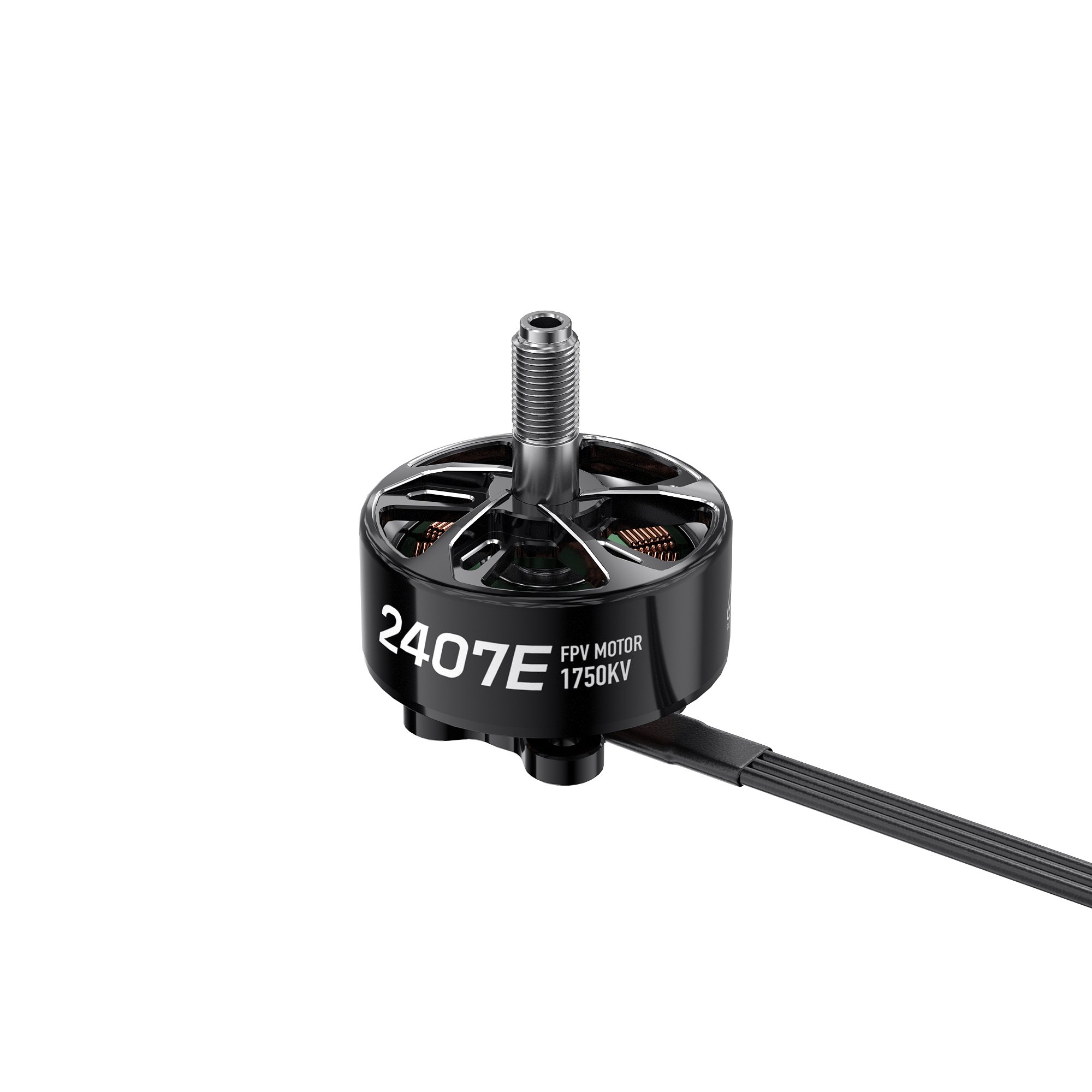

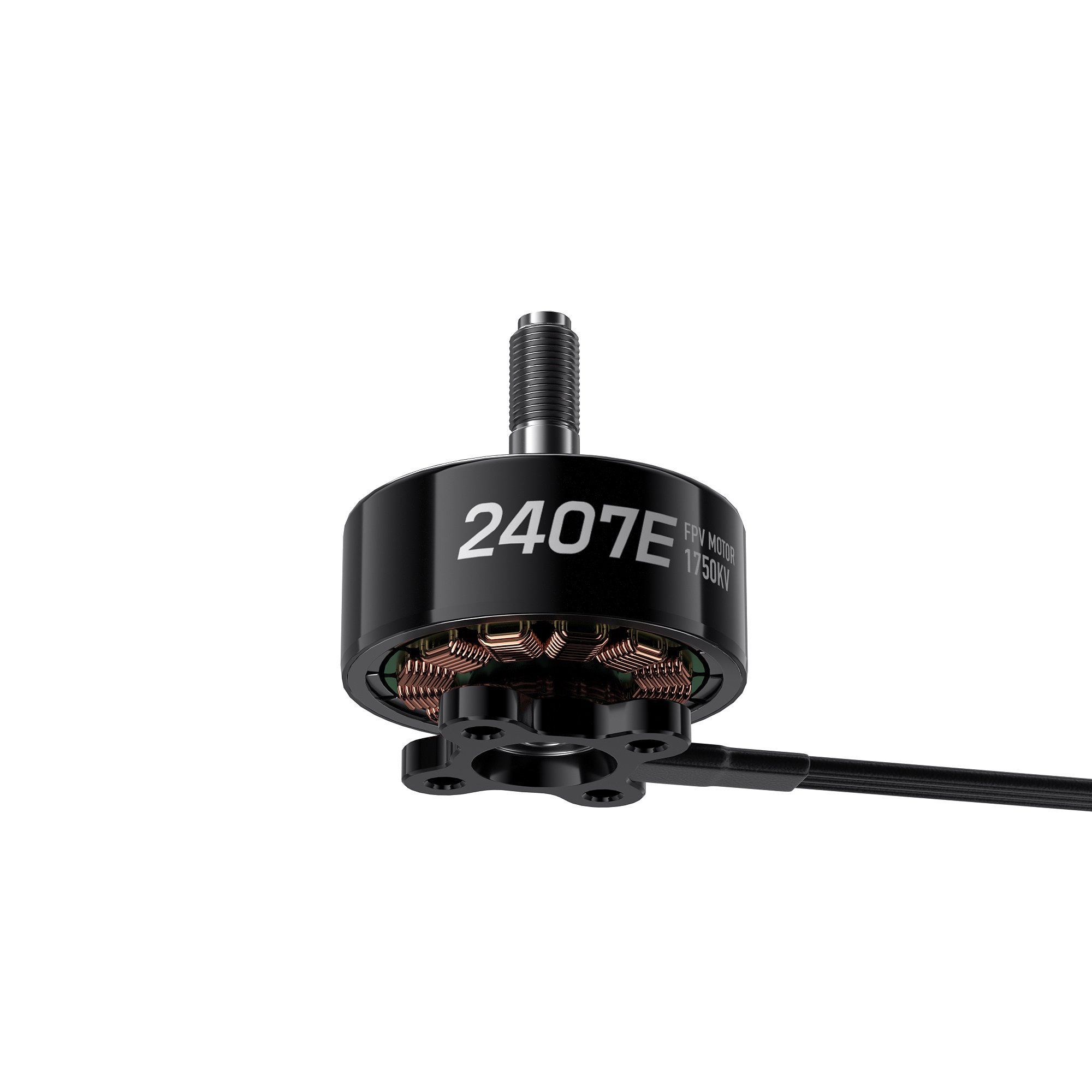

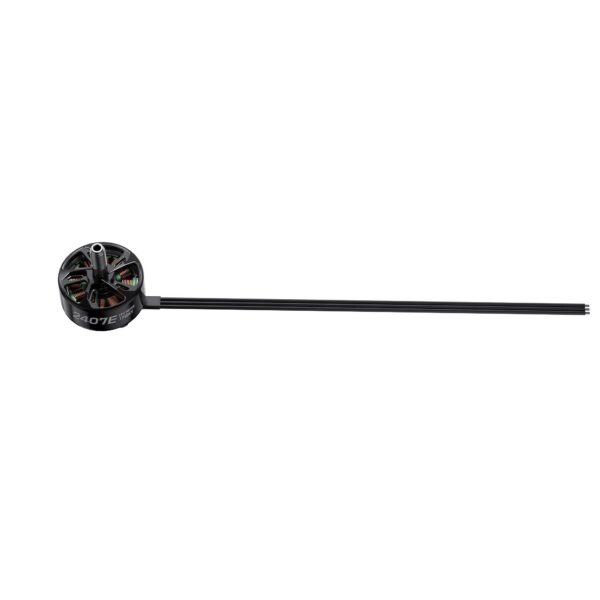

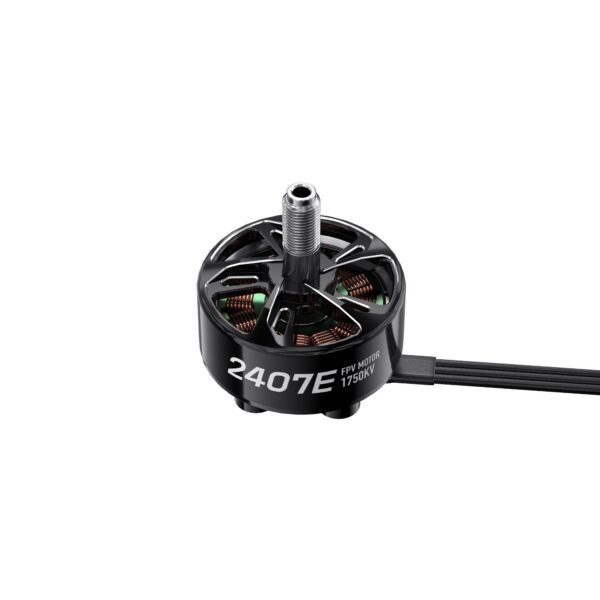

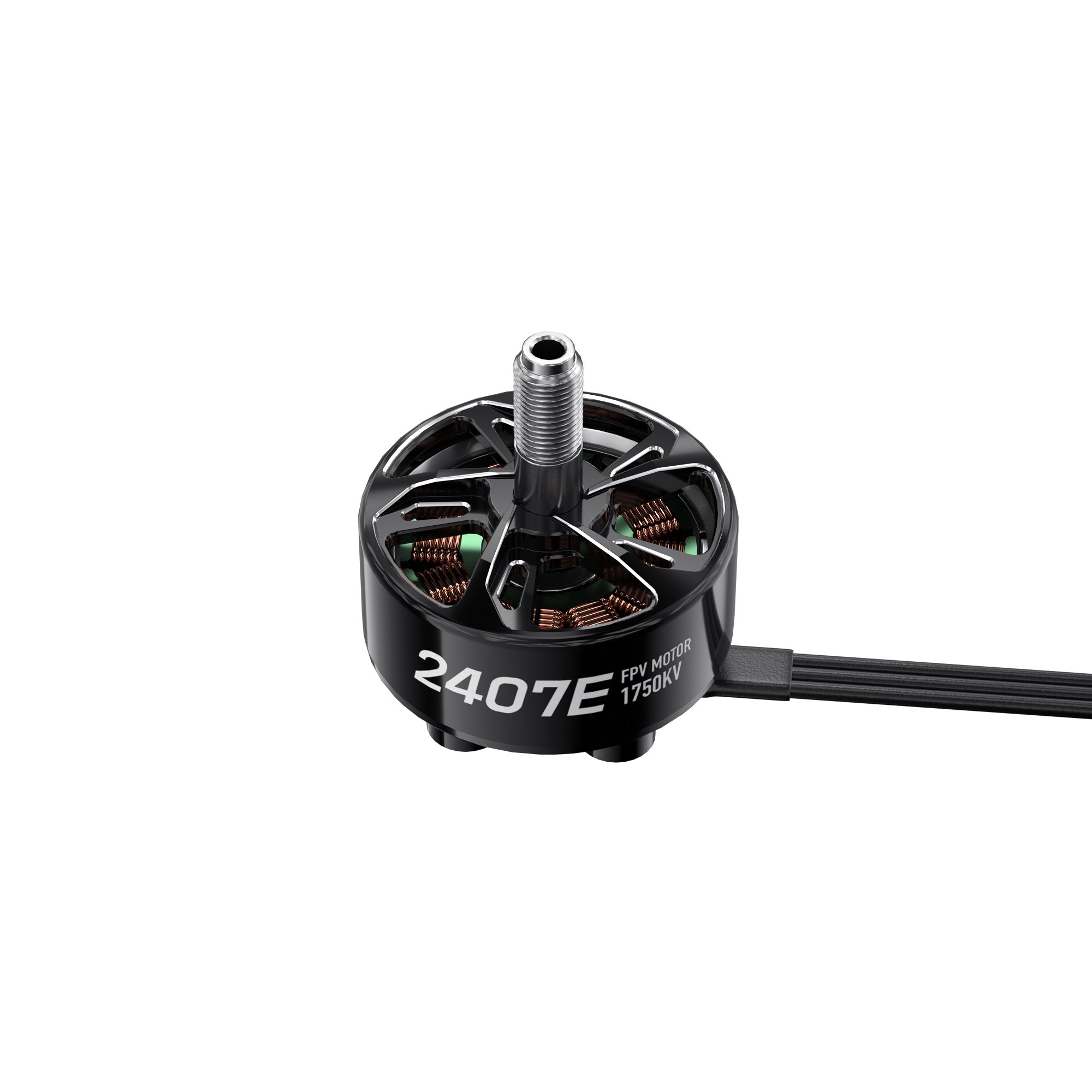

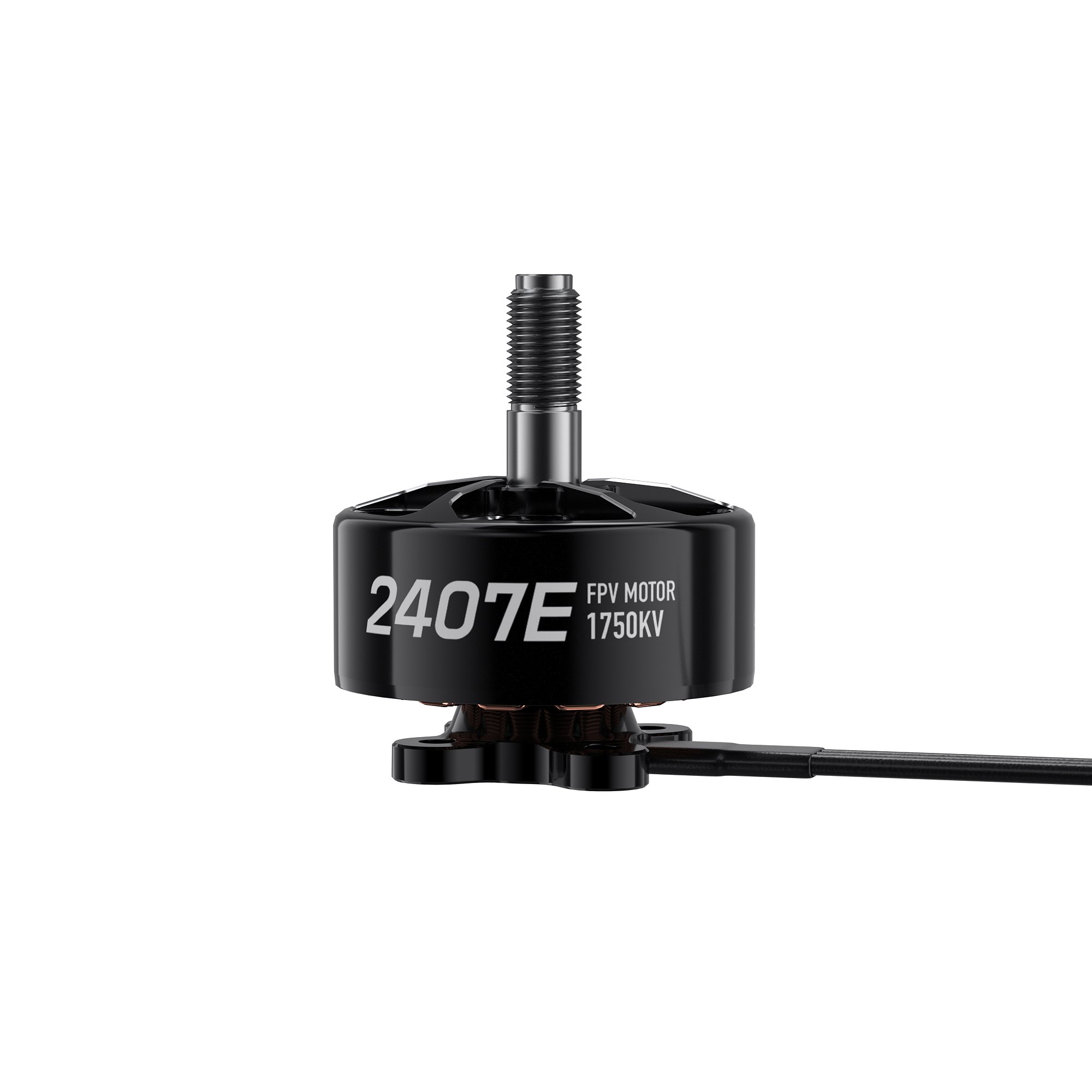

GEPRC SPEEDX2 2407E Motor

Summary

The SPEEDX2 2407E motor is tailored for quick responsiveness in advanced flight applications, featuring an optimized rotor and stator gap. Its all-black design and extensive cut-out structure enhance heat dissipation. Constructed from aviation-grade aluminum alloy using precision CNC molding, this motor is lightweight and durable.

Feature

1. Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.
2. The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.
3. Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.

Specifications

• Model: SPEEDX2 2407E Motor
• KV: 1750
• Max Watt: 972.7W
• Peak Current: 49A
• Interphase Resistance: 38mΩ
• Propeller: 5-6inch
• Magnet: N52H
• Bearing: NMB/NSK
• Stator Configuration: 12N14P
• Dimension: ф34*30mm
• Shaft Diameter：ф5mm
• Shaft Length：13.5mm
• Mounting Hole Size：16*16mm
• Wire Specification: 20AWG/150mm
• Compatible ESC: 60A/6S
• Input Voltage：6S
• Winding: Single-strand copper winding
• Color: Black
• Weight: 39g (including wire)
• Compatible Models: Suitable for 5inch-6inch racing FPV quads
•
