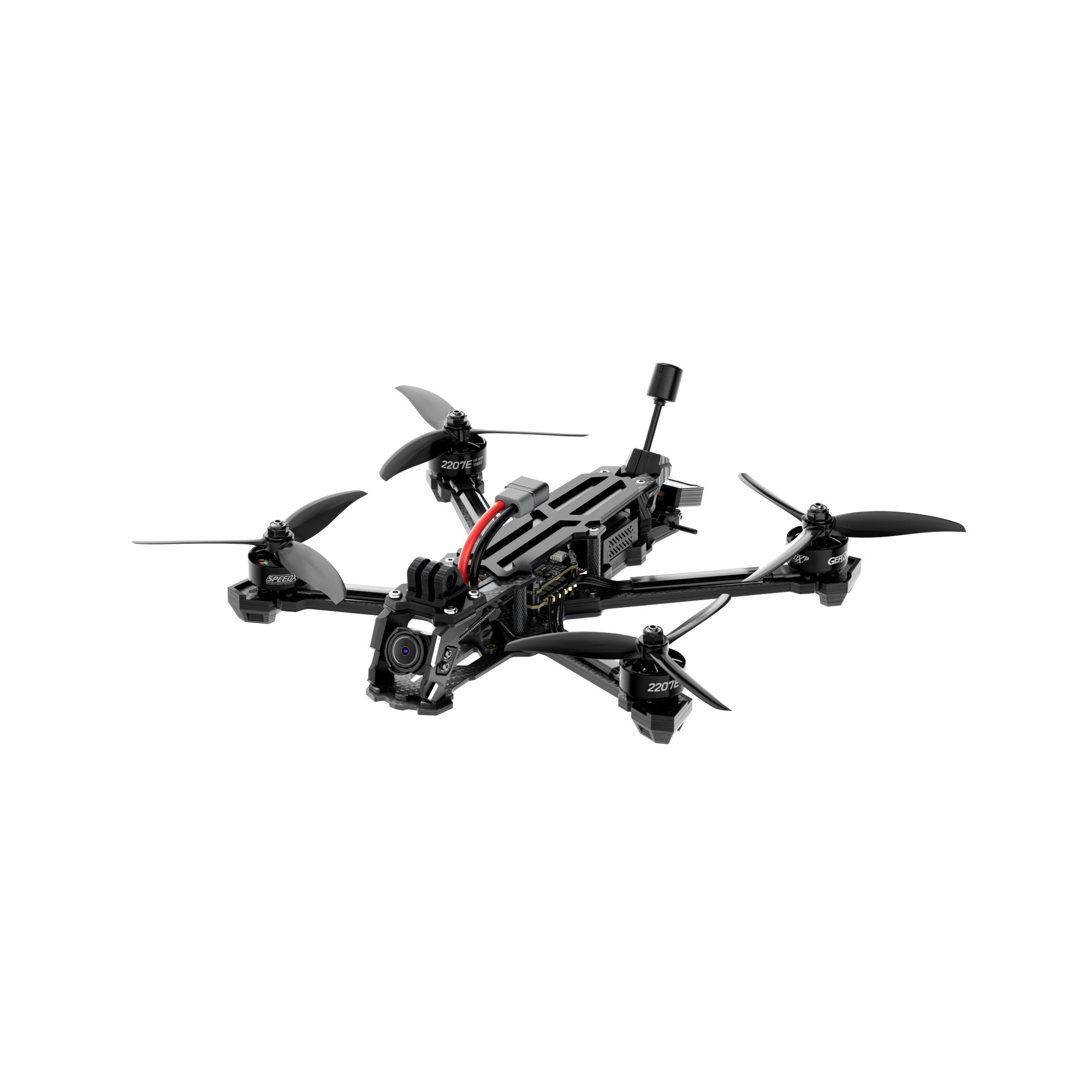

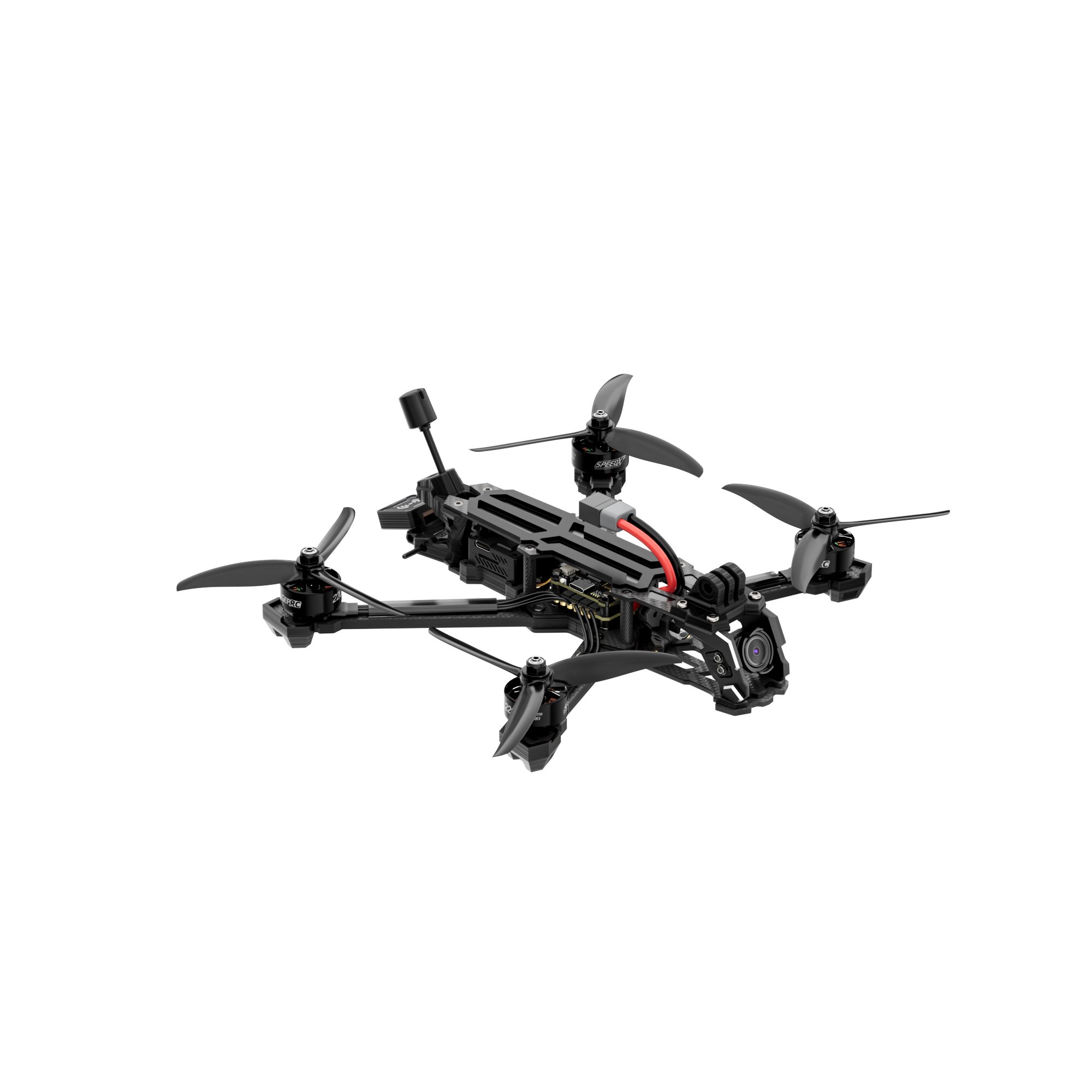

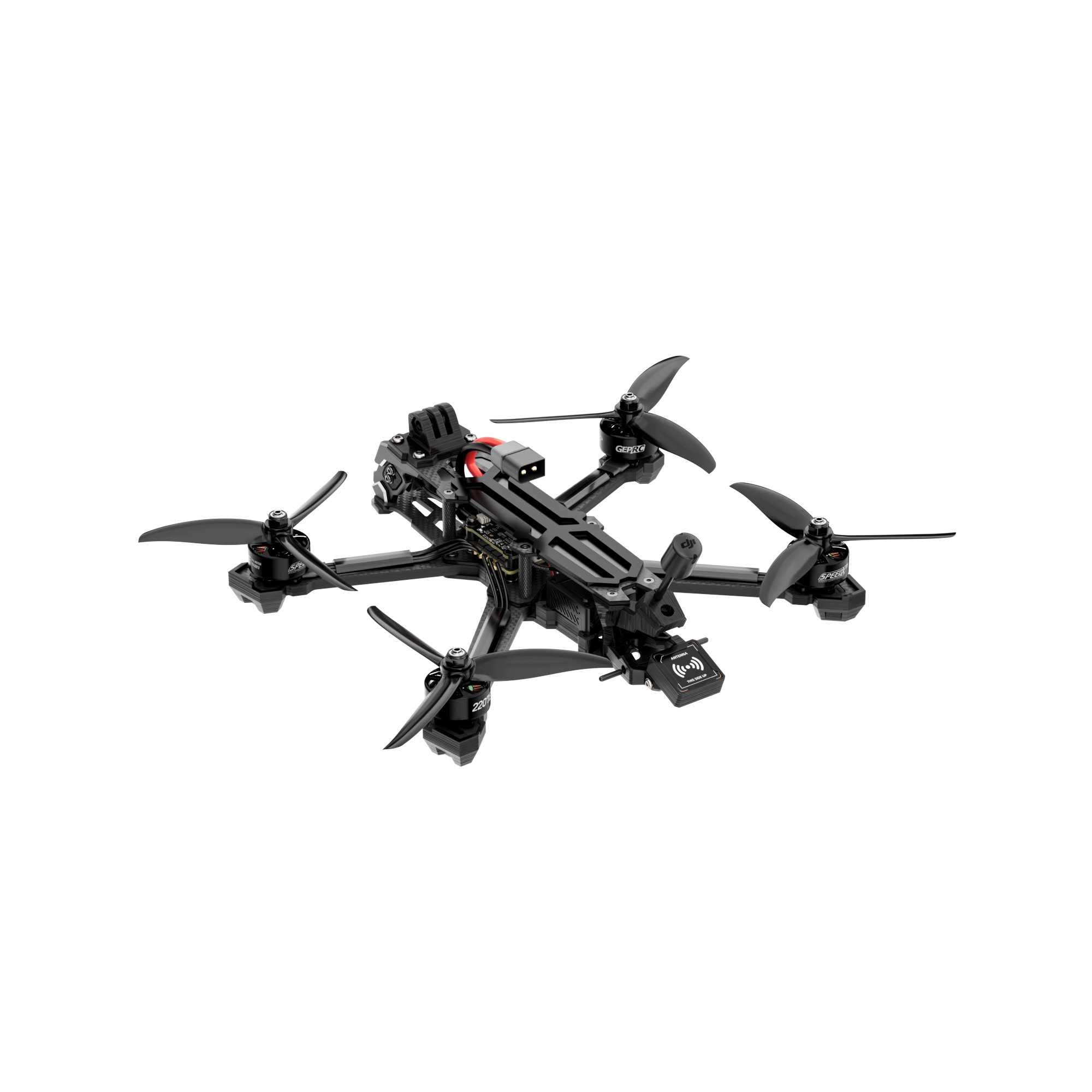

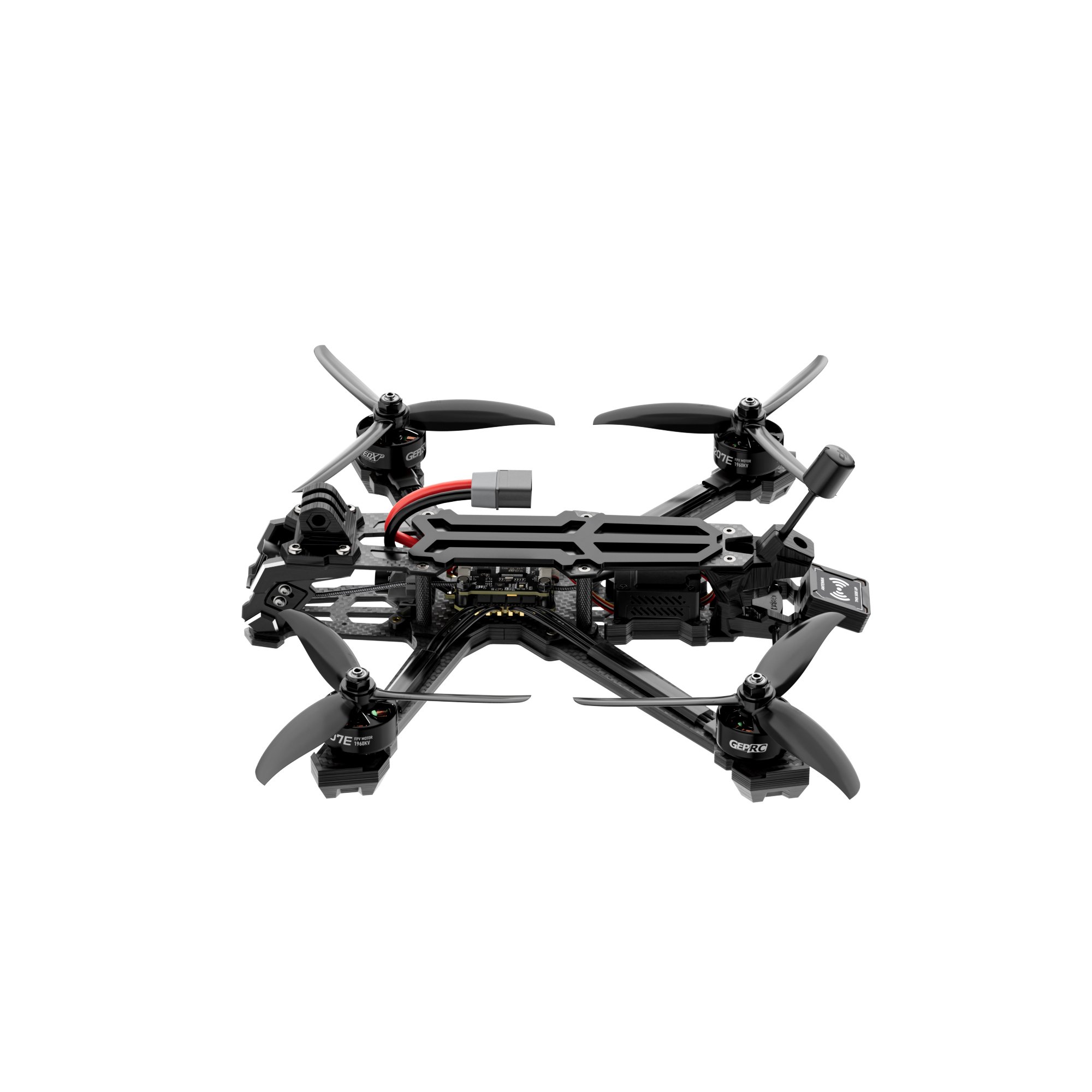

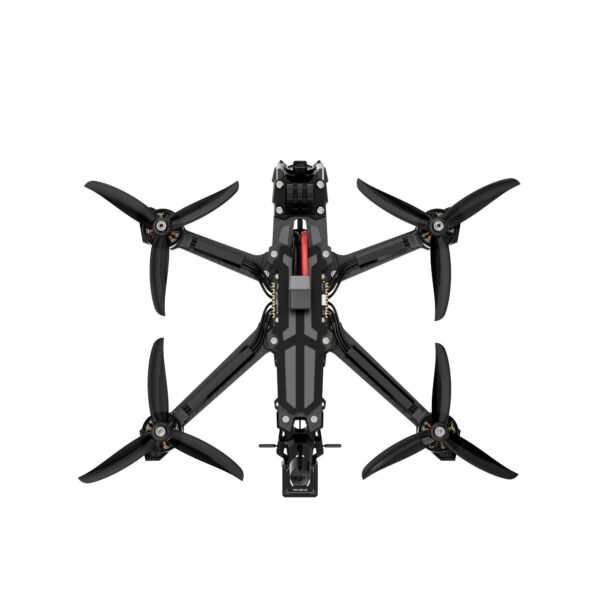

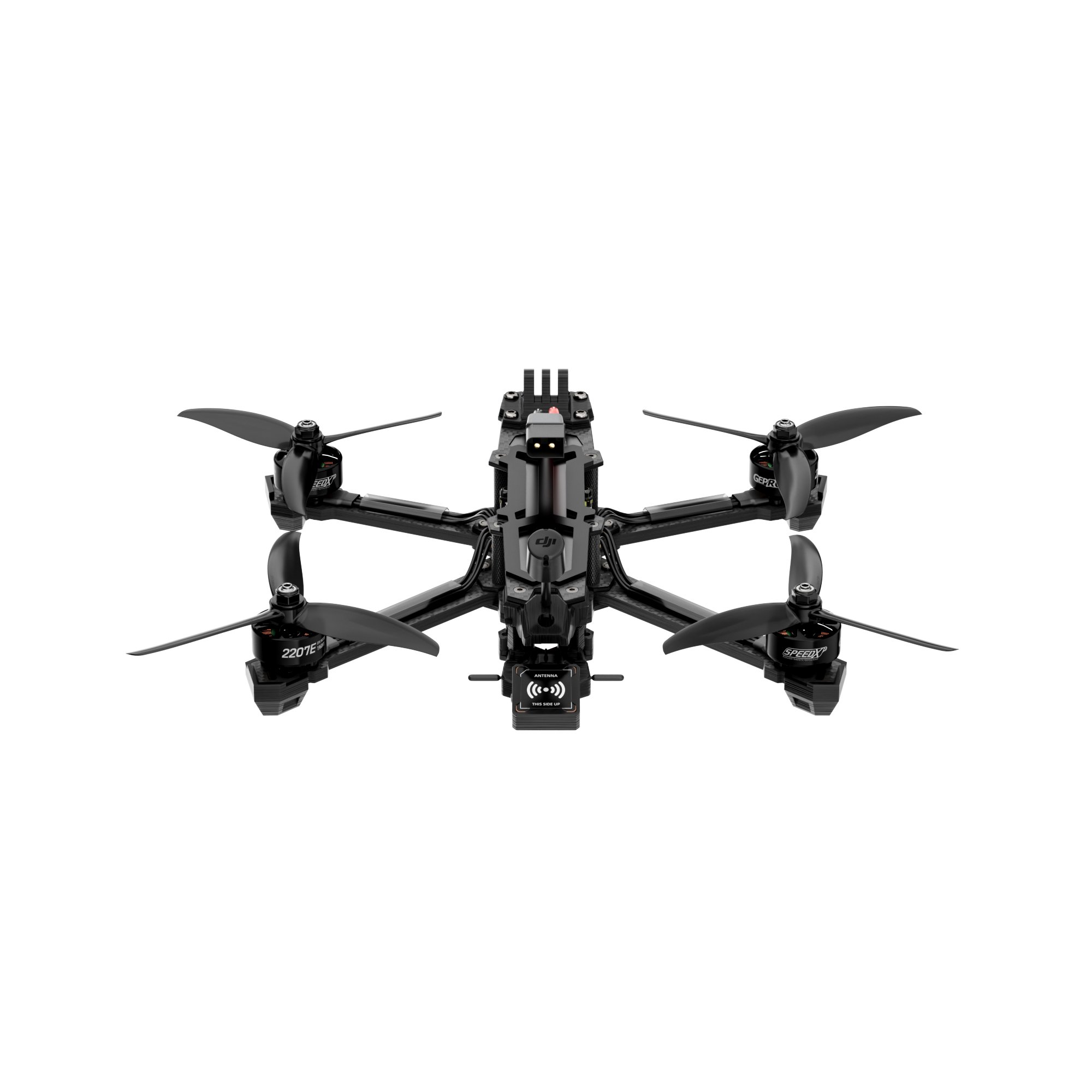

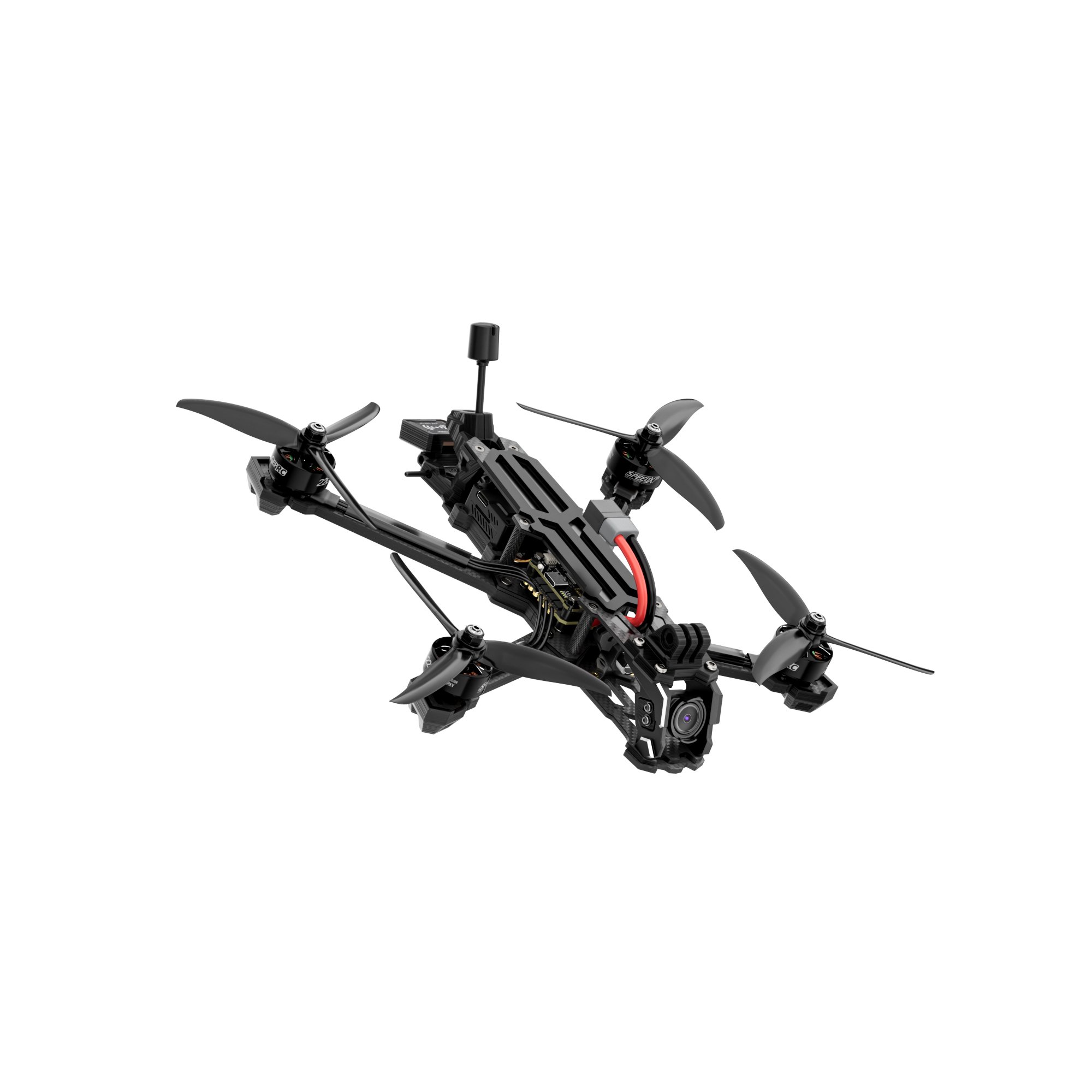

GEPRC Vapor-D5 HD O3 FPV Drone

Summary

The Vapor-D features a DC structure that evolves from the Wide X version.

It delivers exceptional flight performance with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 flight controller. Its unique DC design ensures the camera does not capture the propellers in view, boosting both video quality and flight enjoyment. With sleek CNC aluminum alloy side panels, the Vapor-D offers a perfect blend of style and strength.

Available in both 5-inch and 6-inch models, it’s made for every pilot and every flying need

Feature

1. The DC structure, paired with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 FC, ensures stable flight and excellent shooting.
2. Boost maneuverability and power for stunning aerial footage with GEPRC SPEEDX2 E-series motors.
3. The sleek side panels, crafted from CNC aluminum alloy, provide stylish yet sturdy protection for the camera.
4. The front lens guard provides reliable protection during flights.
5. The DC structure enhances both shooting quality and flying fun.
6. Choose between 5-inch and 6-inch models to fit your flying preferences.

Specifications

• Model: Vapor-D5 O3
• Frame: GEP-Vapor-D5 frame
• Wheelbase: 238.43mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate: 2.5 mm
• Arm Thickness: 5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyro: ICM42688-P(SPI)
• Barometer: BMP280
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: O3 Air Unit
• Camera: O3 Camera
• Antenna: O3 original antenna
• Connector: XT60
• Optional GPS：GEP-M10 GPS
• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
• 5-inch Propeller: GEMFAN 5136
• Vapor-D5 O3 PNP Version Weight: 435g±5g
• Receiver: PNP/GEPRC ELRS24/TBS Nano RX
• Recommended Battery:6S  LiPo 1550mAh – 2200mAh
• Flight Time: 13-17 min

Includes

1 x Vapor-D5 O3

2 x GEMFAN 5136

2 x Battery anti-slip pads

1 x Spare screw pack

2 x M20*250mm battery straps

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2.0mm

1 x GoPro mount

1 x GoPro mount
