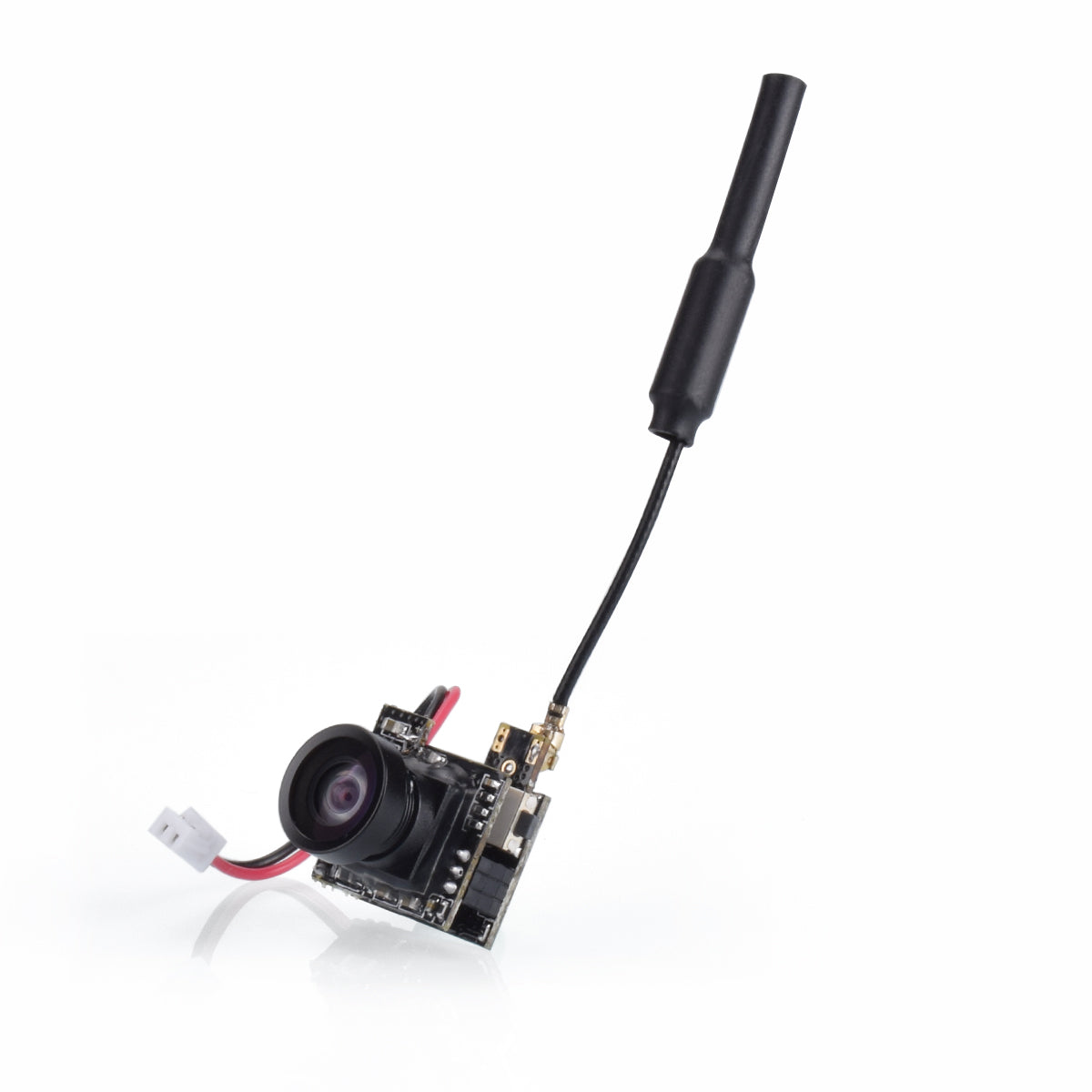

H01 AIO Camera 5.8G 25mW VTX

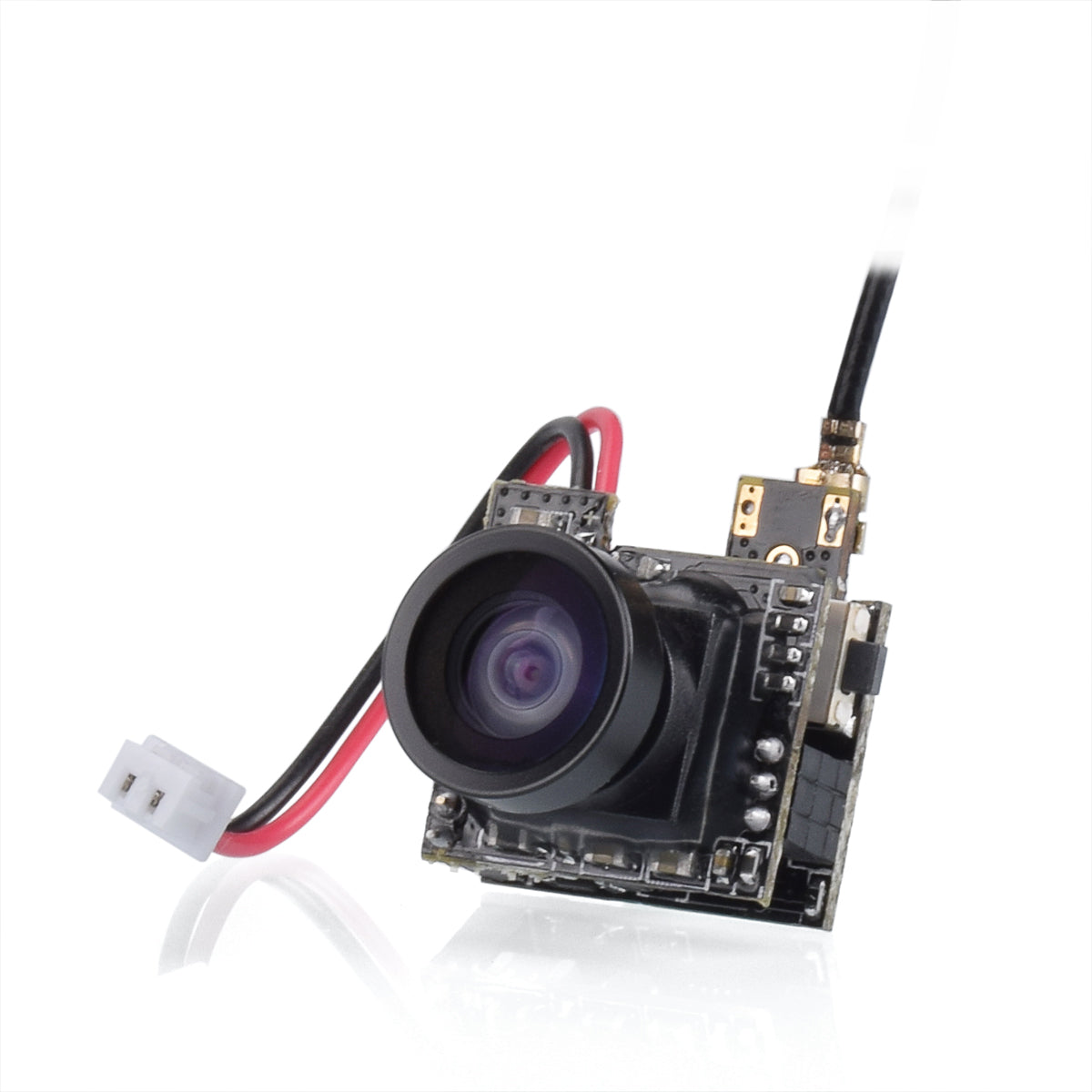

Note:The position of the red & black wires on the H01 camera have been changed.

Bullet Points

• Light weight only 3.6g, small size with 47 * 14.8 * 12.5 mm.
• Supporting touch switch select channel and frequency group, supporting NTSC/PAL switch.
• 8 LEDs display channel and 6 LEDS display frequency group information, 1 LED display PAL/NTSC information.

How to Switch Channel, Frequency Group and NTSC/PAL Mode

• Short press on the button to change channel.
• Long press on the button to change frequency group.
• Longer press on the button to switch NTSC/PAL mode. (Green light on means NTSC and green light off means PAL mode.)

Note: this camera doesn’t support vertical image convertion.

Specification

• Output power: 25mW
• Supply Voltage: 2.9-5.5v

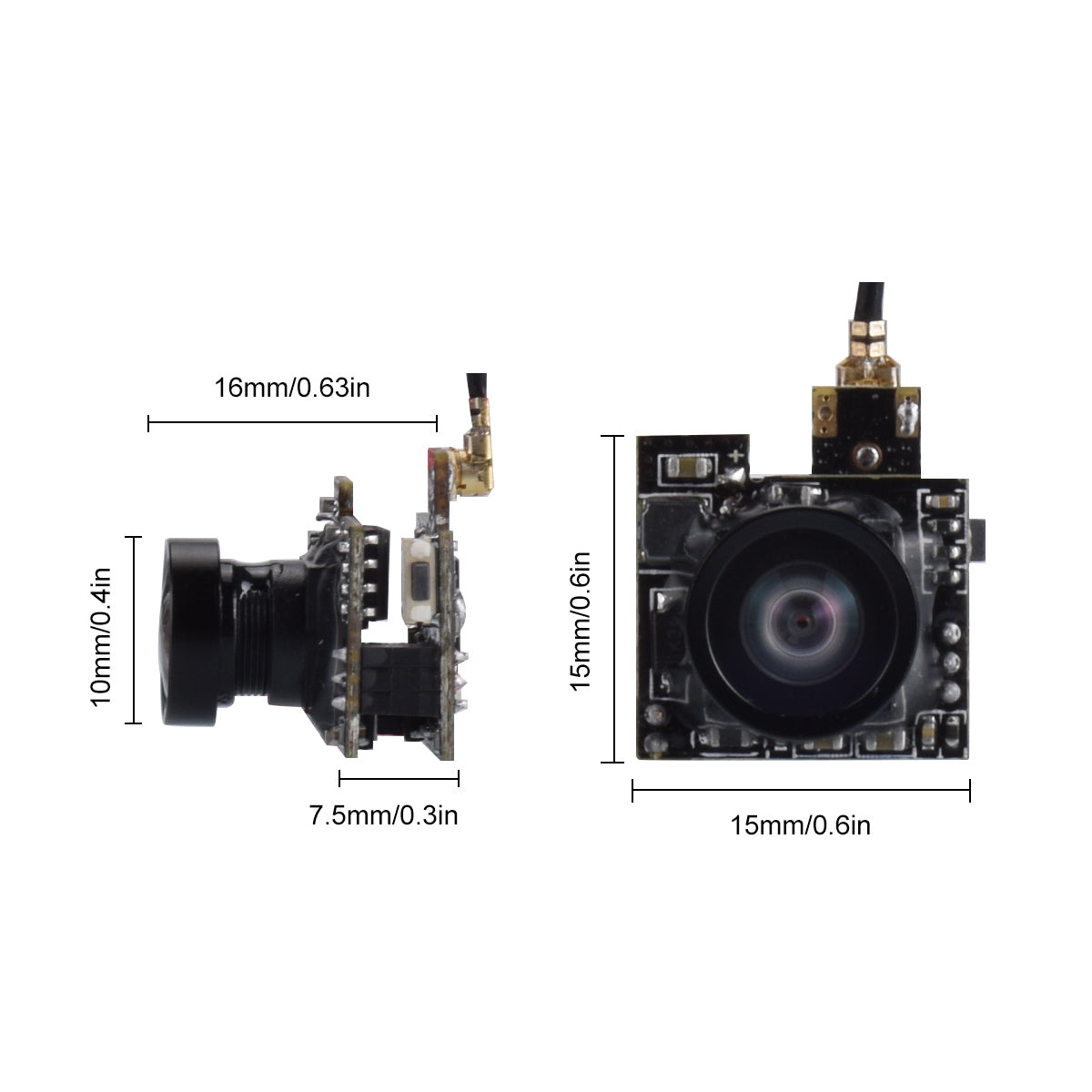

• Size : 47 * 14.8 * 12.5 mm
• Weight: 3.6g
• Antenna: Exclusive Dipole Whip Antenna with UFL connector
• Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5362~5945MHz
• Field of view: 120º
• Operating Temperature: -10℃~+60℃
• Ambient temperature: 25℃
• Channel Indicate:CH1~CH8 Channel indication with 8 LEDS and A~F frequency, group Indicate with 6 LEDS
• Modulation type：FM
• Transmit power: 13±1dBm
• Frequency control: PLL
• All harmonic: Max -50dBm
• Frequency Stability: ±100KHz (Typ.)
• Frequency precision: ±200KHz (Typ.)
• Antenna Port: 50 Ω
• SENSOR: PAL: 720X540 / NTSC:640X480
• LENS ANGEL: H:120°/V:100°

Transmission Frequency

A:Ch1:5740MHz Ch2:5760MHz Ch3:5780MHz Ch4:5800MHz
   Ch5:5820MHz Ch6:5840MHz Ch7:5860MHz Ch8:5880MHz
B :Ch1:5705MHz Ch2:5685MHz Ch3:5665MHz Ch4:5645MHz `
    Ch5:5885MHz Ch6:5905MHz Ch7:5925MHz Ch8:5945MHz
C :Ch1:5865MHz Ch2:5845MHz Ch3:5825MHz Ch4:5805MHz
    Ch5:5785MHz Ch6:5765MHz Ch7:5745MHz Ch8:5725MHz
D: Ch1:5658MHz Ch2:5695MHz Ch3:5732MHz Ch4:5769MHz
    Ch5:5806MHz Ch6:5843MHz Ch7:5880MHz Ch8:5917MHz
E:Ch1:5733MHz Ch2:5752MHz Ch3:5771MHz Ch4:5790MHz
    Ch5:5809MHz Ch6:5828MHz Ch7:5847MHz Ch8:5866MHz
F :Ch1:5362MHz Ch2:5399MHz Ch3:5436MHz Ch4:5473MHz
    Ch5:5510MHz Ch6:5547MHz Ch7:5584MHz Ch8:5621MHz

Package

• 1 * BETAFPV H01 Micro AIO Camera 5.8G VTX
