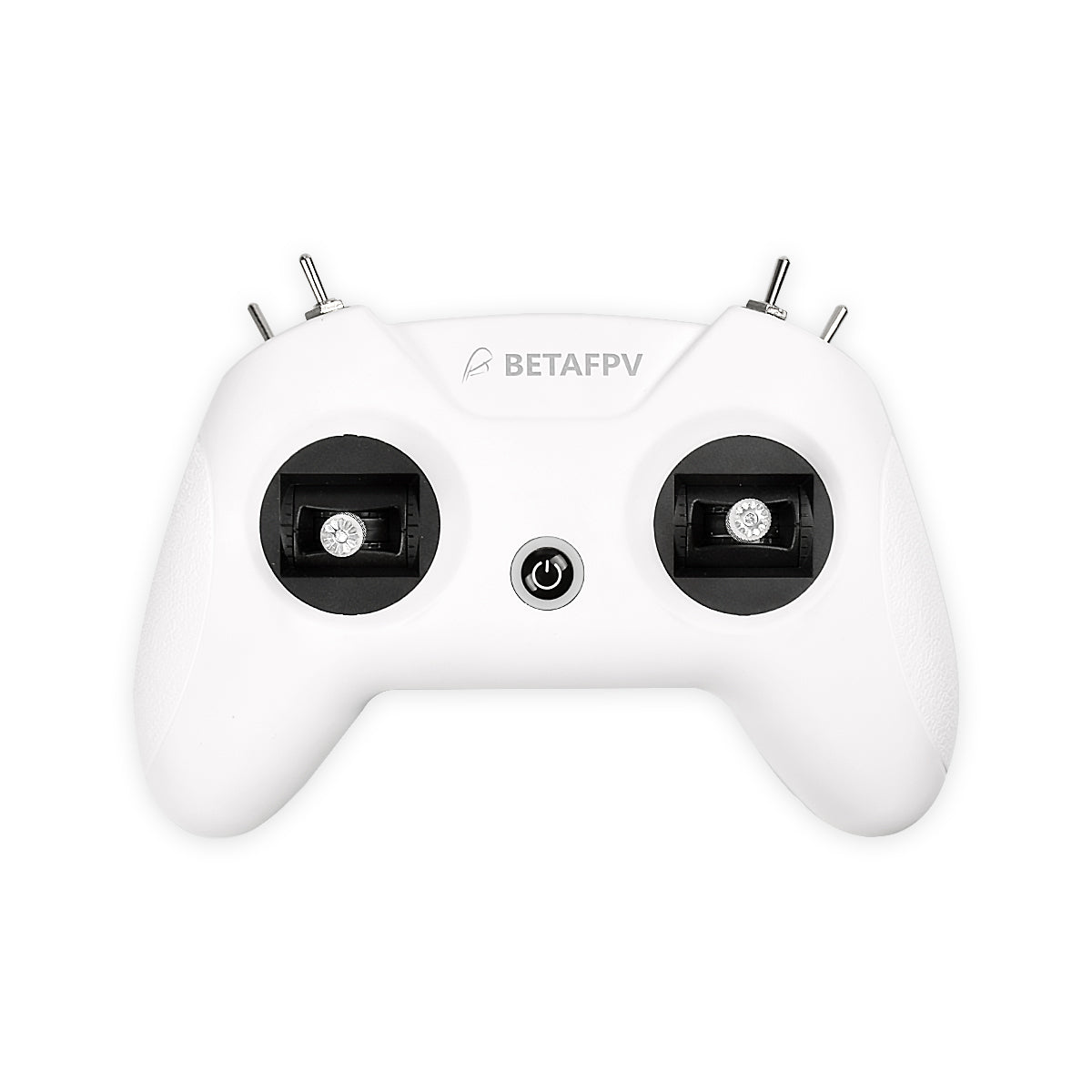

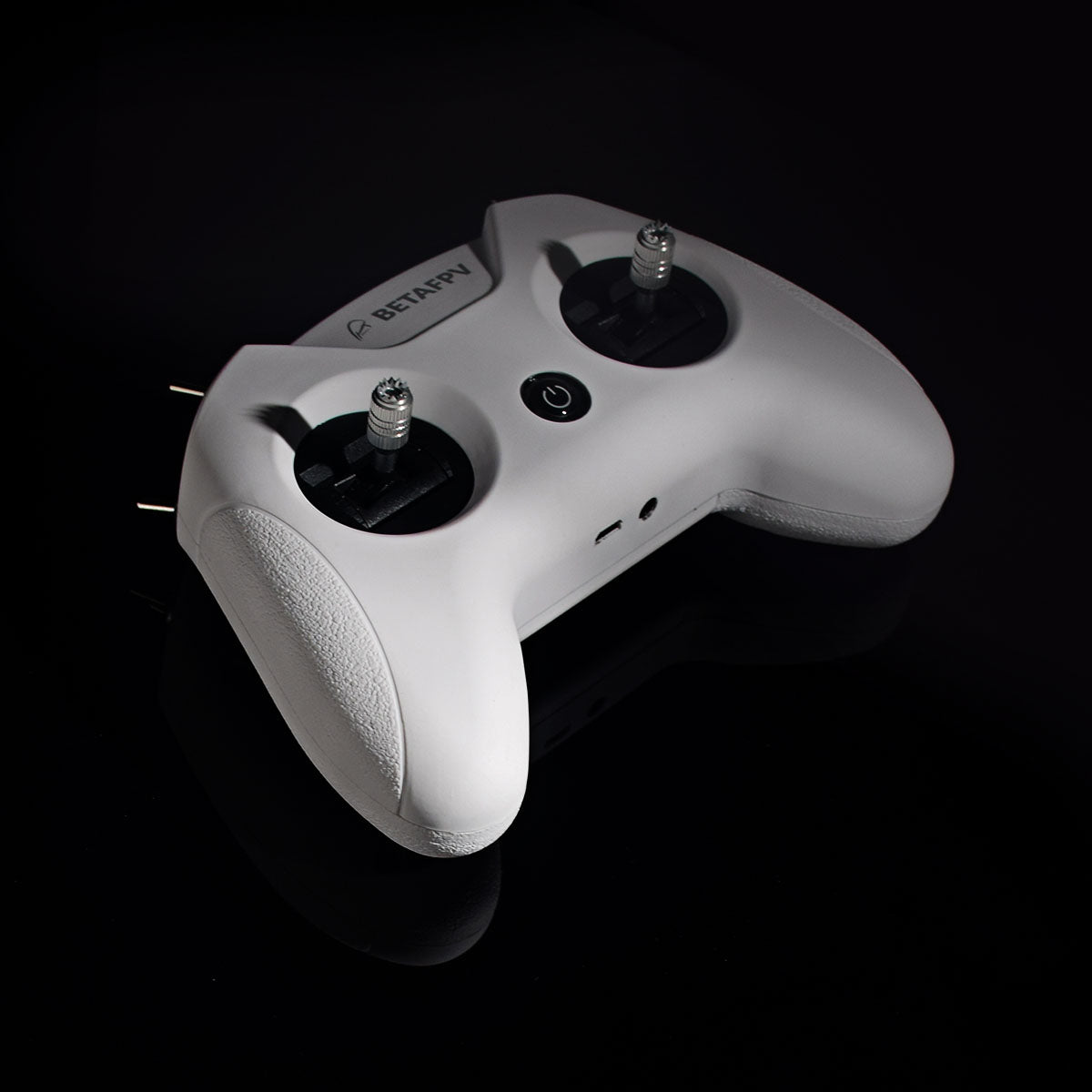

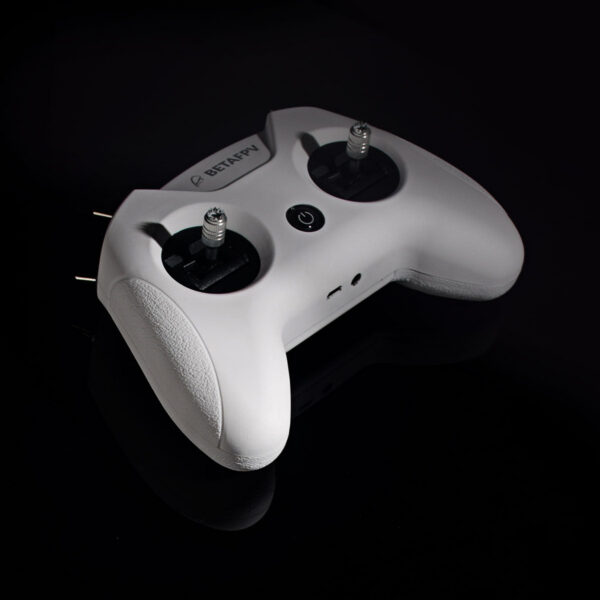

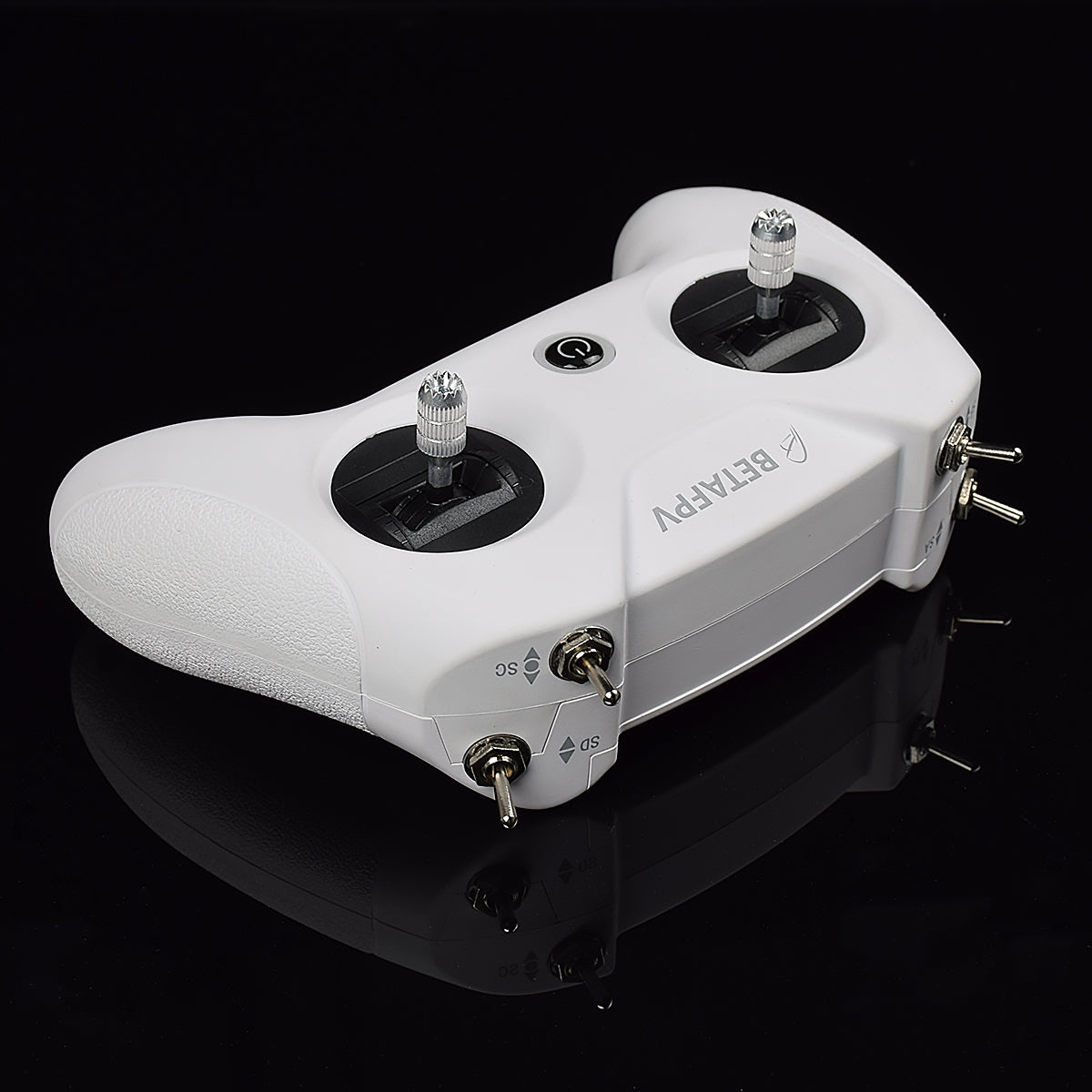

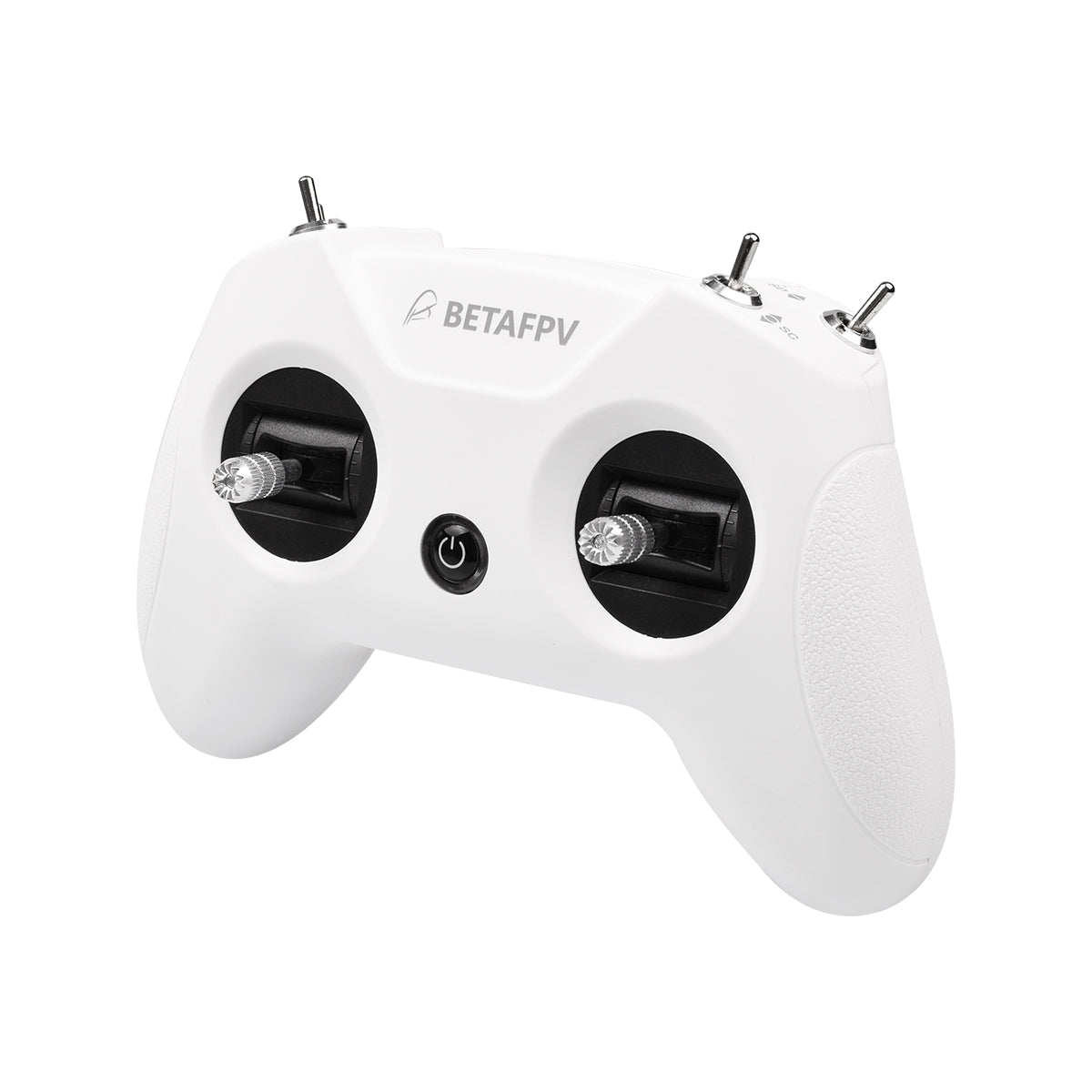

LiteRadio 2 Radio Transmitter

We are glad to announce that a batch of LiteRadio 2 transmitters is restocked now. Limited stocks, first come first served.
After the latest round of beta tests, LiteRadio 2 is back to the market with huge improvements based on the original version.

Supports Frsky protocol, easily change Frsky D8, Frsky D16 FCC and Frsky D16 LBT mode (The default version is Frsky D16 FCC)
Built-in charging module, support USB charging
Adopted the rubber coat and add weight, makes it more ergonomic
Add vibration motor, provide a vibrating prompt
Redesign the power button, make it crystal clear and better for the LED indication

Mainboard for LiteRadio 2 owner replacement.

Special thanks for the review of UAVfutures, it is a great help for fans to make the right value choices.

Bullet Point

Designed for FPV racing starters, and supports Bayang protocol and Frsky protocol (D16/ D8)
LiteRadio 2 is powered by OpenTX firmware. Totally 8 channels and has a hobby-grade gimbal.
This radio transmitter acts as a USB Joystick when connected to a personal computer. So you could use it to play FPV simulator like EREADRONE
The trainer function is available for this LiteRadio 2 transmitter. It is useful for FPV racing student in training
LiteRadio 2 transmitter runs the OpenTX 2.2.4 firmware. OpenTX comes with a computer-based graphical user interface, OpenTX Companion. Pilots could use OpenTX Companion is trim the gimbal central value
With the hobby-grade gimbal and adopted the rubber coat, makes it more ergonomic

Specification

Item: LiteRadio 2
Frequency Range: 2.4G (2403MHz-2447MHz)
2.4G System: NRF24L01 or CC2500
Channel: 8
System: Bayang Protocol / Frsky Protocol
Power: ≤80mw
Adapted Drone Type: Multirotor
Support USB Charging
Support FPV Simulator Connected
Output: PPM, support Student Radio Mode
LED Light: Green-Power On / Red-Warning / Blue-Normal
Battery: 350mAh 2S Battery
Weight: 227.4g (with battery)

How to change the protocol (D16/D8 Version)

To change FrSky protocols (FCC D16, EU D16, or D8), you first have to power it off, then press and hold the bind button while you power it back on. Then it will flash the code to indicate which protocol it is on.

LED Status	Protocol Version
Flash Once	Frsky D16 FCC
Flash Twice	Frsky D16 LBT
Flash Three Times	Frsky D8

LiteRadio 2 Guide

Manual for LiteRadio 2 Radio Transmitter
LiteRadio Configuration – OpenTX Companion
Setup E.G. #1 – Trim the Gimbal Central Value
Watch the following video to learn about how to use your LiteRadio 2

LiteRadio 2 Advanced Modifications

Special thanks to Dirk Gausmann who provided this foldable screen idea to help fans make their own monitor, it supports to add any module like R9M Lite Module or crossfire module. If you are interested, please check the link to know the specific steps to make your own advanced LiteRadio 2.

Diagram of LiteRadio 2

Package

1 * LiteRadio 2 Radio Transmitter
1 * 350mAh 2S Battery

Mode	Mode 1(Right stick throttle), Mode 2(Left stick throttle), Mode 2(Left stick throttle)/ Black
Protocol	Bayang, Frsky
