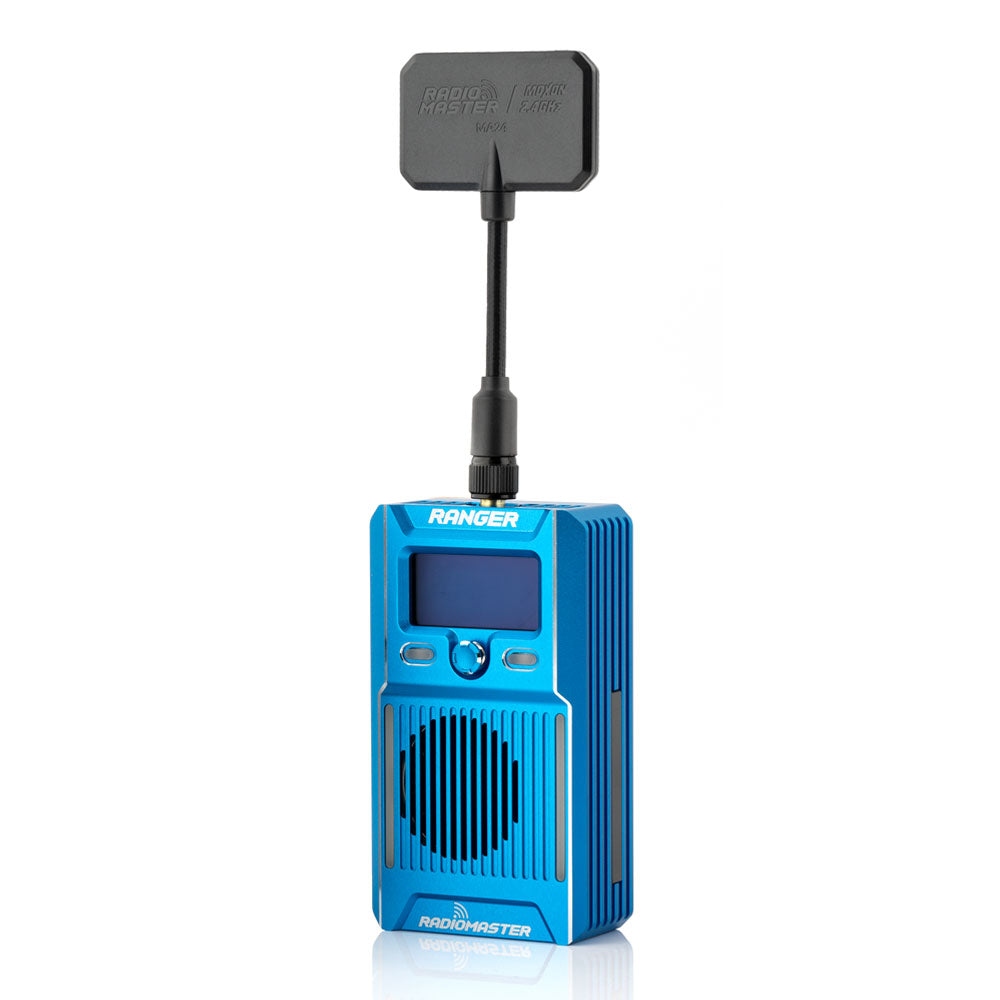

Ranger 2.4GHz ELRS Module Limited Edition

Be the first to experience our refined and exclusive Ranger 2.4GHz ELRS Module Limited Edition! It offers a range of distinctive colors to stand out, including blue, red, gold, and grey. Act fast, while supplies last!

Ranger 2.4GHz ELRS Module Limited Edition

Features

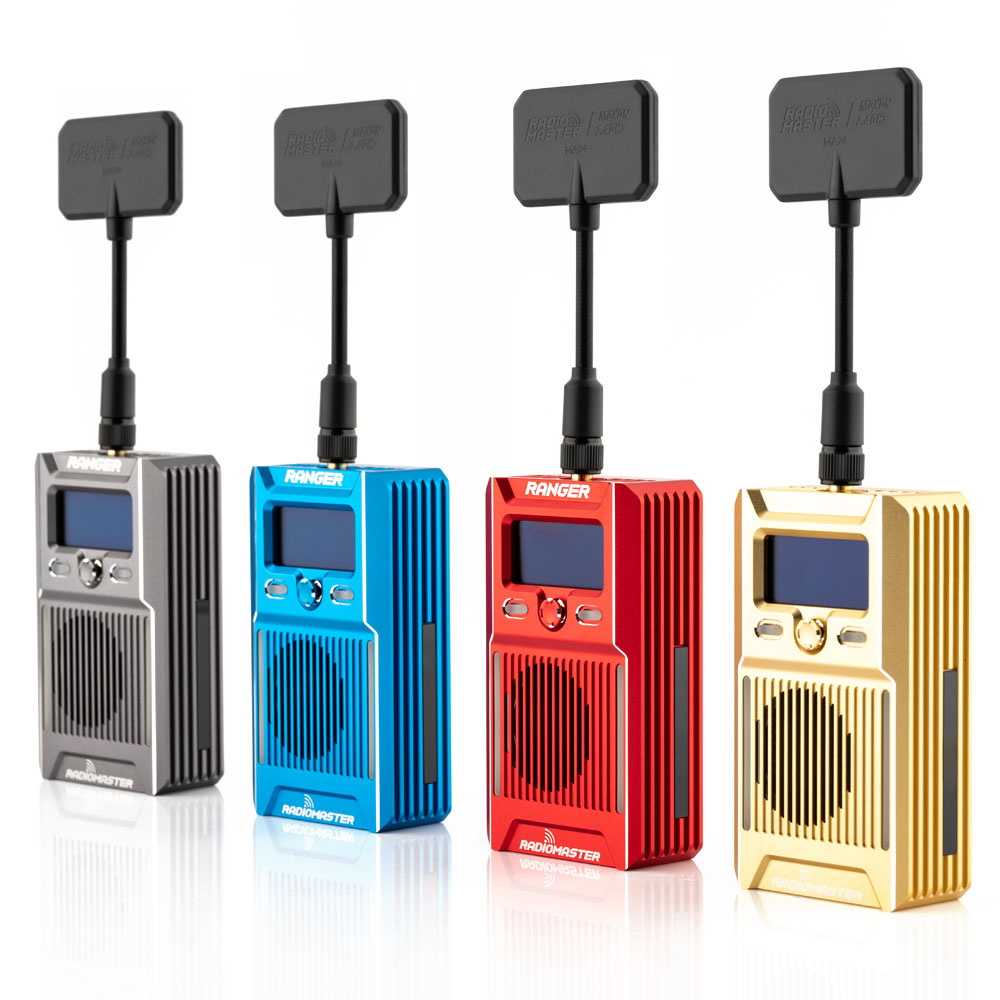

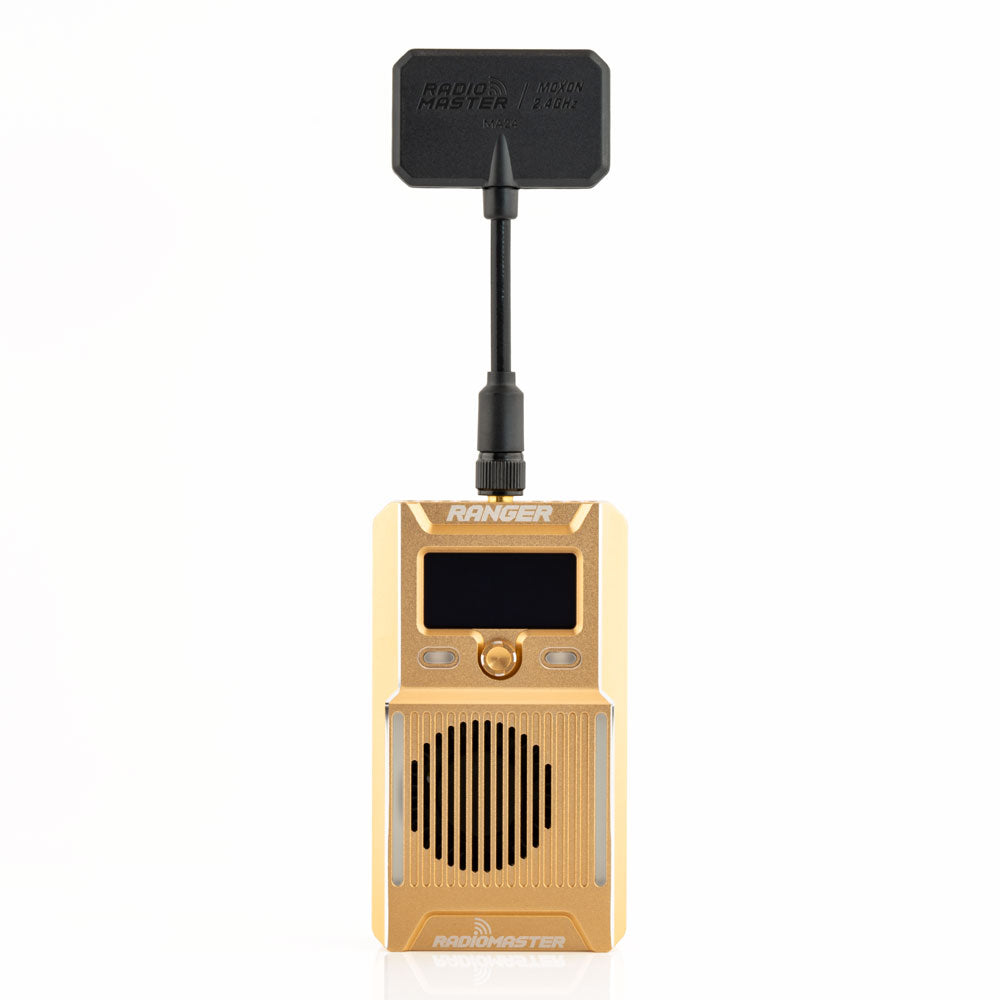

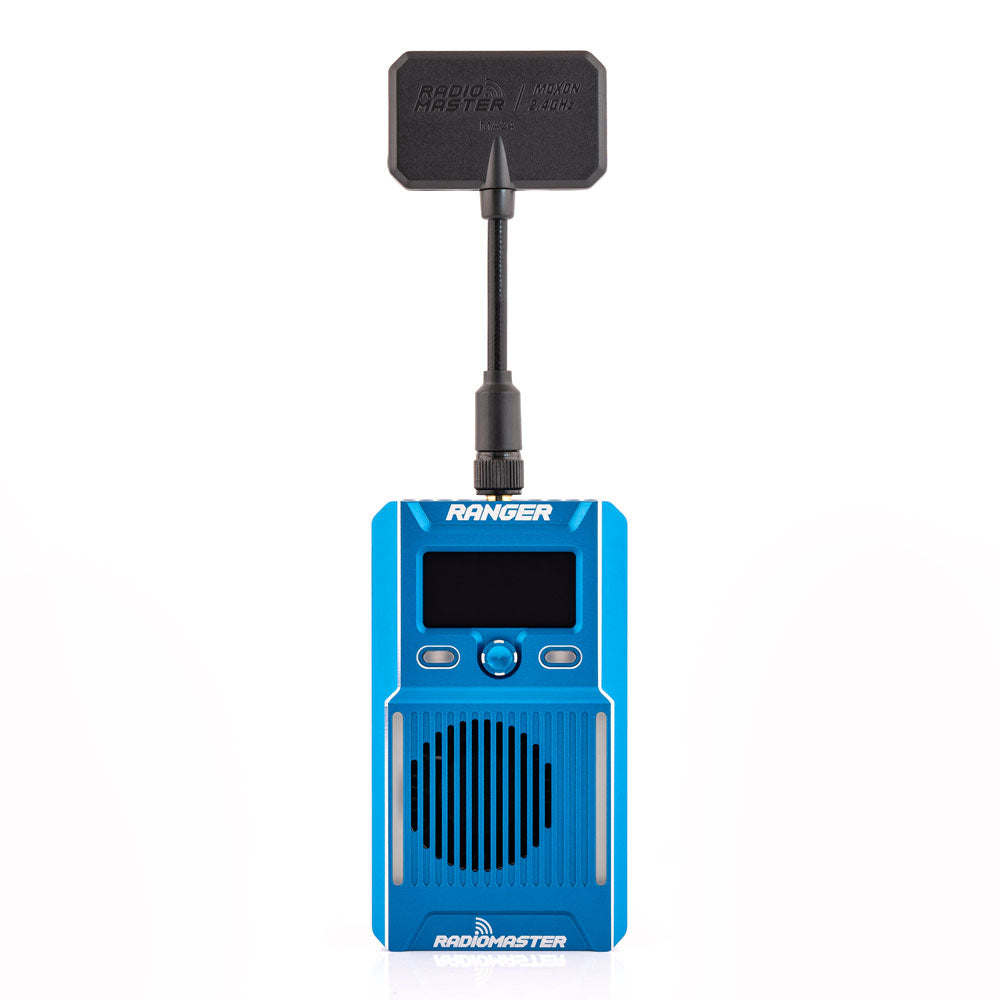

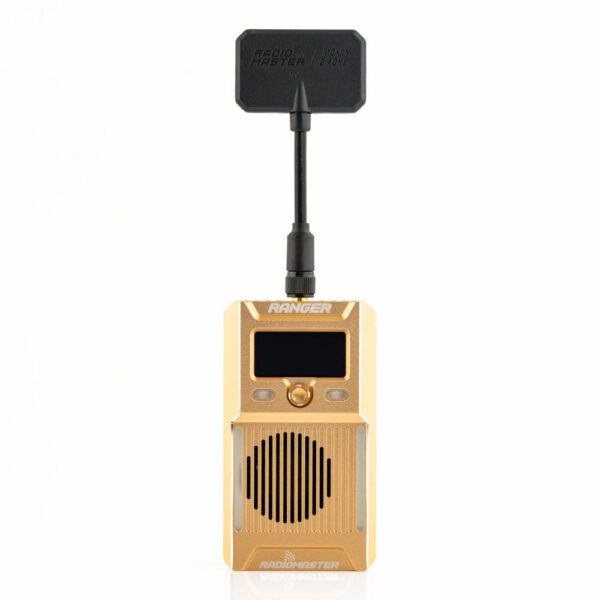

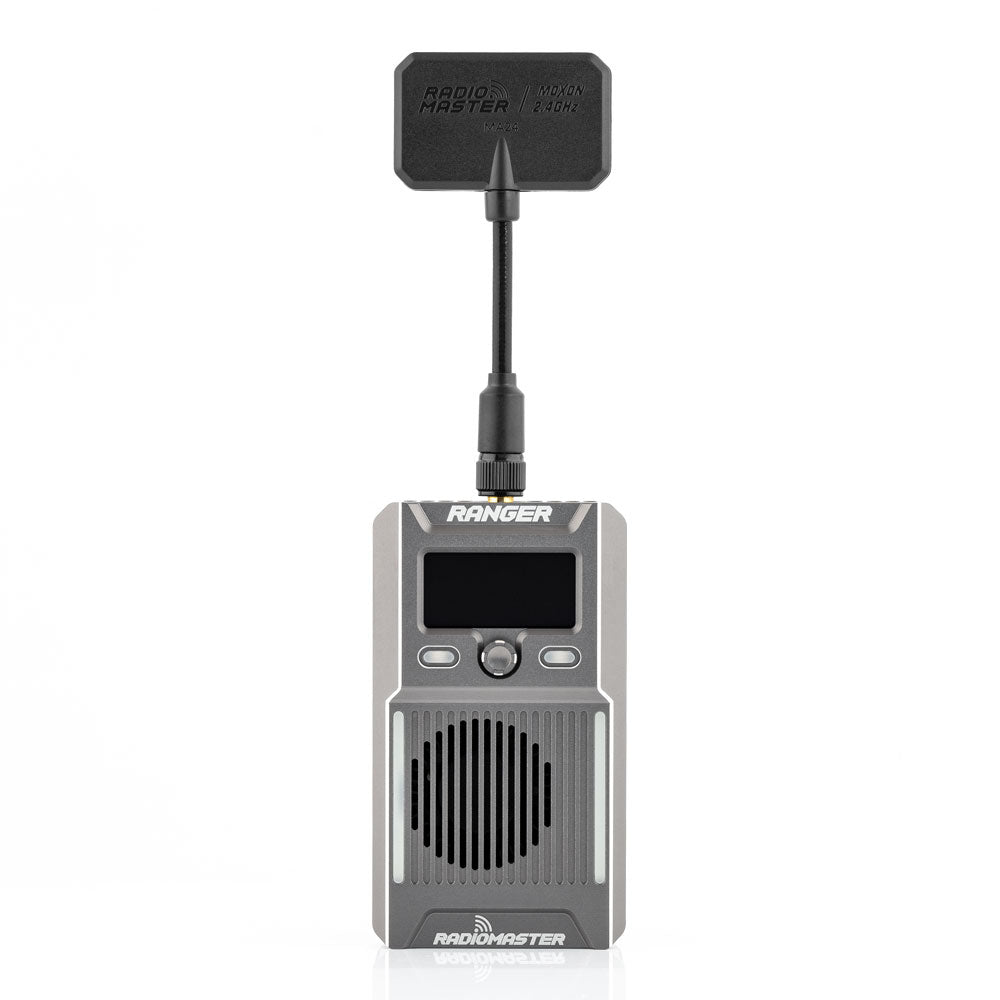

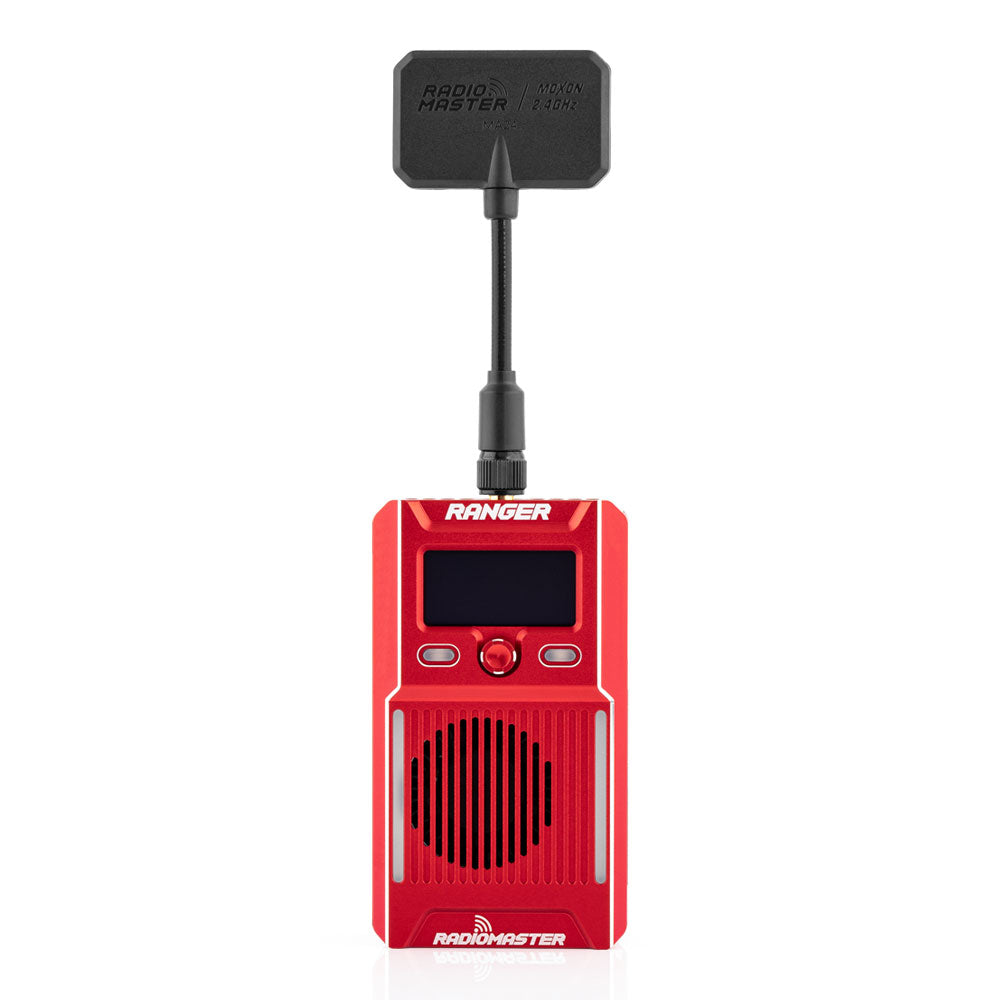

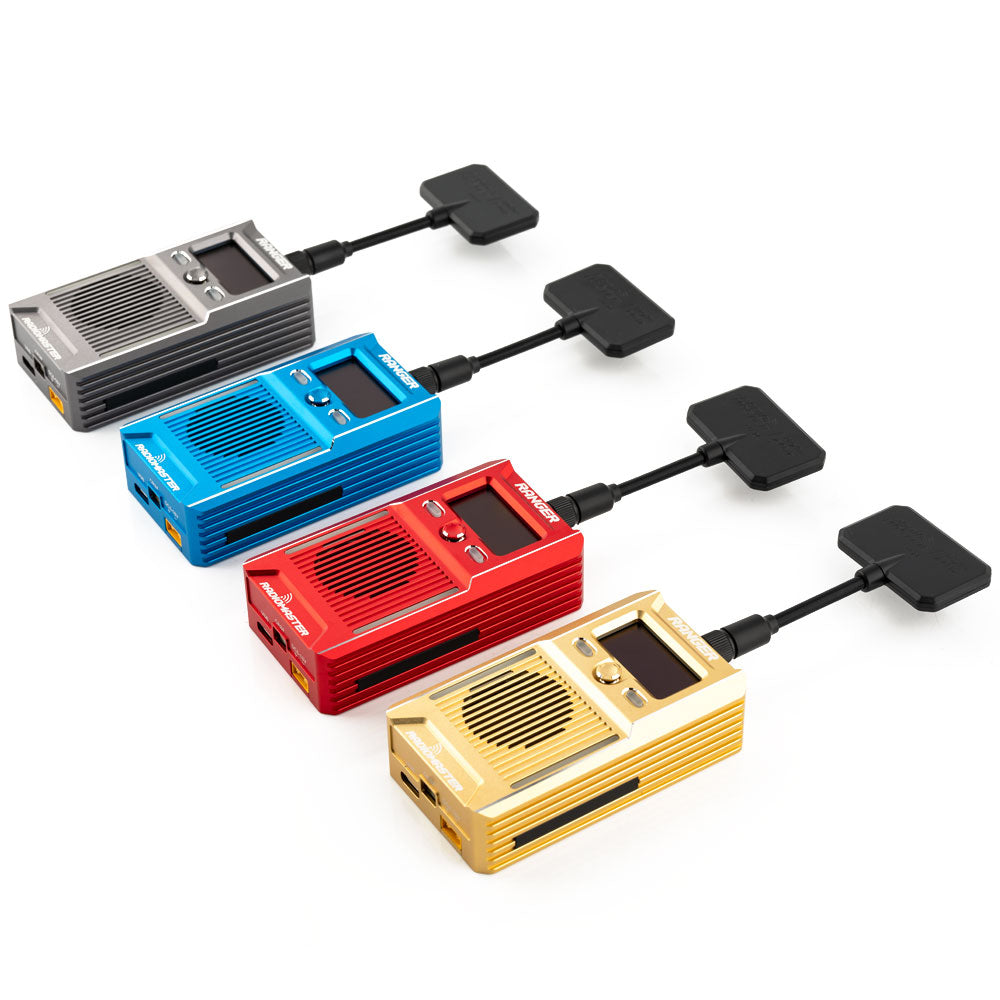

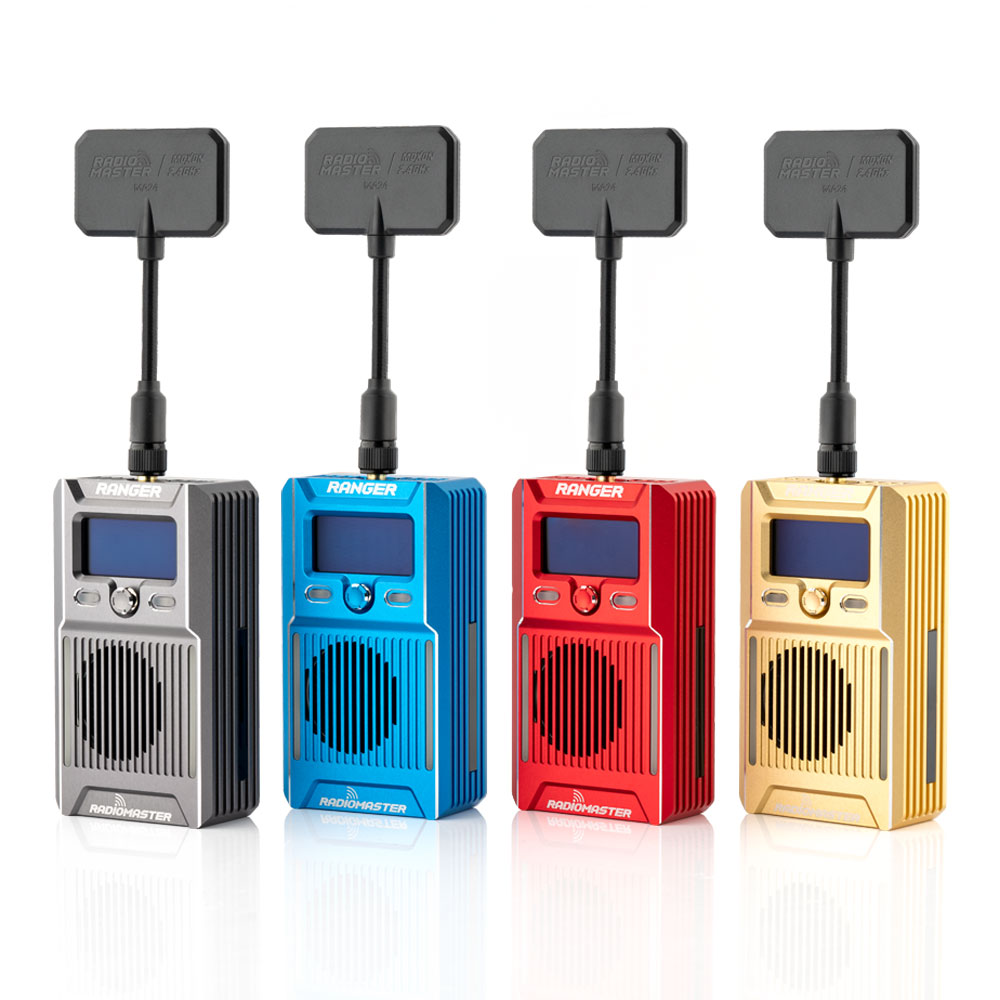

Optional 4 colors – Blue/Red/Gold/Grey
Built-in ExpressLRS Backpack
OLED Display
Rugged CNC Case
Built-in Accelerometer
Packet rates up to F-1000Hz
Wifi and Bluetooth support
High-efficiency cooling system
5 Direction Nav key and customizable shortcut buttons
Micro and Nano adapters included
Moxon and T-antenna included
CRSF cable for compatible Futaba radios included

Specifications

Item: Ranger 2.4GHz ELRS Module Limited Edition
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz – 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz

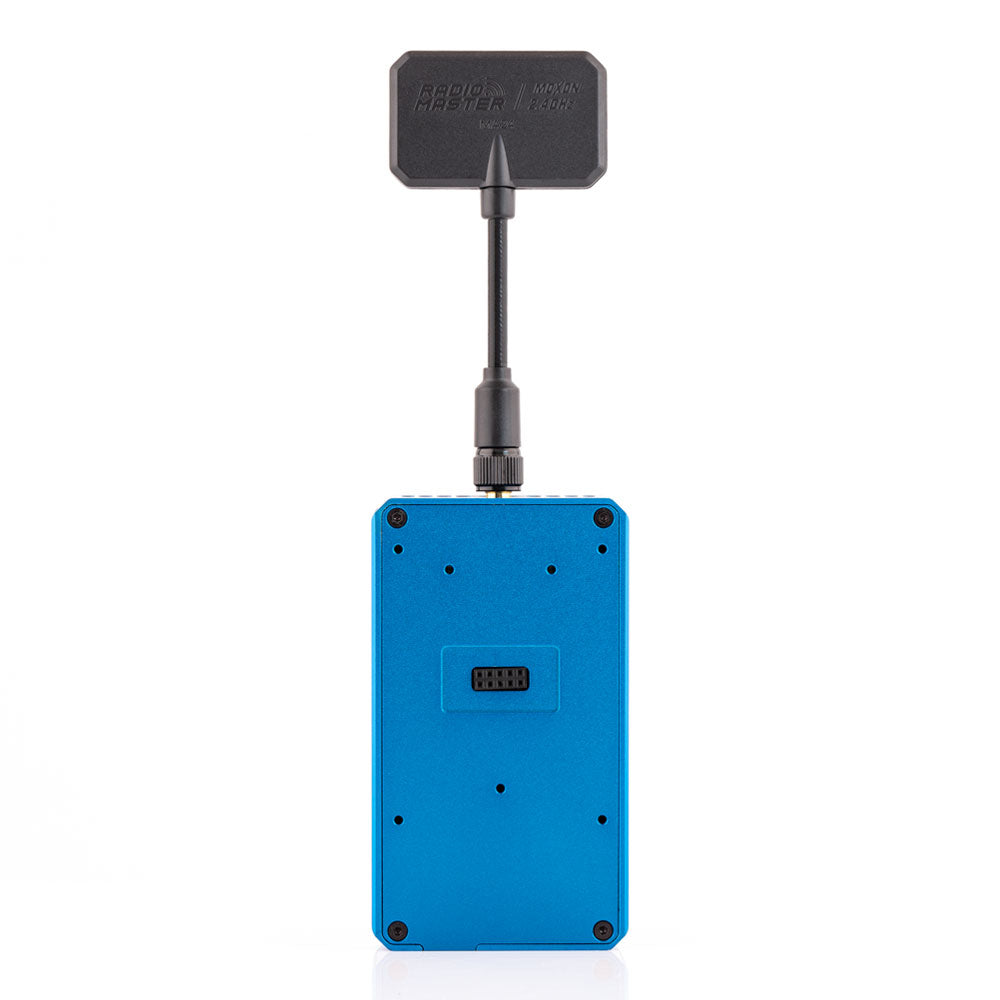

Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen: 64x128px
Wifi Support: Yes
Bluetooth support: Yes
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built-in RGB light strip
XT30 Power supply voltage: DC 6V – 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
Dimension: 95*51*25mm (without antenna)
