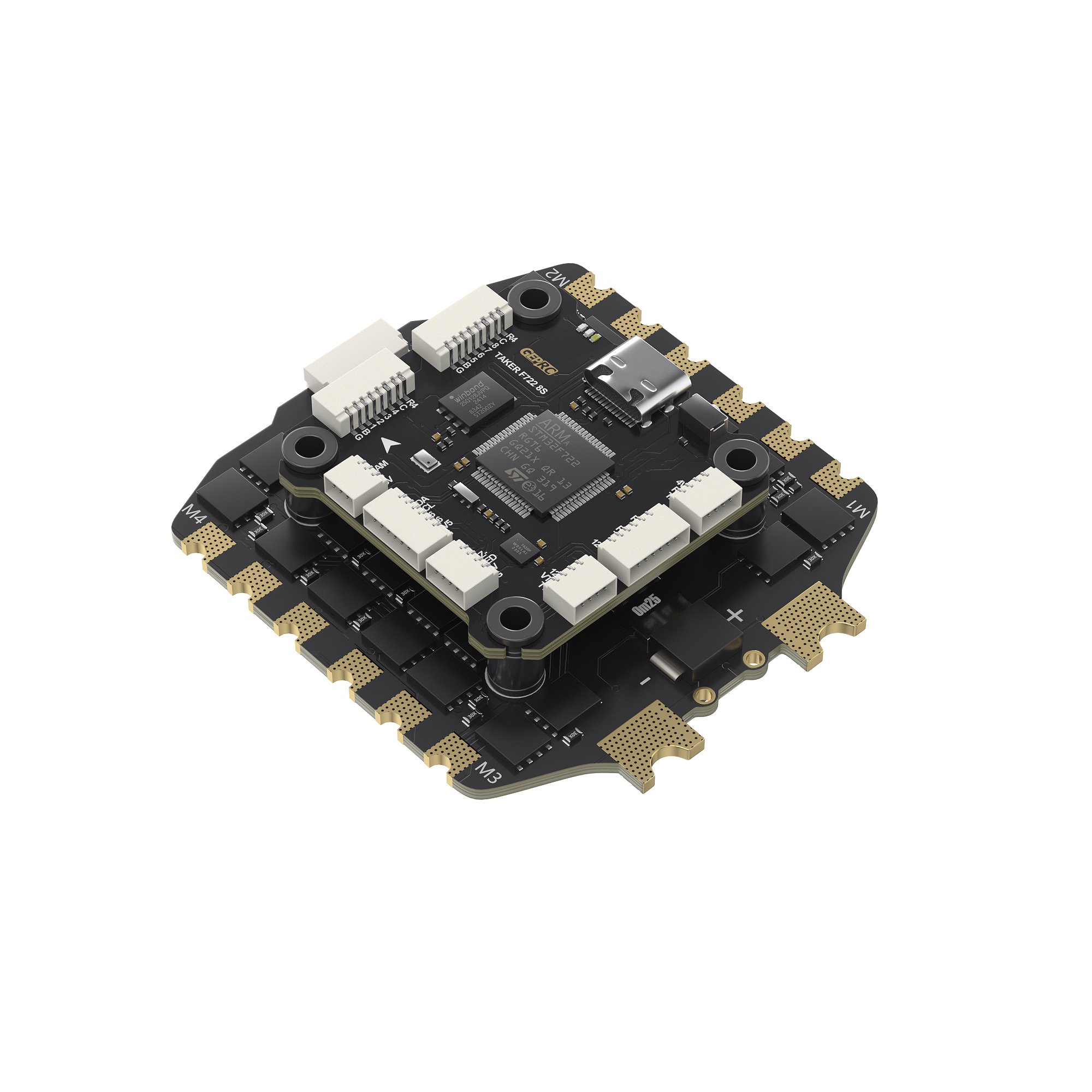

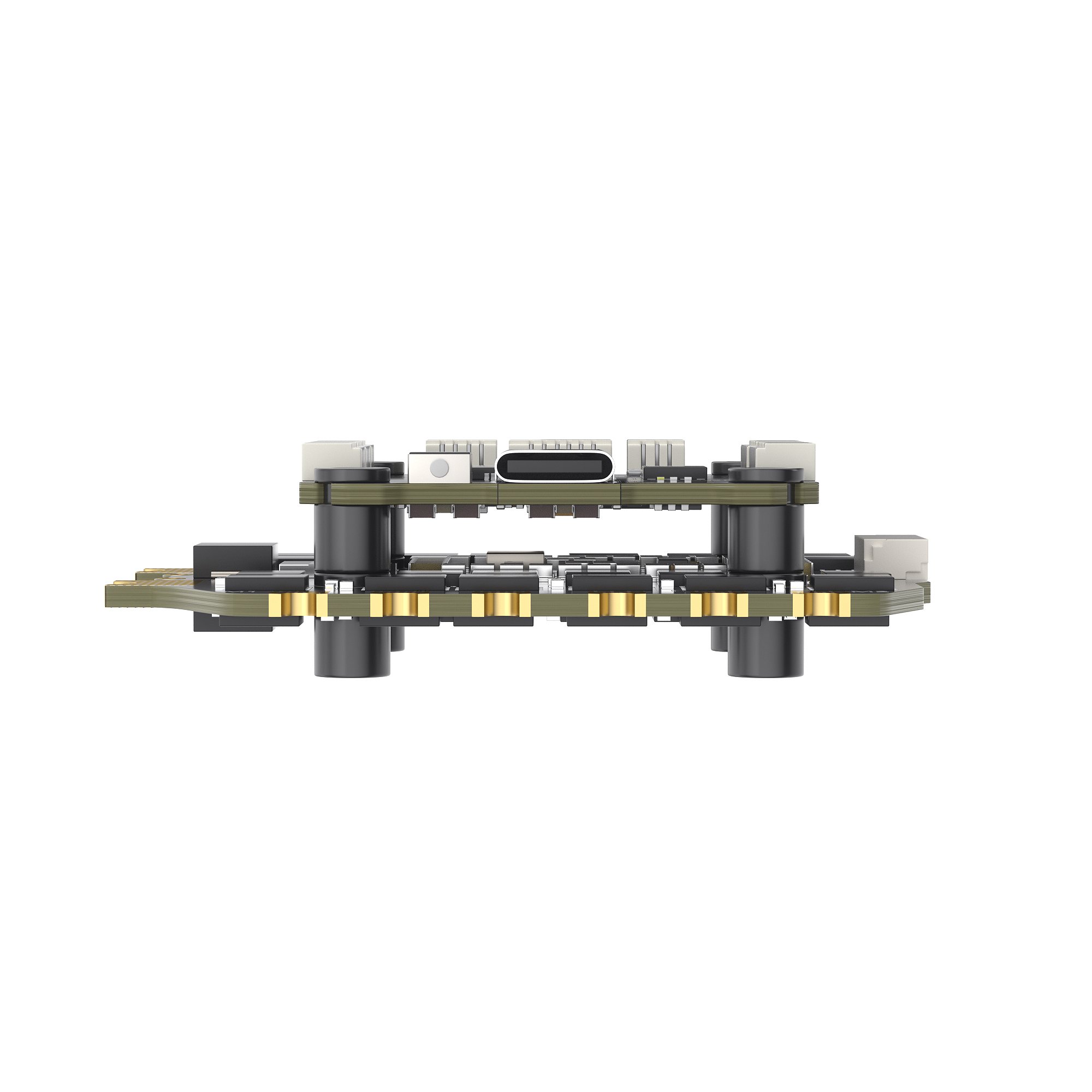

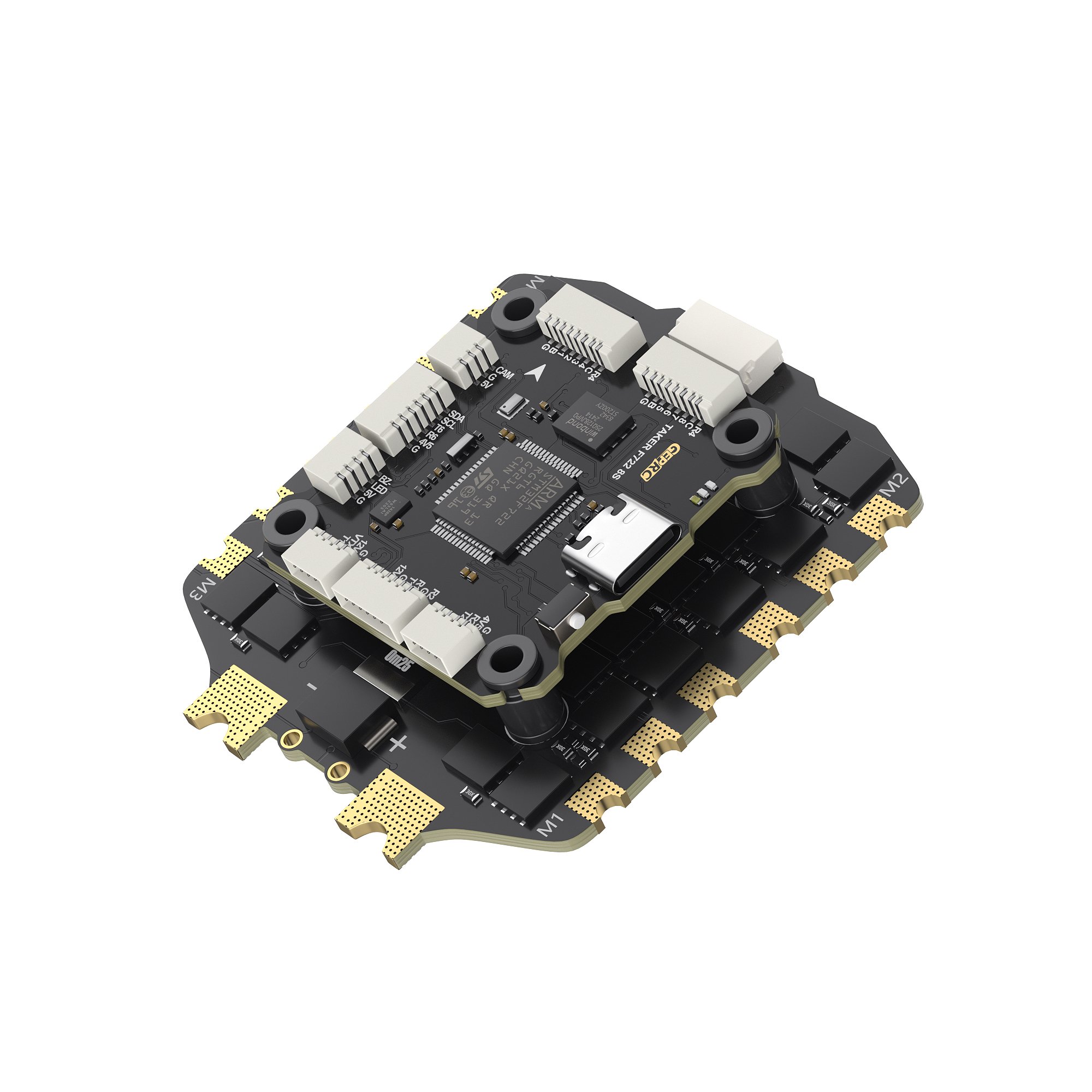

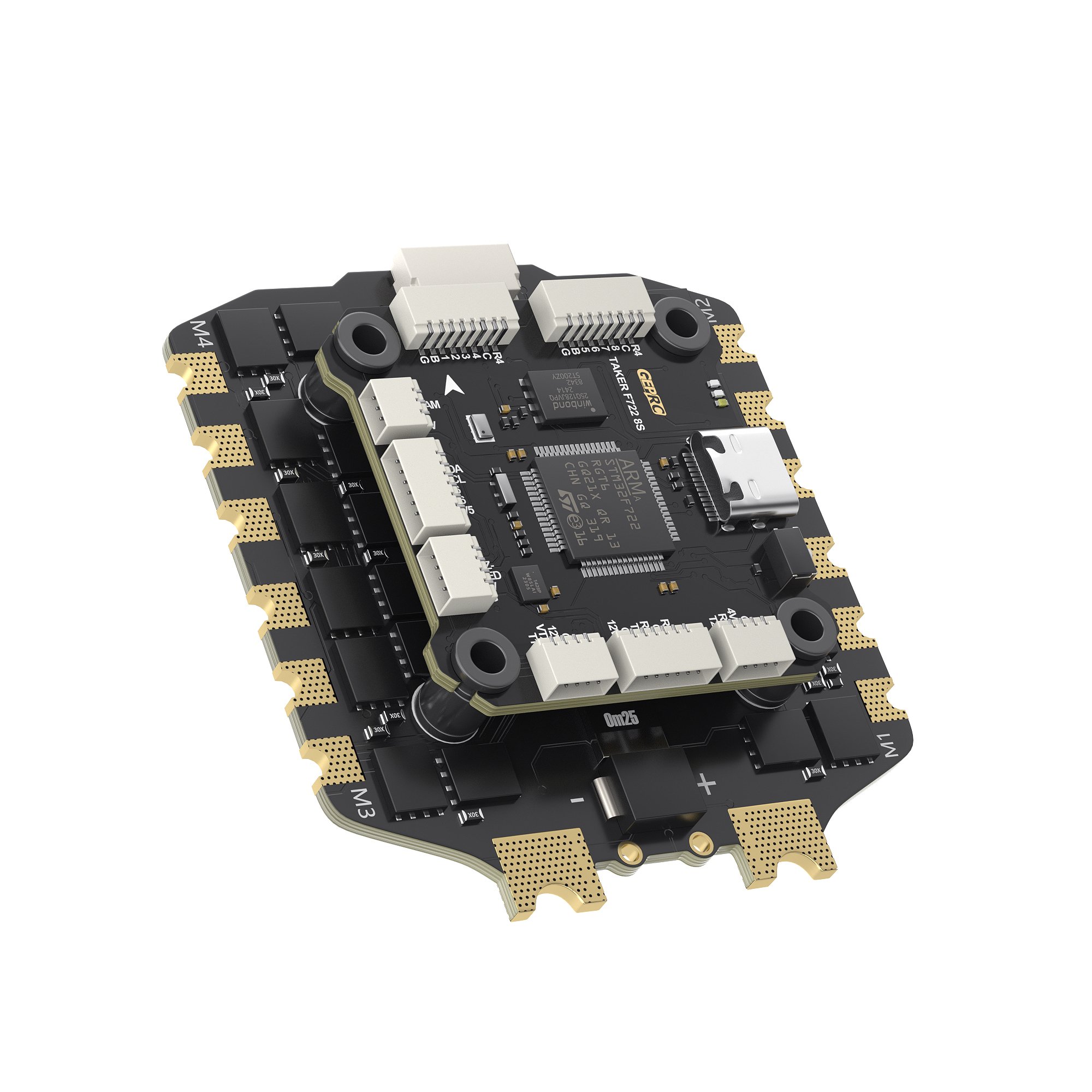

TAKER F722 BLS 100A 8S STACK

Feature

1. Uses the mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3.16M onboard black box storage

4. Integrated LC filter

5. Upgraded Type-C USB interface

6. Directly plugs into the DJI Air Unit

7. Paired with the TAKER H100_8S_BLS 100A 4IN1 ESC, providing a smooth flying experience

8. Simple and efficient installation method with shock absorbers for stable gyroscope performance

9. Dual independent BECs: 12V@3A and 5V@3A

10. Supports 8S Lipo batteries

11. Support direct insertion of 8 motors

 Specifications

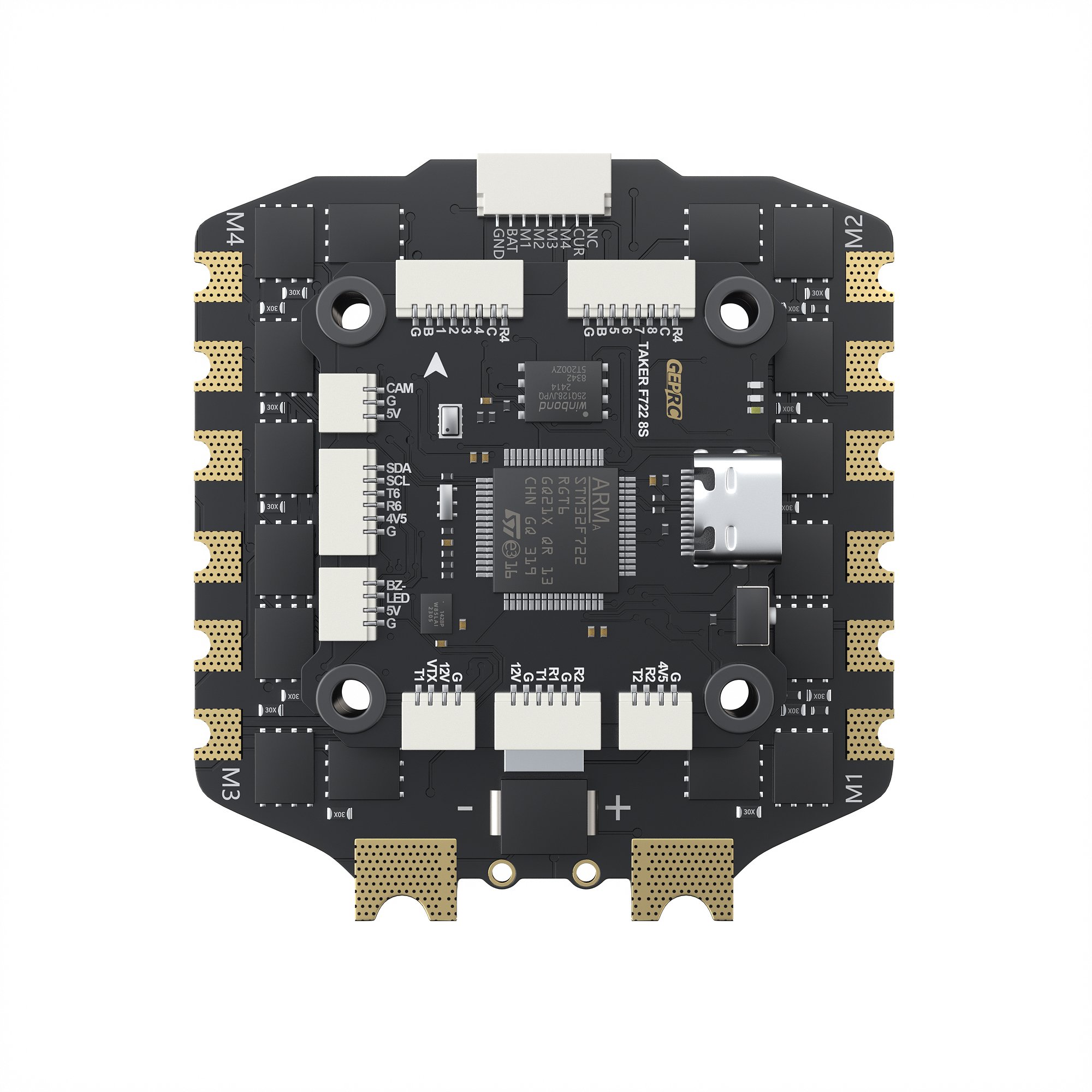

TAKER F722 8S Flight Controller

• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• Air Unit Connection: Direct plugs into DJI Air Unit
• Black Box: 16M onboard
• USB Interface: Type-C
• Barometer: Supported
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V@3A,12V@3A dual BEC
• Firmware Target: TAKERF722SE
• Dimension: 38.5×38.5mm,
• Mounfing Hole Size: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
• Input Voltage: 3-8S LiPo
• UART: 6 UARTs
• Power Filter: Integrated LC filter
• Weight: 8.1g Includes

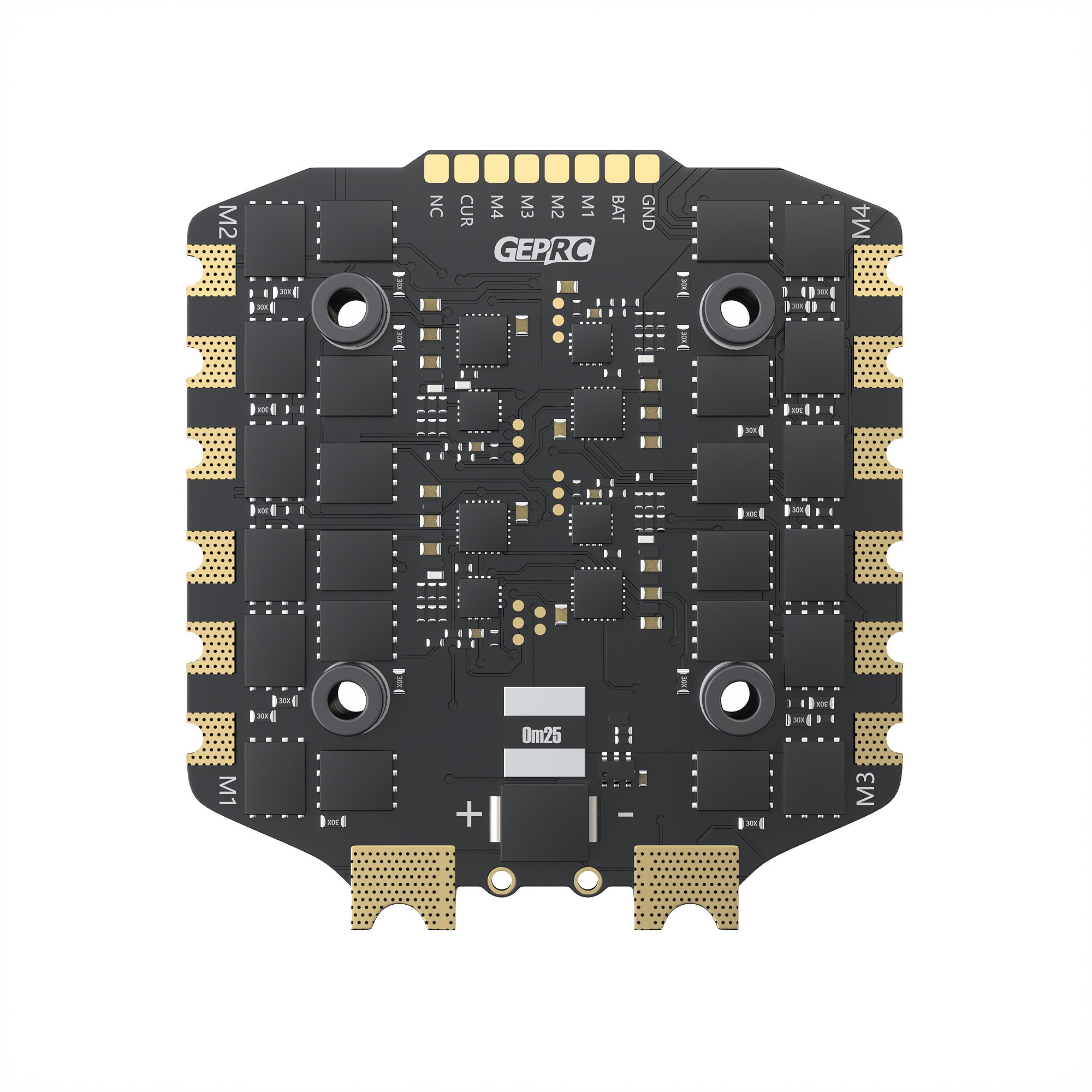

TAKER H100_8S_BLS 100A 4IN1 ESC

• Input Voltage: 3-8S Lipo
• Ammeter: Support
• Calibration value: 200
• Continue Current: 100A
• Burst Current: 105A (5 seconds)
• Support Protocol: Dshot 150/300/600
• Size: 56.3*61.1 mm; hole: 30.5×30.5 mm; φ4 mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 28.8g
• Target: B_X_30

Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x O3 3-in-1 connection cable

2 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT90 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
