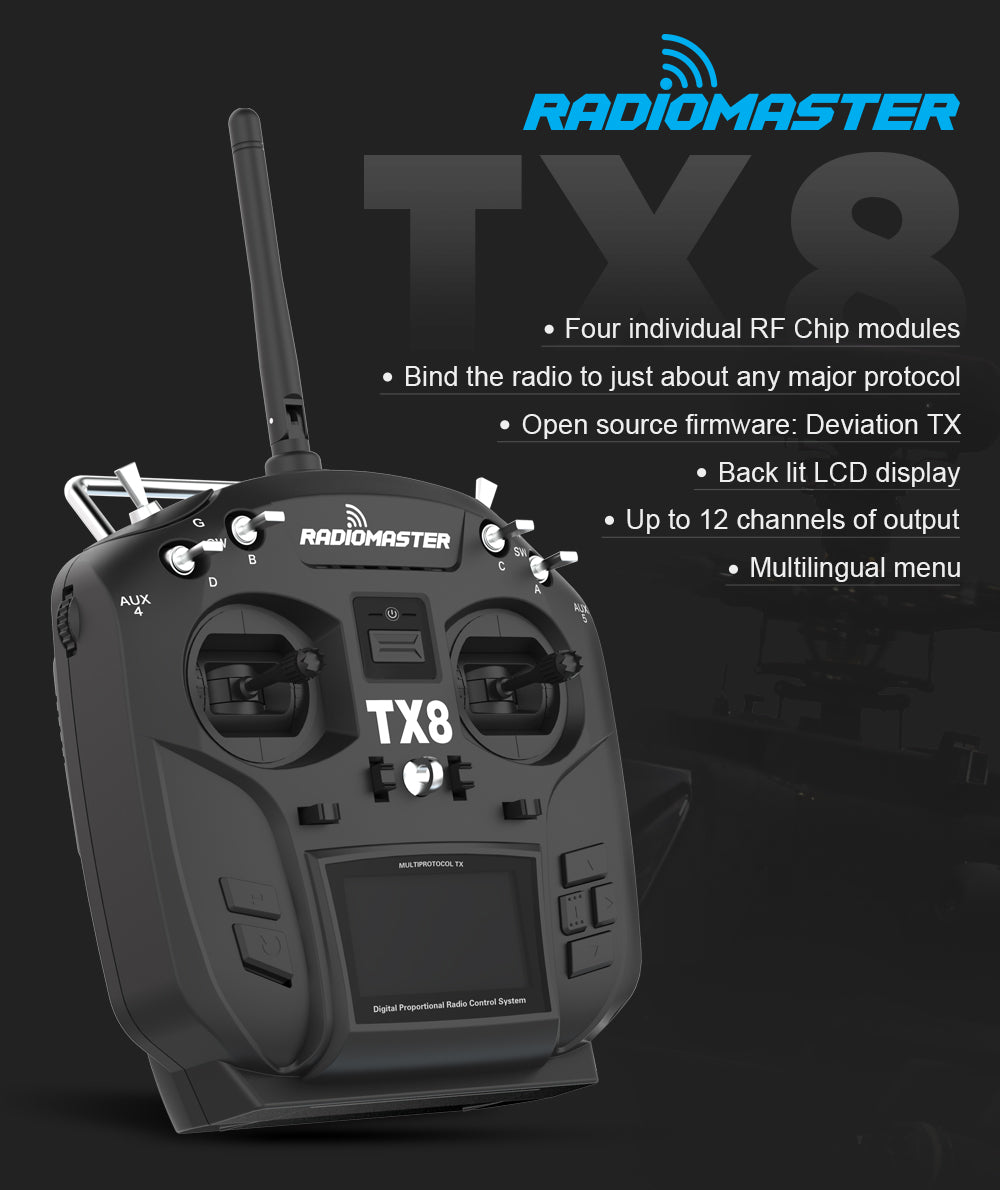

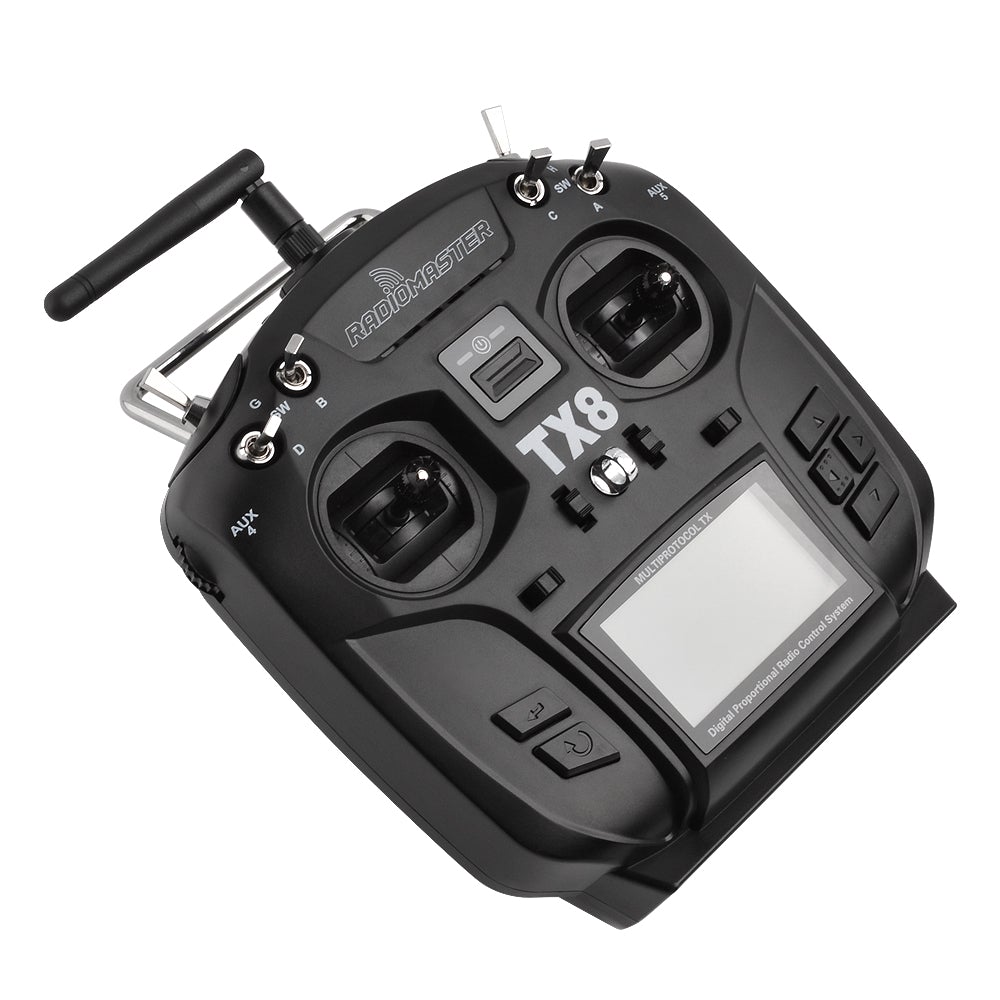

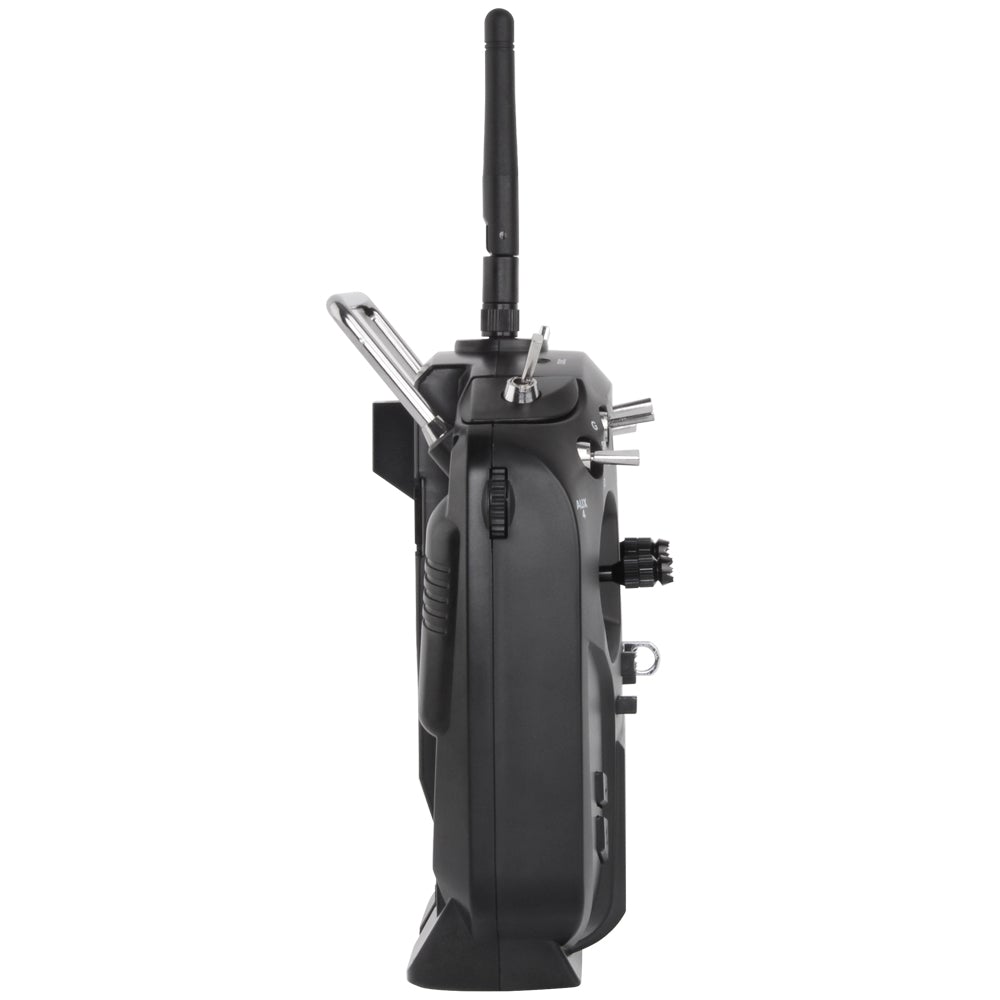

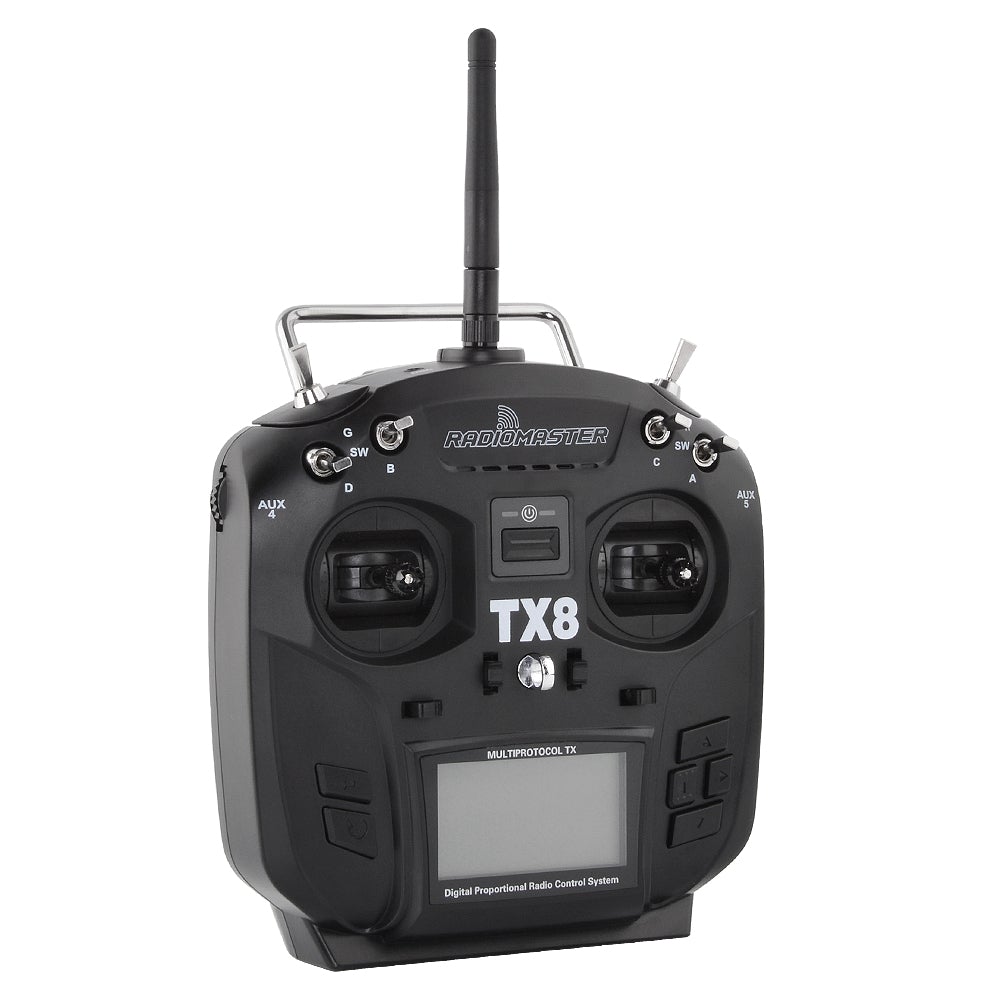

TX8 Radio Controller

• Brand: Radiomaster
• Item No.: TX8
• Size: 158 x 150 x 58mm
• Weight: 338g (without battery)
• Color: Black
• Transmission frequency: 2.400GHZ-2485GHZ
• Transmitter Module: Four in One High Frequency Module (CC2500 CYRF6936 A7105 NRF2401)
• Transmit power: maximum 22dbm (transmit power adjustable)
• Antenna gain: 2db (detachable antenna, easy modification)
• Working current: 88Ma@8.4V
• Working voltage: DC4.5-DC18V
• Remote control distance:> 2km @ 22dbm
• Open source firmware
• Number of channels: up to 12 channels (depending on the receiver)

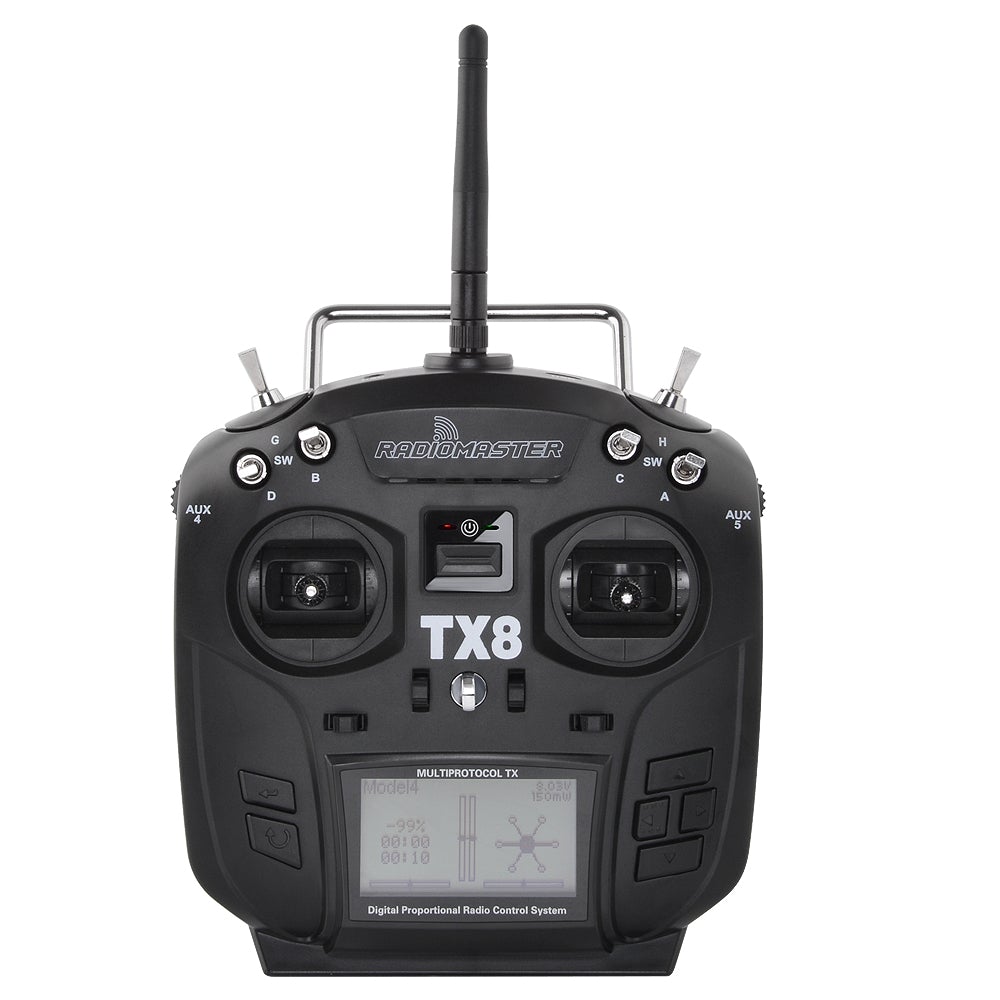

• Display: back lit LCD display, 128 * 64 resolution
• Rocker way: non-contact 3D space vector Hall joystick

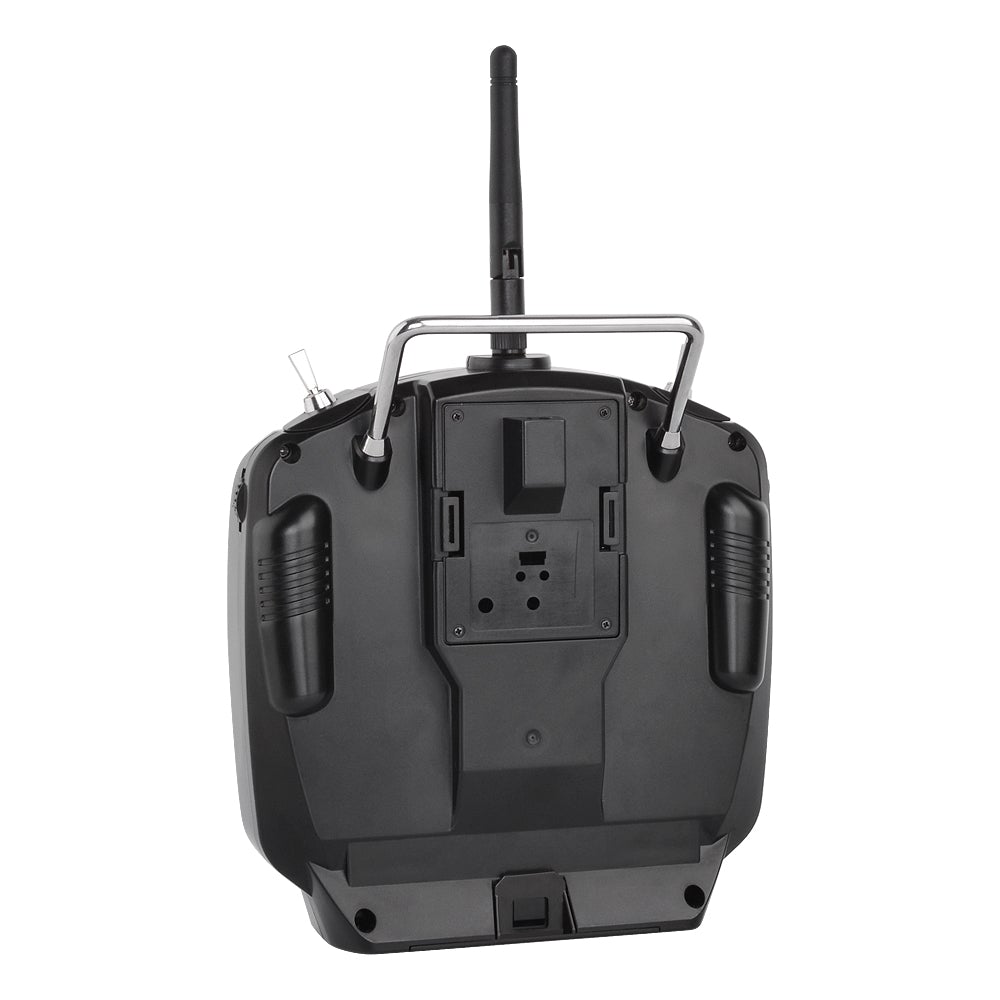

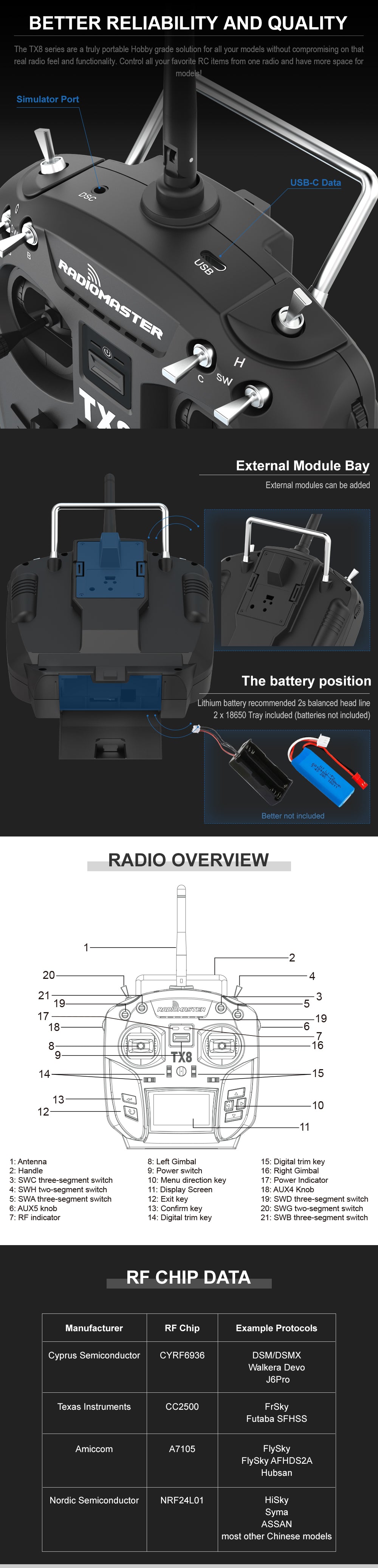

• JR/FrSKY compatible module bay on rear side
• Upgrade method: USB online upgrade

Support Protocols

Walkera full range
DSM2/X full range
Flysky and Flysky 2A
FrSKY
FUTABA s-fhss full range
WL Toy series, Hubsan series, Esky series and many more (Currently a total of more than 40 supported protocols)

Uses open source software with continued support and development, adding new protocols regularly.

Features

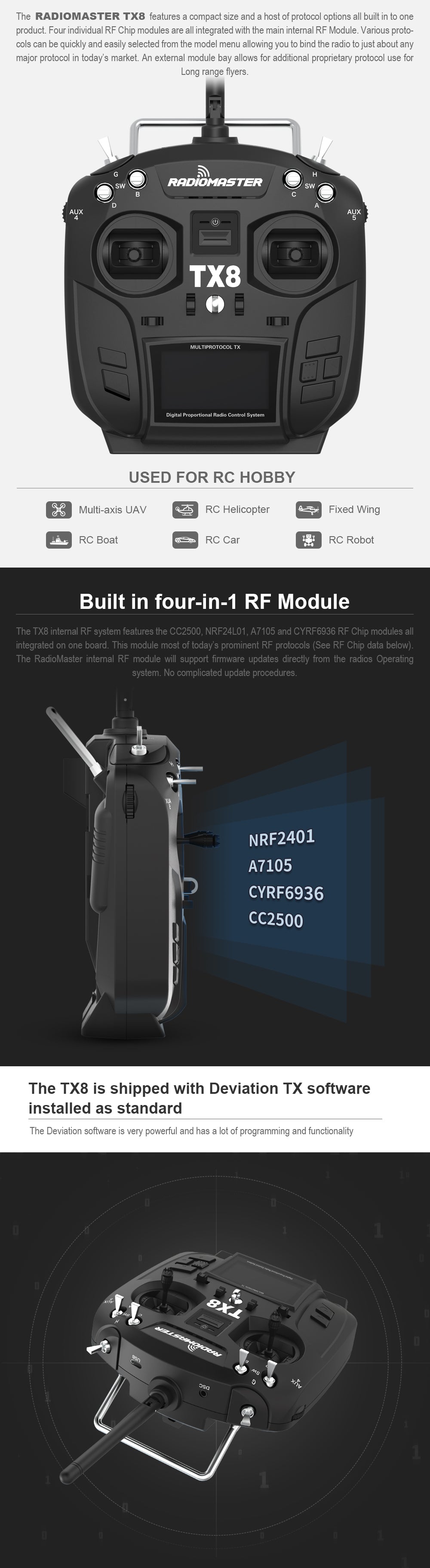

* Built in four-in-1 RF Module (CC2500 CYRF6936 A7105 NRF2401).
* The TX8 is shipped with Deviation TX software installed as standard
* TX8 Plus back lit LCD display, Bright display works even in direct sunlight.
* Non-contact 3D space vector Hall remote sensing Gimbals
* JR/FrSKY compatible module bay on rear side.
* USB online firmware upgrade.
* Transmission power adjustable to adapt to different location requirements.
* Detachable antenna, easy to change.
* Ultra-low power consumption, longer battery life.
* Up to 12 channels of output (depending on the receiver)
* Wide voltage input (2s lipo recommended).
* Multilingual menu.
* Vibration reminder function.
* Support telemetry (depending on the receiver).

Package Includes

• 1 * TX8 Radio Controller
