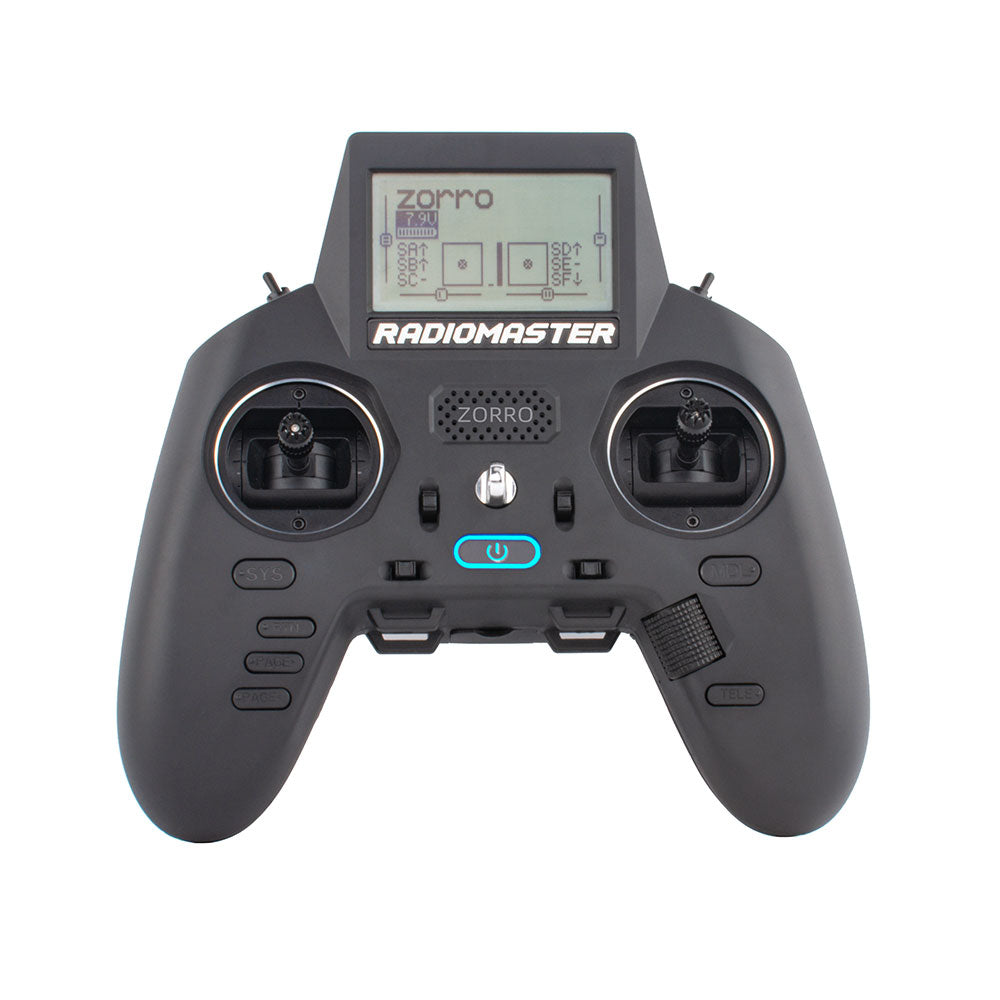

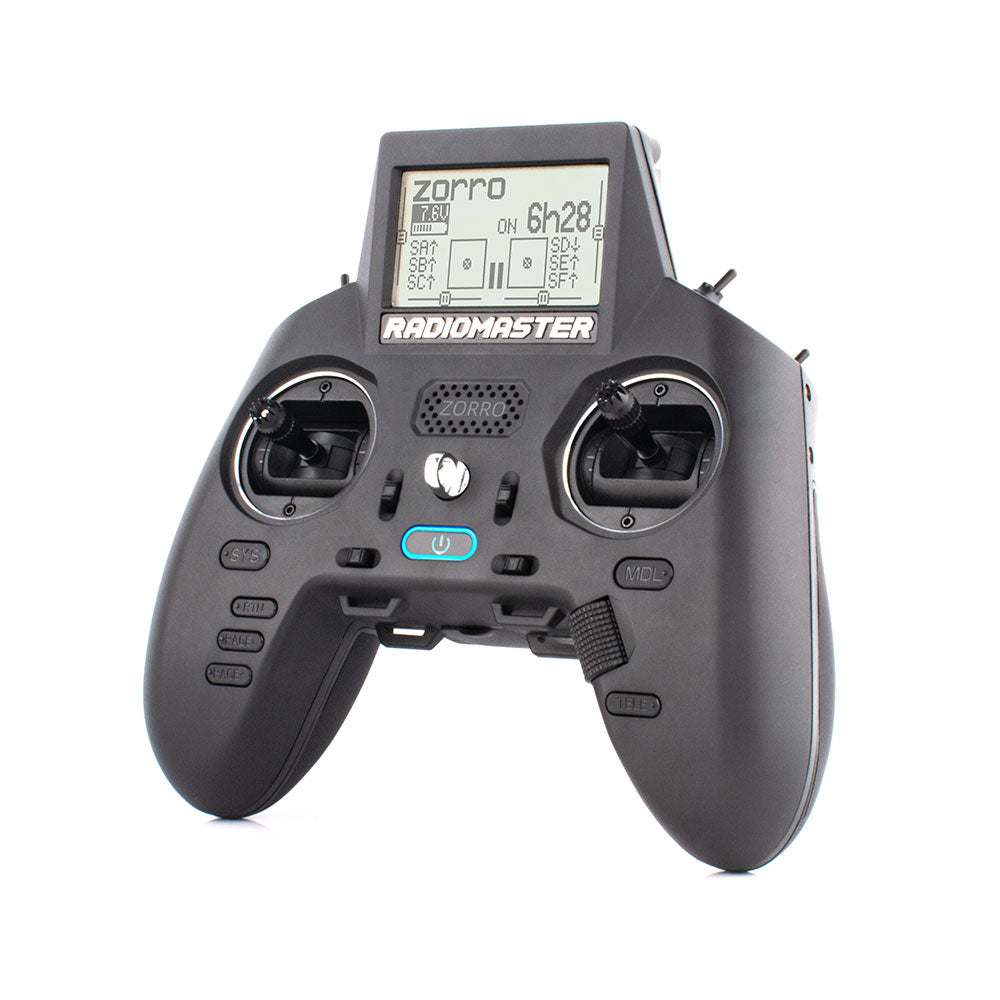

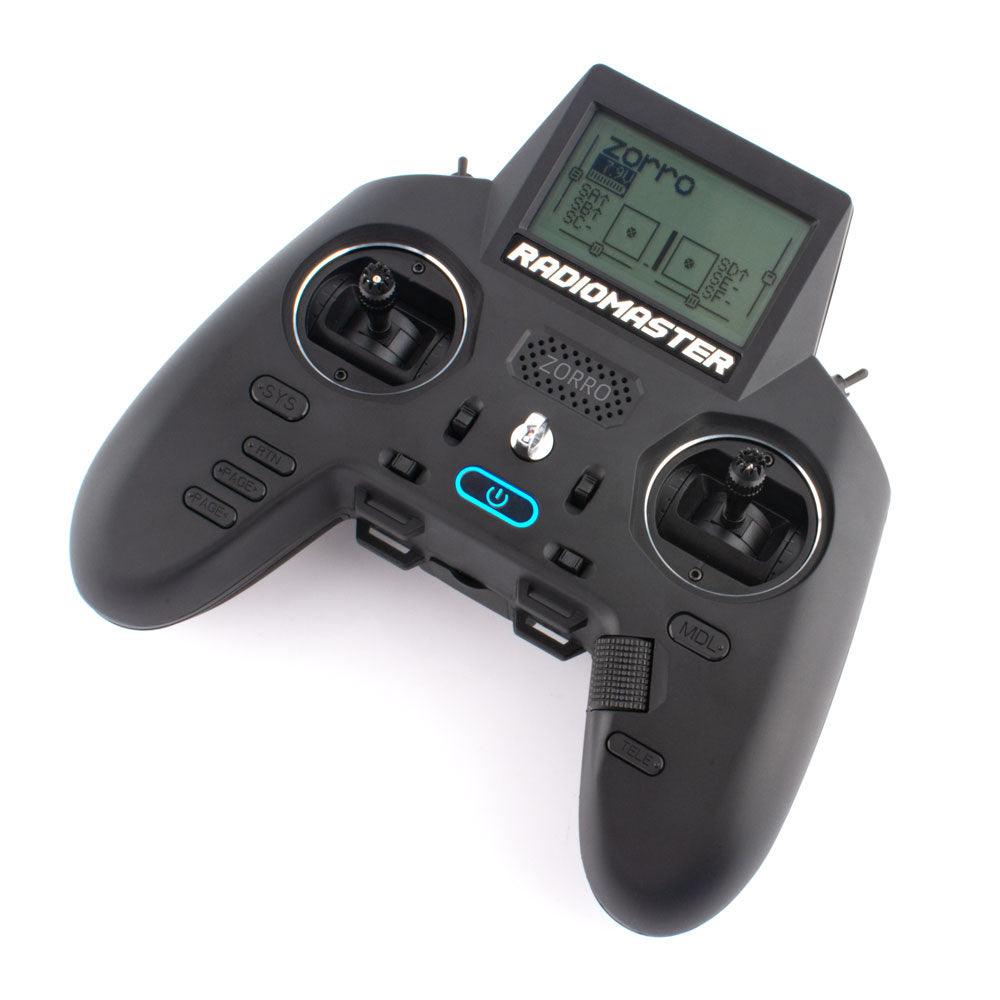

Zorro Radio Controller (M2)

RadioMaster Zorro Raio – The Compact Class-Leader.

Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Specification

Versions	CC2500	4in1	ELRS	ELRS Starter Set	CC2500 + TBS Nano Crossfire Combo

Physical Dimensions	170159108mm
Weight	350 grams
Operating Frequency	2.400GHz-2.480GHz
Internal RF Options	CC2500 multi-protocol	4-in-1 multi-protocol	ELRS		CC2500 multi-protocol
Supported Protocols	Module dependent	Module dependent	ELRS		Module dependent
Antenna Gain	Folding 2db
Operational Current	160mA@8.4V
Operational Voltage	6.6-8.4v DC
Control Distance	> 2km	> 2km	Receiver and Power Output dependant		> 2km
Operating system	OpenTX / EdgeTX Compatible
Control channels	Maximum 16 (Rx dependent)
Display	128*64 Monochrome LCD
Battery	2 x 18350 (Not included)
Charging	Built in USB-C Charging
Gimbal	Hall-effect
Module Bay	Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade Method	Via USB or SD card

Click to check the RadioMaster Radio Comparison Chart.

FCC Version and EU LBT Version are Available

Currently, we provide the standard FCC version and the EU LBT version. Please check the supported protocols below.

Standard FCC Version

CC2500 (FCC) Version supports all CC2500 protocols
4in1 (FCC) Version supports all MPM protocols
ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependant)

EU LBT Version

CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

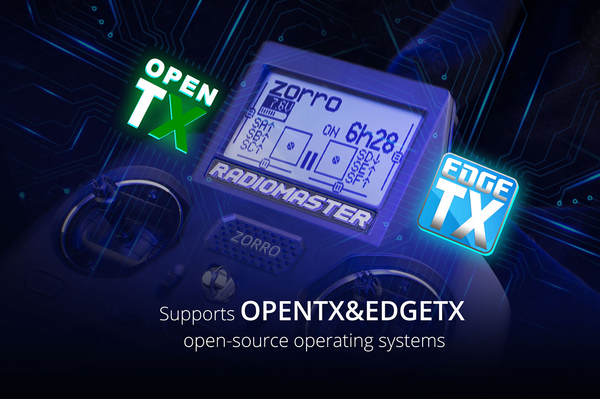

Support OPENTX & EDGETX

Support 4 RF Configurations

Switchable in Mode 1 and Mode 2

Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.

Adjustable Hall Gimbals

External Module Bay

Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

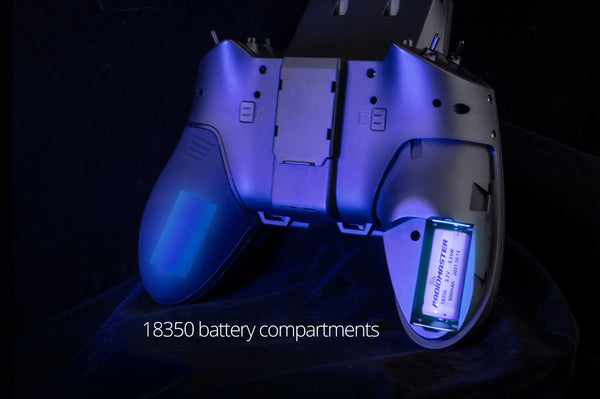

18350 Battery Compartments

Battery Charging

Supports USB-C Directing Charging

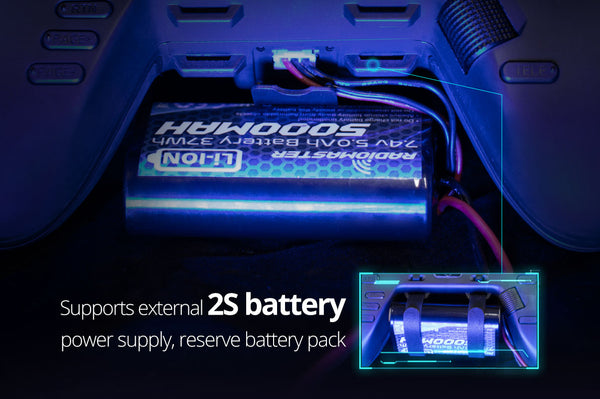

Supports External 2S Battery Power Supply

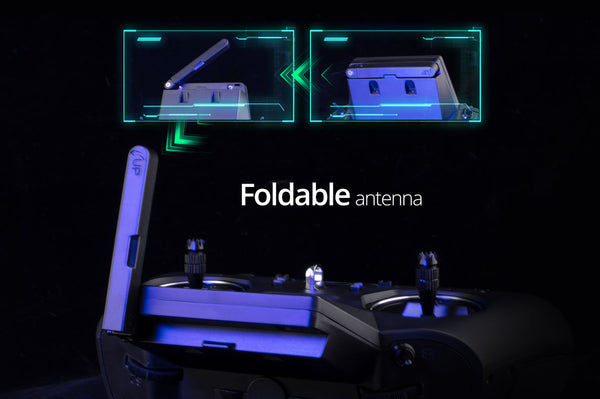

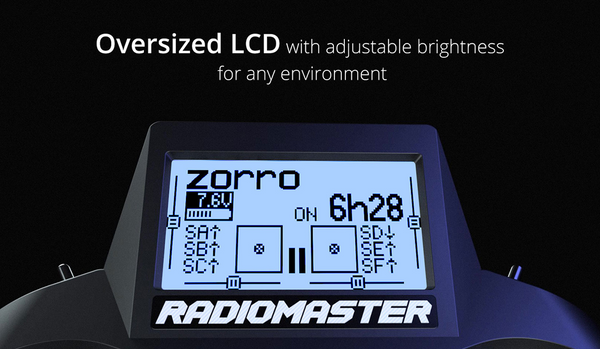

Oversized LCD & Foldable Antenna

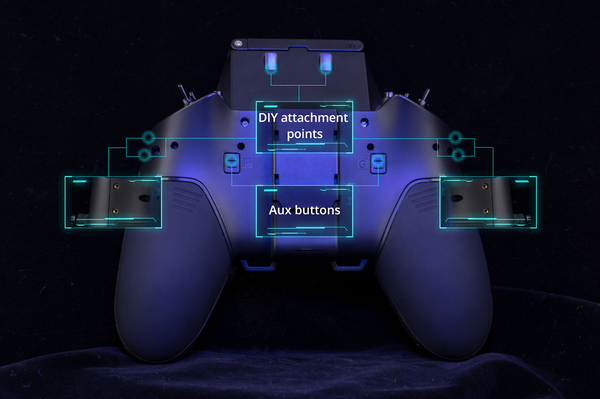

DIY Attachment Points

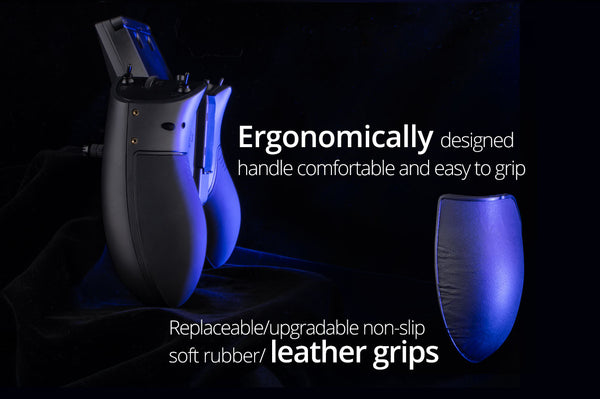

Ergonomically Designed

Accessories

User Manuals & Firmware

Package Includes

Please note, when you choose a different version, it is packaged with different parts.

The chart below doesn’t mean you will receive all versions.

Version	Package Includes
CC2500	1 * Zorro Radio Controller CC2500 Version
4-in-1	1 * Zorro Radio Controller 4-in-1 Version
ELRS	1 * Zorro Radio Controller ELRS Version
ELRS Starter Set	1 * Zorro ELRS Radio Control 2 * RP1 ExpressLRS 2.4ghz Nano Receiver 1 * RP2 ExpressLRS 2.4ghz Nano Receiver

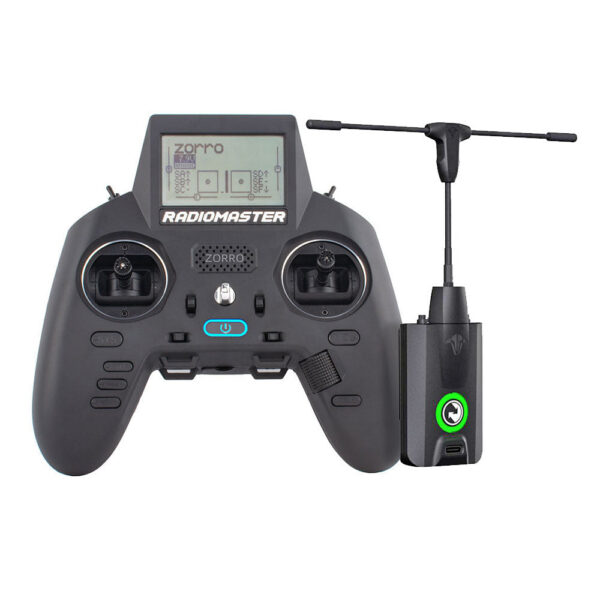

CC2500 + TBS Nano Crossfire Combo	1 * Zorro Radio Controller CC2500 Version 1 * TBS Nano Crossfire Module
