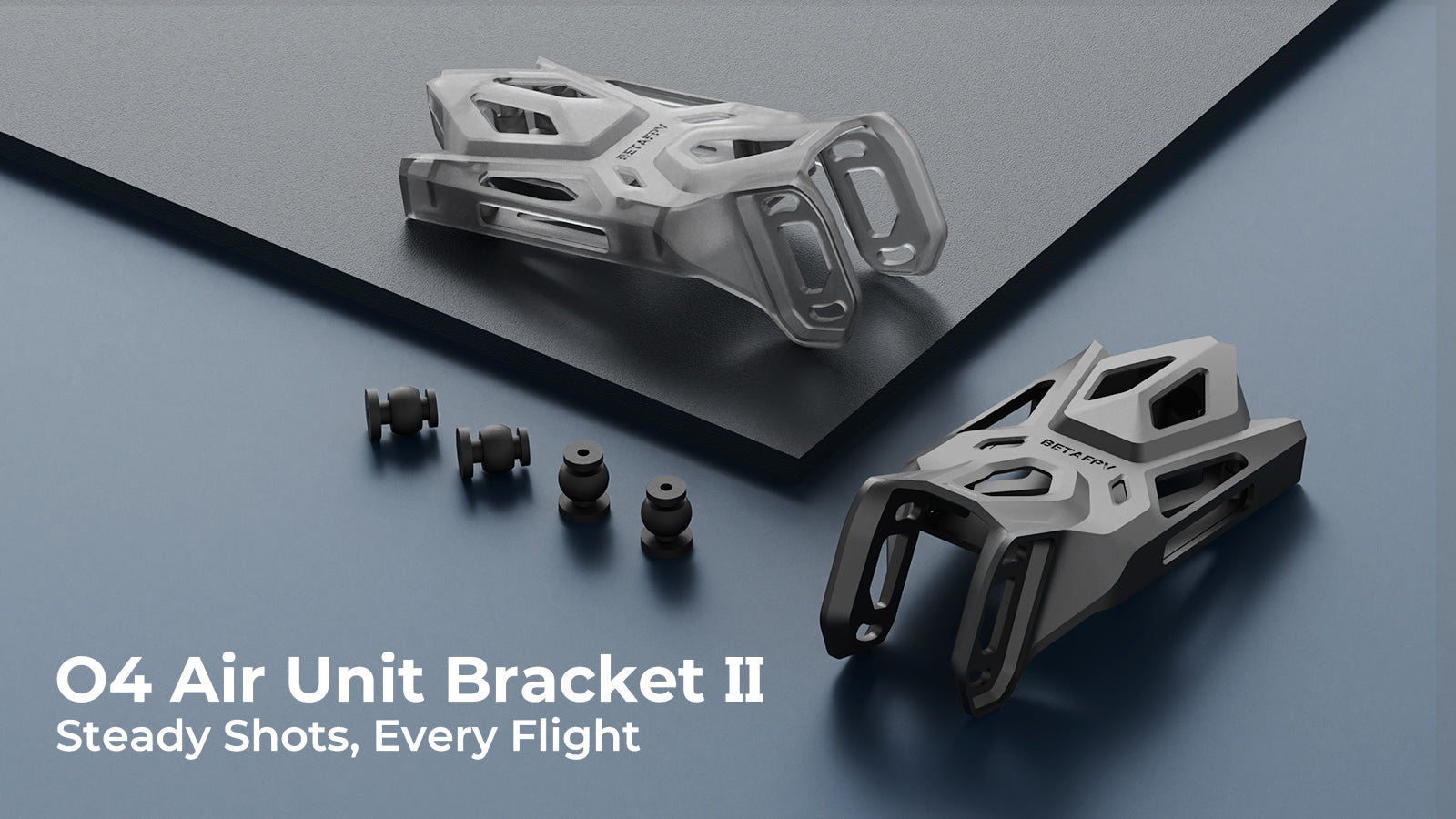

O4 Air Unit Bracket II

Building on our proven design, the next-generation O4 Bracket II is engineered for one goal: perfect jello-free video. The first-generation bracket untilizes separate shock-absorbing components for the O4 camera, which is lightweight but complex to assemble and occasionally prone to jello from imperfect installation. In contrast, the O4 Bracket II introduces a fully integrated vibration-damping system. The camera is securely mounted with 4 screws for simplicity and rigidity, while 4 soft-mounted shock-absorbing balls replace rigid connections to isolate vibrations effortlessly. This refined approach eliminates complexity while delivering superior damping performance and long-term stability—so you can focus on capturing flawless video.

Bullet Points

• Total Vibration Elimination: Introduces a fully integrated vibration-damping system. Four soft-mounted shock-absorbing balls comprehensively isolate the O4 camera from all vibrations, guaranteeing perfectly smooth and jello-free video.

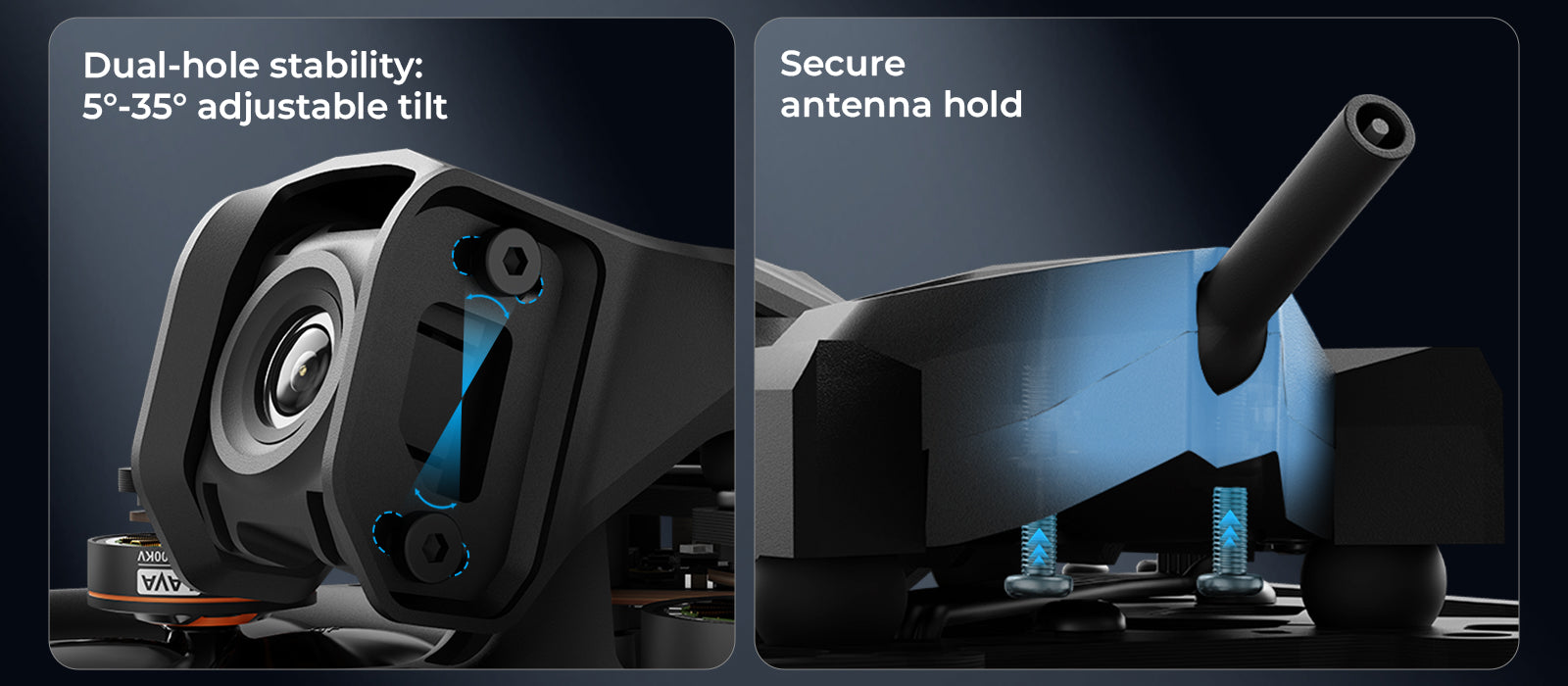

• Precision Tilt Adjustments: Dual fixing holes optimize the camera’s center of rotation for smooth and stable 5°-35° tilt adjustments, allowing you to perfectly frame your shot.
• Unwavering Signal Strength: An extended locking tail with two screws secures the antenna firmly in place, ensuring a robust and flawless digital video link for maximum transmission reliability.

Specifications

• Item: O4 Air Unit Bracket II
• Material: PP

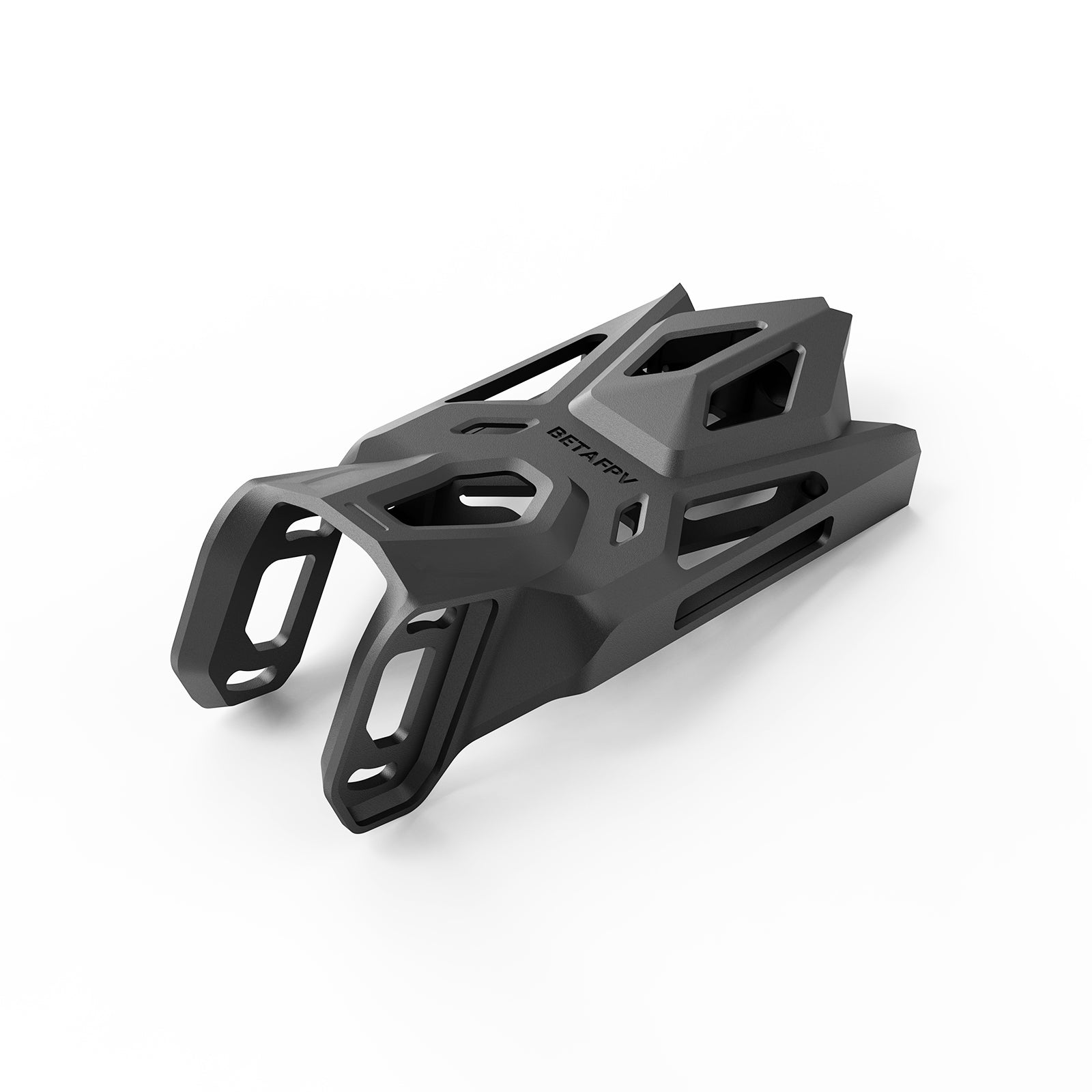

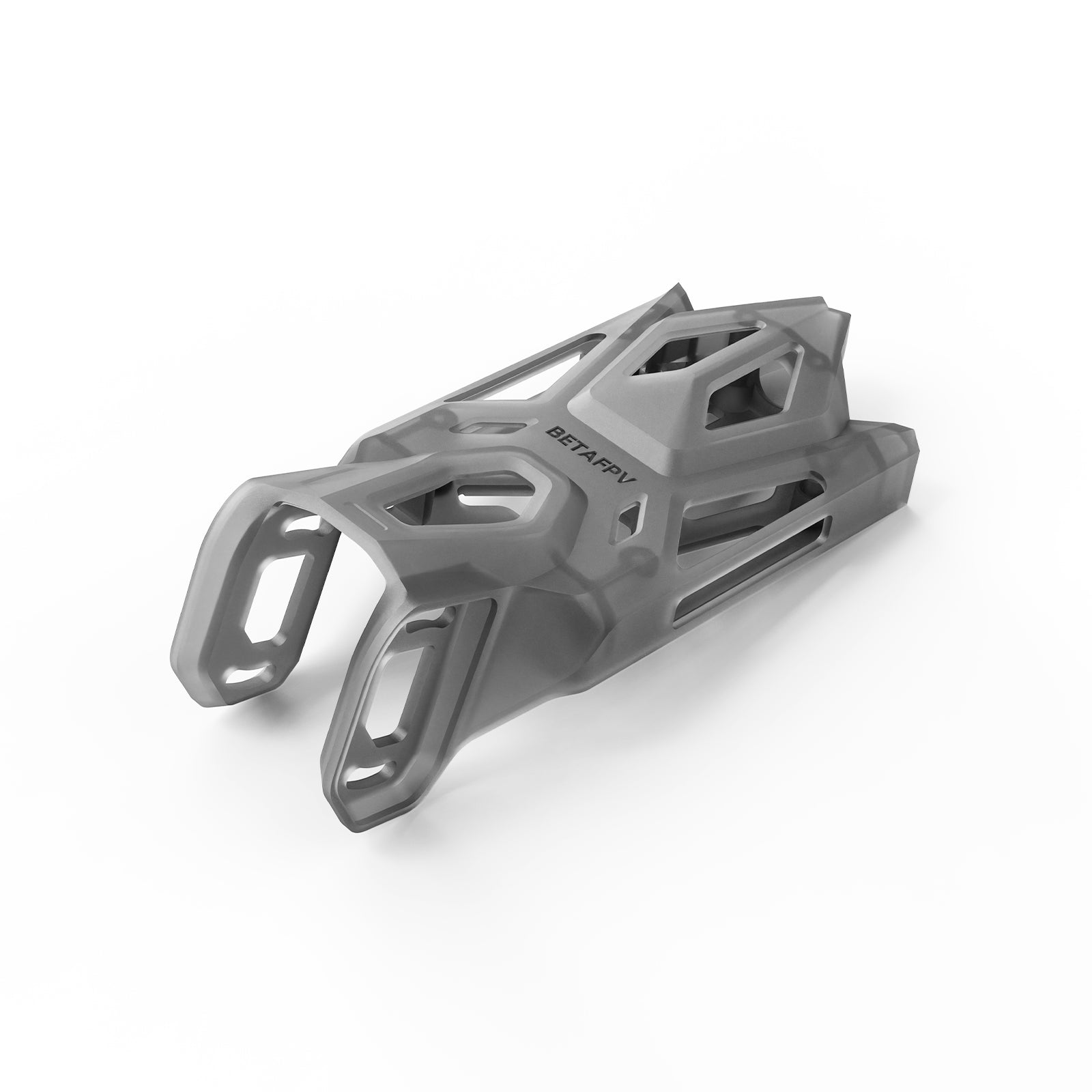

• Color: Black/Transparent Gray

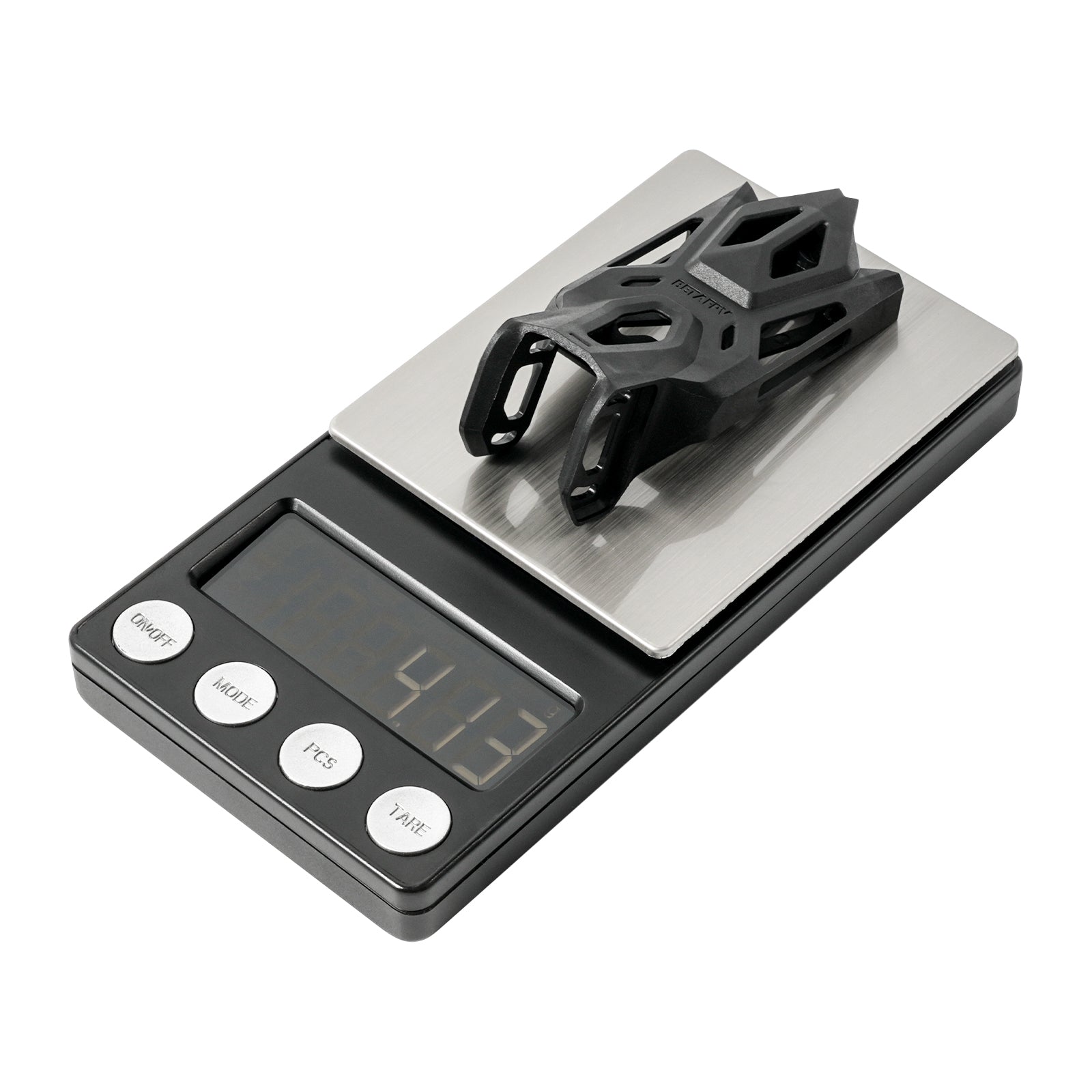

• Weight: 4.1g
• Compatible Frame: Pavo Pico II Frame

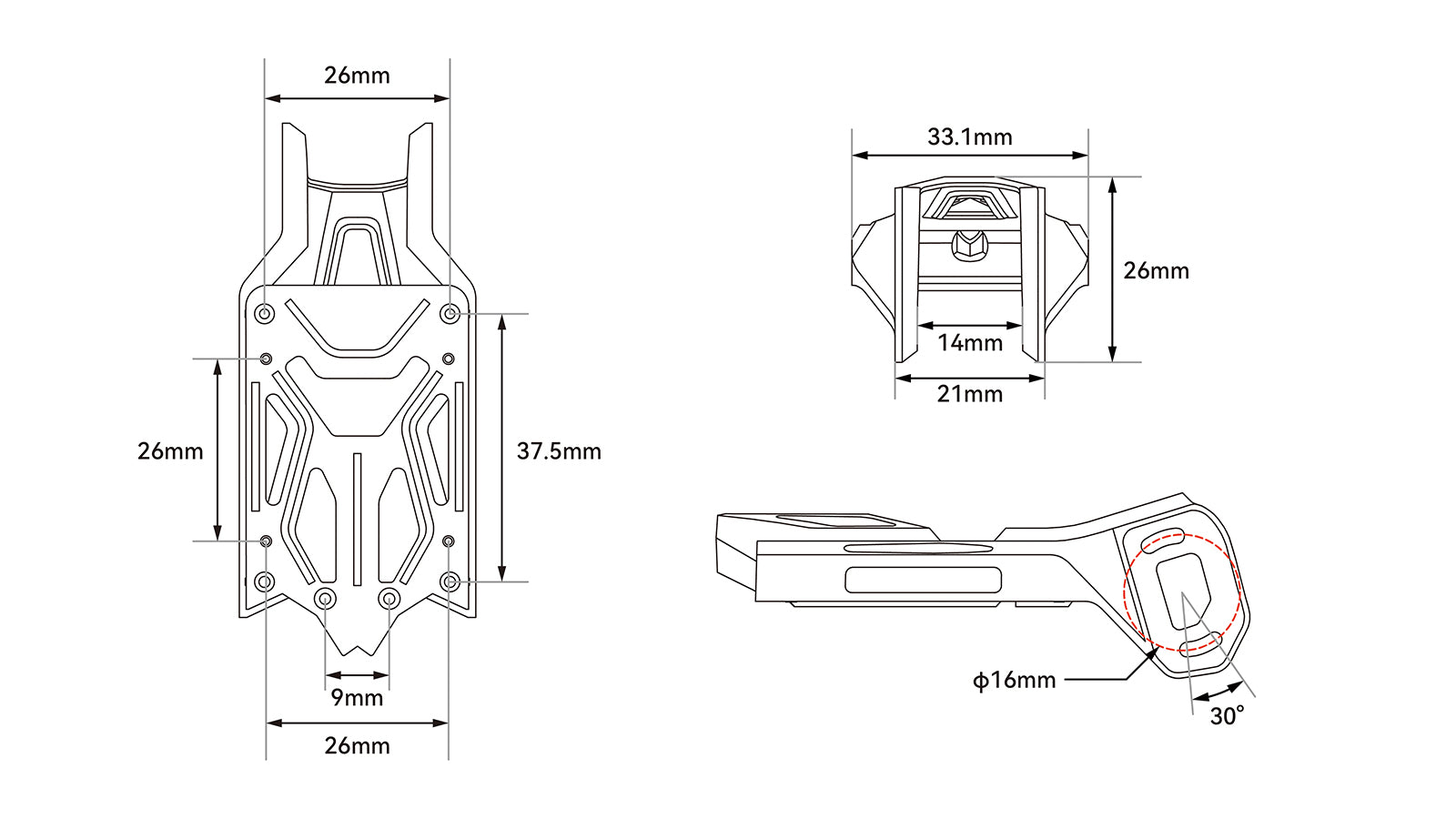

Diagram

Recommended Parts

• Quadcopter: Pavo Pico II Brushless Whoop Quadcopter
• Frame: Pavo Pico II Brushless Whoop Frame
• Supported HD VTX: DJI O4 Air Unit

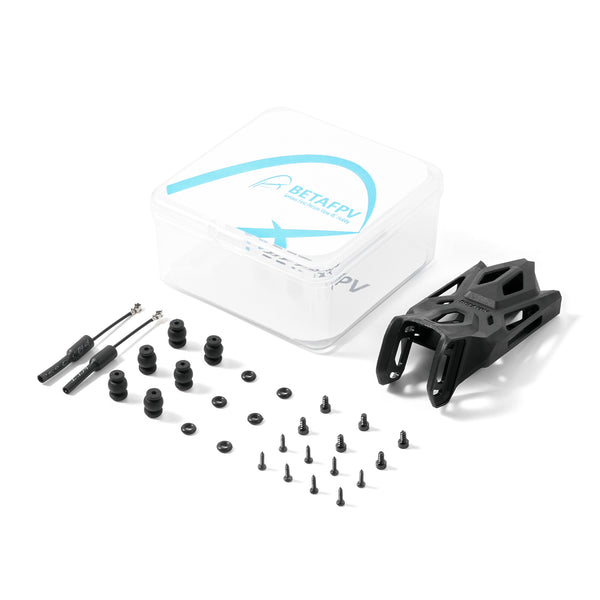

Package

O4 Air Unit Bracket II (Bracket Version)

• 1 * Top Plate for O4 Air Unit Bracket II
• 1 * Bottom Plate for O4 Air Unit Bracket II
• 2 * 5.8G VTX Antennas
• 6 * Shock-absorbing Balls for O4 Air Unit Bracket II (8mm)
• 6 * Shock-absorbing Pads for O4 Air Unit Bracket II (1.5mm)
• 6 * M2*4 Socket Head Cap Self Tapping Screws
• 8 * M1.4*6 Phillips Flat Washer Head Tapping Screws

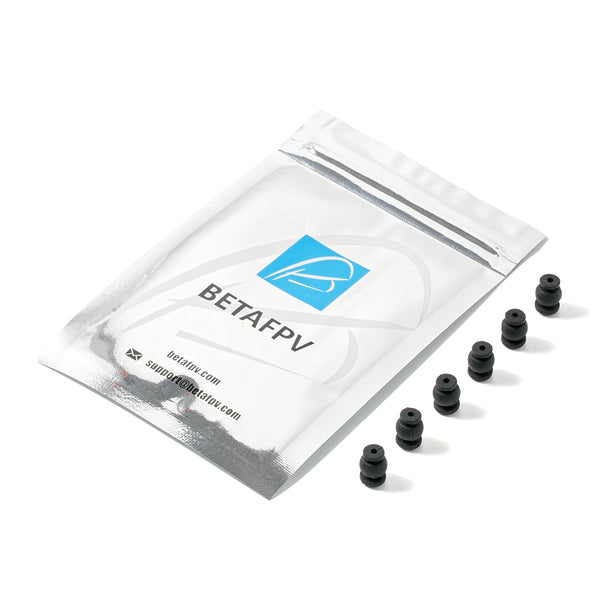

O4 Air Unit Bracket II (Shock-absorbing Balls Version)

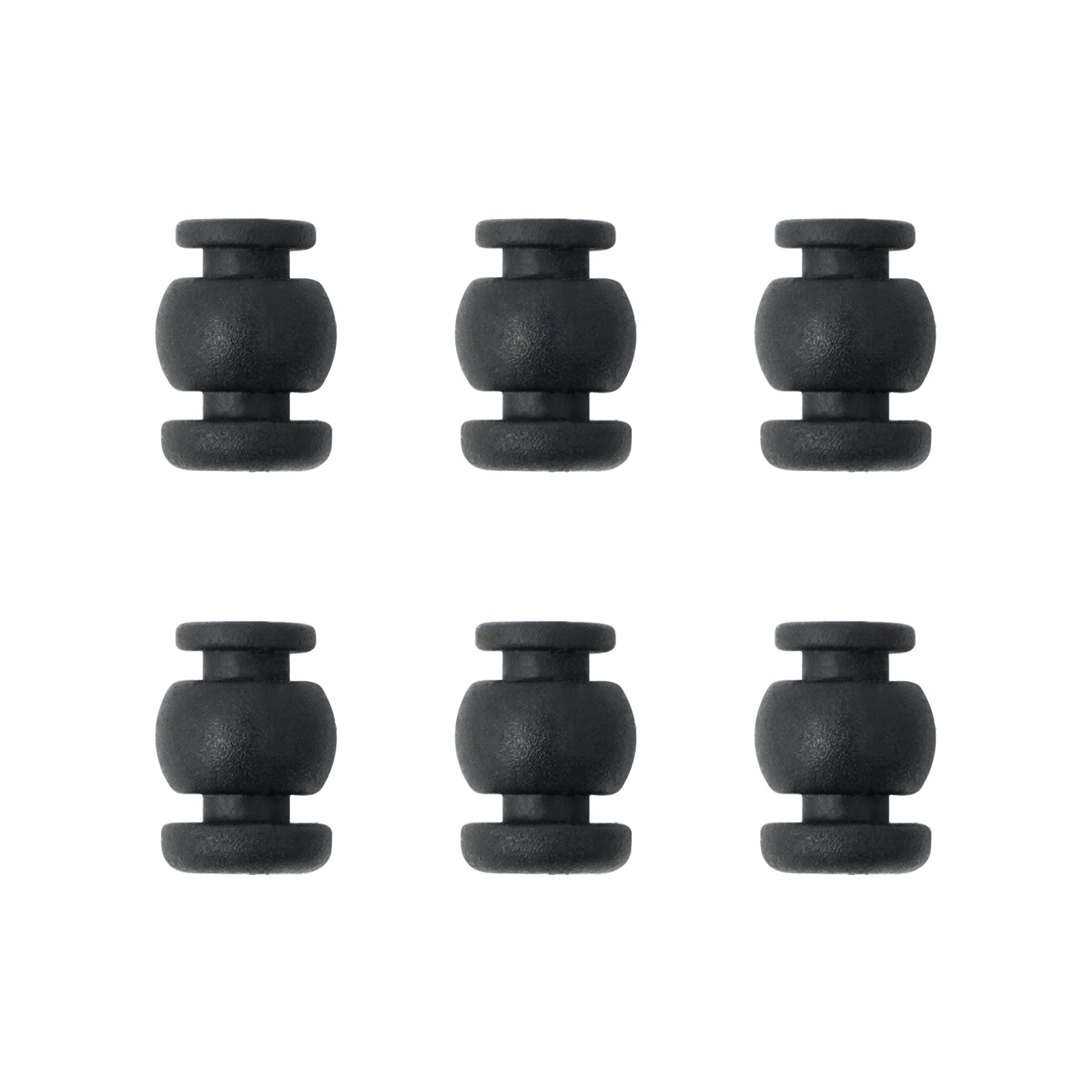

• 6 * Shock-absorbing Balls for O4 Air Unit Bracket II (8mm)
