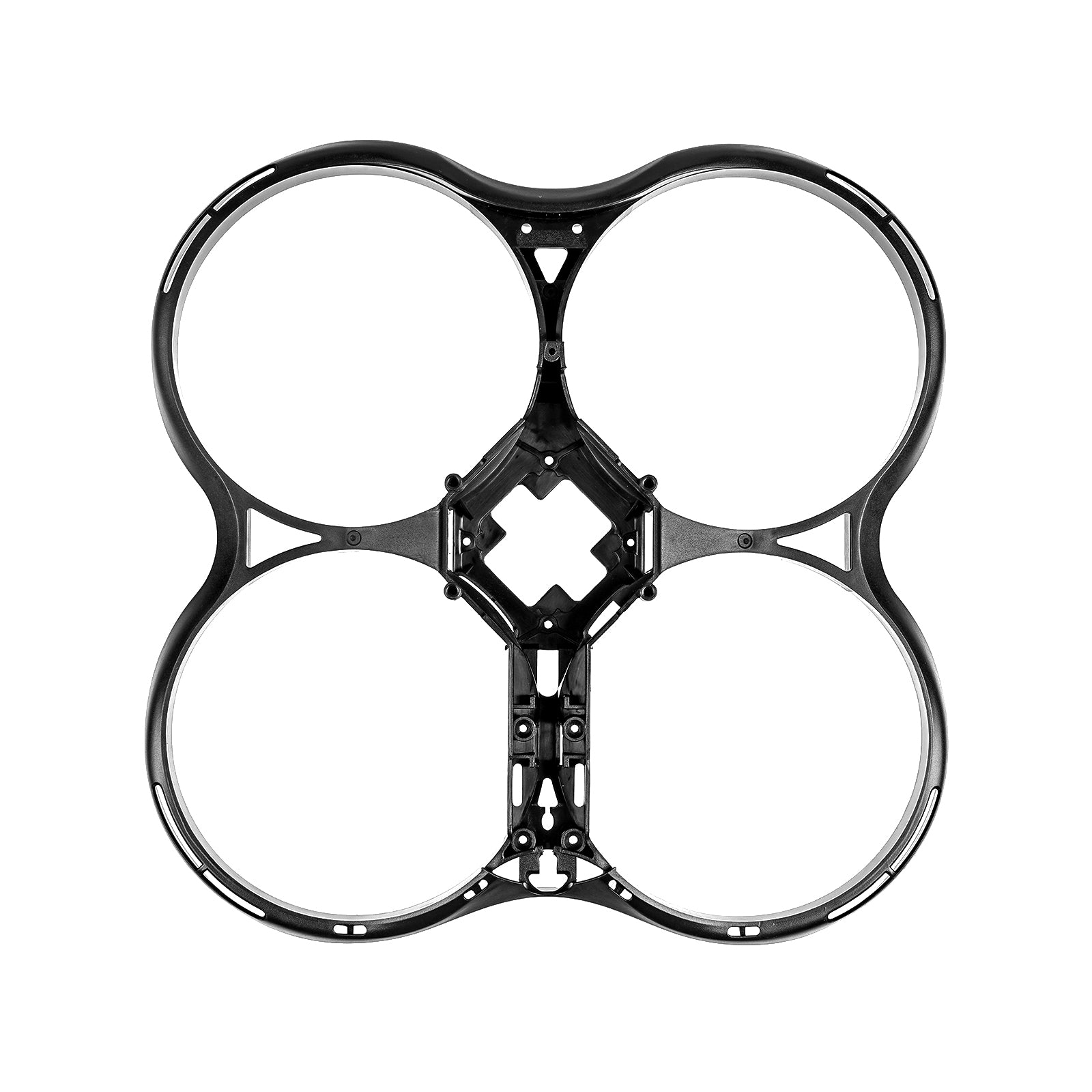

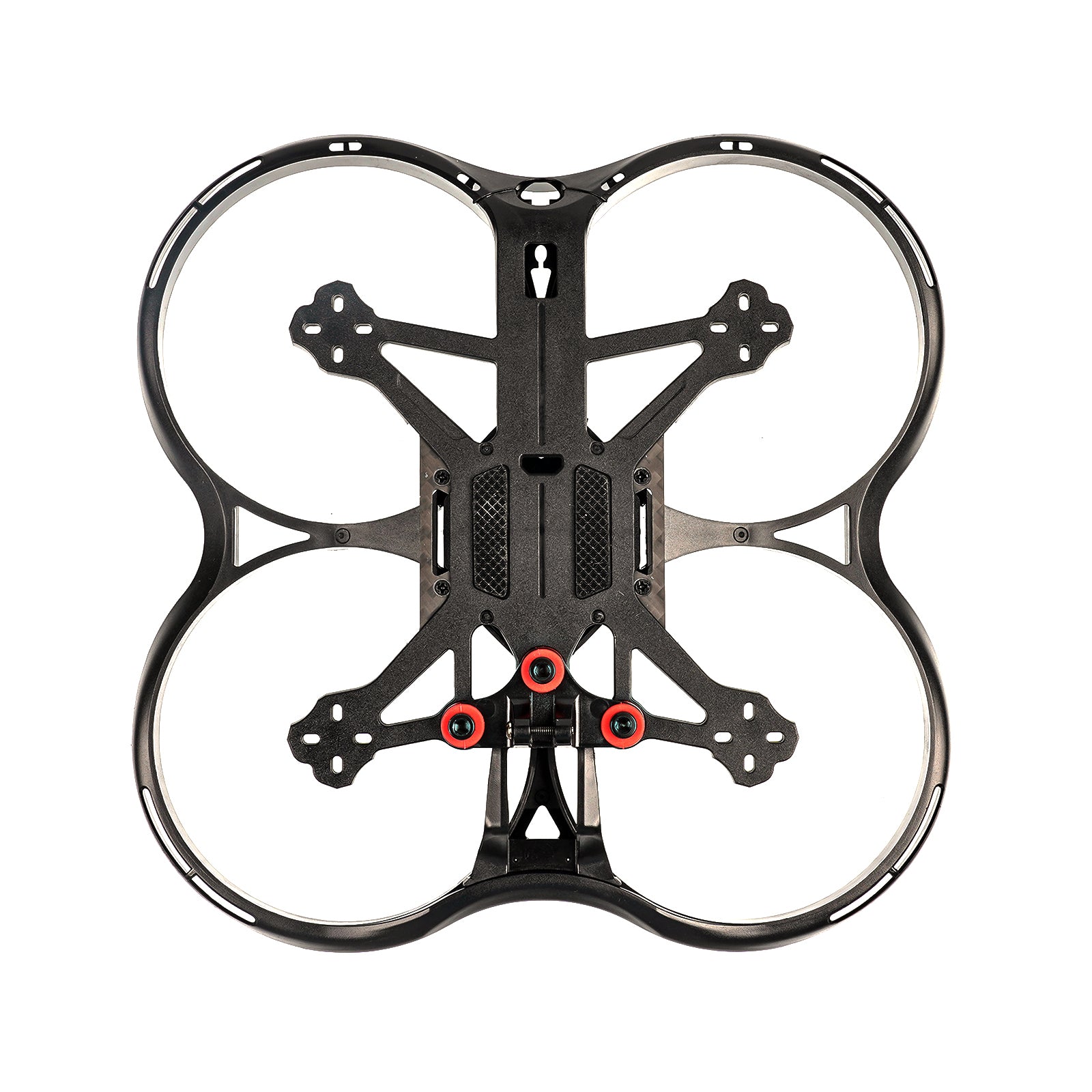

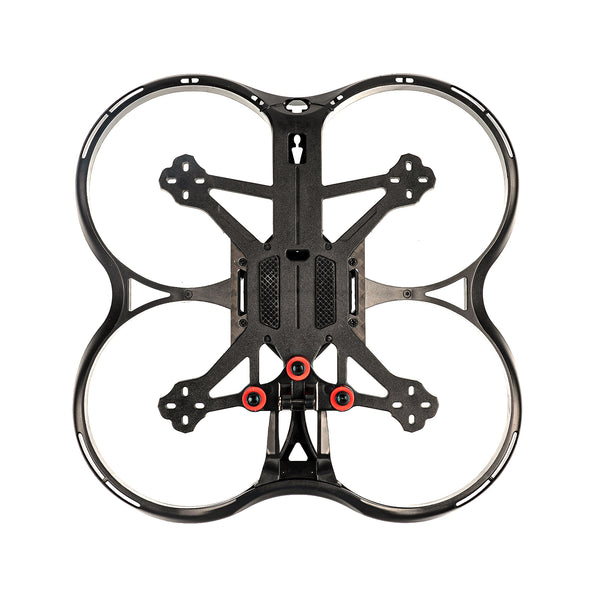

Pavo30 Frame Kit

No carbon brace version (only mold injected parts) is just replacement for the drone. Carbon brace is needed to assemble a new drone.

Bullet Point

• Built-in carbon fiber and reserve a storage room for the antenna, Pavo30 frame has a more concise appearance and more convenient for installation.
• Made of high-quality PA12 material, Pavo30 frame kit has higher abrasion resistance, toughness, and shows excellent impact resistance in drop & impact tests.
• Two purchase options for those customers to meet the different needs for configuration. While the no carbon brace is for replacement if the frame crashed.
• The shock mitigation system with cushion make cameras more stable on the flight, which ensures pilots can capture all the beautiful moments of flight with the stabilized and clear video.

Specification

• Item: Pavo30 Frame Kit

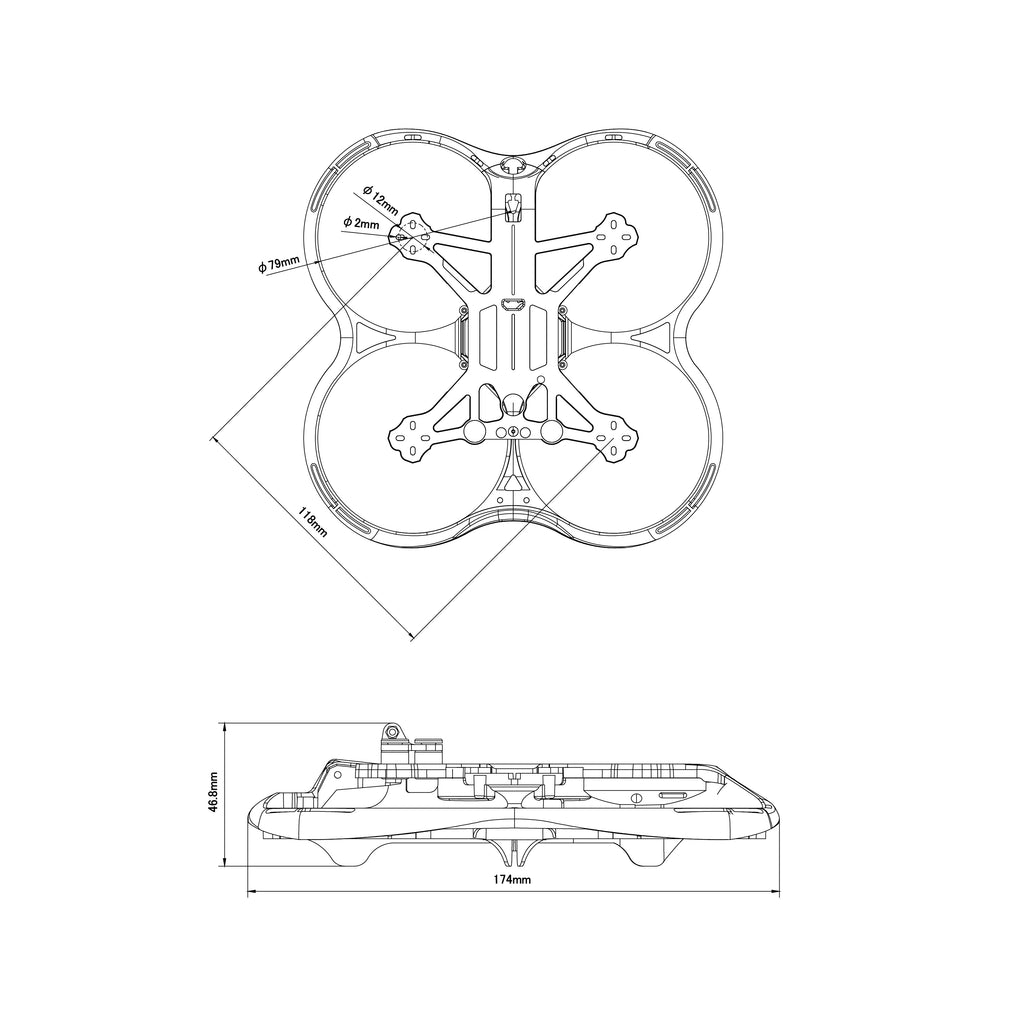

• Wheelbase: 120mm
• Color: Black
• Material: PA12

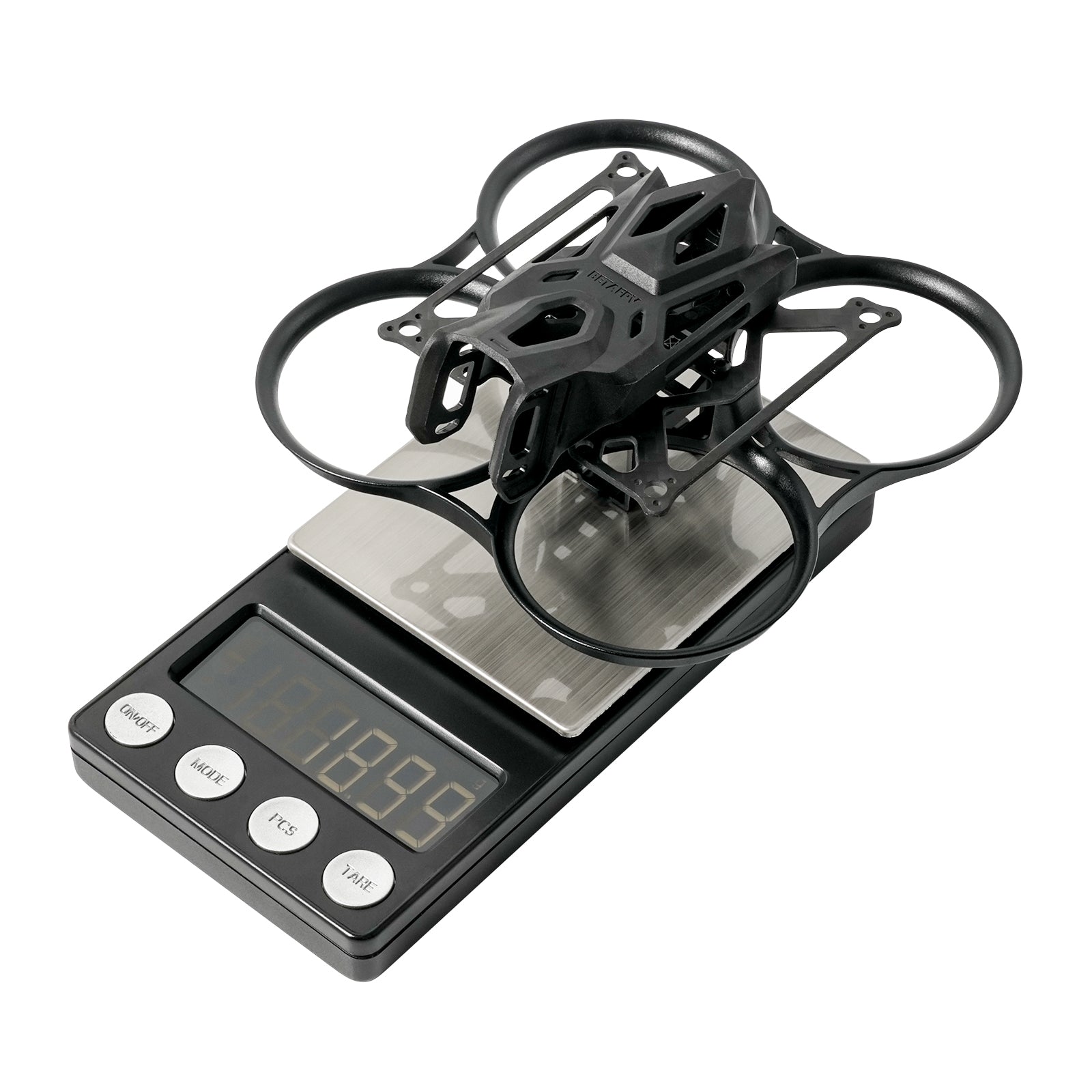

• Weight: 55.53g（with carbon brace)
• Recommend Motor: 1505-3400KV motor/1506-3000KV motor
• Recommend FC: F722 AIO 35A brushless flight controller

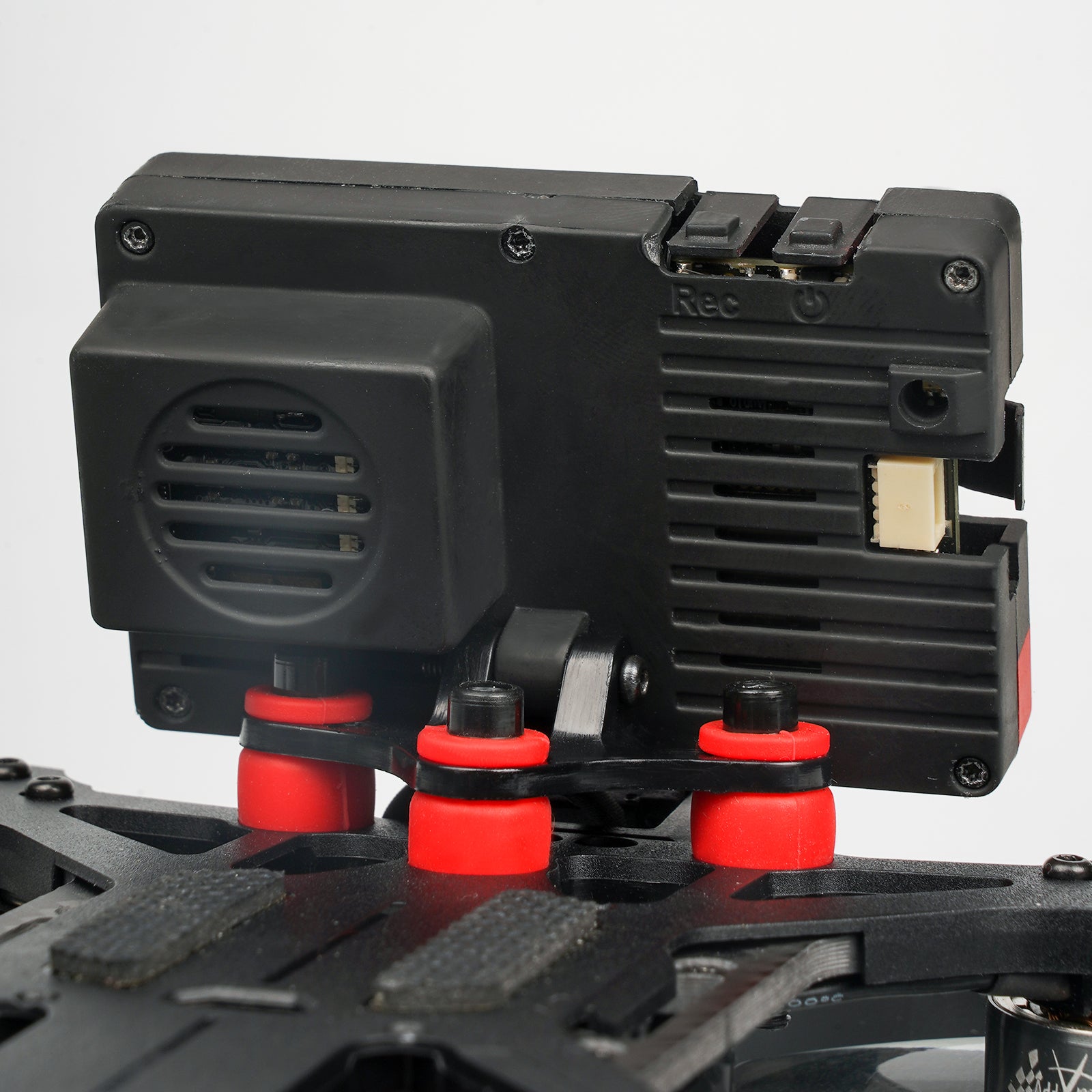

• Recommend Camera: SMO 4K

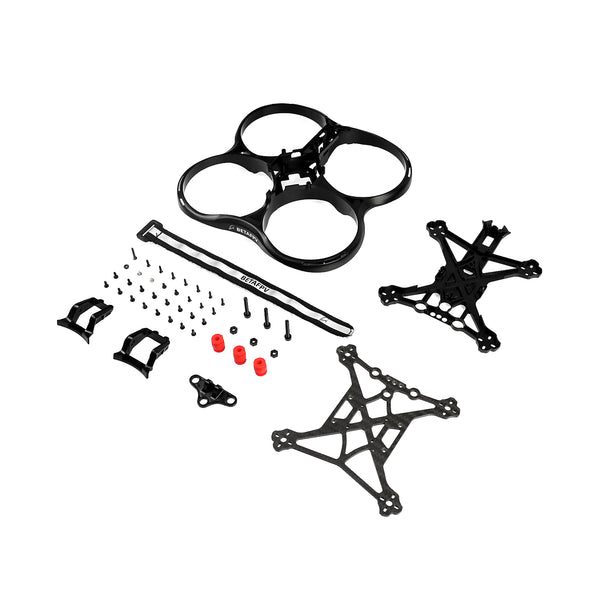

Package

• 1 * Pavo30 frame
• 3 * Rubber Dumper
• 1 * 19mm FPV Camera Mount
• 1 * 14mm FPV Camera Mount
• 1 * Spare EVA Foam Tape
• 1 * Battery strap
• 1 * Pack of Screws
