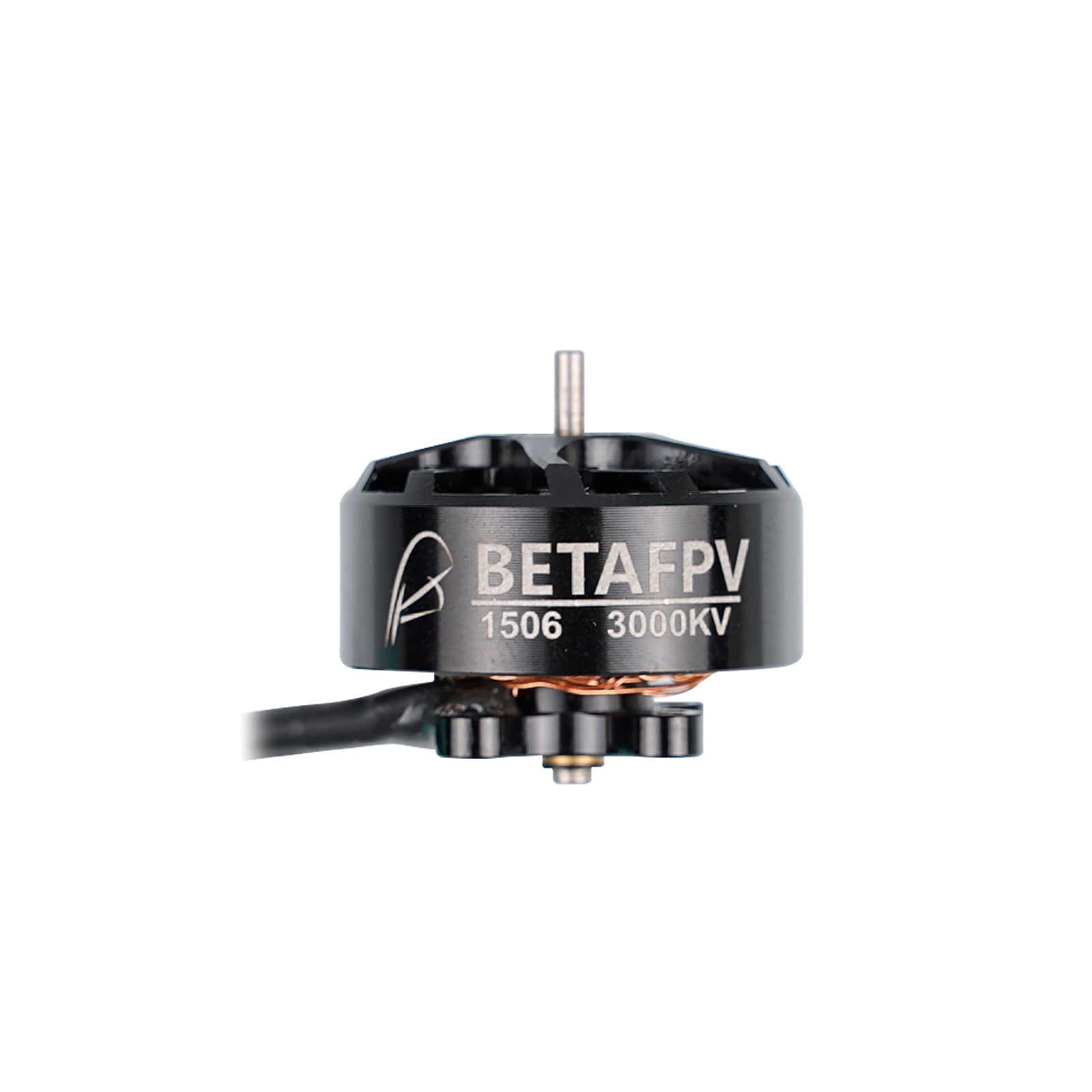

1506 3000KV Brushless Motors

Dual branded Racer X FPV and Betafpv 1506 3000KV Brushless Motor – rated at 3000kv, it is specialized for the Pavo30 whoop quadcopter. Perfectly match with 20A Toothpick F4 AIO FC, it will bring you a powerful flight experience.

BULLET POINTS

• Perfectly match with 20A Toothpick F4 AIO FC, it will bring you powerful flight experience.
• 1506 3000KV motor is the best choice for TWIG 3”/ 4”/ 5” frame，X-Knight 4” frame and Pavo30 frame.
• For offering pilots better cutting and soldering experience, it comes with 40mm long, 24AWG cable while no pre-solder plug.

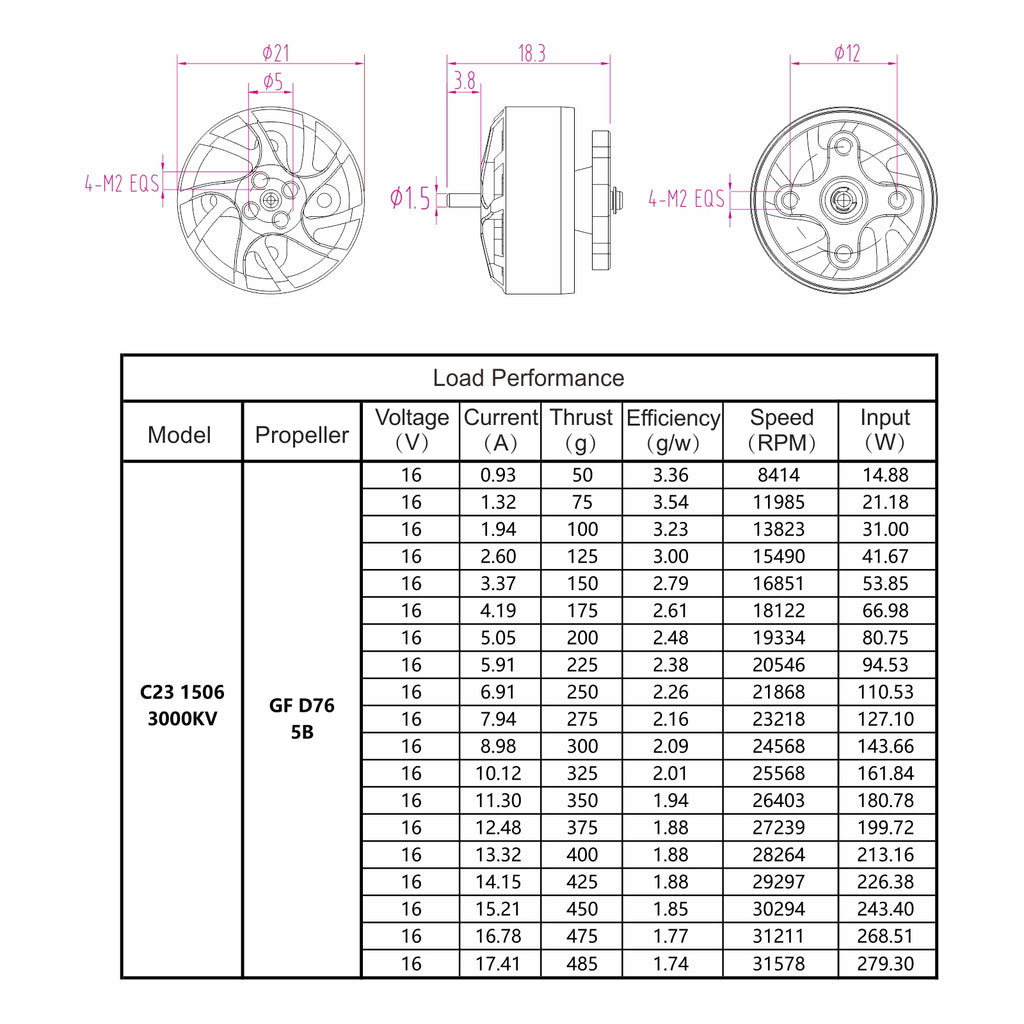

SPECIFICATION

• Item: 1506 3000KV Brushless Motor
• KV (rpm/V): 3000KV

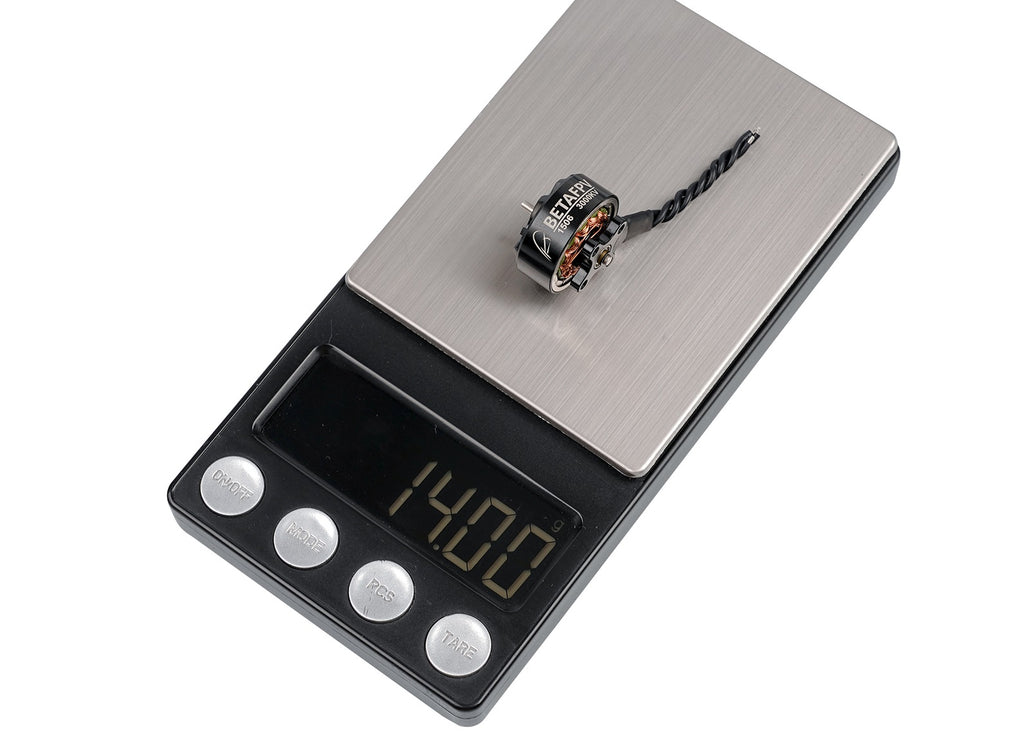

• Weight: 14g /1 pc
• Shaft: φ1.5mm
• Motor Mount Holes: M2
• Input Voltage: 3-6S
• Cables: 40mm long, 24AWG cables

RECOMMENDED PARTS

• Flight Controller: Toothpick F4 20A AIO FC

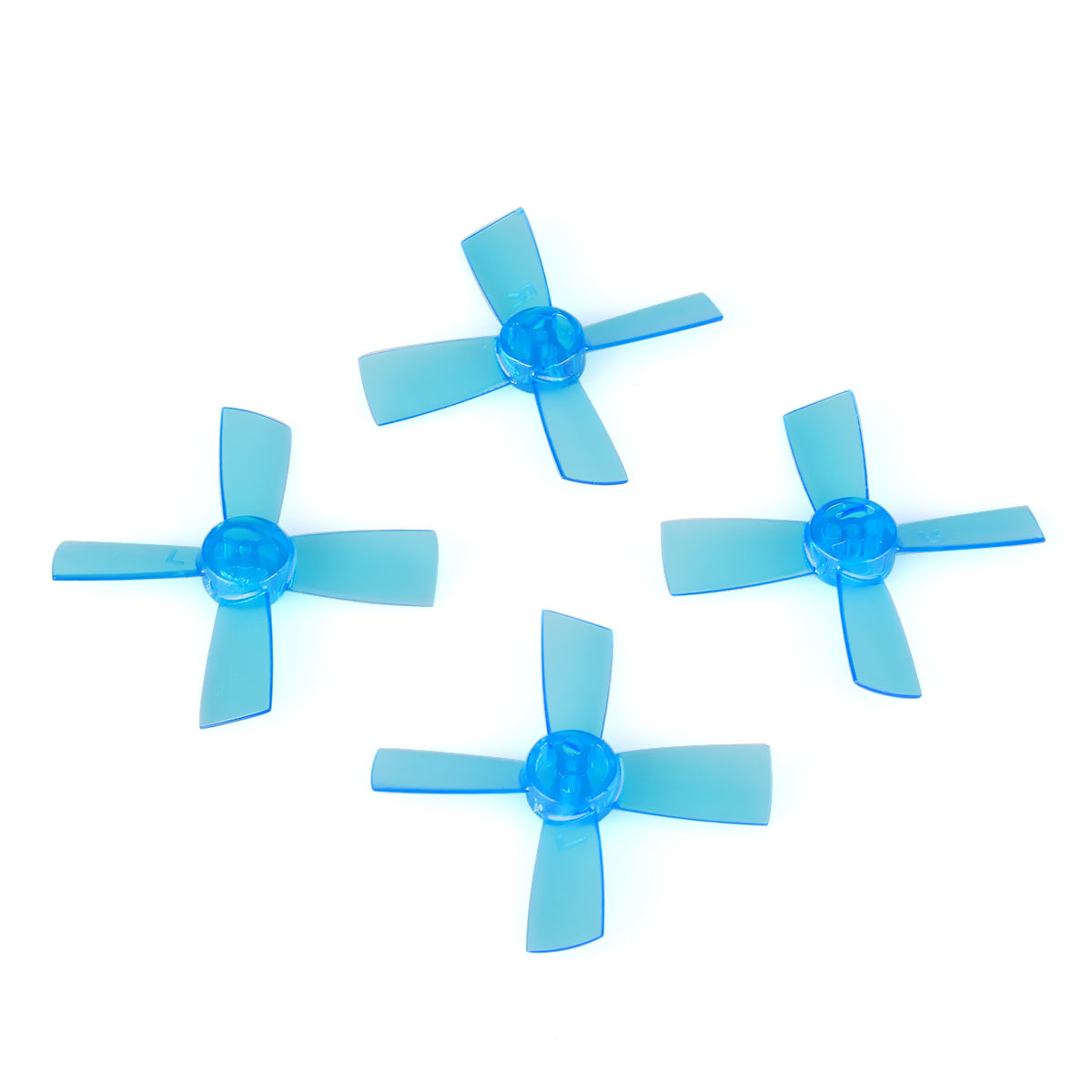

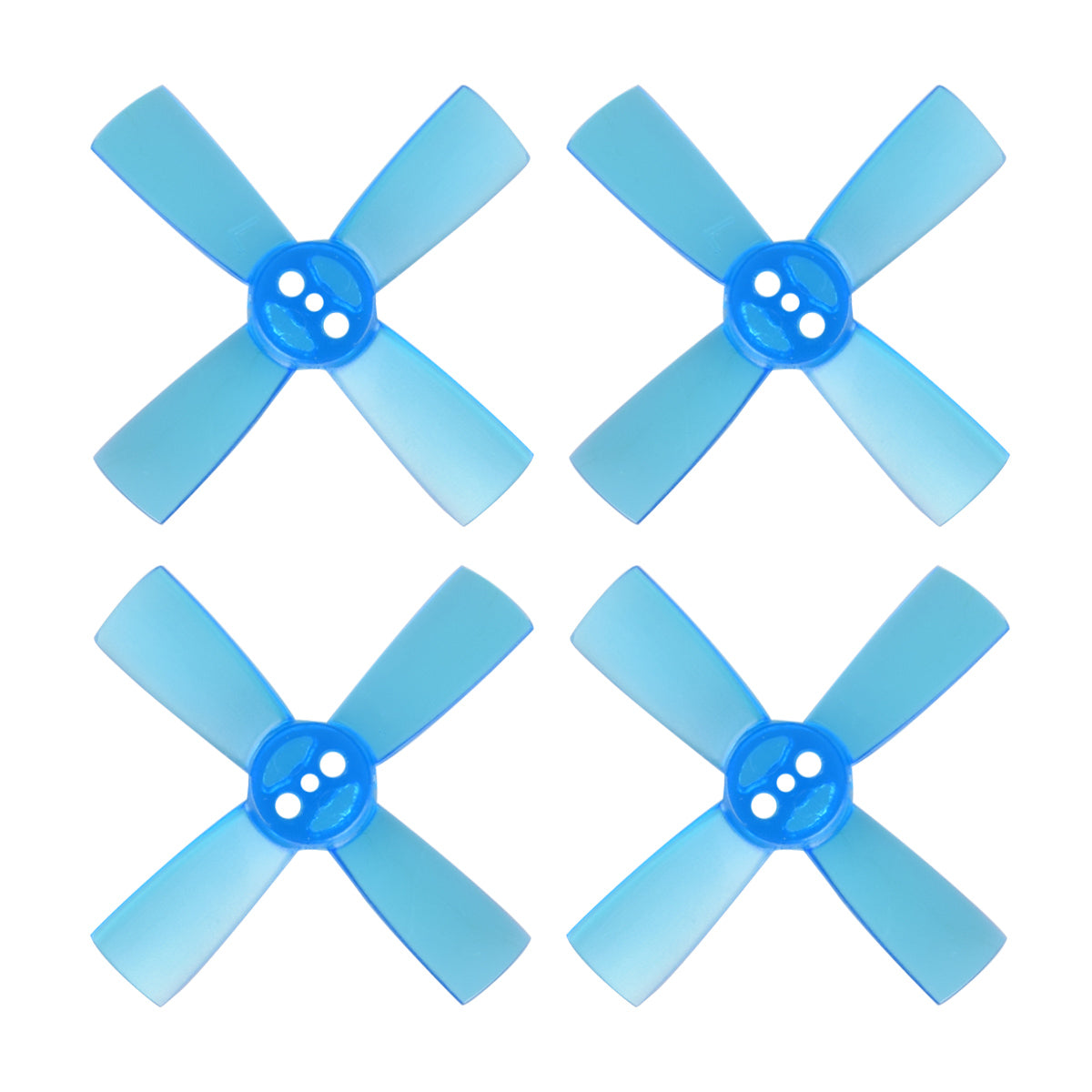

• Propellers: 3”- 5” props, like Gemfan D76 5-Blade prop
• Battery: 4-6S battery, like 450mAh 4S Battery/ 850mAh 4S Battery
• Frame: Pavo30 frame kit

PACKAGE

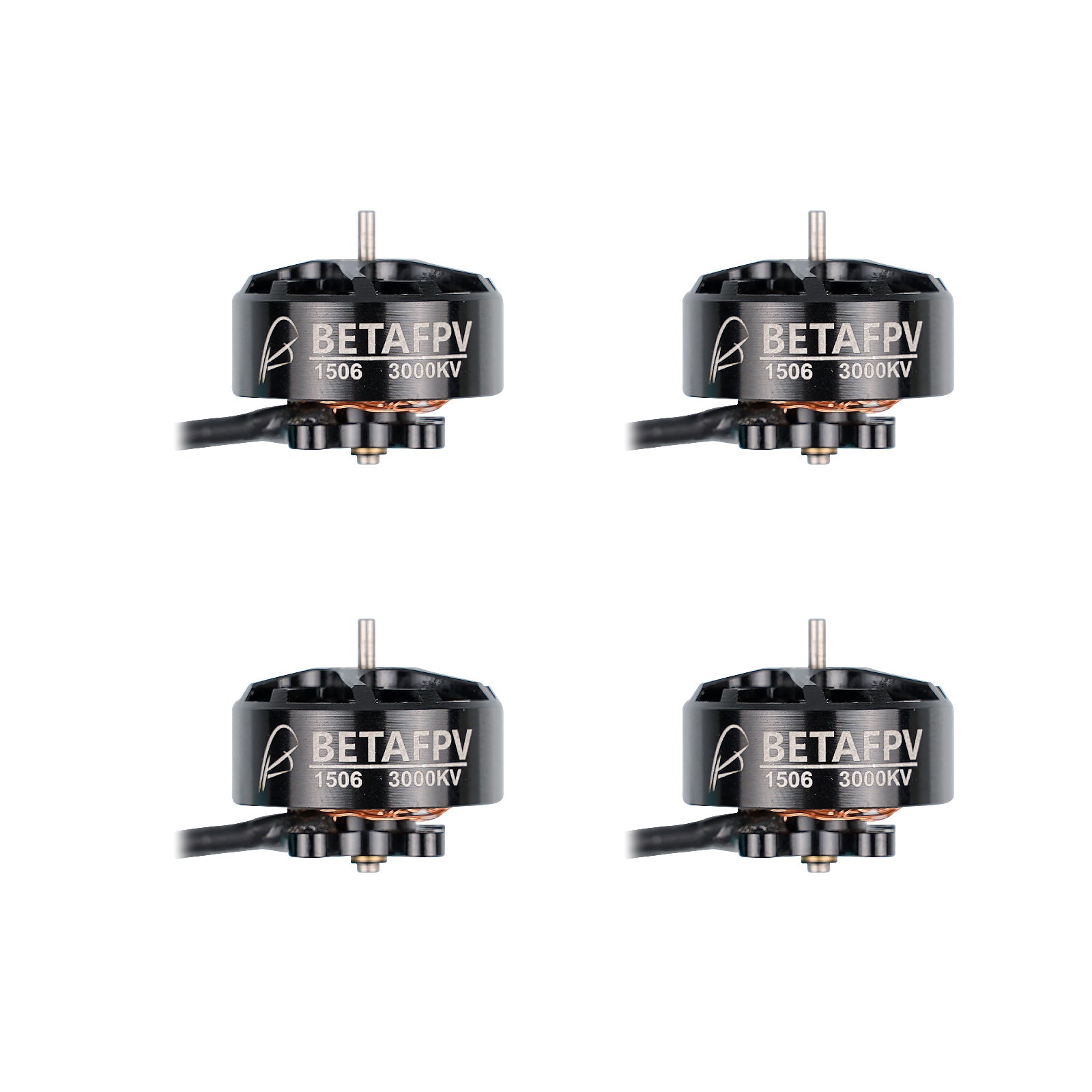

• 1 or 4 * 1506 3000KV Brushless Motors
• 1 * Pack of M2 Screws
