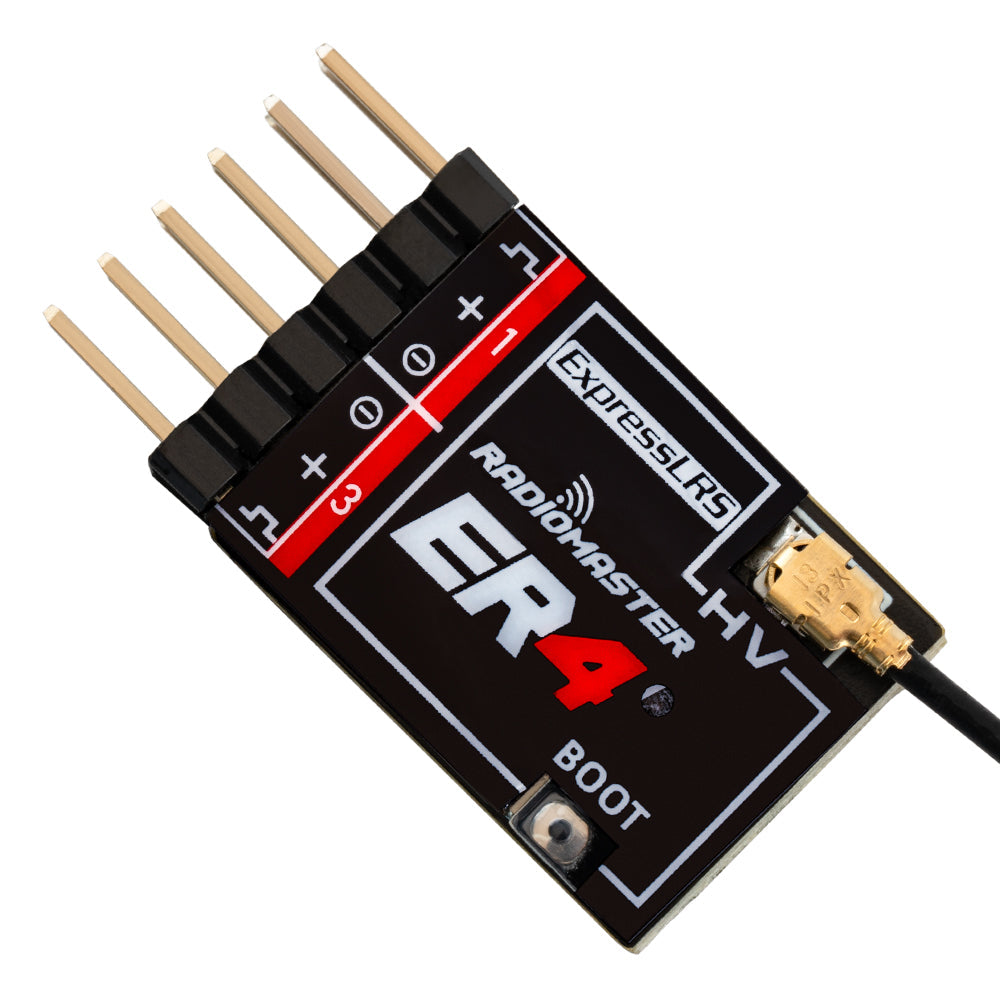

ER4 2.4GHz ELRS PWM Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

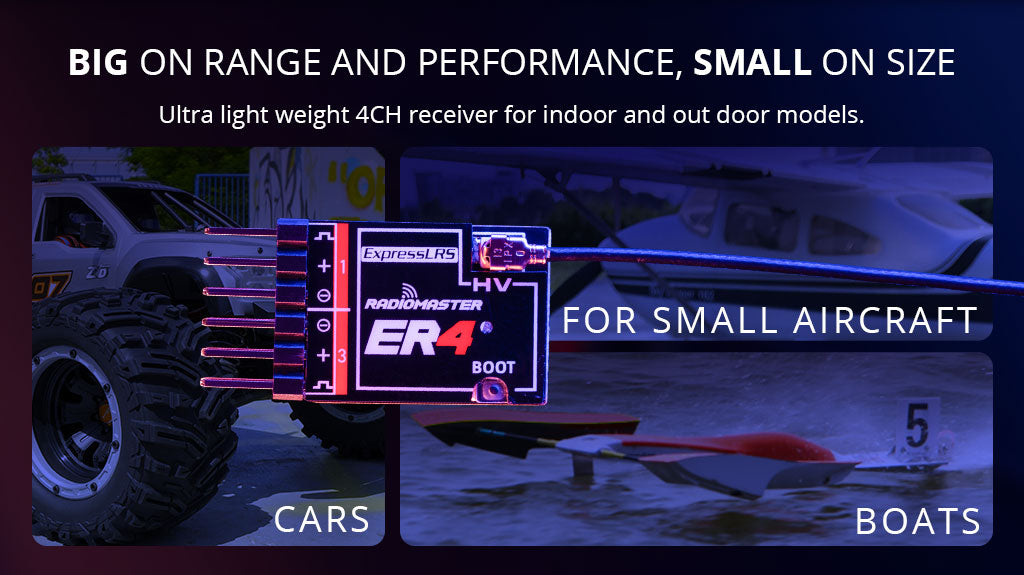

The ER4 PWM receiver can drive 4 servos simultaneously. Designed with a very small volume, it is suitable for small aircraft models, ship models, car models and other models that require a small or lightweight receiver while still providing full range.

Launch Video

Features

Based on the Revolutionary ExpressLRS System
High performance, high reliability, flexible configuration, fast response speed and ultra-long range

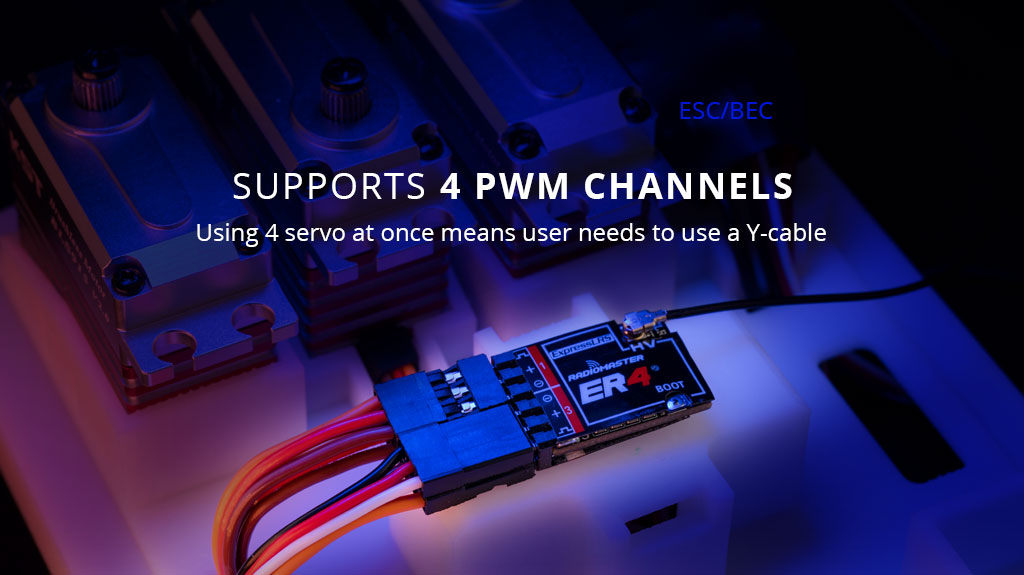

Support 4 PWM Channel

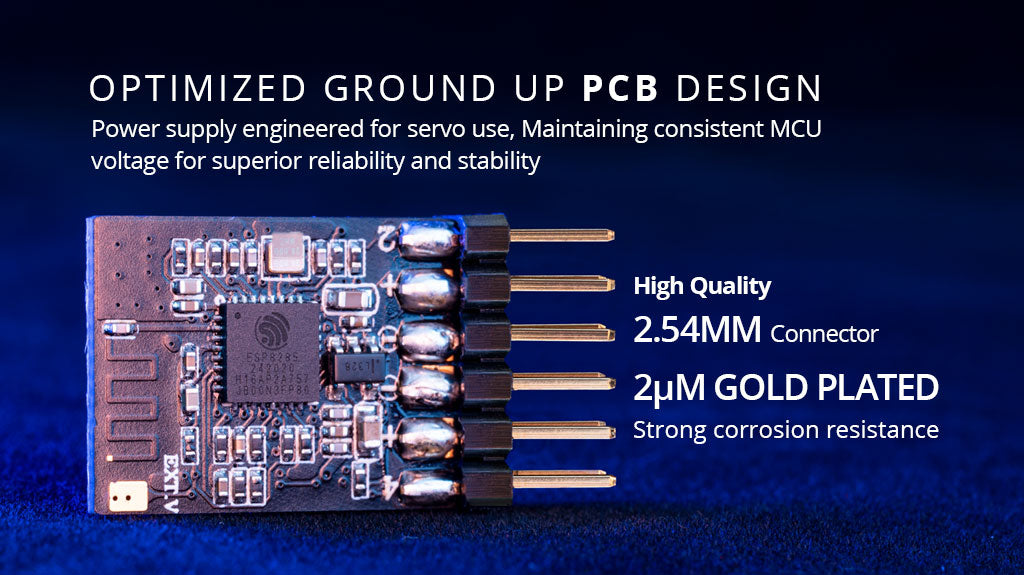

Optimized ground up PCB design

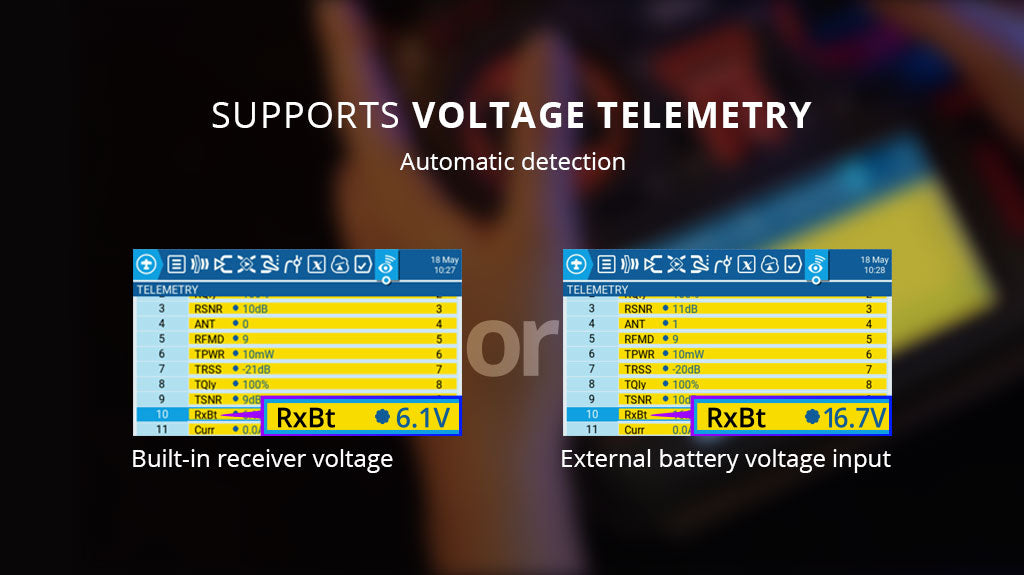

Automatically voltage telemetry of external battery voltage or built-in receiver voltage
Supports Wi-Fi updates and WEBUI configuration

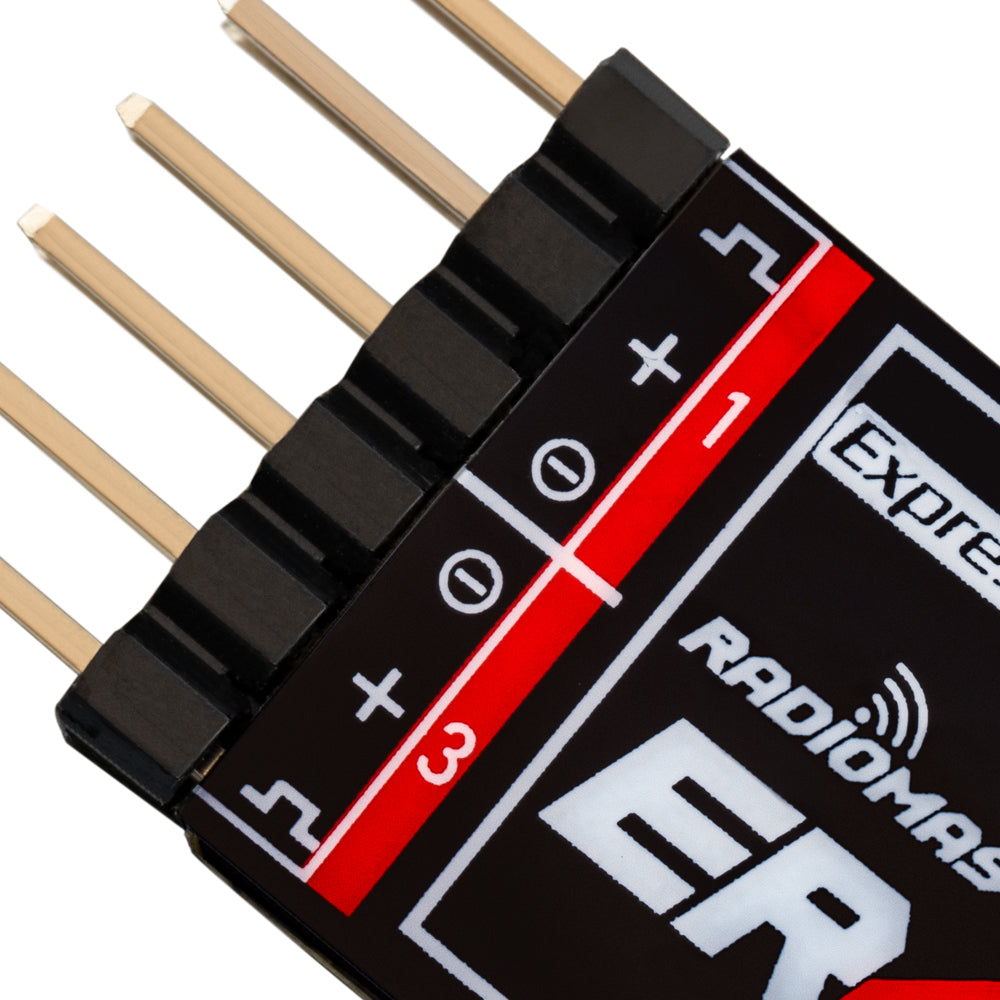

High quality 2.54 mm connector

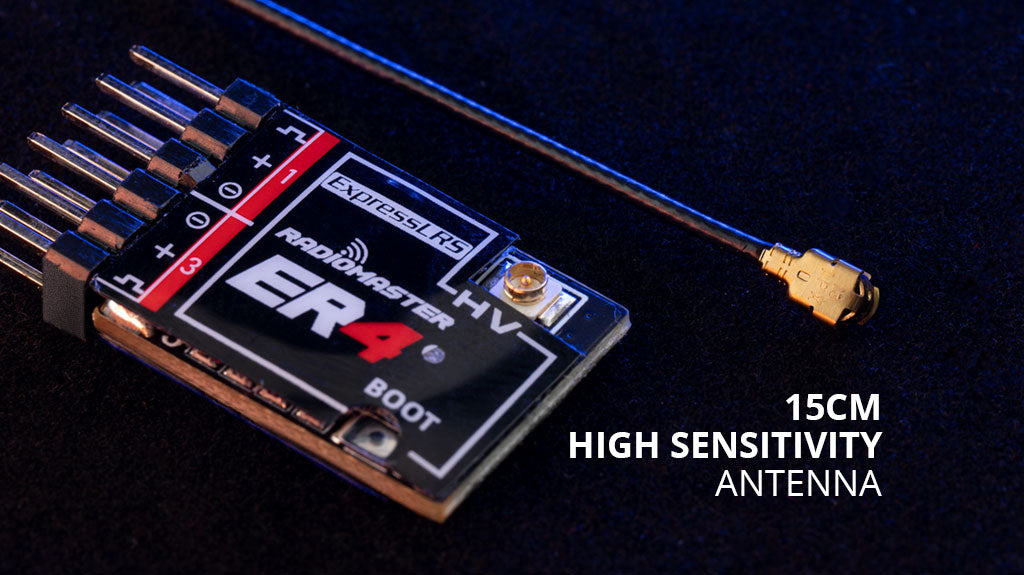

Standard 15 cm High Sensitivity Antenna
For small aircraft, boats and cars and more
Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification

Item: ER4 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 – 8.4V

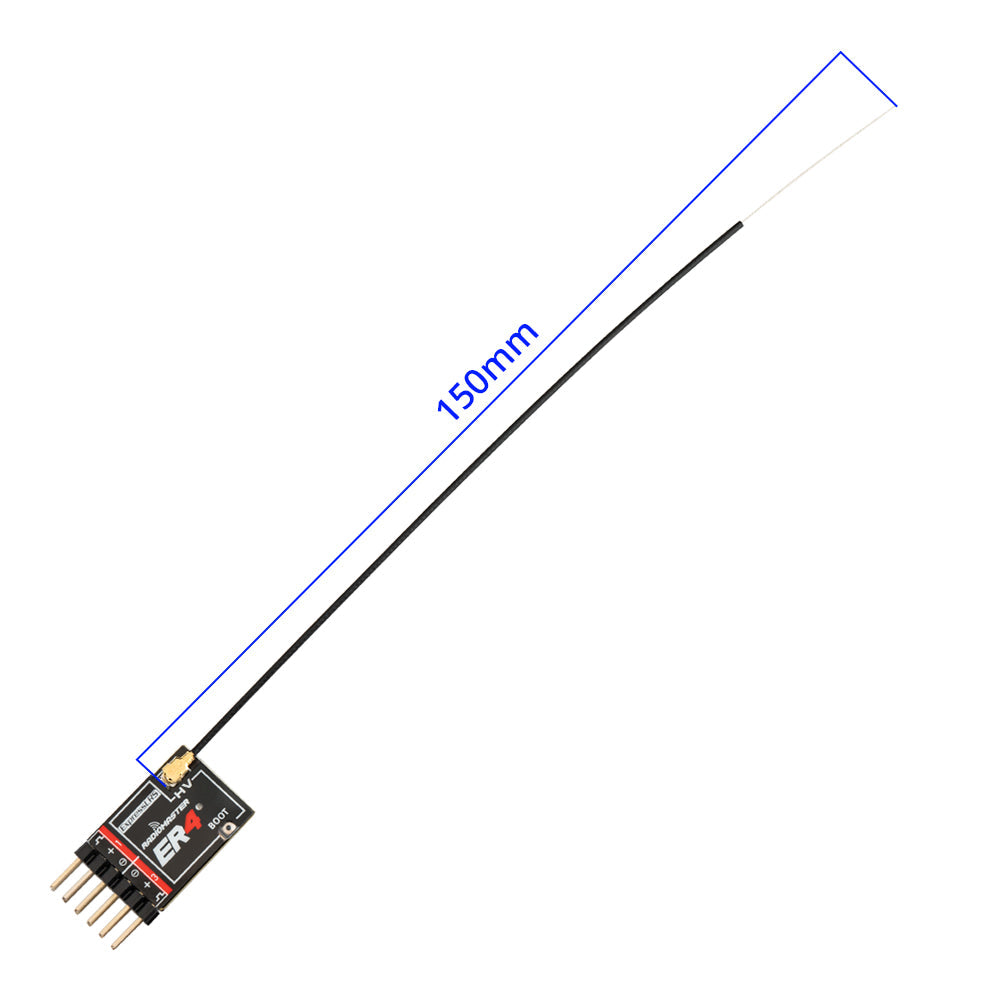

Antenna type: 15cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 4CH PWM
Serial Output: CRSF / Sbus
Telemetry power: 10mw
Battery voltage detection range: DC 4.0- 35V
Weight: 3.0 grams

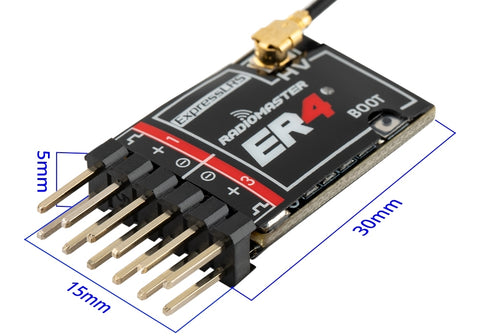

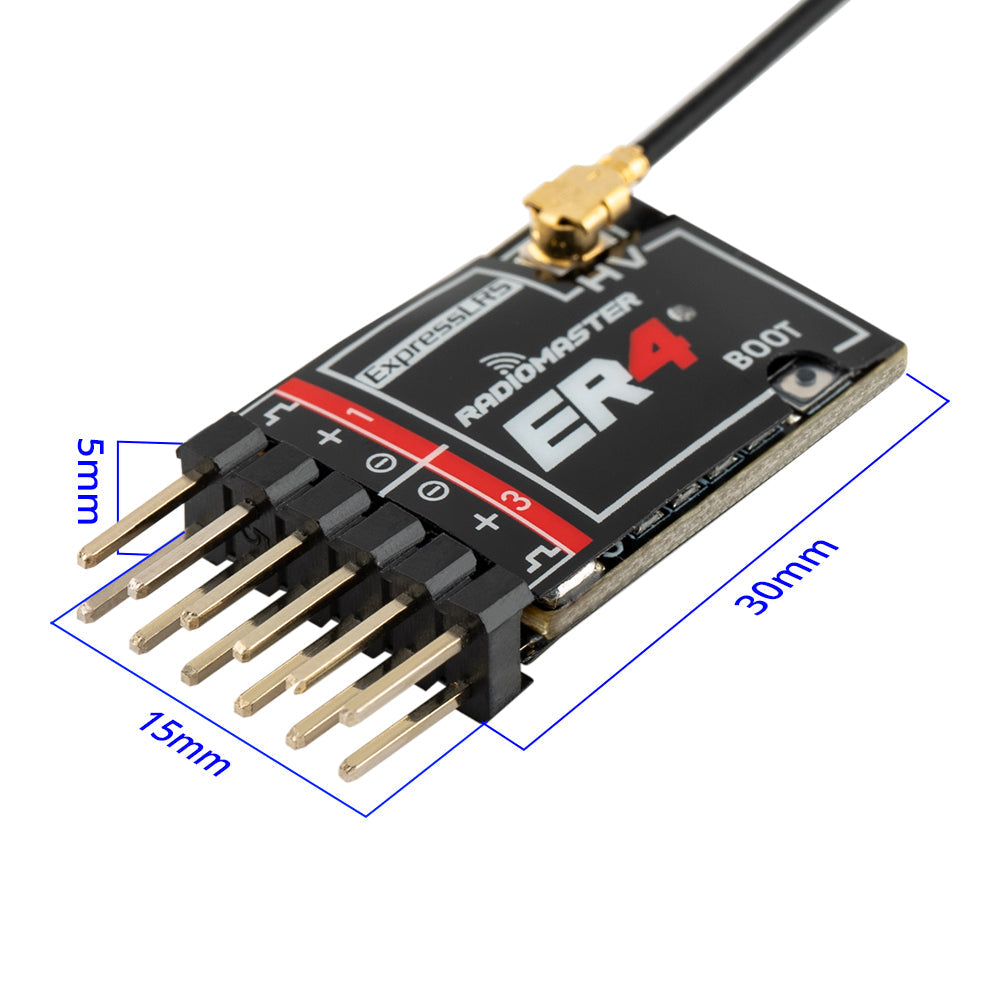

Dimensions: 30*15*5mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER4 2.4GHz PWM RX
