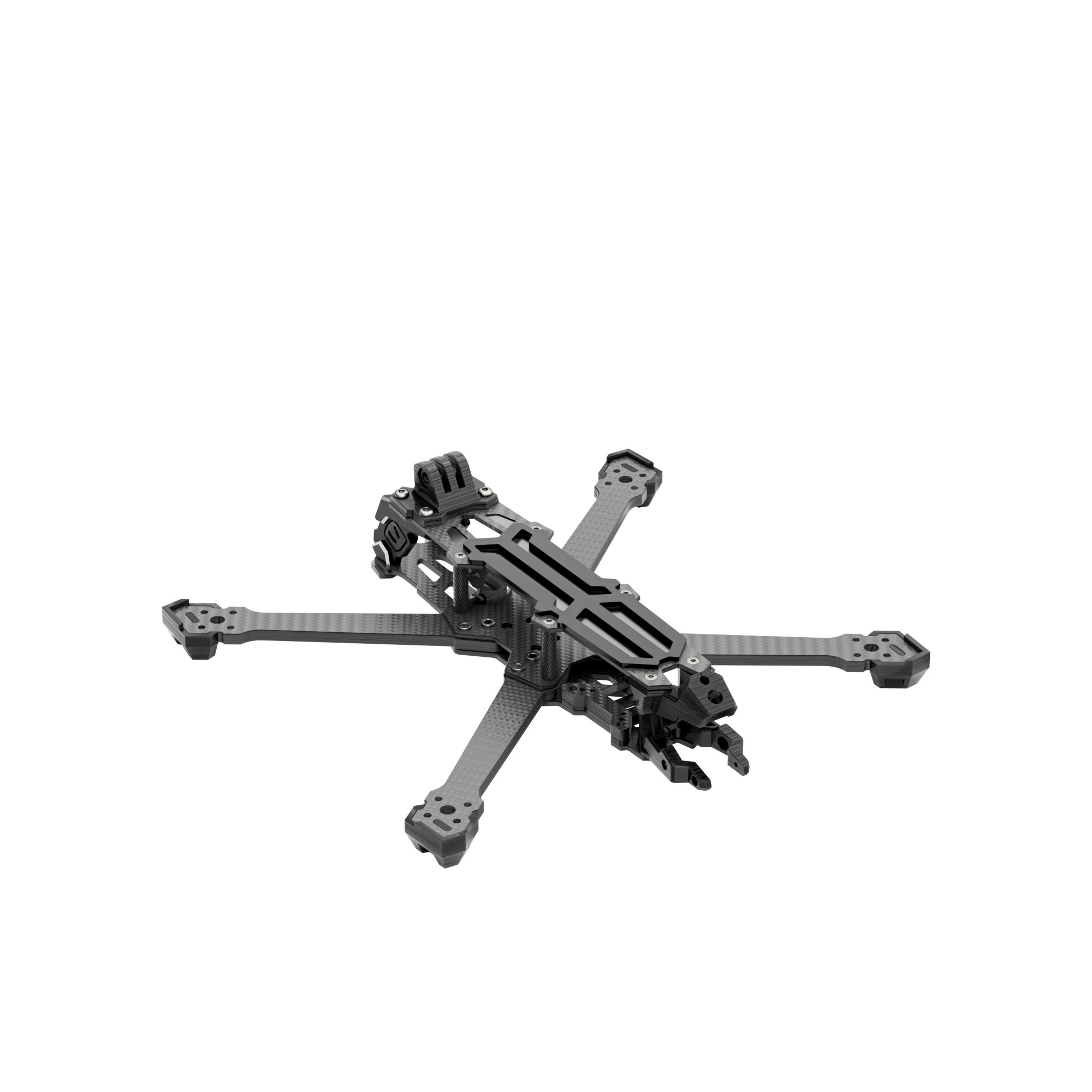

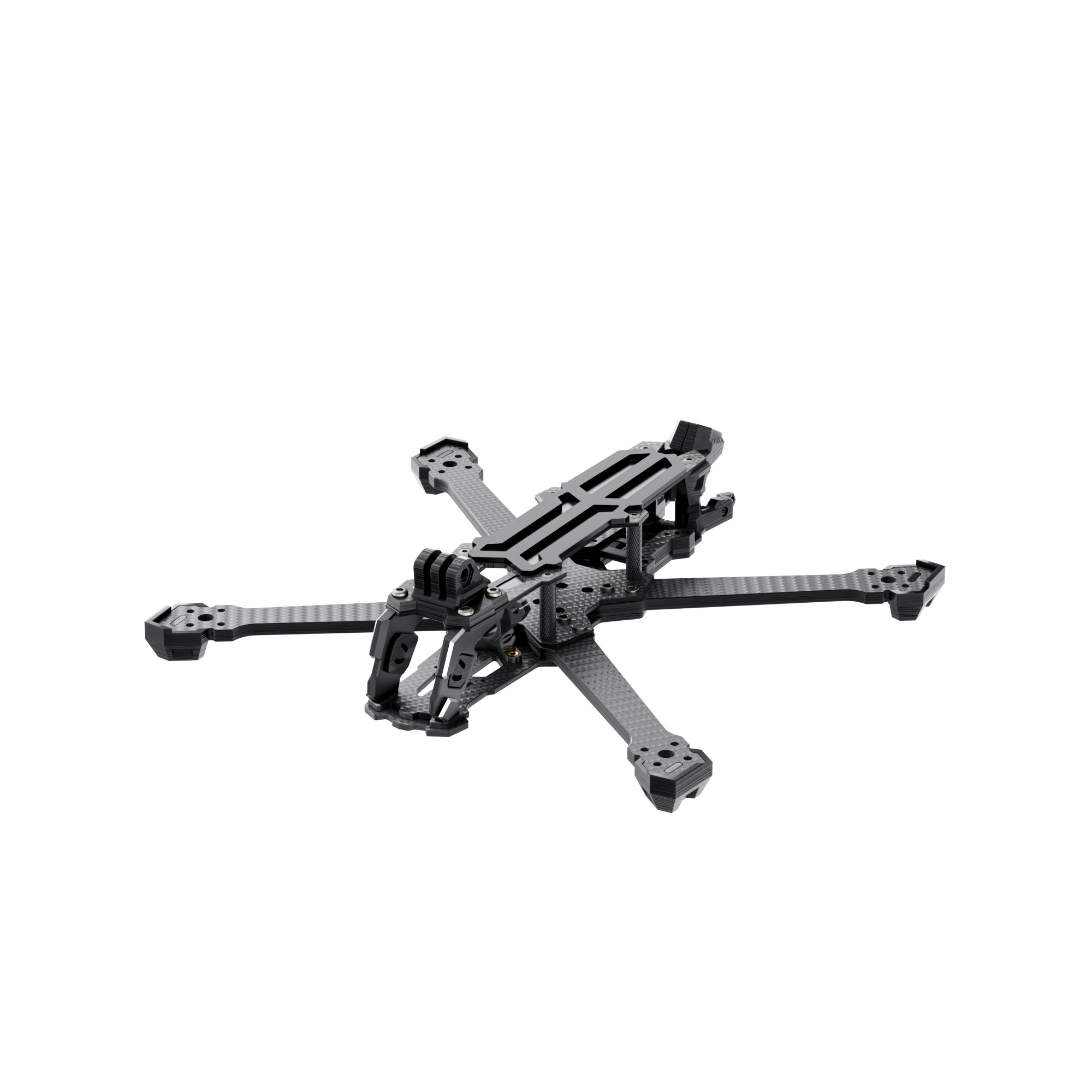

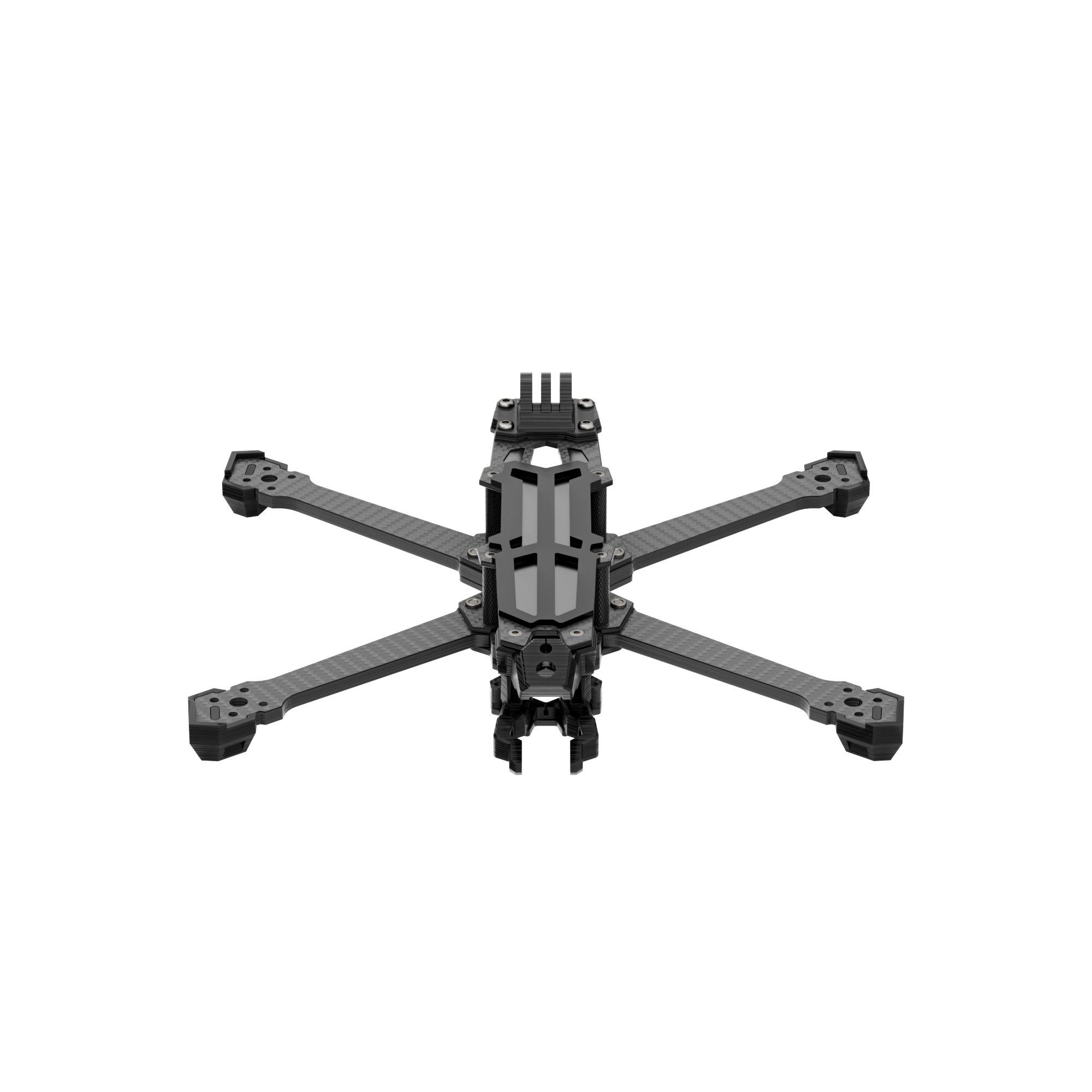

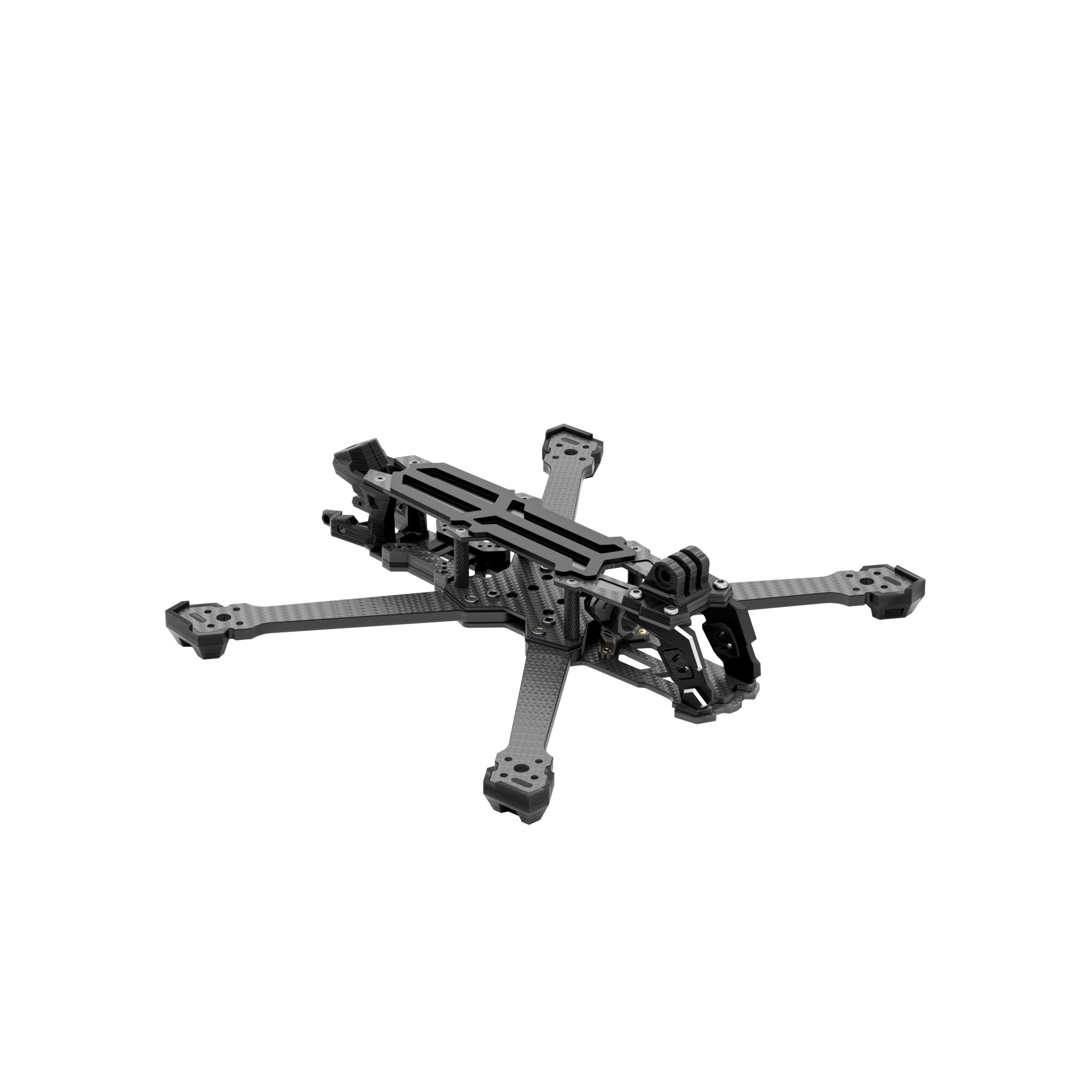

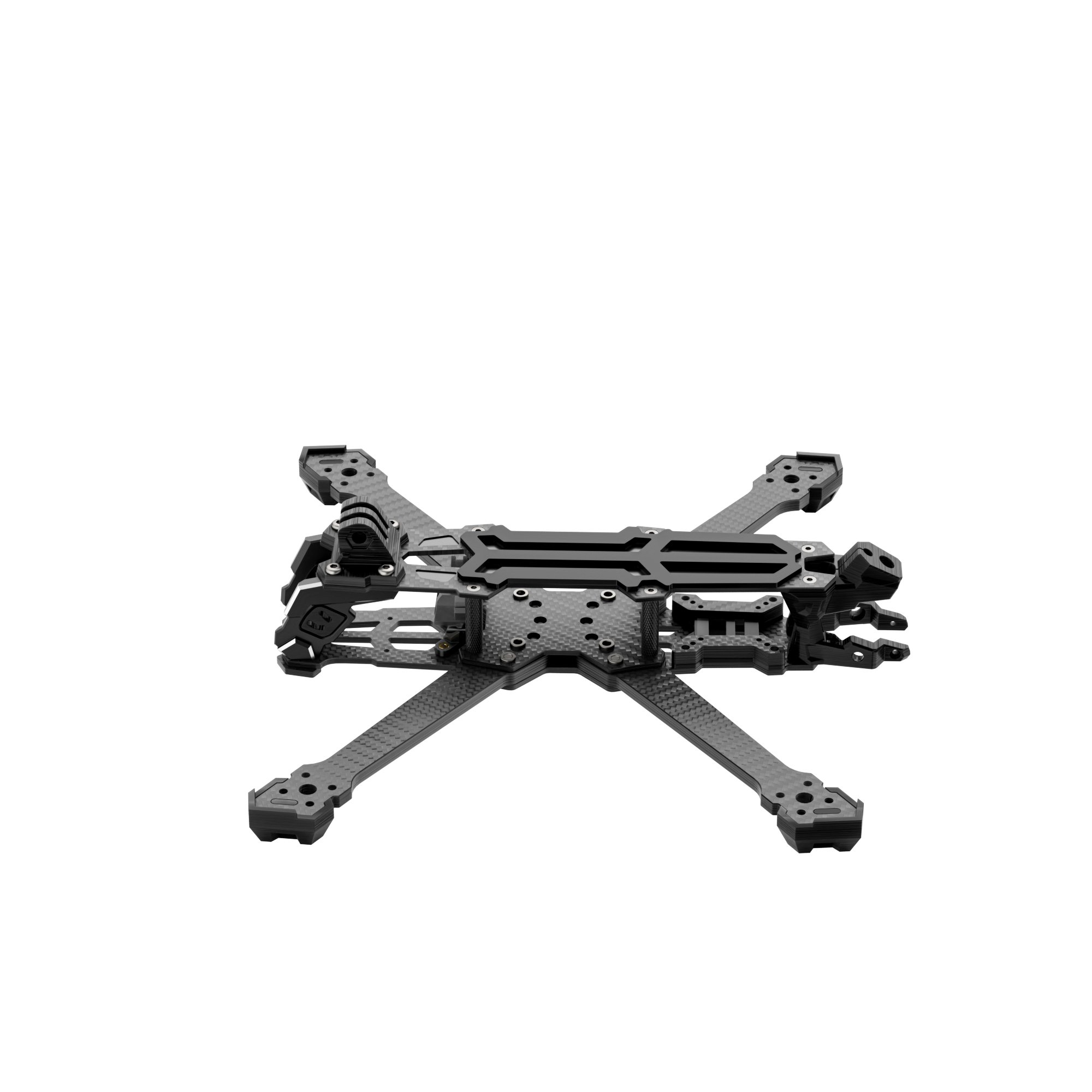

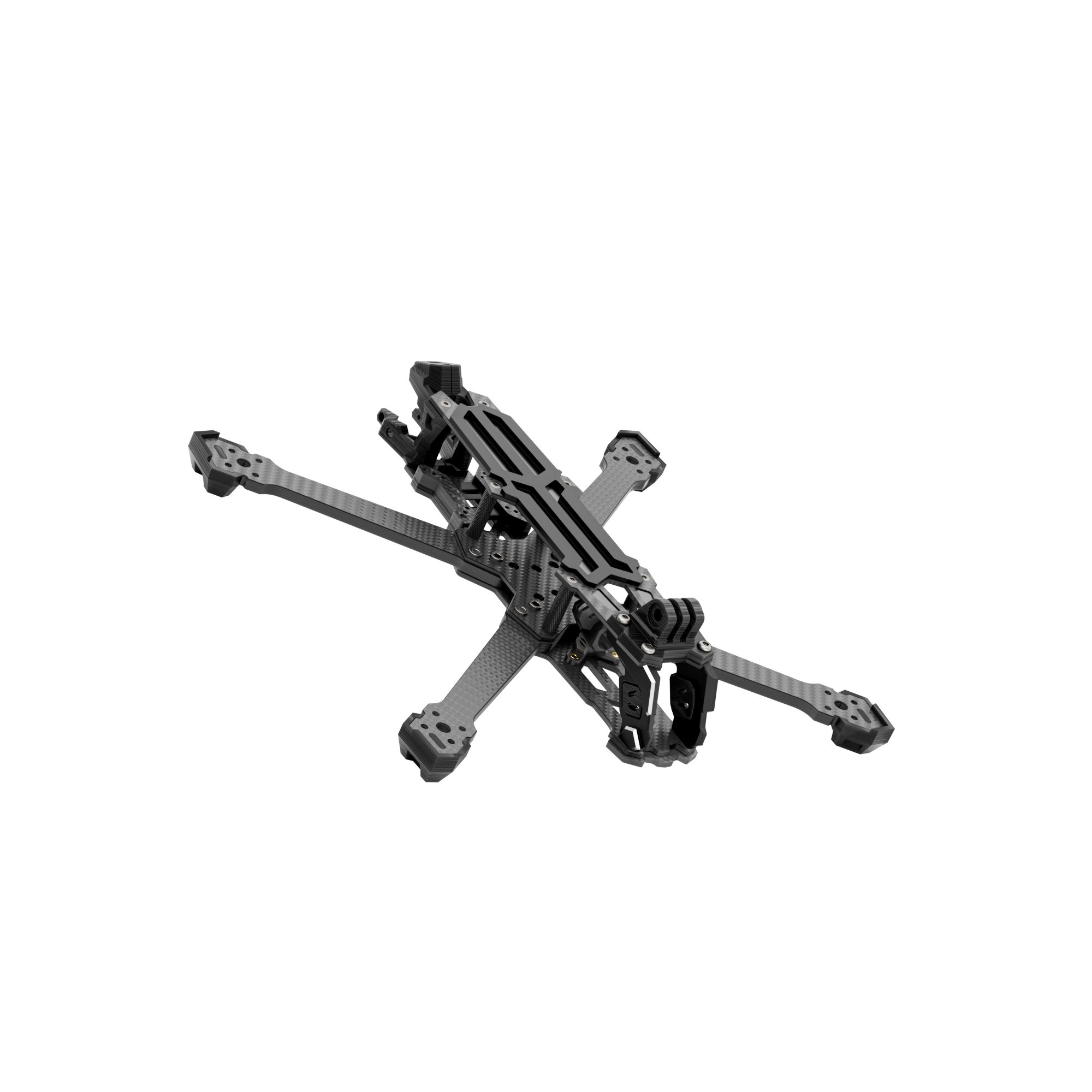

GEP-Vapor-X6 Frame

Summary

The GEP-Vapor-X frame is expertly crafted for freestyle flying. Its wide X-frame design boosts stability and maneuverability, offering an ideal balance of style and durability for exceptional flight performance.

Features

The 5mm wide carbon fiber arms ensure overall rigidity.
The camera side panels and front guard offer double protection for enhanced durability.
Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.
The quick-release design makes maintenance and assembly a breeze.

Specification

Model: GEP-Vapor-X6 Frame
Wheelbase: 254.5mm
Top Plate Thickness: 2.0mm
Middle Plate Thickness: 2.0mm
Arm Thickness: 5.0mm
Bottom Plate Thickness: 2.5mm
FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
Motor Mounting Hole Size: 16x16mm
Camera Mounting Hole Size: 19mm / 20mm
Recommended Propeller: 6-inch
Weight: 194.1g ±2g

Includes

1 x GEP-Vapor-X Frame
2 x M20*250mm battery straps
2 x Battery Silicone Pads
1 x Set of screws
1 x Printout package
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
1 x M8 wrench
