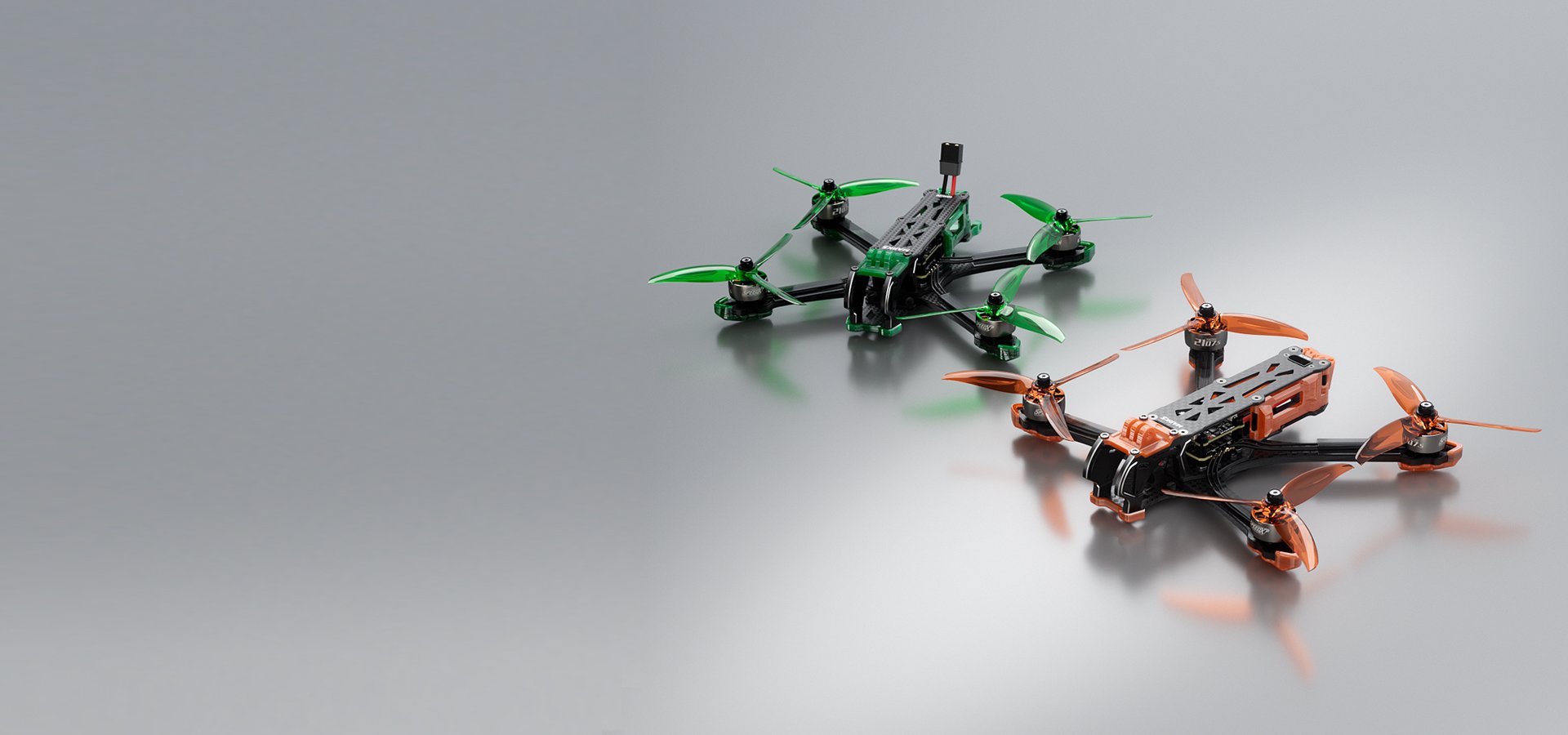

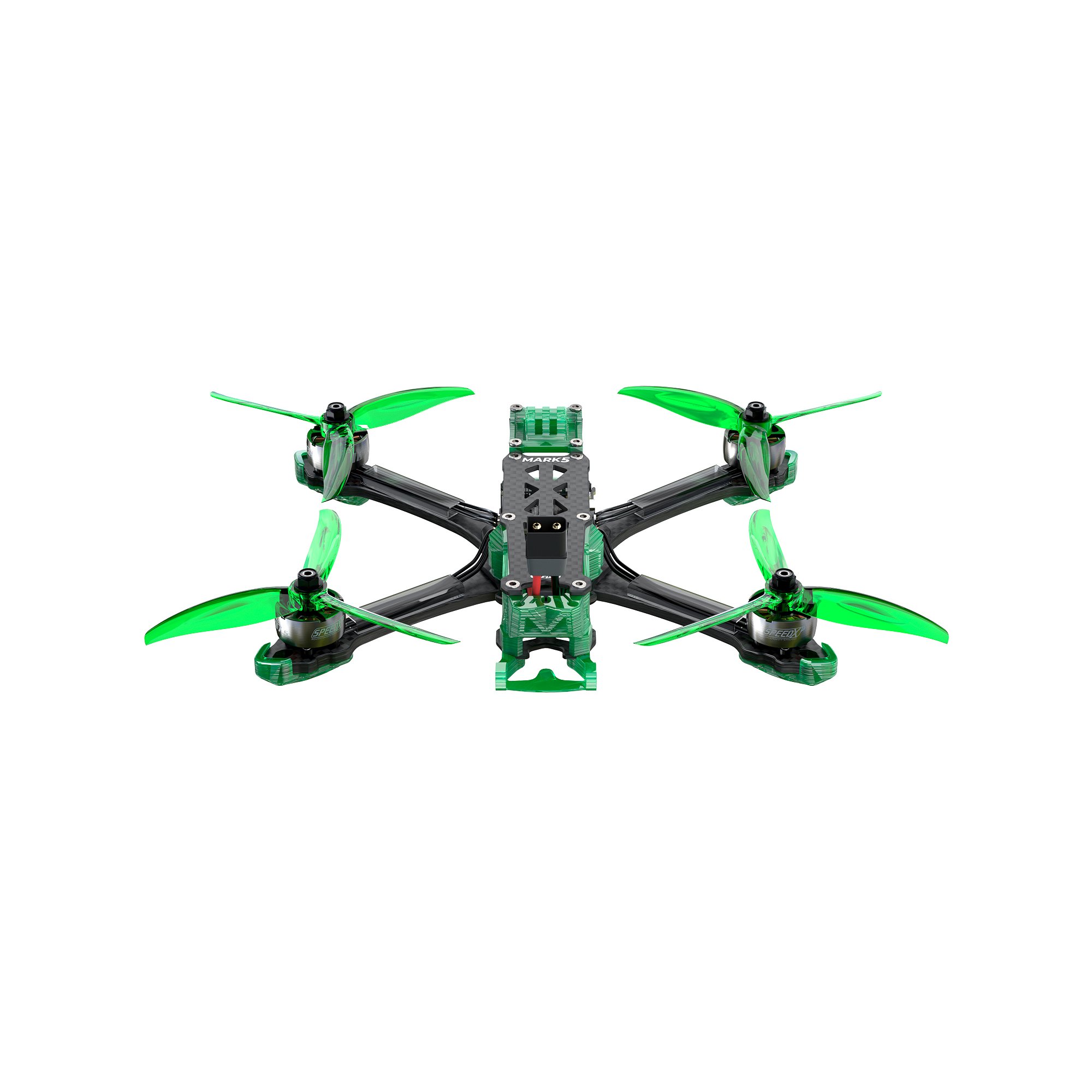

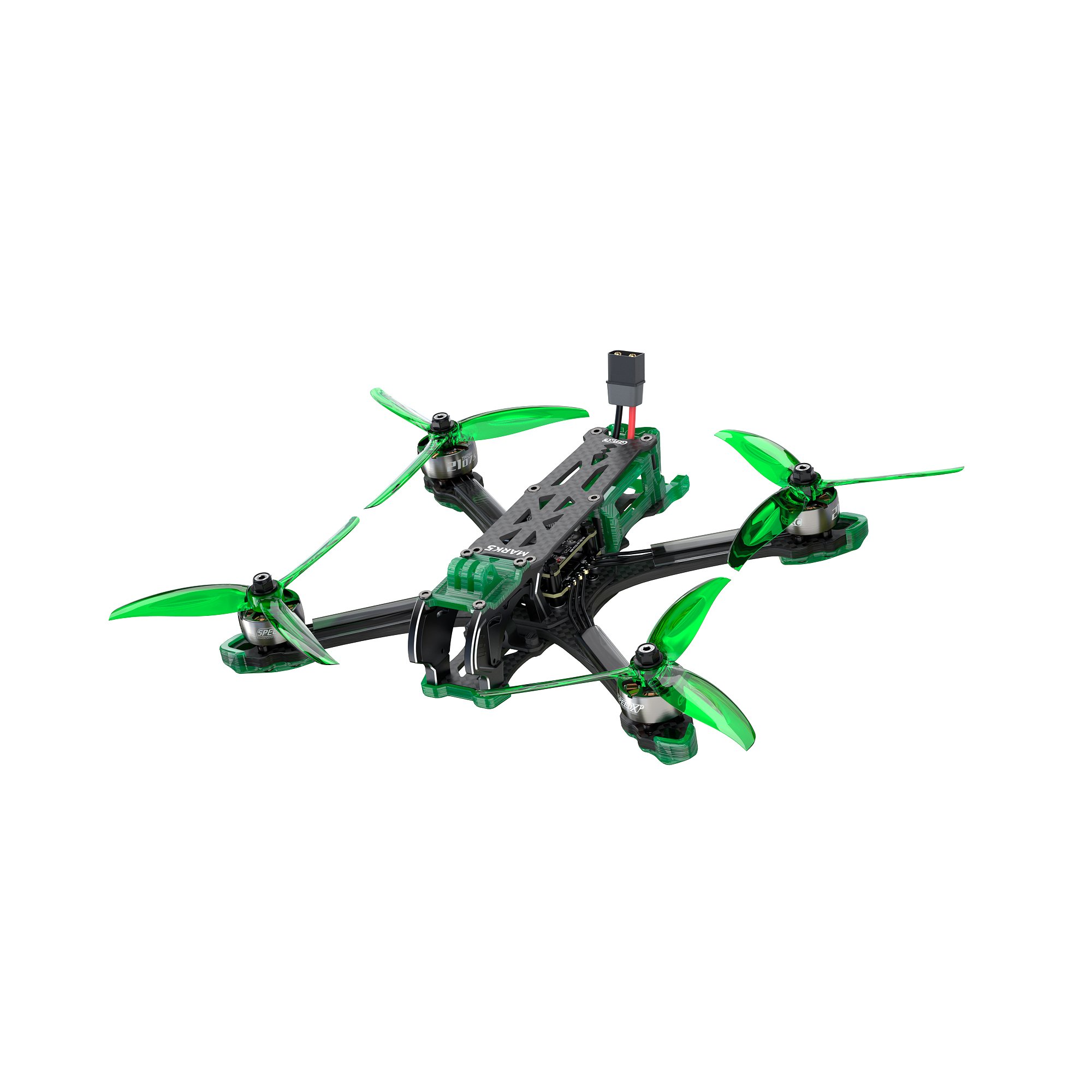

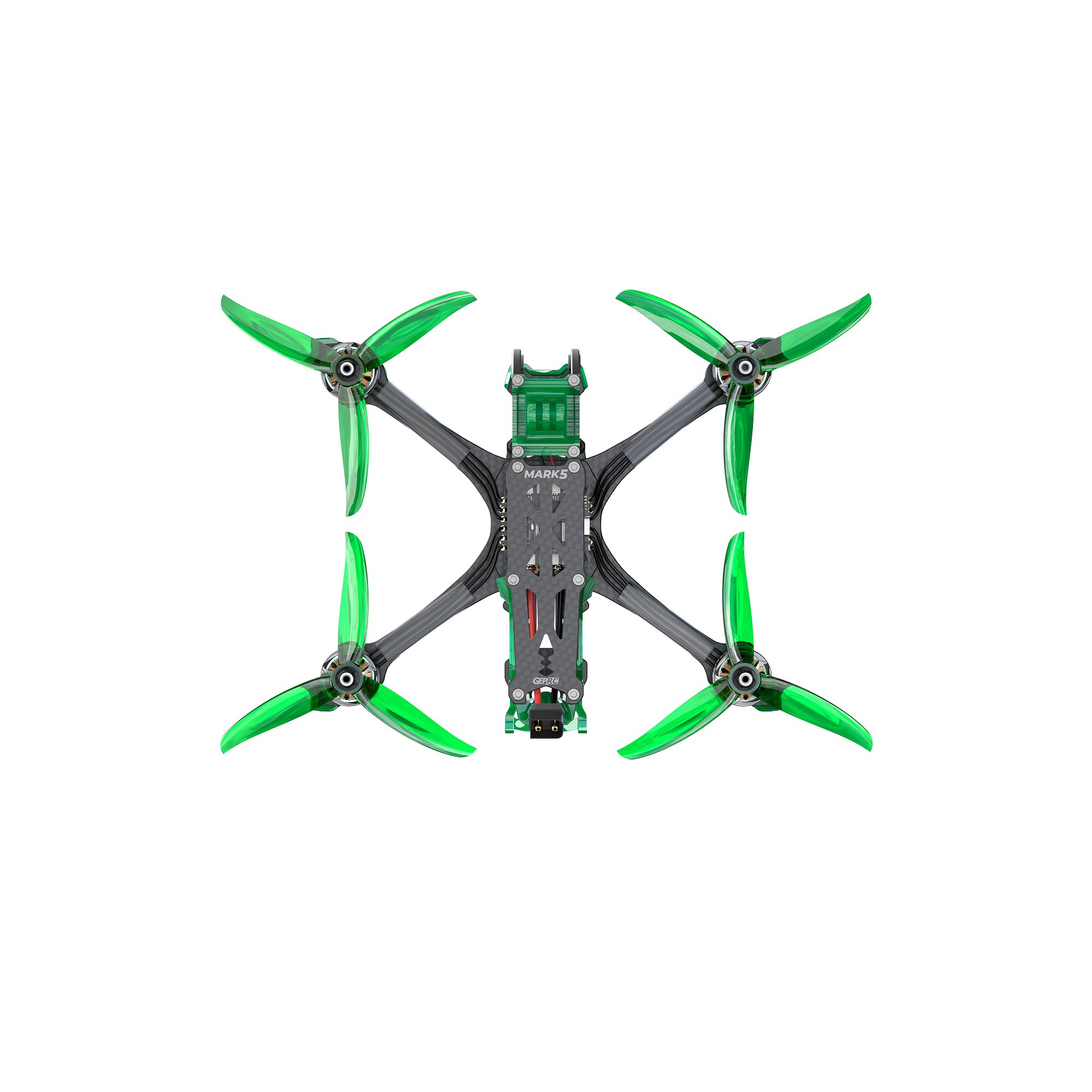

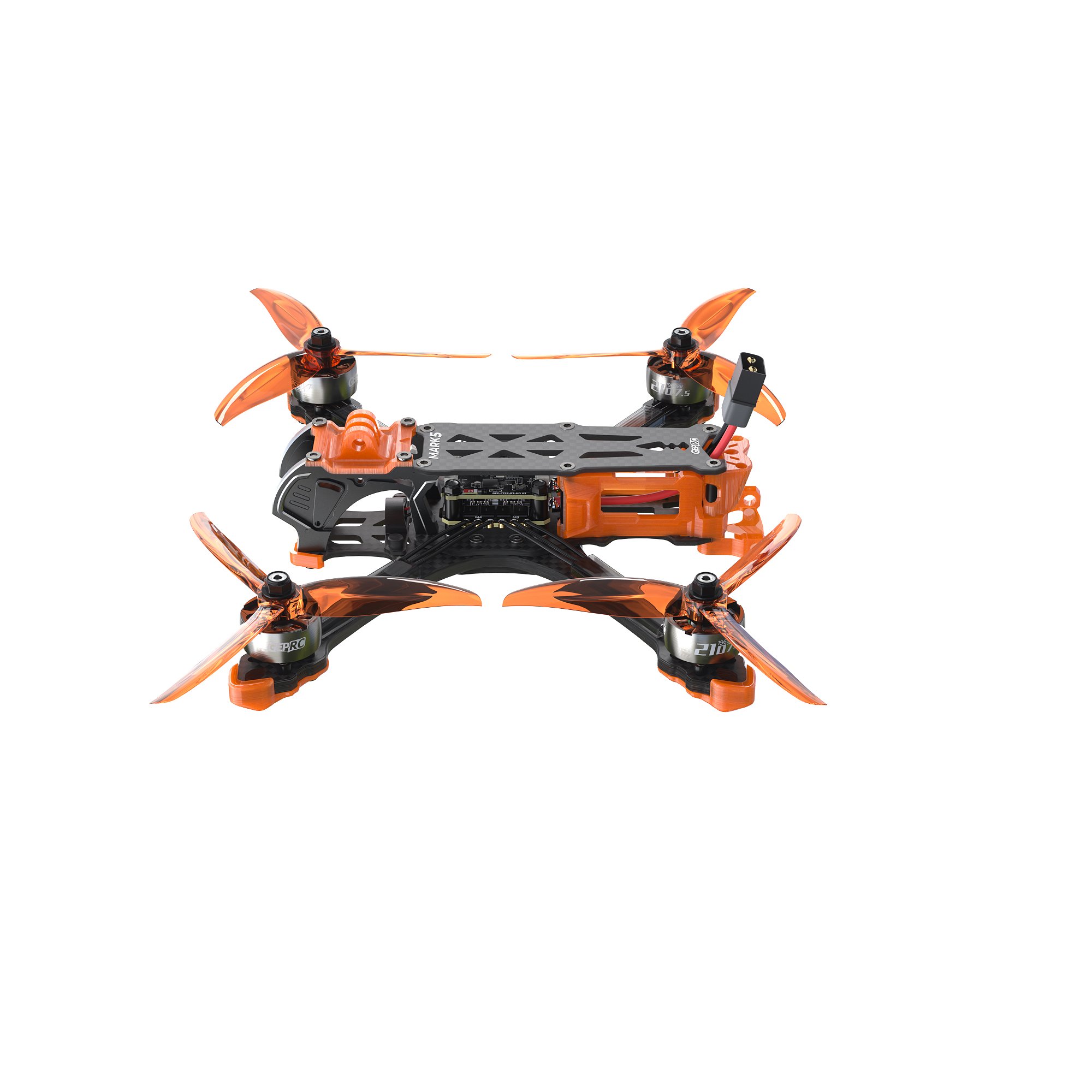

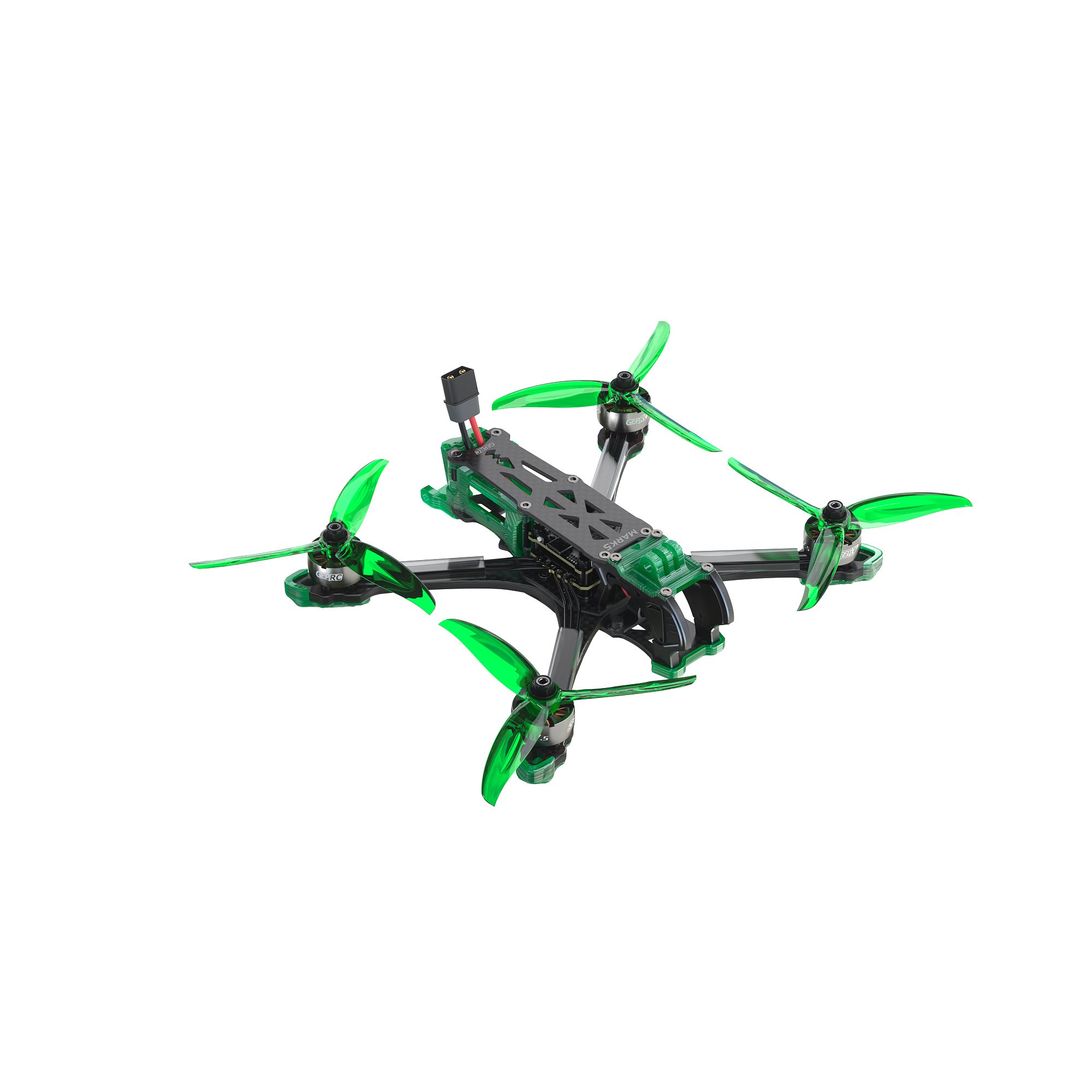

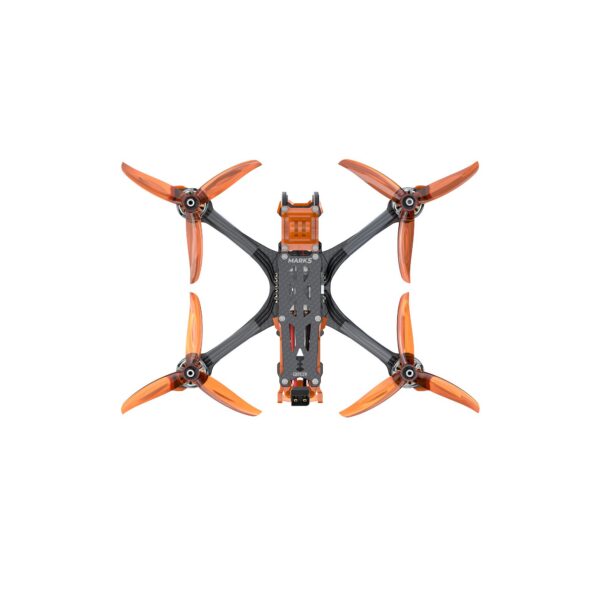

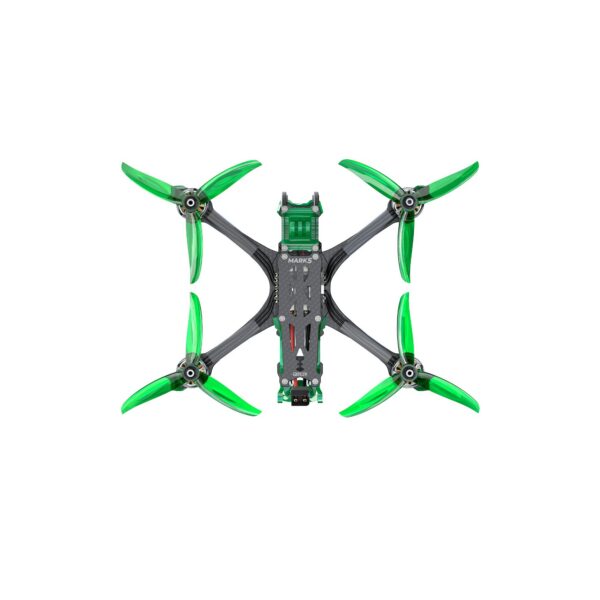

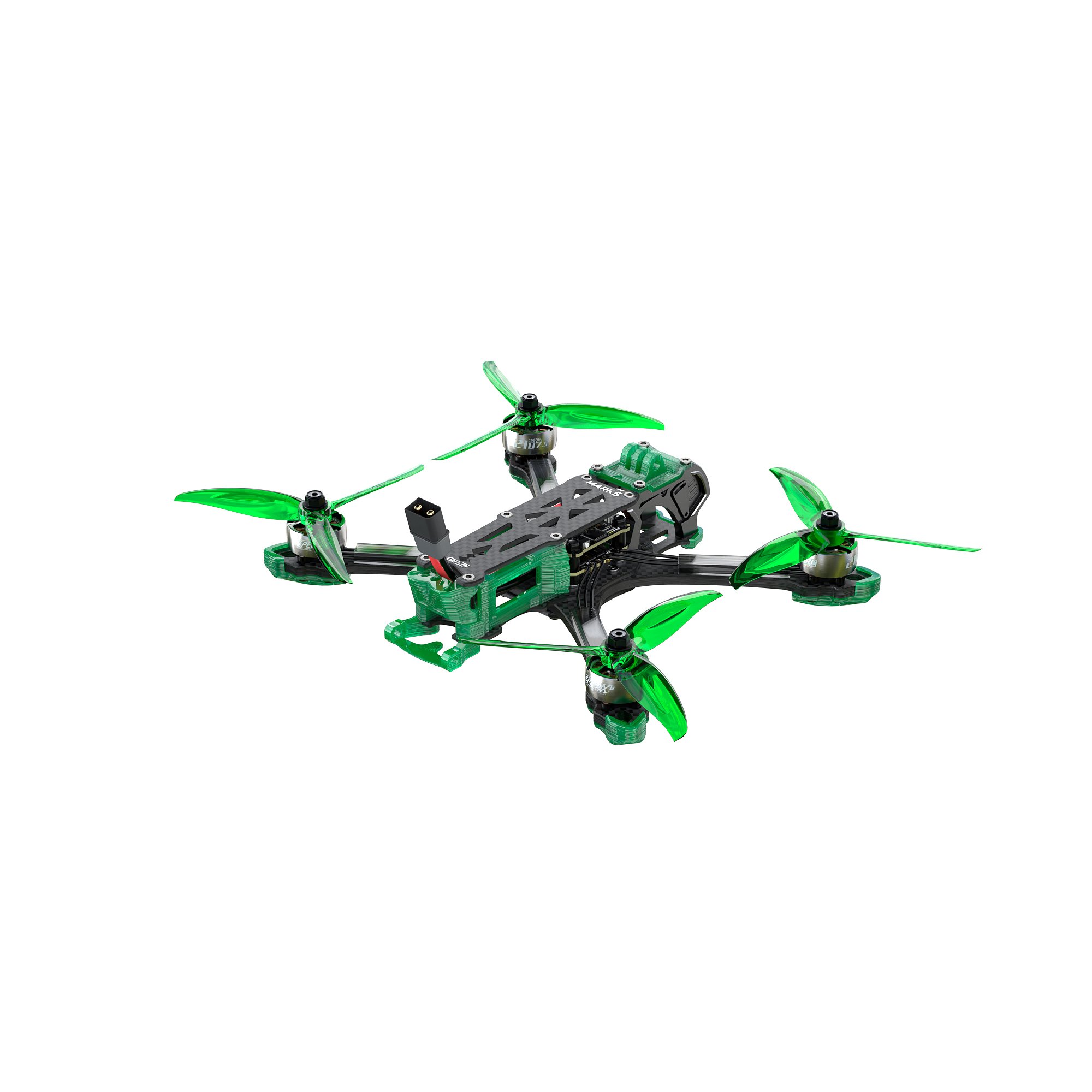

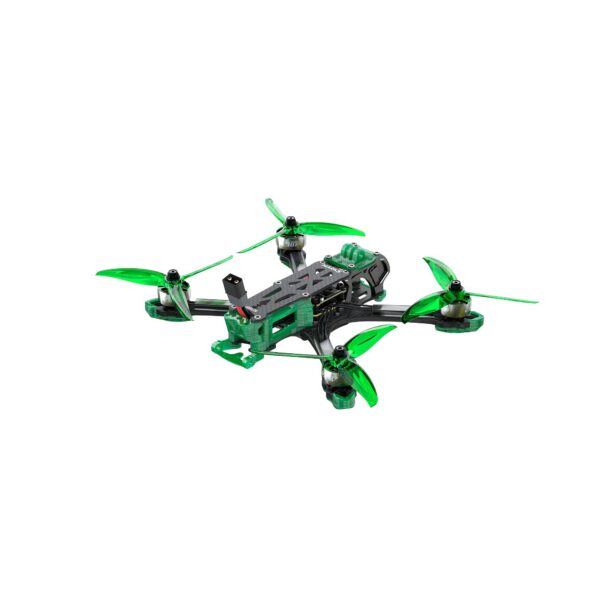

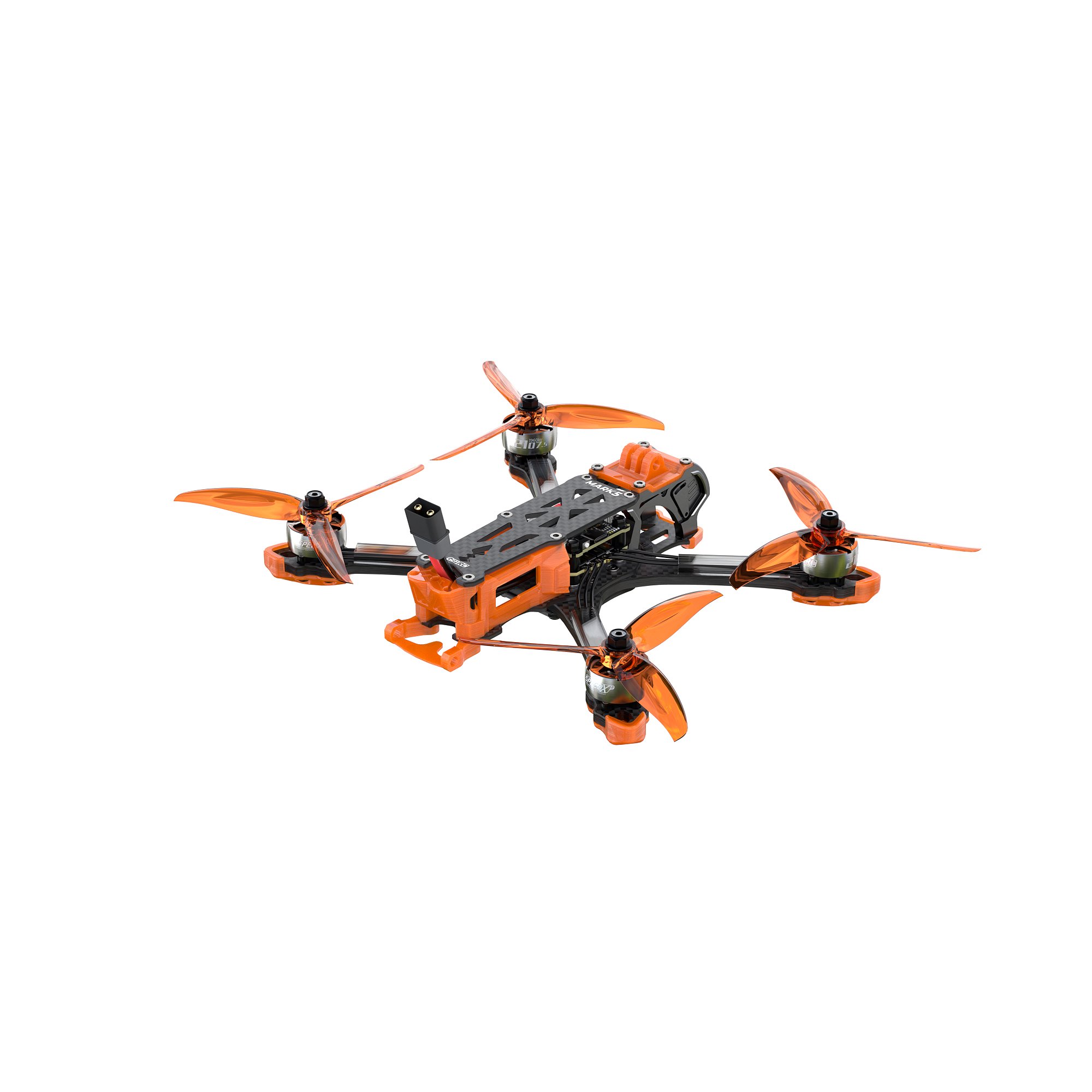

GEPRC MARK5 O4 Pro Wide X WTFPV Drone

Summary

The GEPRC MARK5 O4 series is expertly crafted for the DJI O4 Air Unit Pro VTX. Featuring a redesigned camera aluminum mount and custom shock-absorbing silicone, it significantly boosts compatibility and reduces vibrations.These upgrades ensure stable, smooth footage while effectively minimizing the impact of vibrations on the gyroscope during flight, resulting in a more stable and fluid flying experience.

Feature

1. Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.

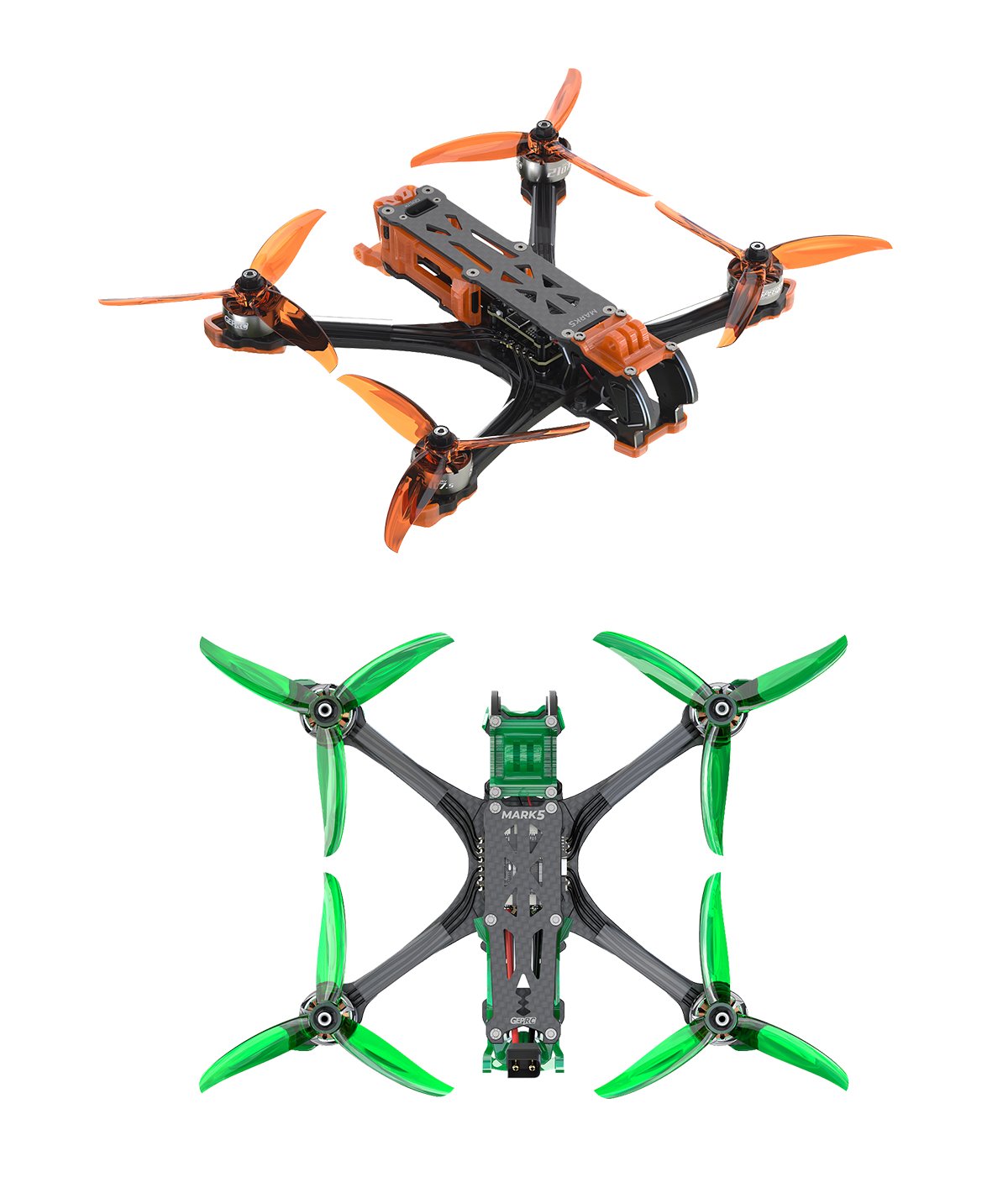

2. DC and wide X frames, fit for a variety of flying situations.

3. Two TPU camera mounts, compatible with all action cameras.

4. Quick-release arms with just two screws for easy swapping.

5. 3K carbon fiber frame that is lighter, stronger, and more durable.

6. Separate capacitor and buzzer compartment for stable, jitter-free operation.

7. Vibration-dampening frame for stable electronics performance.

Specfication

• Model: MARK5 O4 Pro Wide X WTFPV FPV
• Wheelbase: 225mm
• Weight: 380.6g ± 5g
• VTX: None
• Camera: None
• Antenna: None
• Motor: SPEEDX2 2107.5 1960KV
• Prop: Gemfan 5136
• FC: GEP-F722-BT-HD V3
• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• OSD: BetaFlight OSD w / AT7456E chip
• ESC: GEP-BL32 50A 96K 4IN1 ESC
• Power Connector: XT60
• Receiver: PNP / ELRS 2.4G / TBS NanoRX
• Recommended Battery: LiPo 6S 1050mAh-1550mAh

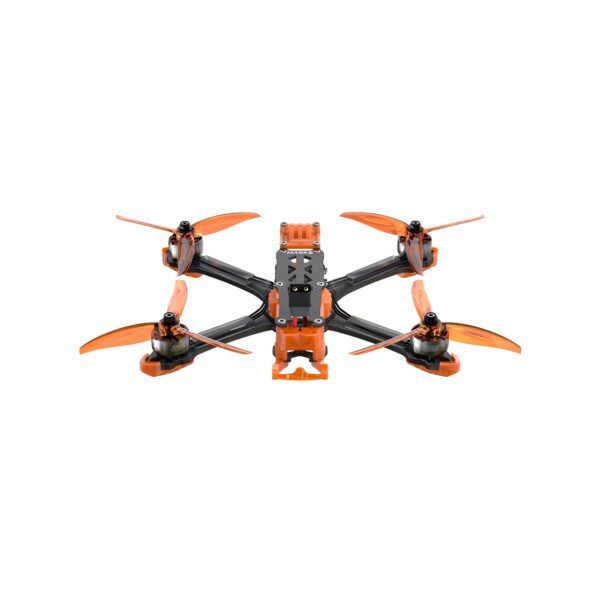

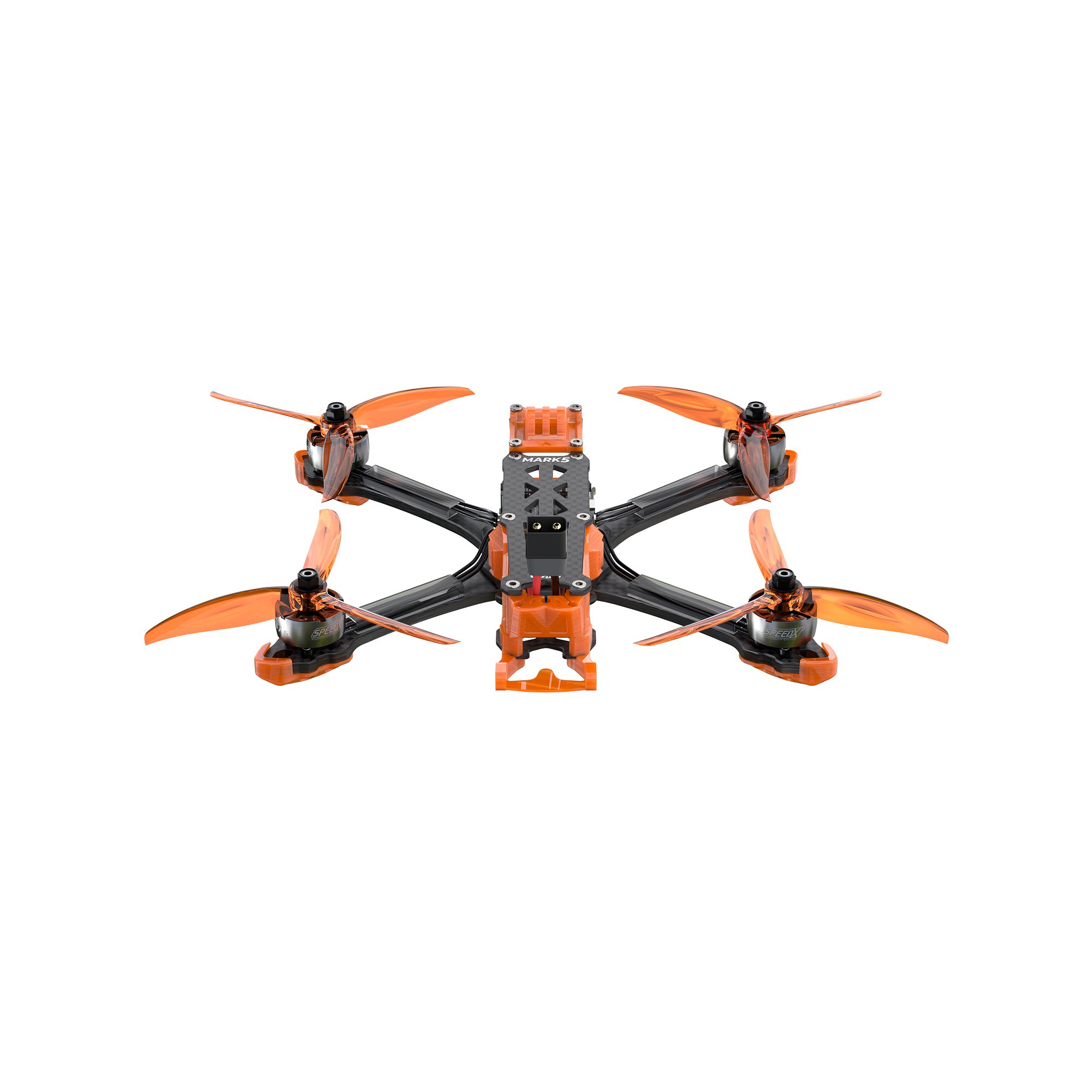

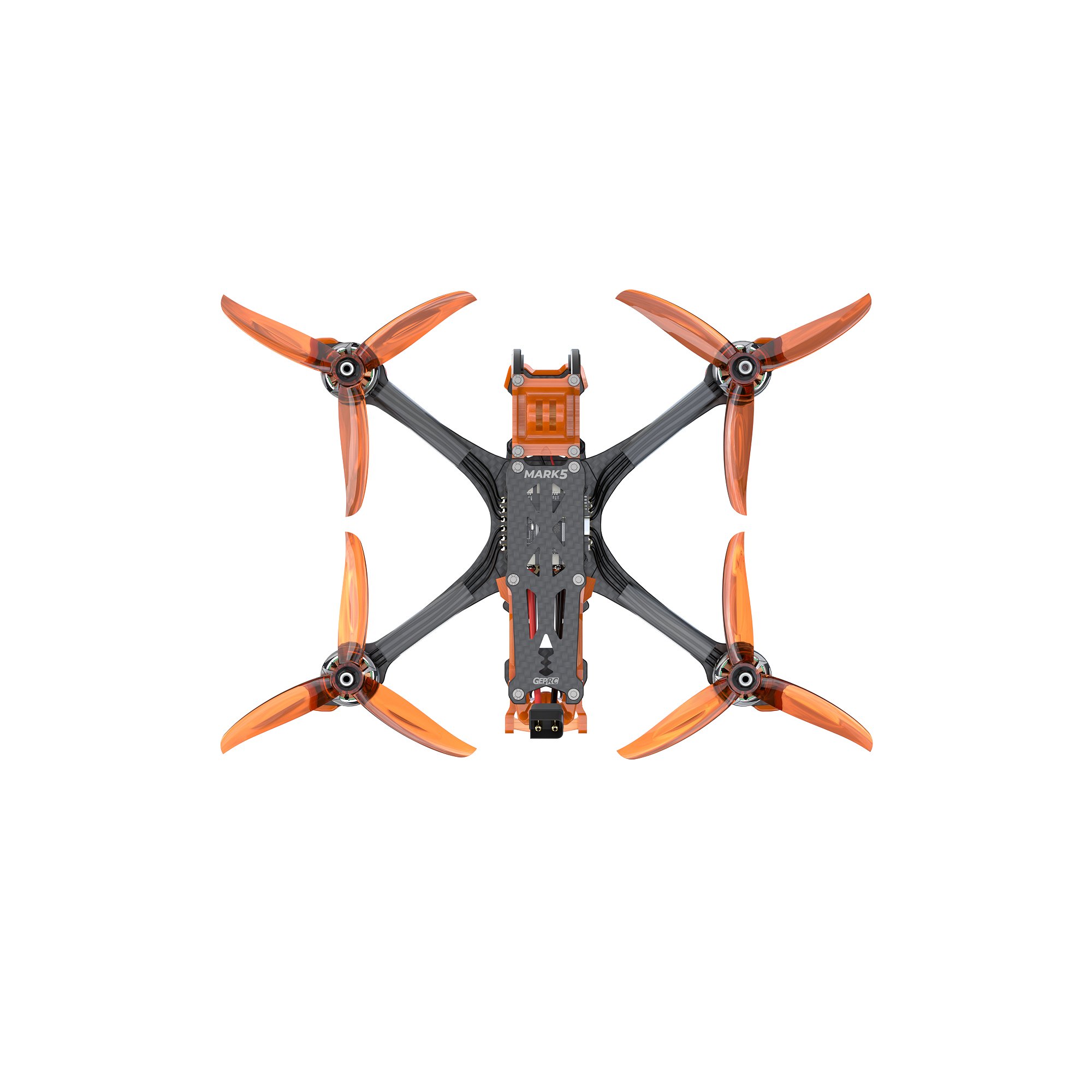

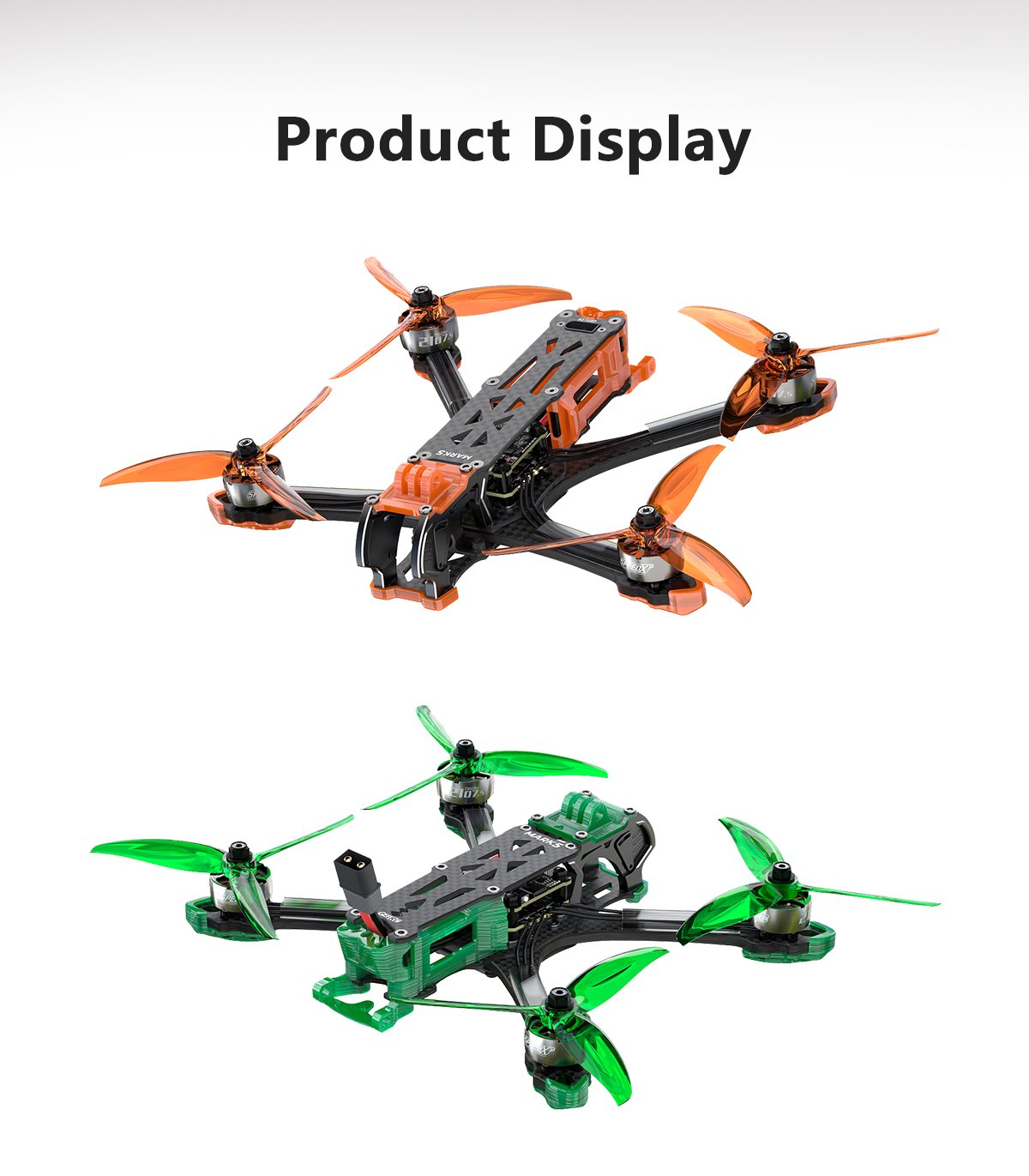

• Printouts Color: emerald green/coral orange

Include

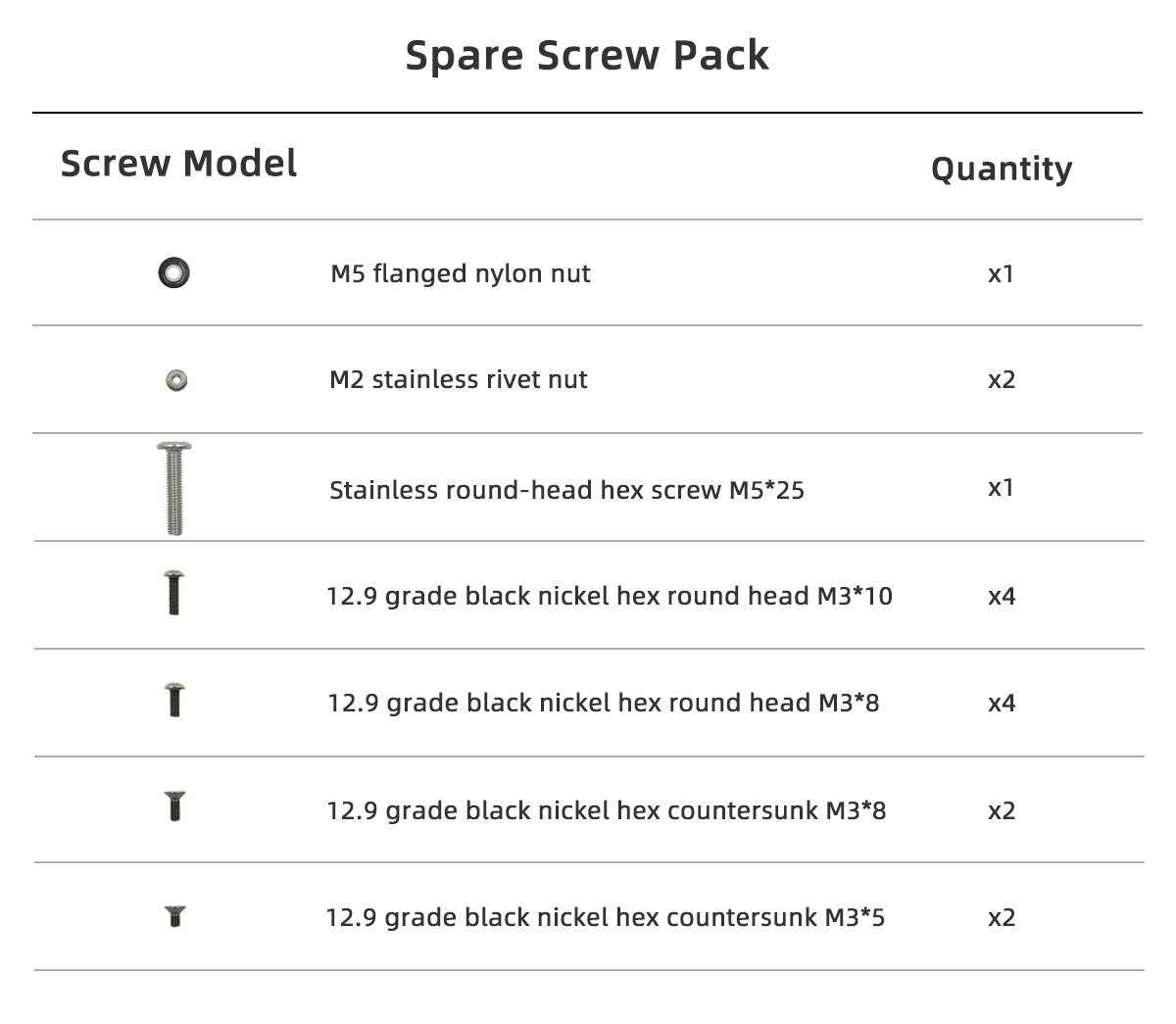

Spare Screws Include:
